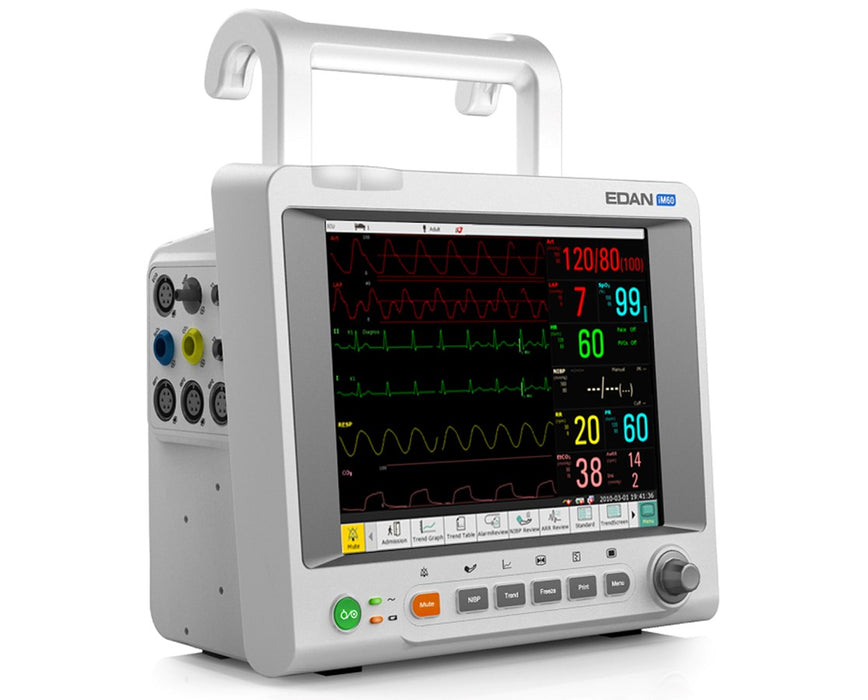

iM60 10.4" Vital Signs Patient Monitor

• PARAMETER: 3/5-lead ECG, RESP, NIBP, Edan SpO2, 2-TEMP, PR, HR
• OPTIONAL PARAMETER:  G2 O2
• 10.4" High-Resolution Color TFT Display
• 120-Hour Graphic and Tabular Trends
• Fan-Free Design for Noise and Dust Free Operation
• Compact, Multi-Parameter Transport Monitor
• Built-In Memory with SD Card Slot .

The Edan 10.4" Vital Signs Patient Monitor is a compact, high-performance solution for general, acute, and sub-acute care. Built with cutting-edge algorithms and intuitive design, it ensures accurate monitoring with maximum ease, comfort, and connectivity, whether at the bedside or in transport.

✔️ 10.4" Color Display | ✔️ Optional CO₂ Module | ✔️ LAN & WiFi Connectivity

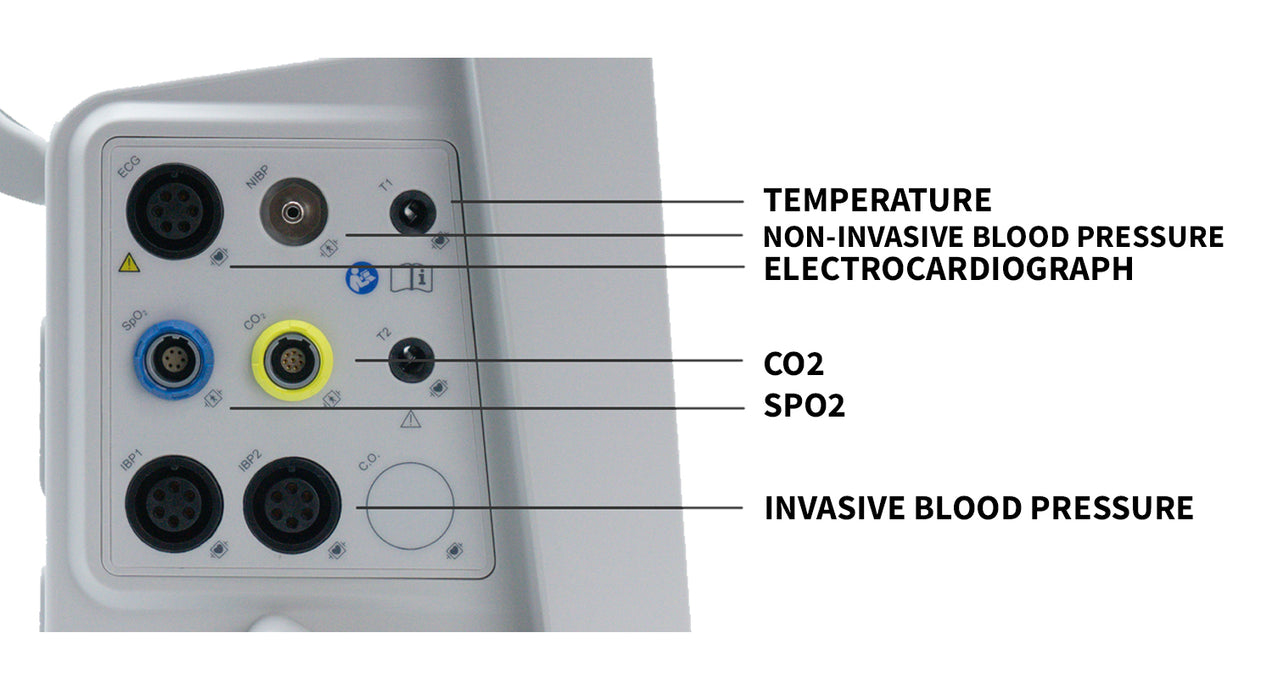

MULTI-PARAMETER MONITORING

ALL-IN-ONE VITALS: Tracks ECG, NIBP, SpO₂, RESP, 2-TEMP, PR, and HR with precision.

REAL-TIME ANALYSIS: Includes arrhythmia detection, S-T analysis, pacemaker detection, and OxyCRG.

G2 CO₂ READY: Optional sidestream CO₂ with iCARB algorithm for accurate ETCO₂ waveforms.

EXTENSIBLE DESIGN: Dual IBP slots, USB port, and open ports for future upgrades.

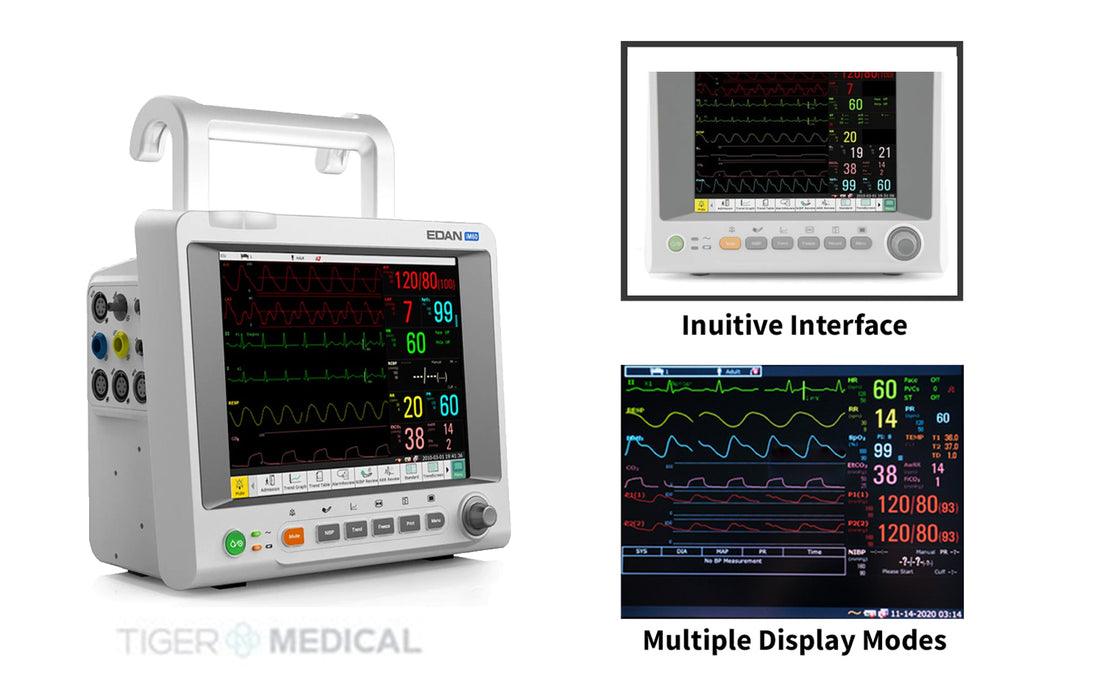

SMART DISPLAY, SMART DESIGN

VIVID SCREEN: 8.4" color TFT displays up to 11 waveforms with multiple display modes.

REVIEW & TRENDS: Access 120 hours of graphical/tabular trends and 120 seconds of frozen waveforms.

CUSTOM EXPERIENCE: Shortcut menus, night mode, and customizable alarms enhance workflow.

MOUNT YOUR WAY: Compatible with bedrail hooks, wall mounts, and rolling stands.

DESIGNED FOR TRANSPORT

BUILT-IN STORAGE: Internal memory stores 60 alarms and 1200 NIBP readings.

SD EXPANDABILITY: Add more storage via the SD card slot.

HL7 & LAN CONNECTION: Enables smooth data integration with hospital systems for efficient patient record management.

CENTRAL STATION READY: Bi-directional connection to Edan MFM-CMS system.

PORTABLE FORM: Lightweight and reliable for seamless bedside-to-transport transitions.

AVAILABLE OPTIONS

TOUCHSCREEN MONITOR

INTUITIVE INTERFACE: Optional touchscreen enables faster, more fluid operation during urgent care.

STREAMLINED WORKFLOW: Tap, swipe, and adjust parameters directly. No buttons required.

THERMAL PRINTER

BUILT-IN PRINTING: Instantly print waveforms, vitals, and trend data for quick documentation.

CLEAR OUTPUT: High-resolution thermal printouts ensure accurate bedside records.

G2 CO2

ADVANCED CAPNOGRAPHY: Optional sidestream CO₂ module with iCARB filters out pseudo waves.

LOW-FLOW READY: Ideal for adult, pediatric, or neonatal patients with a 50ml/min sampling rate.

BUILT-IN WIFI

SEAMLESS DATA TRANSFER: Enables wireless data transfer and integration with hospital systems for real-time monitoring and centralized record access.

ORDERING INFORMATION

The Edan 10.4" Vital Signs Patient Monitor has a 2-Year warranty and comes in various monitor configurations:

• Monitor Only (iM60)
• Monitor with Printer (iM60.P)
• Monitor with Touch Screen Only (iM60_Touch)
• Monitor with Touch Screen and Printer (iM60_Touch.P)
• Monitor with Touch Screen and Wi-Fi (iM60_Touch_WiFi)
• Monitor with Touch Screen, Wi-Fi, and Printer (iM60_Touch_WiFi.P)
• Monitor with Wi-Fi Only (iM60_WiFi)
• Monitor with Wi-Fi and Printer (iM60_WiFi.P)
• Monitor with G2 O2 Only (iM60-G2)
• Monitor with G2 O2 and Printer (iM60-G2.P)
• Monitor with G2 O2 and Touch Screen (iM60-G2_Touch)
• Monitor with G2 O2, Touch Screen and Printer (iM60-G2_Touch.P)
• Monitor with G2 O2, Touch Screen and Wi-Fi (iM60-G2_Touch_WiFi)
• Monitor with G2 O2, Touch Screen, Wi-Fi and Printer (iM60-G2_Touch_WiFi.P)
• Monitor with G2 O2 and Wi-Fi Only (iM60-G2_WiFi)
• Monitor with G2 O2, Wi-Fi and Printer (iM60-G2_WiFi.P)
