12-Channel ECG

Edan
by Edan
MFR#: SE-1202
TIGER#: TM165991
List Price: $4,794.00
You Save: $799.00 -17%
$4,794.00 - $4,794.00
List Price: $4,794.00
$3,995.00
$3,995.00 - $3,995.00
$3,995.00
Add to cart for Lower Price
12-Channel ECG
12-Channel ECG - $3,995.00
$3,995.00
*Must Purchase 1 for 12-Channel ECG

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days
Documents
Manual Brochure
  • 12-Lead ECG with CardiSync 18 Calculated Analysis
  • 10.1" Foldable Touch Screen with Living Hinge Design
  • Glass-Covered Surface for Fast, Easy Disinfection
  • ST-MAP and ST-View for Intuitive MI Localization
  • Internal Storage for Up to 1,000 ECGs
  • HL7/DICOM Connectivity with Optional 4G Network .

The Edan SE-1202 Electrocardiograph is a 12-channel, next-generation ECG workstation built for advanced cardiac practice, delivering paperless on-screen diagnosis and seamless hospital system connectivity. Its glass-covered, waterproof surface and foldable touchscreen design make it as easy to disinfect as it is to operate.

✔ Easy-to-Disinfect Glass Surface | ✔ CardiSync 18-Lead Analysis | ✔ HL7/DICOM Connectivity


MORE DIAGNOSTIC CONFIDENCE, LESS GUESSWORK

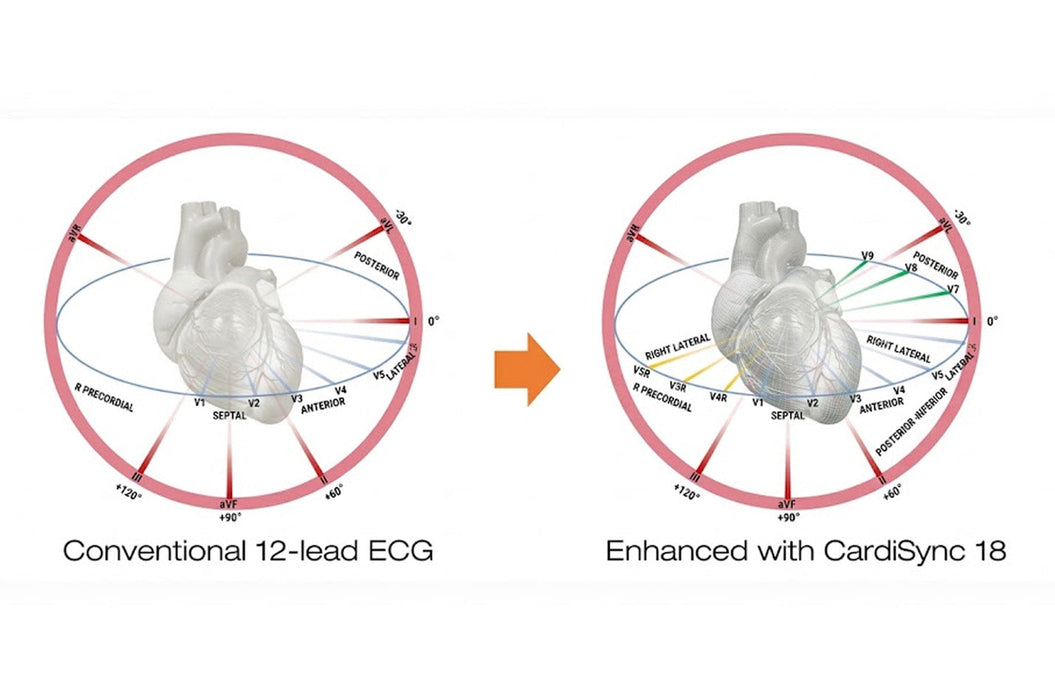

CARDISYNC 18: Delivers an 18-lead ECG analysis from just 10 standard electrodes, no extra setup needed.

ST-MAP & ST-VIEW: Displays ST-segment changes visually, helping pinpoint the exact location of a heart attack.

AUTO ARRHYTHMIA DETECTION: Automatically flags and saves arrhythmia segments for closer review.

LONG-TIME SAMPLING: Records up to 1,800 seconds per session for pre- and post-treatment evaluation.



CONNECTED, PAPERLESS WORKFLOW

ON-SCREEN DIAGNOSIS: Full paperless workflow. Measure, edit, and compare reports directly on the 10.1" display.

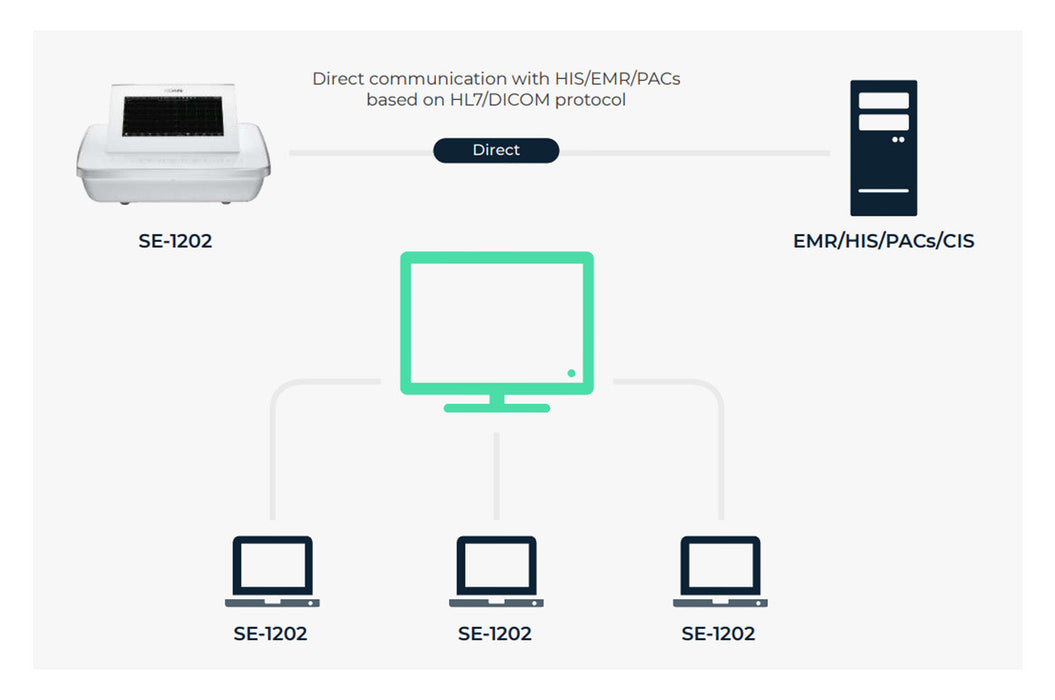

HL7/DICOM CONNECTIVITY: Connects directly to HIS/EMR/PACs systems without third-party software.

4G-READY: Built-in 4G network support keeps the device connected wherever it's needed.

1,000-ECG STORAGE: Internal memory holds up to 1,000 ECG records for quick recall.



BUILT FOR INFECTION CONTROL

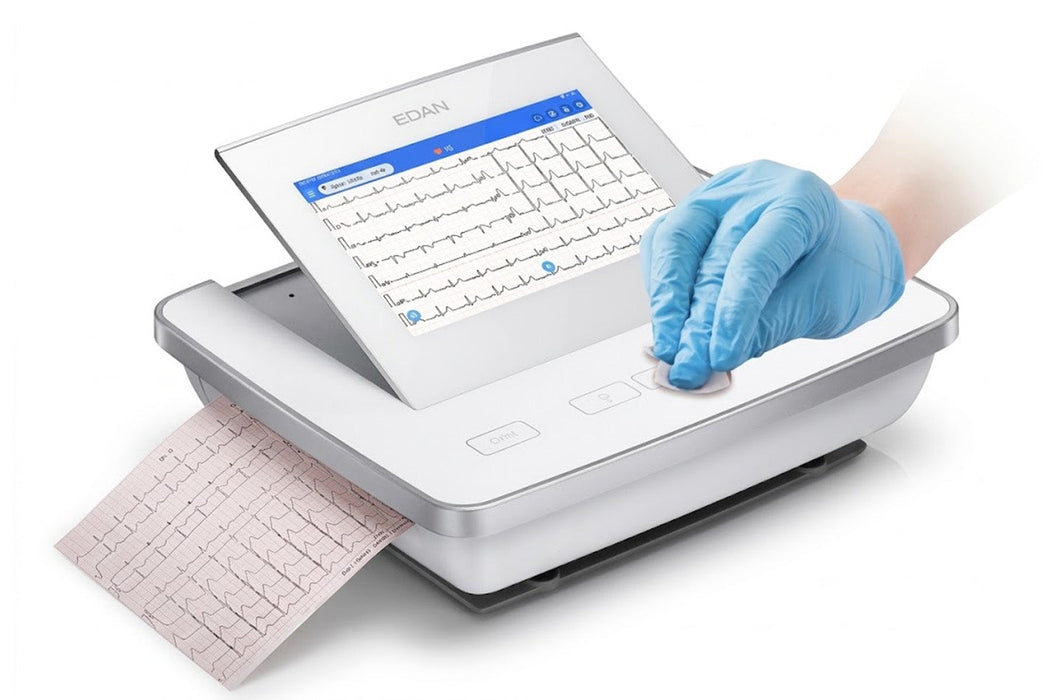

SEALED GLASS SURFACE: Smooth, glass-covered housing wipes clean fast, reducing cross-infection risk between patients.

WATERPROOF KEYS: Capacitive keys with breathing lights withstand disinfectant wipe-downs without wear.

FOLDABLE SCREEN: Living hinge design tucks away for storage and adjusts for a comfortable viewing angle.


Built with hospital-grade durability and smart connectivity, the Edan SE-1202 ECG is a long-term investment in faster, cleaner, and more confident cardiac diagnostics.


Warning WARNING: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

  • 12-Lead ECG with CardiSync 18 Calculated Analysis
  • 10.1" Foldable Touch Screen with Living Hinge Design
  • Glass-Covered Surface for Fast, Easy Disinfection
  • ST-MAP and ST-View for Intuitive MI Localization
  • Internal Storage for Up to 1,000 ECGs
  • HL7/DICOM Connectivity with Optional 4G Network

What’s in the Box

  • Edan12-Channel ECG
  • ECG Cable (4mm, Banana Connector, AHA)
  • Adult Resting Tab Electrodes
  • 10-Lead Universal Clips
  • Recording Paper (210mm x 295mm x 100P)
  • Fuse
  • Power Cord (USA Standard)
  • Fixed Bar for Battery
  • Rechargeable Lithium Battery (2500mAh)
  • User Manual
  • 2-Year Warranty for the Main Unit
  • 1-Year Warranty for Accessories

WARRANTY: 2 years on main unit, 1 year on accessories

RETURNS: This is Product is not eligible for return. We take the responsibility to make sure it arrives in brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Display
Display Type
10.1" capacitive touch screen, 1280×800 multicolor LCD; flips 25° clockwise (foldable, living hinge design)
Measurement
Frequency Range
0.01 Hz ~ 350 Hz (-3 dB)
Sampling Rate
64,000 Hz per channel (ECG); 80,000 Hz for pacemaker detection (rhythm lead)
Memory
Memory Capacity
1,000 ECGs
Filters
Details
AC: Off/50 Hz/60 Hz; DFT: 0.01/0.05/0.32/0.67 Hz; EMG: Off/25/35/45 Hz; Low-pass: 350/300/270/150/100/75 Hz
Power Supply
Power Supply Type
Mains AC, 100–240V~, 50/60 Hz, 0.9–0.4A input; internal rechargeable Li-ion battery (14.8V, 2,500 mAh or 5,000 mAh)
Battery Life
2,500 mAh: ≥4 hrs normal use, ≥250 auto-mode ECGs (3×4+1R), or ≥2 hrs continuous manual printing. 5,000 mAh: ≥8 hrs, ≥500 ECGs, or ≥4 hrs. Tested fully charged at 23°C ±3°C. Full recharge takes 3 hrs (2,500 mAh) or 6 hrs (5,000 mAh)
Environmental
Safe Operating Temperature
5°C to +40°C (+41°F to +104°F)
Safe Storage Temperature
-20°C to +55°C (-4°F to +131°F)
Operating Humidity
15%–95% RH, non-condensing
Storage Humidity
15%–95% RH, non-condensing
Weight & Dimensions
Dimensions
400 × 360 × 90 mm (15.75 × 14.17 × 3.54 in), ±2 mm
Weight
≤6.5 kg (14.3 lbs) excluding recorder paper and battery, ±0.3 kg
Connectivity
PC Compatible?

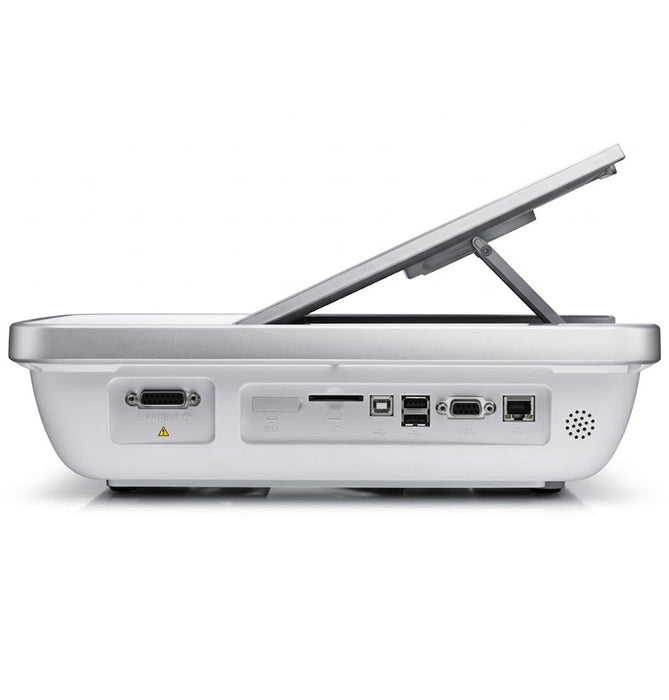

Yes. Sends ECGs to a PC via Ethernet, Wi-Fi (option), or 4G (option), and connects via USB. Works with the SE-1515 Data Management System (bidirectional).
Printer?
Yes. Built-in thermal dot-matrix recorder, plus external HP printer support (HP 1510, 1020P, 1112, 2132, DeskJet 4729, DeskJet 3638, M401, LaserJet P2035, 1010, LaserJet Pro M403D, LaserJet Pro M202DW).
EMR Compatible?
Yes. Connects directly to HIS/EMR/PACS via DICOM Worklist, DICOM Storage, HL7, and GDT, with no third-party software.
Warranty
Info
2 years on main unit, 1 year on accessories
Country of Origin
Made In
Not specified
Certifications
Standards
IEC 60601-1:2005/A1:2012; EN 60601-1:2006/A1:2013; IEC 60601-1-2:2014; EN 60601-1-2:2015; IEC/EN 60601-2-25; CE marked (0123). Class I, CF type, defibrillation-proof.
Software
Monitoring formats
DAT, PDF, JPG, BMP, TIFF, SCP, FDA-XML, DICOM ECG Waveform, DICOM Encapsulated PDF
Print formats
12-lead layouts: 12×1, 3×4, 3×4+1R, 3×4+3R, 6×2, 6×2+1R. Paper: folded thermal 210×295 mm × 100 pages, 215×280 mm × 100 pages, or 210×295 mm × 200 pages (optional); effective width 210 mm.
Print speeds
5, 6.25, 10, 12.5, 25, 50 mm/s (±3%)
