4 Post Double Entry Add-On Shelving 64-1/4” High, 4 to 6 Tiers

by Datum
MFR#: 642424-A4
TIGER#: TM15174
Original price List Price: $488.00
You Save: $218.38 -45%
Original price $488.00 - Original price $488.00
Original price List Price: $488.00
Current price $269.62
$269.62 - $269.62
Current price $269.62
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
4 Post Double Entry Add-On Shelving 64-1/4” High, 4 to 6 Tiers
4 Post Double Entry Add-On Shelving 64-1/4” High, 4 to 6 Tiers - $269.62
$269.62
*Must Purchase 1 for 4 Post Double Entry Add-On Shelving 64-1/4” High, 4 to 6 Tiers

The cart will thereforce automatically set Qty to 1 when you order this product

PAINT COLOR

See all Shelving Options HERE

Ships Out Within: 20 - 30 Business Days Shipping Date By: 5/24/2024

The uniquely customizable Datum 4Post™ filing system offers maximum efficiency and flexibility, with customization and expansion options to handle the medical filing needs of virtually any medical facility.

Configurable and Versatile: The versatile 4Post™ provides organized storage of items of any size or weight while keeping them easily accessible. Its configurable modular design allows you to "grow as you go" - begin with the Starter unit, then select Add-On units to accommodate your facility's storage requirements as needed. This flexible shelving system is easy to install and works well with TrakSlider and MobileTrak moving shelving systems. With pre-punched tops and single rivet bottom shelf supports, it easily attaches to these mobile systems without the need to drill additional holes.

Durable: The shelves are made of 22 gauge cold-rolled steel with a 3/4" flange on all sides for additional support. The units are powder-coated for a durable, corrosion-resistant finish.

To see all SHELVING OPTION SPECIFICATIONS - Scroll down to end of overview

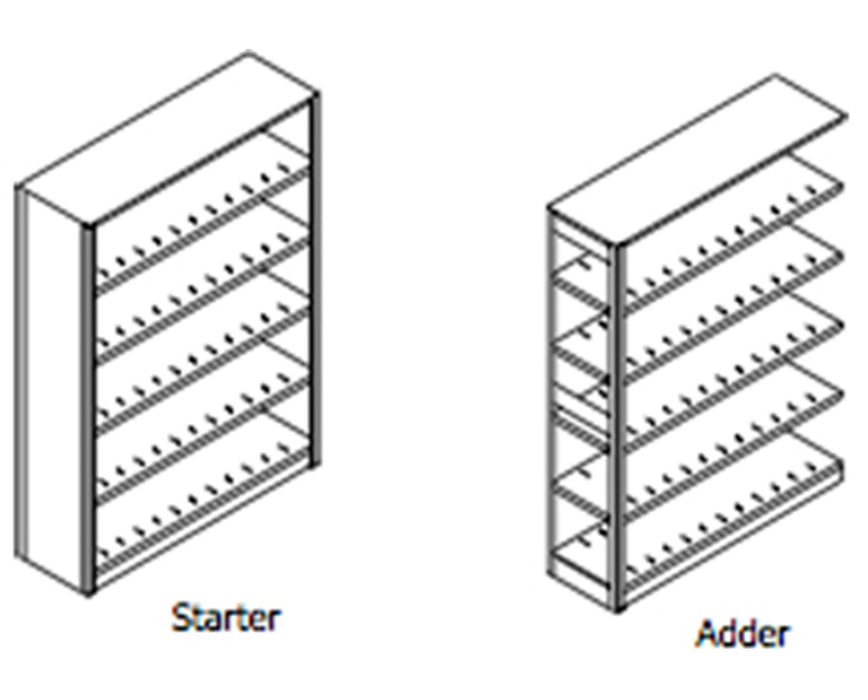

Model: This model has a height of 64-1/4” and a capacity for 4-6 tiers. It is a Double Entry Add-On Unit. Double Entry - there is access to the files on both sides of the unit, as opposed to one sides (Single Entry units are available for purchase separately). It has a double-depth for back-to-back storage, with additional shelf reinforcements. This doubles the storage capacity of the unit. Add-On Unit - it is designed to be added onto a Starter Unit (purchased separately).

The open “L” upright side post is typically used for row ends (for starter units), while Open “T” upright posts are used as a common upright between shelf units (add-on units). All uprights include a pair of pre-punched holes every 6" on the center, allowing a visual confirmation for correct shelf spacing. Shelves are placed on a 13" high base center.

Please note: Dividers are not included with this product. You may purchase them separately from the Related Products tab above.

Customize Your Shelving System

The 4-Post Add-On Filing System comes with several customizable options in order to provide you with the perfect product that fits your specific needs. Select your preferences from the options shown above. Contact us for assistance with the many available customization options.

Select Media Type
You can choose between two depth options, corresponding to two media types; Letter or Legal.
  • Letter Size - 24" Depth
  • Legal Size - 30" Depth
Select Unit Width
There are five overall unit widths to choose from:
  • 24" Wide
  • 30" Wide
  • 36" Wide
  • 42" Wide
  • 48" Wide
Select Openings
You can purchase a 4, 5, or 6 tiered unit.
  • 4 Openings
  • 5 Openings
  • 6 Openings

Choose your customizable preferences from the options shown above.

(1) Prepunched Tops
Prepunched tops and single rivet bottom shelf supports ensure easy installation to Datum's TrakSlider and MobileTrak storage systems without the need to drill additional holes.

(2) Uprights
Datum’s interlocking keyhole uprights are available in seven standard heights and custom heights to meet your exact requirements.

(3) Customization
A plethora of accessories available to customize your 4Post. Add magazine doors, drawers, ball and golf bag storage to help you fit any need.

(4) Shelving
Accommodate a variety of documents and media from letter and legal files to athletic equipment to binders and boxes.

(5) Shelf Supports
Shelves are seated on two (2) heavy-duty double rivet shelf supports ensuring maximum support and distribution of weight. Optional shelf reinforcements are available to hold more weight per shelf.

(6) Dividers
Adjustable on 2" centers ensuring documents remain secure, organized and easily accessible.

(7) Customizable
Available for different industries and eight standard colors.

4 Post Add-On Shelving 64-1/4” High, 4 to 6 Tiers - Shelving Options Chart
Item # Media Depth Width Openings Reinforcements Shelf Height
642424-A4 Letter 24" 24" 4 1 per Shelf 12-3/4"
642424-A5 5 1 per Shelf 11-1/4"
642424-A6M 6 1 per Shelf 9-3/4"
642430-A4 30" 4 1 per Shelf 12-3/4"
642430-A5 5 1 per Shelf 11-1/4"
642430-A6M 6 1 per Shelf 9-3/4"
642436-A4 36" 4 1 per Shelf 12-3/4"
642436-A5 5 1 per Shelf 11-1/4"
642436-A6M 6 1 per Shelf 9-3/4"
642442-A4 42" 4 2 per Shelf 12-3/4"
642442-A5 5 2 per Shelf 11-1/4"
642442-A6M 6 2 per Shelf 9-3/4"
642448-A4 48" 4 2 per Shelf 12-3/4"
642488-A5 5 2 per Shelf 11-1/4"
642448-A6M 6 2 per Shelf 9-3/4"
643024-A4 Legal 30" 24" 4 2 per Shelf 12-3/4"
643024-A5 5 2 per Shelf 11-1/4"
643024-A6M 6 2 per Shelf 9-3/4"
643030-A4 30" 4 2 per Shelf 12-3/4"
643030-A5 5 2 per Shelf 11-1/4"
643030-A6M 6 2 per Shelf 9-3/4"
643036-A4 36" 4 2 per Shelf 12-3/4"
643036-A5 5 2 per Shelf 11-1/4"
643036-A6M 6 2 per Shelf 9-3/4"
643042-A4 42" 4 2 per Shelf 12-3/4"
643042-A5 5 2 per Shelf 11-1/4"
643042-A6M 6 2 per Shelf 9-3/4"
643048-A4 48" 4 2 per Shelf 12-3/4"
643048-A5 5 2 per Shelf 11-1/4"
643048-A6M 6 2 per Shelf 9-3/4"

Warning WARNING: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Double Entry Add-On Unit
64-1/4" height with 4-6 tiers
Configurable design allows for adding on units horizontally
Simple installation
Durable cold-rolled steel with a 3/4" flange on sides
Available Options
Media Type: Letter or Legal
Unit Width: 24", 30", 36", 42" or 48"
Openings: 4, 5 or 6 Tiers

What’s in the Box

  • 4 Post Double Entry Add-On Shelving 64-1/4” High, 4 to 6 Tiers
  • Top shelf
  • Shelf supports
  • Shelf reinforcements
  • Lifetime Warranty
  • 2 Year Labor Warranty

Returns: Tiger Medical offers a 30-day return policy from date of shipment for this product, subject to a 20% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

Order Cancellations will incur a 15% Fee including any labor/ materials charges, if the product has begun production.

For complete details of our return policy and process, please refer to our general return policy page.

Cancellations: Items made to order, cannot be returned or canceled after production.

"
Capacity
File Size Compatibility
Letter or Legal
Number of Shelves
4, 5 or 6
Construction & Features
Assembly Required?
Yes
Dividers Adjustable?
Yes
Expandable?
Yes
Shelves Adjustable?
Yes
Tambour Door Ready?
Yes
Track System Compatible?
Yes
Country of Origin
Product made in:
USA
Dimensions & Weight
Depth
Letter: 24" / Legal: 30"
Height
64-1/4"
Product Weight
73 - 207 lbs.
Width
24", 30", 36", 42", 48"
Material(s)
Color(s)
20 Color Options
Divider Material
Steel
Finish
Powder-coat
Shelf Material
Steel
Unit Material
Steel
Warranty
Lifetime Warranty / 2 Year Labor Warranty
