Acclarix AX8 Diagnostic Ultrasound

Name: Acclarix AX8 Diagnostic Ultrasound
Brand: MDPro / Edan Corp.
SKU: EDAAX8-N-MAINUNIT
Price: 16995.0 USD
Availability: InStock

by Edan

MFR#: AX8-N_mainunit

TIGER#: TM165987

List Price: $22,995^.00

You Save: $6,000^.00 -26%

$22,995^.00 - $22,995^.00

List Price: $22,995^.00

$16,995^.00

$16,995^.00 - $16,995^.00

$16,995^.00

Add to cart for Lower Price

Acclarix AX8 Diagnostic Ultrasound - $16,995^.00

$16,995^.00

*Must Purchase 1 for Acclarix AX8 Diagnostic Ultrasound

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days

Documents

Manual Brochure Product Video

128-Channel Platform for Exceptional Image Processing
Dual Touch Screens with Gesture-Control Interface
Tilt-and-Swivel 15" HD Monitor for Optimal Viewing
TAI, eSRI, and Harmonic Imaging for Superior Clarity
SynSight Zone Sonography for Fast, Optimized Imaging
Portable Design with Removable Battery for Point-of-Care Use .

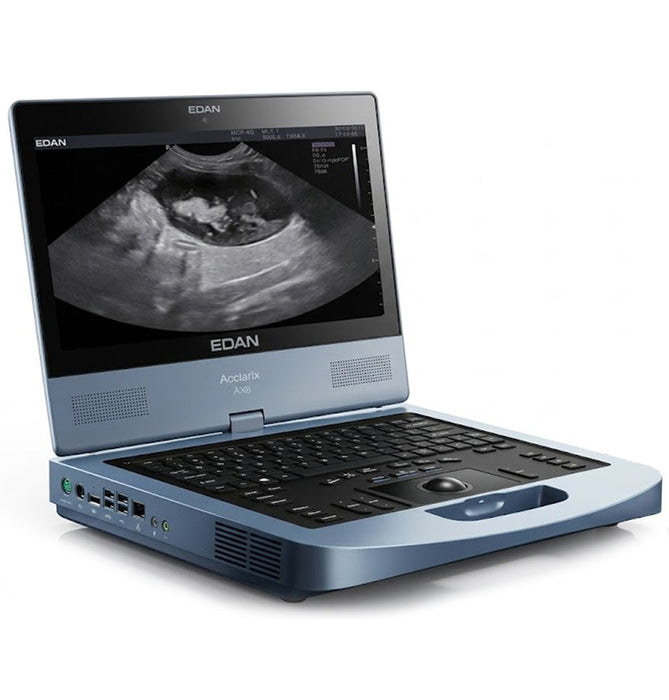

The Edan Acclarix AX8-N is a fully portable, premium-performance ultrasound platform built for point-of-care and critical care imaging, powered by a 128-channel architecture and Edan's SynSight zone sonography technology.

✔ 128-Channel Imaging Platform | ✔ Dual Touch-Screen Control | ✔ Portable, Battery-Powered Design

DISTINCTIVE DESIGN, EFFORTLESS CONTROL

15" HD MONITOR: Tilt-and-swivel display for optimal viewing from any angle during procedures.

DUAL TOUCH SCREENS: A 10" gesture-control screen plus a 5" virtual trackball screen streamline every exam.

SEALED CONTROL PANEL: Fully sealed hard-key panel resists contamination and simplifies disinfection.

QUICK BATTERY CHECK: Touch sensors let you check battery level at a glance from two spots on the unit.

GO-ANYWHERE PORTABILITY: A removable lithium-ion battery delivers about 75 minutes of typical exam use, so the system moves wherever care is needed.

IMAGING YOU CAN TRUST

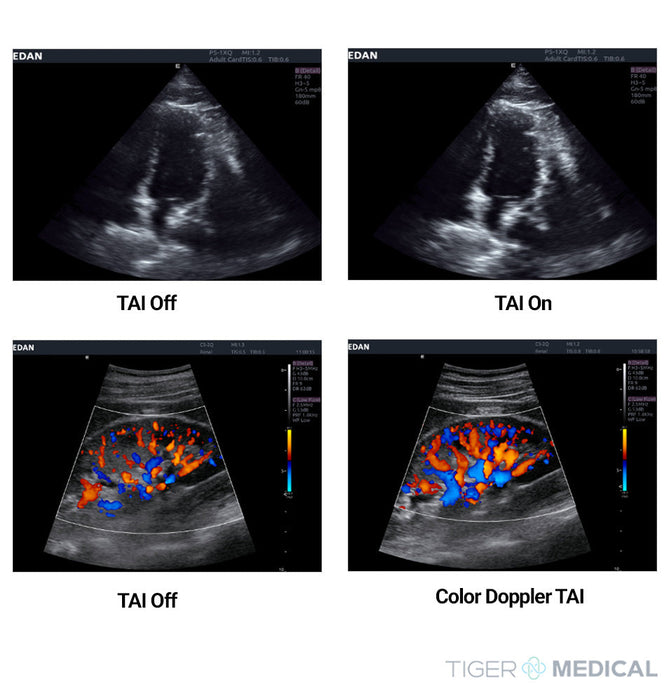

TAI (TISSUE ADAPTIVE IMAGING): Automatically adjusts to tissue type in real time, sharpening detail without manual tweaking.

ESRI SPECKLE REDUCTION: Filters out noise while preserving true anatomical detail for a cleaner image.

HARMONIC & SPATIAL COMPOUND IMAGING: Enhances contrast and reduces clutter for clearer tissue boundaries.

NEEDLE VISUALIZATION: Improves needle identification, even at steep insertion angles, for safer guided procedures.

SYNSIGHT ZONE SONOGRAPHY: Processes more image data per cycle for consistently sharp, optimized results.

BUILT FOR CRITICAL CARE SPEED

AUTO CARDIAC TOOLS: Auto EF, Auto CO, and Auto IVC deliver fast, automated cardiac function readings.

AUTO B-LINE & LIVE VF: Rapid, noninvasive lung and vascular assessments when every second counts.

EWORKS PROTOCOLS: Built-in protocols like eFAST support quick, guided emergency evaluations.

SMART CONNECTIVITY: DICOM, Ethernet, and multiple USB ports make sharing and storing exams simple.

500 GB ONBOARD STORAGE: Ample built-in storage keeps exam data on hand without extra hardware.

Built to grow with your practice's imaging needs, the Edan Acclarix AX8-N Diagnostic Ultrasound Systemdelivers dependable, high-performance ultrasound for years of reliable clinical use.

WARNING: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

128-Channel Platform for Exceptional Image Processing
Dual Touch Screens with Gesture-Control Interface
Tilt-and-Swivel 15" HD Monitor for Optimal Viewing
TAI, eSRI, and Harmonic Imaging for Superior Clarity
SynSight Zone Sonography for Fast, Optimized Imaging
Portable Design with Removable Battery for Point-of-Care Use

What’s in the Box

Edan Acclarix AX8 Main Unit
1 Rechargeable lithium Battery
1 UPS Battery
1 AC Adapter
1 Bottle of Coupling Gel
1 Basic User Manual
1 Advanced User Manual
2-Year Manufacturer's Warranty

WARRANTY: 2 years

RETURNS: This is Product is not eligible for return. We take the responsibility to make sure it arrives in brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Features

Configuration

Compact, portable ultrasound main unit; 15.6" LCD monitor, control panel with hard keys, 10.1" touch screen, 5.0" touch pad

Applications

Abdomen, Gynecology, Obstetrics, Cardiology, Small Parts, Urology, Musculoskeletal, Vascular, Neurology; Intra-operation, Pediatric, Neonatal

Transducer Frequency

System frequency range: 1–19 MHz (-20dB); varies by transducer (1–19 MHz across convex, linear, phased, endocavity, micro-convex, and wobbler probes)

Transducer Connector

1 active port (3 active ports with optional MTC – Multiple Transducer Connector); 1 inactive pencil probe port

Display

15.6" high-resolution LCD, 1920 x 1080 resolution; tilt 0°–120°, swivel ±60°; built-in stereo speakers; adjustable brightness/contrast

Peripheral Ports

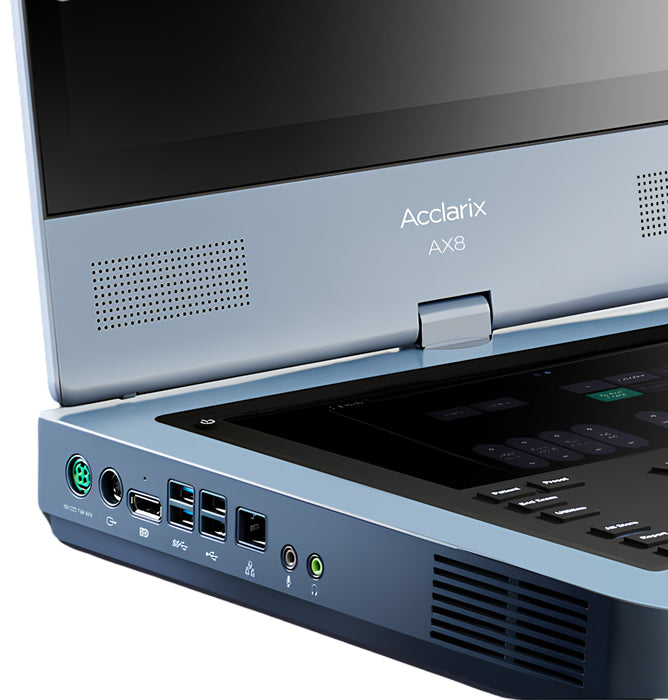

4 USB ports (2x USB 2.0, 2x USB 3.0); Display Port; S-Video (PAL/NTSC); Ethernet; ECG port (inactive); external DVD-R/RW; Wi-Fi (subject to regulatory approval)

Weight & Dimensions

Dimensions

7.7 cm H x 38.8 cm W x 40.7 cm D

Weight

8.20 kg (main unit, without monitor glass) to 9.25 kg (with battery and monitor glass)

Power

Power Supply

110–240 VAC, 50/60 Hz

Battery Duration And Type

Rechargeable lithium-ion battery, 6150mAh, removable; ~75 minutes typical exam use; full recharge in 2.5 hours; 5-level battery indicator

Functions

Cine Loop

Frame-by-frame manual review; auto playback at 8 speeds; selectable start/end frames; up to 21,895 frames (B-mode), 9,086 frames (Color), 123s (M-mode), 1,214s (PW/CW Doppler)

Zoom

Digital zoom x0.7–x2.0 (live and freeze), max up to x10; Picture-in-Picture (PIP) zoom

Image Memory

500 GB hard drive (400 GB for data storage); stores 110,000+ lossless single frames

Body Marks

Up to 100 body mark graphics in library; supports separate body marks in Dual and Quad display; user customizable

Transducer

Convex array, Linear array, Phased array, Endocavity curved array, Micro-Convex array, Wobbler

Imaging

Scanning Angle

Varies by transducer — e.g. 60° FOV (convex), 90° FOV (phased), up to 150° FOV (endocavity)

Scanning Depth (mm)

1.0–30.0 cm (B-mode); transducer-dependent range from 10–300 mm

Image Pre-Processing

Tissue Adaptive Imaging, Frequency Compounding, Adaptive Spatial Compounding, Harmonic Imaging, Adaptive Speckle Reduction (eSRI), B/Color/PW mode Auto Optimization

Image Post-processing

B-mode: gain, TGC, zoom, dynamic range, eSRI, colorize, map. M-mode: gain, TGC, dynamic range, colorize, map. Color: zoom, color map, invert. PW/CW: gain, dynamic range, colorize, map, baseline, angle, invert

Imaging Mode

B, M (incl. Anatomic M*), Color Doppler, Power Doppler (PDI/DPDI), Pulsed Wave Doppler, Continuous Wave Doppler, HPRF, Static 3D, 4D, Tissue Doppler Imaging* (*subject to regulatory approval)

Gray Scales

Dynamic range 40–96 dB (max up to 40–264)

Beam-forming

Digital Multi-Beam Beamforming; Quad beam; 128 physical channels

Measurement & Calculation

B-mode

Distance, Circumference, Area, Angle, Volume, %Diameter/Area Stenosis, plus application-specific measurements (Abdomen, GYN, OB, Cardiac, Urology, Small Parts, Vascular, Pediatric)

M-mode

Distance, Time, Slope, HR

Doppler

Auto Trace and manual trace/caliper measurements: PS, ED, MD, RI, PI, S/D, HR, Time, TAMax, TAMean, VTI, AT, DT, PGmax, PGmean, and more

Warranty

Info

2 years
