ADA Bariatric Dual Ramp Folding Wheelchair Scale w/ Handrail. 1000 lbs Capacity

by Befour
MFR#: MX480D-ADA
TIGER#: TM153300
List Price: $4,563.00
You Save: $1,053.00 -23%
$4,563.00 - $4,563.00
List Price: $4,563.00
$3,510.00
$3,510.00 - $3,510.00
$3,510.00
Add to cart for Lower Price
ADA Bariatric Dual Ramp Folding Wheelchair Scale w/ Handrail. 1000 lbs Capacity
ADA Bariatric Dual Ramp Folding Wheelchair Scale w/ Handrail. 1000 lbs Capacity - $3,510.00
$3,510.00
*Must Purchase 1 for ADA Bariatric Dual Ramp Folding Wheelchair Scale w/ Handrail. 1000 lbs Capacity

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 4-6 Weeks
Documents
Brochure

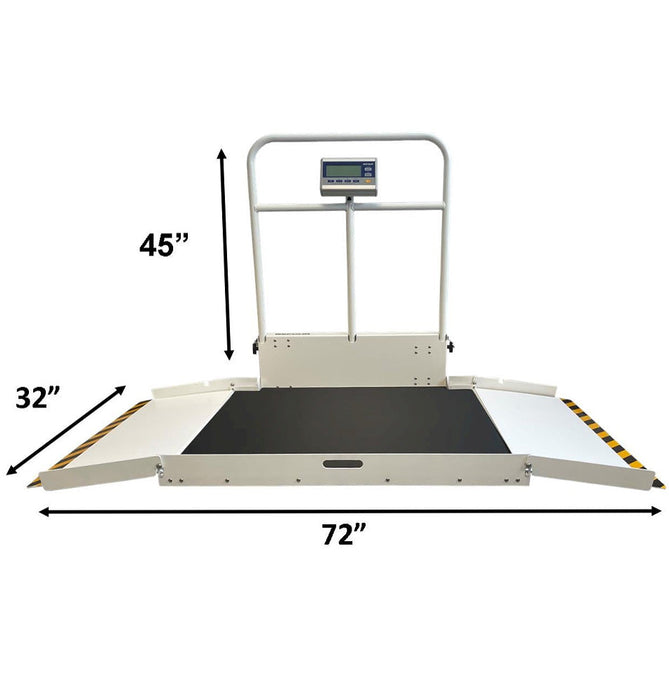

Overall Dimensions Platform Weight Capacity
32" D x 72" W x 45" H 40” W x 32” D x 2” H 1000 lbs
  • Meets All Access Board MDE Requirements for ADA Wheelchair Scales
  • Oversized 32" x 40" Platform Accommodates Bariatric Wheelchairs
  • Dual Ramps with 1:8 Slope, Edge Guards, and 2" Front Stop
  • Integrated Active Handrail and One-Button Tare for Net Weight
  • Folds to 42" x 12" Footprint and Rolls through Standard Doorways .

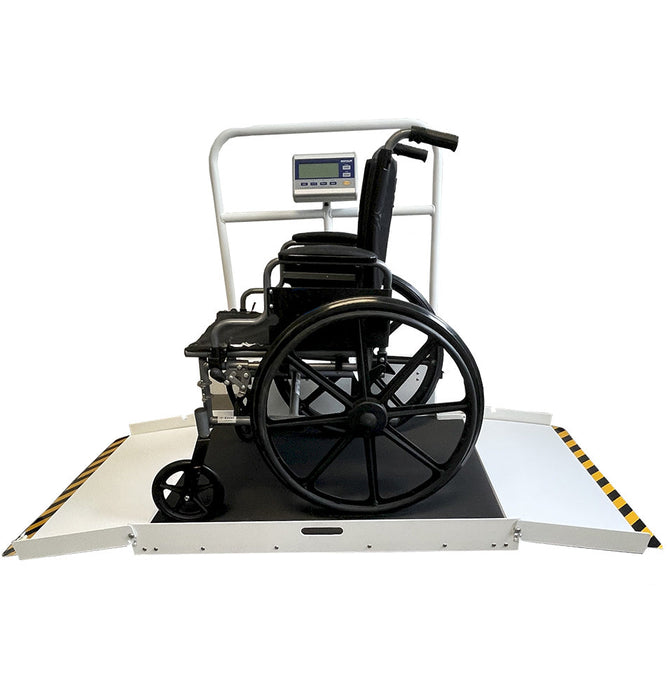

The Befour MX480D-ADA is a folding, battery-powered wheelchair scale that meets all US Access Board Standards for Medical Diagnostic Equipment, built for medical facilities required to comply with ADA accessibility requirements. Its 32" x 40" platform, dual 1:8 slope ramps, integrated active handrail, and fold-and-roll design handle bariatric wheelchair weighing safely and efficiently.

✦ ✦ ✦ FEATURES ✦ ✦ ✦

FULL ADA COMPLIANCE: Meets all five MDE Access Board requirements: 32" minimum platform width, 40" pass-through depth, 2" platform edge protection, 1:8 running slope, and 2" ramp edge guards.

INTEGRATED ACTIVE HANDRAIL: Patients grasp the handrail for support during weighing without affecting the reading. Display is integrated into the handrail with no exposed wires and pivots 320° for optimal viewing from any angle.

ONE-BUTTON TARE: Stores and subtracts wheelchair weight with a single button press. Net patient weight displayed immediately, no manual calculation needed.

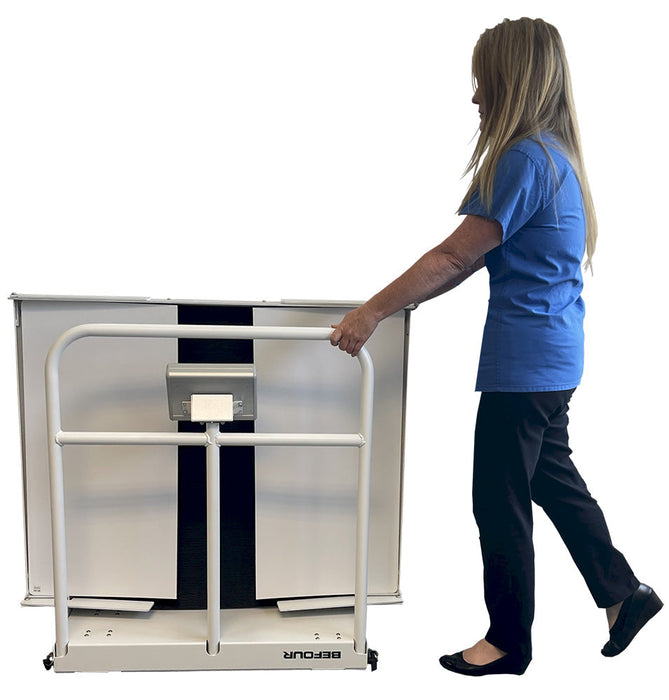

FOLD & ROLL TRANSPORT: Platform folds to a 42" x 12" self-supporting footprint, rolls on four wheels (two pivoting), and fits through all standard doorways, no disassembly required.

ECO WEIGH BATTERY SYSTEM: Four included D-cell batteries deliver up to 100,000 weighings; optional AC adapter available (P/N: 03049-08). Arrives fully assembled. Insert leveling feet and batteries and it's ready to use.

BUILT TO LAST: Non-corroding anodized aluminum construction, made in the USA, backed by an industry-leading 3-year warranty.

Warning WARNING: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Overall Dimensions Platform Weight Capacity
32" D x 72" W x 45" H 40” W x 32” D x 2” H 1000 lbs
  • Meets All Access Board MDE Requirements for ADA Wheelchair Scales
  • Oversized 32" x 40" Platform Accommodates Bariatric Wheelchairs
  • Dual Ramps with 1:8 Slope, Edge Guards, and 2" Front Stop
  • Integrated Active Handrail and One-Button Tare for Net Weight
  • Folds to 42" x 12" Footprint and Rolls through Standard Doorways

What’s in the Box

  • Befour MX480D-ADA Adjustable Width Portable Digital Wheelchair Scale
  • 4x D-Cell Alkaline Batteries
  • Use Manual
  • 3-Year Warranty

WARRANTY: 3 Years

RETURNS: Tiger Medical offers a 30-day return policy from date of shipment for this product, subject to a 20% restocking fee, in addition to the return shipping charges. The product must be in brand new condition and in its original packaging. We take the responsibility to make sure this product arrives in brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you. For complete details of our return policy and process, please refer to our general return policy page.

Cancellations: Items made to order, cannot be returned or canceled after production.

Scale Dimensions
Platform
32" D x 40" W x 2" H
Overall Dimensions
32" D x 40" W x 45" H; folded footprint 42" W x 12" D
Capacity
Weight Limit
1000 lbs
Display Properties
Dimensions
6"H x 8.76"W
Display
1" LCD digits; integrated into handrail; pivots 320°
Keypad
Not specified
BMI Range
Not specified
BMI Height Range
Not specified
Sensitivity
Not specified
Resolution
0.1 lb / 0.05 kg
Temperature Range
Not specified
Accuracy
±0.1 lb / ±0.05 kg
Power Chord
Not specified
Batteries
4 D-cell alkaline batteries (included); 100,000 weighings per set
Connectivity
Connects to EMR?
Yes — USB serial
Power Source
Power Cord
Optional AC adapter (P/N: 03049-08)
Batteries
4 D-cell alkaline batteries (included); 100,000 weighings per set
Material
Scale
Anodized aluminum
Display Enclosure
Not specified
Warranty
Info
3 years
Country of Origin
Made In
USA
