PARAMETERS: 12-Lead Exercise ECG, Heart Rate, Heart Rate Recovery (HRR)
-
OPTIONAL PARAMETERS: Automated Blood Pressure, SpO₂, Ambulatory Blood Pressure Analysis
-
Transforms Any PC Into a Diagnostic System
-
Advanced Risk Stratification Algorithms
-
Excellent ECG Signal Quality With FRF Filtering
-
Quick, Easy-To-Read Results With XTI Analysis
-
Flexible Exercise And Imaging Integration
-
Secure, Enterprise-Ready Connectivity .

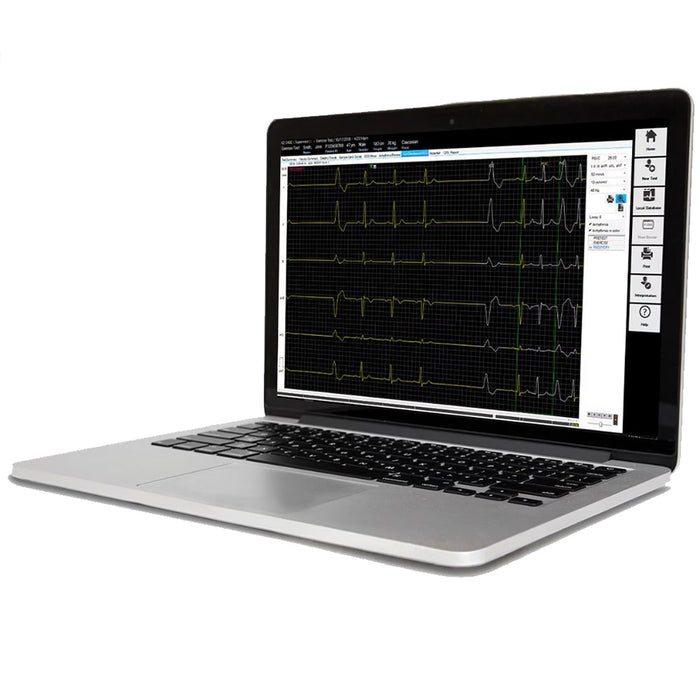

The GE HealthCare CardioSoft V7 ECG Cardiac Test System goes beyond traditional exercise testing to help clinicians assess not just the presence but the extent of coronary artery disease, using advanced exercise ECG algorithms on a flexible, PC-based, enterprise-ready platform.
✔ Advanced ECG Algorithms | ✔ Flexible PC-Based System | ✔ Enterprise Connectivity
SEE MORE THAN ST SEGMENTS
ADVANCED RISK STRATIFICATION: Heart Rate Recovery (HRR) and patented T-Wave Alternans (TWA) algorithms help assess cardiac risk beyond traditional ECG interpretation.
FUNCTIONAL RESPONSE INSIGHT: METS calculation supports prognosis assessment, including post-myocardial infarction risk evaluation.
IMPROVED ISCHEMIA DETECTION: ST/HR Hysteresis analysis enhances accuracy in identifying coronary artery disease.

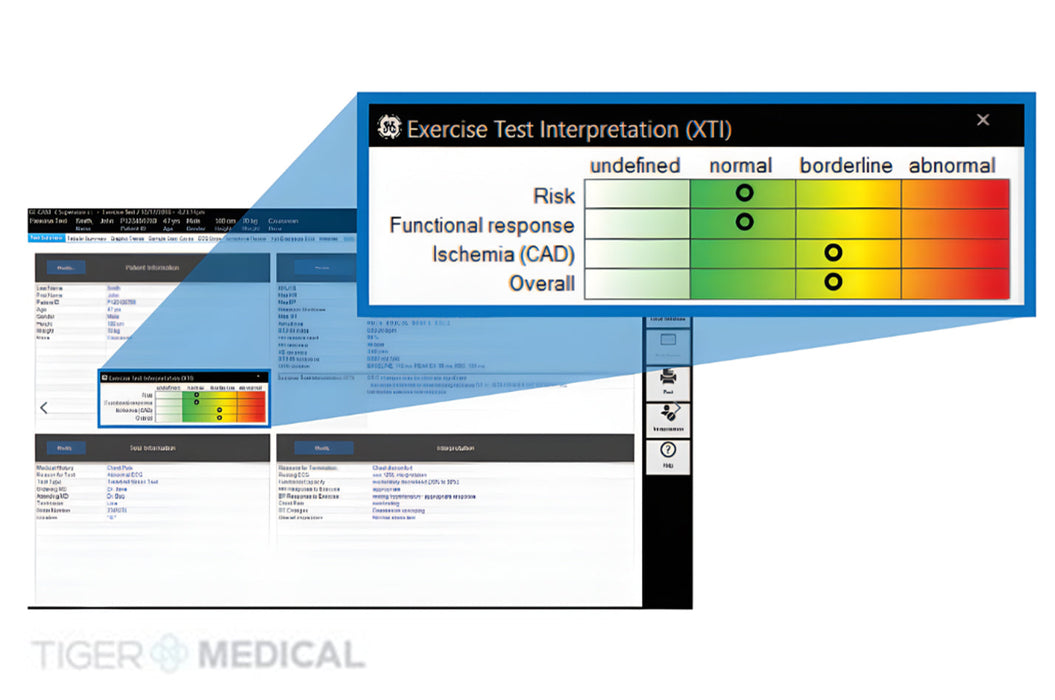

XTI STRESS INTERPRETATION: The XTI algorithm highlights clinically relevant measurement deviations to support clearer assessment of functional response, ischemia, and overall cardiac risk.
VALIDATED DECISION SUPPORT: Proven algorithms guide clinicians during ECG acquisition for confident interpretation.
CONFIGURE ONCE. ADAPT FOREVER.
PC-BASED FLEXIBILITY: Transforms virtually any compatible PC into an advanced cardiac diagnostic workstation.
WIRELESS ACQUISITION: Optional GEH-ECG 1200 enables untethered patient movement during exercise testing.

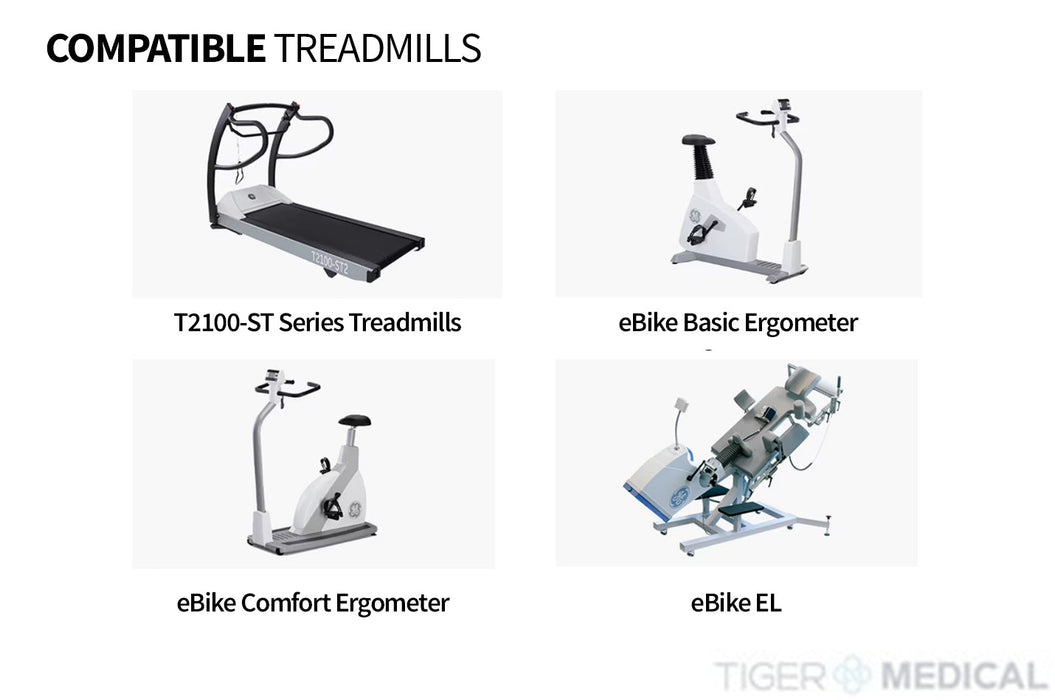

MULTI-MODALITY SUPPORT: Integrates with treadmills, upright and supine eBike ergometers, stress echo, and nuclear imaging.
EXPANDABLE CAPABILITIES: Add ambulatory BP analysis (TONOPORT) or spirometry (Spiro-SP TrueFlow) as needs evolve.
CONNECTED, SECURE, EFFICIENT

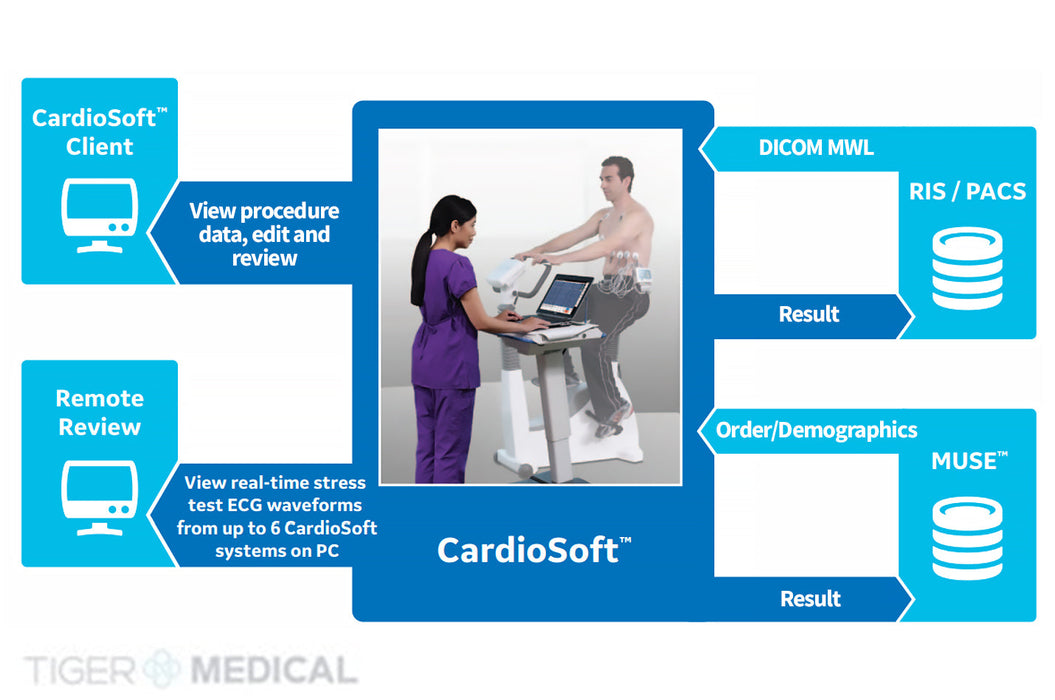

ENTERPRISE INTEGRATION: Operates standalone or within MUSE, Centricity, PACS, or CardioSoft networks.
OPEN ARCHITECTURE: Supports industry standards including DICOM, XML, PDF, and XLS for easy data sharing.
REMOTE REVIEW WORKFLOW: CardioSoft Client enables remote viewing, editing, and printing from networked PCs.
DATA SECURITY BUILT IN: Multi-level access control, encryption, secure authentication, auto timeouts, and continuous monitoring protect patient data.
AVAILABLE OPTIONS
Clinical Scope
-
Resting – Resting 12-lead ECG acquisition only.
-
Stress – Exercise ECG testing only.
-
Resting & Stress – Combined resting ECG and exercise stress testing in one system.
Licensing & Deployment
-
Single Client Floating License – Review-only workstation for viewing, editing, and printing ECGs; does not support ECG acquisition.
Interpretation & Clinical Algorithms
-
12SL – Automated, clinically validated resting ECG interpretation.
-
Stress Interpretation – Automated analysis of exercise ECG data.
-
STHY (ST/HR Hysteresis) – Enhanced ischemia detection during stress testing.
-
RISK – Advanced cardiac risk metrics including HRR, TWA, and METS.
Acquisition & Workflow Options
-
Wireless Acquisition Module – Cable-free ECG acquisition for improved workflow and patient mobility.
-
TTL Trigger – Synchronizes ECG data with imaging systems.
-
No TTL Trigger – Stress testing without imaging synchronization.
-
ERG2 – Standard treadmill and ergometer interface support.
-
ERG3 – Advanced ergometer integration with expanded control.
Data, Connectivity & Enterprise
-
PDF – ECG report export in PDF format.
-
LAN – Network connectivity for data transfer and system integration.
-
MUSE Browser – Enterprise ECG review and management via GE MUSE.
Data Capture & Review
-
Full Disclosure – Continuous ECG waveform recording for detailed retrospective analysis.
CONFIGURATION OPTIONS
The GE HealthCare CardioSoft Cardiac Stress Testing System is available in the following configurations:
Software Only
- CardioSoft V7 Single Client Floating License
(GE203255800101338227)
Resting ECG Only
- CardioSoft V7, Resting with 12SL, PDF, LAN
(GE203255700101370672)
- CardioSoft V7, Resting with 12SL, PDF, LAN, Wireless Acquisition Module
(GE203255700101394628)
Stress Testing Only
- CardioSoft V7, Stress, No TTL Trigger with Stress Interpretation, PDF, LAN, ERG2, ERG3, STHY, RISK
(GE203255700101370701)
- CardioSoft V7, Stress, With TTL Trigger, Stress Interpretation, PDF, LAN, ERG2, ERG3, STHY, RISK
(GE203255700101370674)
- CardioSoft V7, Stress, No TTL Trigger with Stress Interpretation, PDF, LAN, ERG2, ERG3, STHY, RISK, MUSE Browser
(GE203255700101370673)
- CardioSoft V7, Stress, With TTL Trigger, Stress Interpretation, PDF, LAN, ERG2, ERG3, STHY, RISK, MUSE Browser
(GE203255700101370702)
- CardioSoft V7, Stress, With Wireless Acquisition Module, TTL Trigger, Stress Interpretation, PDF, LAN, ERG2, ERG3, STHY, RISK
(GE203255700101370679)
- CardioSoft V7, Stress, No TTL Trigger with Stress Interpretation, PDF, LAN, ERG2, ERG3, STHY, RISK, Full Disclosure
(GE203255700101370684)
- CardioSoft V7, Stress, With TTL Trigger, Stress Interpretation, PDF, LAN, ERG2, ERG3, STHY, RISK, Full Disclosure
(GE203255700101370695)
- CardioSoft V7, Stress, No TTL Trigger with Stress Interpretation, PDF, LAN, ERG2, ERG3, STHY, RISK, Full Disclosure, MUSE Browser
(GE203255700101370683)
- CardioSoft V7, Stress, With Wireless Acquisition Module, TTL Trigger, Stress Interpretation, PDF, LAN, ERG2, ERG3, STHY, RISK, MUSE Browser
(GE203255700101370678)
- CardioSoft V7, Stress, With Wireless Acquisition Module, TTL Trigger, Stress Interpretation, PDF, LAN, ERG2, ERG3, STHY, RISK, Full Disclosure
(GE203255700101370669)
- CardioSoft V7, Stress, With TTL Trigger, Stress Interpretation, PDF, LAN, ERG2, ERG3, STHY, RISK, Full Disclosure, MUSE Browser
(GE203255700101370693)
- CardioSoft V7, Stress, With Wireless Acquisition Module, TTL Trigger, Stress Interpretation, PDF, LAN, ERG2, ERG3, STHY, RISK, Full Disclosure, MUSE Browser
(GE203255700101370668)
Resting + Stress Testing
- CardioSoft V7, Resting & Stress, No TTL Trigger with 12SL, Stress Interpretation, PDF, LAN, ERG2, ERG3, STHY, RISK
(GE203255700101370700)
- CardioSoft V7, Resting & Stress, With TTL Trigger, 12SL, Stress Interpretation, PDF, LAN, ERG2, ERG3, STHY, RISK
(GE203255700101370687)
- CardioSoft V7, Resting & Stress, No TTL Trigger with 12SL, Stress Interpretation, PDF, LAN, ERG2, ERG3, STHY, RISK, MUSE Browser
(GE203255700101370675)
- CardioSoft V7, Resting & Stress, With TTL Trigger, 12SL, Stress Interpretation, PDF, LAN, ERG2, ERG3, STHY, RISK, MUSE Browser
(GE203255700101370698)
- CardioSoft V7, Resting & Stress, With Wireless Acquisition Module, TTL Trigger, 12SL, Stress Interpretation, PDF, LAN, ERG2, ERG3, STHY, RISK
(GE203255700101370682)
- CardioSoft V7, Resting & Stress, No TTL Trigger with 12SL, Stress Interpretation, PDF, LAN, ERG2, ERG3, STHY, RISK, Full Disclosure
(GE203255700101370707)
- CardioSoft V7, Resting & Stress, With TTL Trigger, 12SL, Stress Interpretation, PDF, LAN, ERG2, ERG3, STHY, RISK, Full Disclosure
(GE203255700101370705)
- CardioSoft V7, Resting & Stress, No TTL Trigger with 12SL, Stress Interpretation, PDF, LAN, ERG2, ERG3, STHY, RISK, Full Disclosure, MUSE Browser
(GE203255700101370685)
- CardioSoft V7, Resting & Stress, With Wireless Acquisition Module, TTL Trigger, 12SL, Stress Interpretation, PDF, LAN, ERG2, ERG3, STHY, RISK, MUSE Browser
(GE203255700101370680)
- CardioSoft V7, Resting & Stress, With Wireless Acquisition Module, TTL Trigger, 12SL, Stress Interpretation, PDF, LAN, ERG2, ERG3, STHY, RISK, Full Disclosure
(GE203255700101370682)
- CardioSoft V7, Resting & Stress, With TTL Trigger, 12SL, Stress Interpretation, PDF, LAN, ERG2, ERG3, STHY, RISK, Full Disclosure, MUSE Browser
(GE203255700101370671)
- CardioSoft V7, Resting & Stress, With Wireless Acquisition Module, TTL Trigger, 12SL, Stress Interpretation, PDF, LAN, ERG2, ERG3, STHY, RISK, Full Disclosure, MUSE Browser
(GE203255700101370704)
