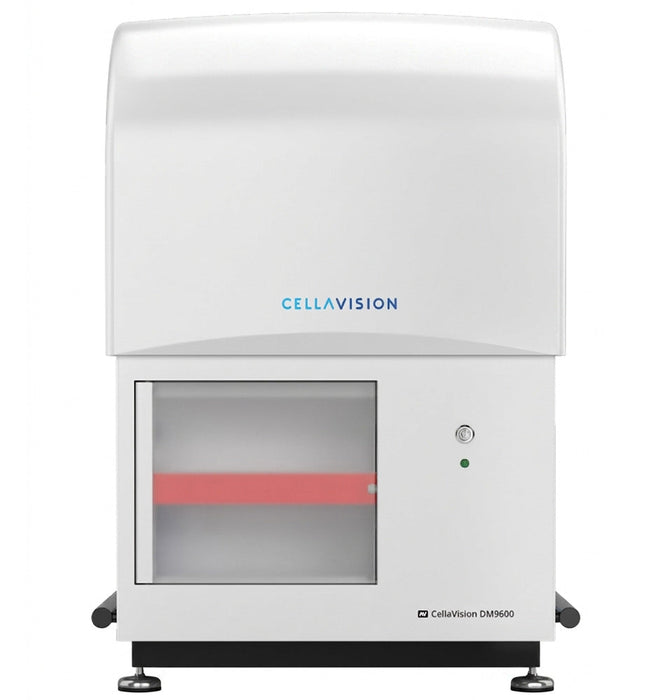

CellaVision DM9600 Automated Digital Cell Morphology Analyzer

Beckman Coulter
by Beckman Coulter
MFR#: B53269
TIGER#: TM160441
List Price: $202,632.00
You Save: $81,394.89 -40%
$202,632.00 - $202,632.00
List Price: $202,632.00
$121,237.11
$121,237.11 - $121,237.11
$121,237.11
Add to cart for Lower Price
CellaVision DM9600 Automated Digital Cell Morphology Analyzer
CellaVision DM9600 Automated Digital Cell Morphology Analyzer - $121,237.11
$121,237.11
*Must Purchase 1 for CellaVision DM9600 Automated Digital Cell Morphology Analyzer

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days
Documents
Manual Brochure
  • 96-Slide Capacity with Continuous Feed; ~30 Slides/Hour Throughput
  • Automated WBC Differential, RBC Morphology, and Platelet Estimates
  • Body Fluid and Advanced RBC Analysis via Optional Applications
  • Centralized Database for Remote Slide Review Across Network Locations
  • Bi-Directional LIS Integration via ASTM and Ethernet
  • Compact Benchtop at 580 × 560 × 790 mm
  • CE and 510(k) Cleared .

The CellaVision DM9600 is a fully automated digital cell morphology analyzer designed for high-volume labs processing more than 50 slides per day. Using high-speed robotics and digital imaging, it automatically locates, captures, and pre-classifies cells from peripheral blood smears and body fluid preparations, reducing manual microscopy workload and standardizing differential results across the lab.

✔ 96-Slide Continuous Feed | ✔ 30 Slides/Hour | ✔ Remote Review Ready

HIGH THROUGHPUT, HANDS-FREE OPERATION

96-SLIDE CONTINUOUS FEED: Eight magazines of 12 slides each load continuously, no manual reloading required between batches.

~30 SLIDES/HOUR THROUGHPUT: Up to 30 slides/hr for peripheral blood, 15 slides/hr for body fluids, and 20 slides/hr for digital scans in 10x.

AUTOMATED CELL CLASSIFICATION: Pre-classifies WBCs, RBC morphology, and platelet estimates automatically, reducing subjectivity and improving consistency across staff and shifts.

WALK-AWAY AUTOMATION: High-speed robotics handle slide loading, oil dispensing, imaging, and pre-classification without operator intervention.

ERGONOMIC DESIGN: Eliminates the neck, wrist, and eye fatigue of manual microscopy, improving staff health and satisfaction in high-volume labs.


CONNECTED, SCALABLE, AND EXPANDABLE

REMOTE SLIDE REVIEW: Cell images are stored in a centralized LAN-accessible database, accessible from any networked lab or physician location for review and reporting.

BI-DIRECTIONAL LIS INTEGRATION: ASTM-compatible with Ethernet 10/100 Mbps; cell images store directly with patient records for easy longitudinal tracking.

OPTIONAL APPLICATIONS: Body Fluid, Advanced RBC, Remote Review, Server, Scanner, and Proficiency Software extend the system as your lab's needs grow.

MULTI-SYSTEM DATABASE SHARING: Multiple CellaVision DM analyzers share a single database, ideal for hospital networks and multi-site labs.

LOCAL AND EXTERNAL STORAGE: Holds up to 4,000 slides (20 GB) locally; unlimited secondary storage via external media transfer.


Built for large hospitals and high-volume reference labs, the CellaVision DM9600 delivers the throughput, accuracy, and remote review capability to modernize and standardize your hematology morphology workflow.



Warning WARNING: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

  • 96-Slide Capacity with Continuous Feed; ~30 Slides/Hour Throughput
  • Automated WBC Differential, RBC Morphology, and Platelet Estimates
  • Body Fluid and Advanced RBC Analysis via Optional Applications
  • Centralized Database for Remote Slide Review Across Network Locations
  • Bi-Directional LIS Integration via ASTM and Ethernet
  • Compact Benchtop at 580 × 560 × 790 mm
  • CE and 510(k) Cleared

What’s in the Box

  • Beckman Coulter CellaVision DM9600 Automated Digital Cell Morphology Analyzer
  • Slide Scanning Unit
  • CellaVision DM Software
  • System Computer with Windows
  • User Manual
  • Warranty

RETURNS: Tiger Medical offers a 30-day return policy from date of shipment for this product, subject to a 20% restocking fee, in addition to the return shipping charges. The product must be in brand new condition and in its original packaging. We take the responsibility to make sure this product arrives in brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you. For complete details of our return policy and process, please refer to our general return policy page.

Cancellations: Items made to order, cannot be returned or canceled after production.

Dimensions
Depth
560 mm (22 in)
Height
790 mm (31.1 in)
Weight
93 kg (205 lbs)
Width
580 mm (22.8 in)
Test Handling
Sample Loading
96 slides; loaded into magazines of 12 slides each (8 magazines); continuous feed mechanism
STAT Sample Handling
Not specified
Sample Processing
Automated continuous; slides analyzed with peripheral blood smears and body fluids either batched in dedicated magazines or mixed when interfaced to a LIS
Sample ID Entry
Barcode — requires barcode labeled slides with clipped/round corners
Tests
Automatic Measurement
Automatically locates, captures, and pre-classifies cells from peripheral blood smears and body fluid preparations
Test Format
Prepared stained glass slides (peripheral blood smears or body fluid preparations); barcode labeled with clipped/round corners; loaded in 12-slide magazines
Test Measurement
Bichromatic digital imaging; patented auto-focus algorithms and Artificial Neural Network (ANN) technology
Tests Measured
WBC differential (100 WBC+RBC+PLT), RBC morphology including feathered edge overview, platelet estimates, body fluid differentials
Measuring range
Not specified
Total precision CV
Not specified
Hematocrit range
Not specified
Measurement
Calibration
Cell location accuracy test for verification of hardware and stain quality; QC requires one freshly stained slide from a blood sample with WBC count within normal range
Onboard Computer
Memory
Primary storage: up to 4,000 slides (20 GB) on local hard drive; secondary storage: unlimited via external media transfer
Interfaces
Bi-directional LIS support (ASTM); Ethernet 10/100 Mbps; multiple CellaVision DM analyzers can share a database; email
Display
System Computer with Windows; touch screen not specified — standard Windows display
Power
Power Requirements
100–240 VAC
Line Leakage Current
Not specified
Maximum Power Input
System computer: 1.4–0.7 A Slide scanning unit: 0.6–0.3 A
Ambient Operating Temperature Range
Not specified
Compliance
CE, 510(k)
Computer/Peripheral Interfaces
Ethernet Connection
Ethernet 10/100 Mbps
Onboard Printer
Windows-supported laser/inkjet printers; label printer kit available as accessory
Bar Code
Yes — barcode labeled slides required; barcode labeled slide magazines and QC barcode labels available as accessories
Keyboard
Included as part of System Computer with Windows
External Printer
Windows-supported printers (laser/inkjet)
