MFM-CMS Central Monitoring System

• Comprehensive Monitoring Solution
• Designed for all bedside monitors
• Easy access to well-organized information
• Real-time monitoring information up to 128 bedside monitors
• Large Storage Capacity of up to 50,000 patient record storage
• 2-Year Warranty .

The Edan Central Monitoring System is a state-of-the-art and comprehensive monitoring solution designed for all bedside monitors. It offers a hassle-free way to well-organized information and for seamless monitoring management.

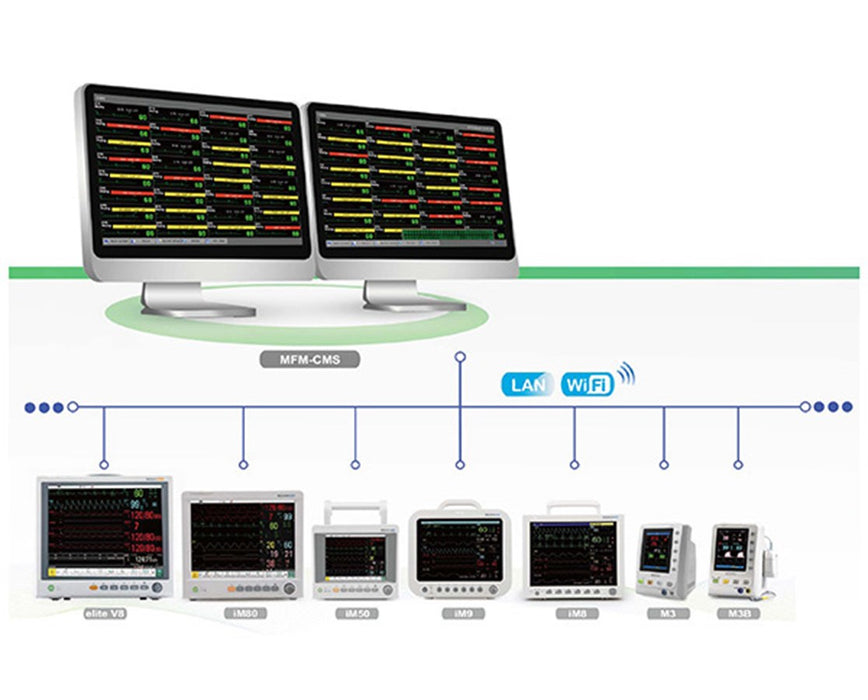

Excellent Features. With real-time monitoring information of up to 128 bedside monitors via LAN/WLAN connection, the Central Monitoring System supports 32 bedside monitors in one display and 64 bedside monitors in two displays simultaneously. It supports widescreen and standard display that communicates bi-directional with EDAN bedside patient monitors and supports HL7. The Monitoring System has the latest web viewer function that provides access to monitoring data via PC, tablets, and smartphones. It has a large storage capacity of both the waveforms up to 50,000 patient record storage. With its Physiological Alarm Category, the Central Monitoring System has 3 levels of alarm (High, Medium or Low) and has an Audible or Visual indicating method.

The Edan Central Monitoring System has a 2-Year Warranty and is compatible with the elite V8, iM80, iM50, iM9, iM9A, iM8, iM8A, iM8B, M80, M50, M9, M9A, M8, M8A, M8B, M3, and M3B.

Recommended System Configurations

PC

• CPU: Intel Core 2 Duo or AMD Turion II M520
• Memory: 2 GB or above
• Hard Disk: 320 GB or above
• USB Ports: At least 2
• Ethernet Card

Display

• Resolution: 4:3 / 16:9 (i.e. 1280x1024 / 1440x900)
• LCD Display

Ethernet Router

• Ethernet Ports: 8 or above
• Cascade Supported

Printer: Support A4-size Printing Paper
