MFM-CMS Central Monitoring System

• Real-Time Monitoring for Up to 128 Beds
• Supports LAN, Wi-Fi, or Hybrid Networks
• Access Data on Any Device via Web Viewer
• Stores Up to 50,000 Patient Records
• Batch Management and HL7 Compatibility
• Dual Display Support for Multibed Monitoring .

The Edan Central Monitoring System is a scalable, hospital-wide solution that connects up to 128 bedside monitors for real-time, bi-directional patient monitoring — from ICUs to general wards. Designed to streamline workflows and unify data access, it empowers clinicians with accurate, organized insights anytime, anywhere.

✔️️️️ Real-Time Monitoring | ️✔️ Remote Data Access | ️✔️ 50,000 Record Storage

COMPREHENSIVE MONITORING

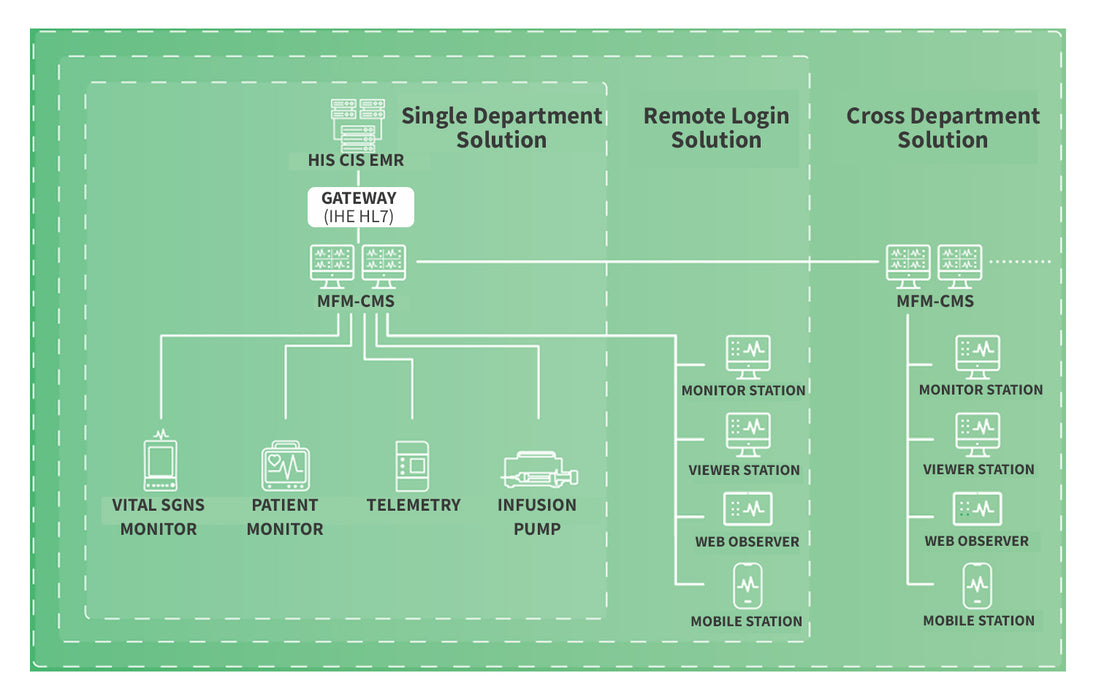

REAL-TIME CONNECTIVITY: Monitors up to 128 beds simultaneously via LAN or Wi-Fi.

MULTI-SCREEN DISPLAY: View 32 monitors per screen or 64 monitors across two displays.

DEVICE COMPATIBILITY: Works with all Edan bedside monitors, from elite V8 to M3B.

ALARM INTEGRATION: Includes 3-tier physiological alarm system with visual and audible indicators.

ACCESSIBLE ANYWHERE

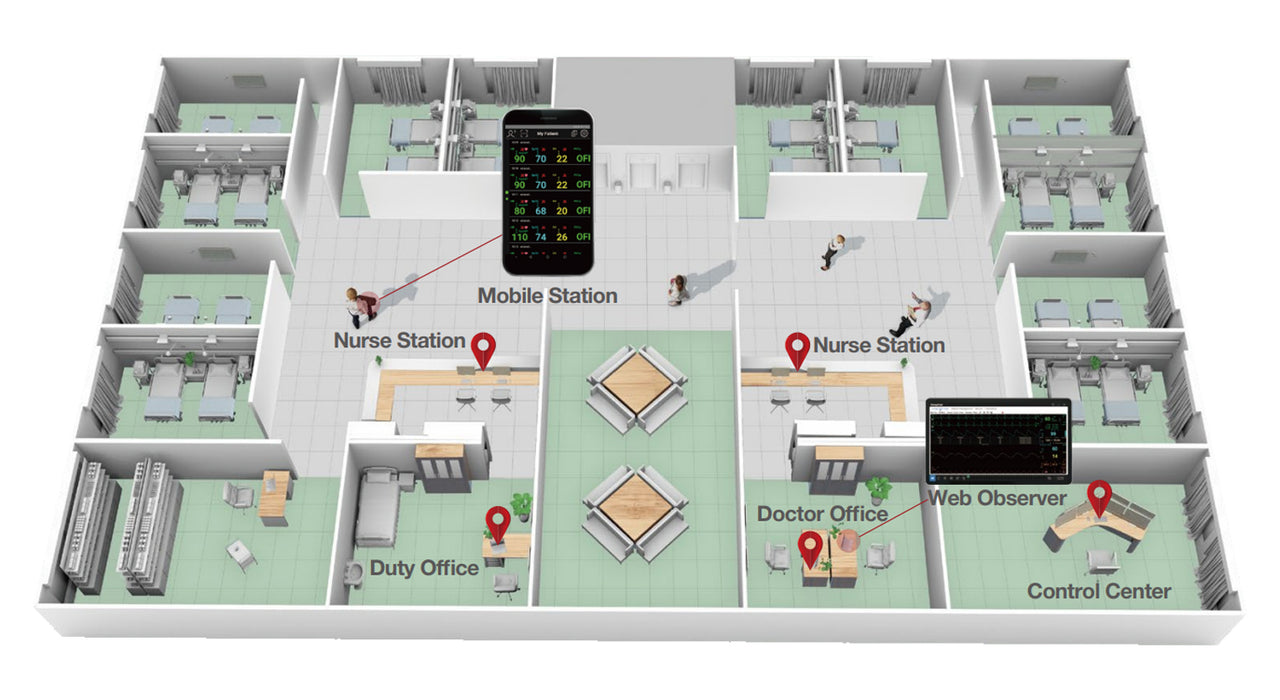

WEB VIEWER FUNCTION: Review patient data via PC, tablet, or smartphone.

REMOTE LOGINS: Supports multiple users accessing live and stored data concurrently.

HL7 & BATCH MANAGEMENT: Compatible with HL7 protocol for EMR sync and multi-device management.

WIDE DISPLAY SUPPORT: Adjustable for both widescreen and standard monitors.

DATA STORAGE & CONTROL

MASSIVE CAPACITY: Holds up to 50,000 patient records, including waveforms and numerics.

AUTOMATIC SYNC: Built-in time synchronization across all connected monitors.

SYSTEM STATS & ANALYSIS: Offers statistical reporting and central analysis tools.

MULTIFUNCTION CALCULATORS: Built-in calculators for drug dosing, ventilation, renal function, and more.

RECOMMENDED SYSTEMS CONFIGURATION

PC

• CPU: Intel Core 2 Duo or AMD Turion II M520
• Memory: 2 GB or above
• Hard Disk: 320 GB or above
• USB Ports: At least 2
• Ethernet Card

DISPLAY

• Resolution: 4:3 / 16:9 (i.e. 1280x1024 / 1440x900)
• LCD Display

ETHERNET ROUTER

• Ethernet Ports: 8 or above
• Cascade Supported

PRINTER

• Support A4-size Printing Paper

From critical care to routine monitoring, the Edan Central Monitoring System delivers real-time, centralized control and unmatched scalability—all in a hospital-grade, future-ready platform.
