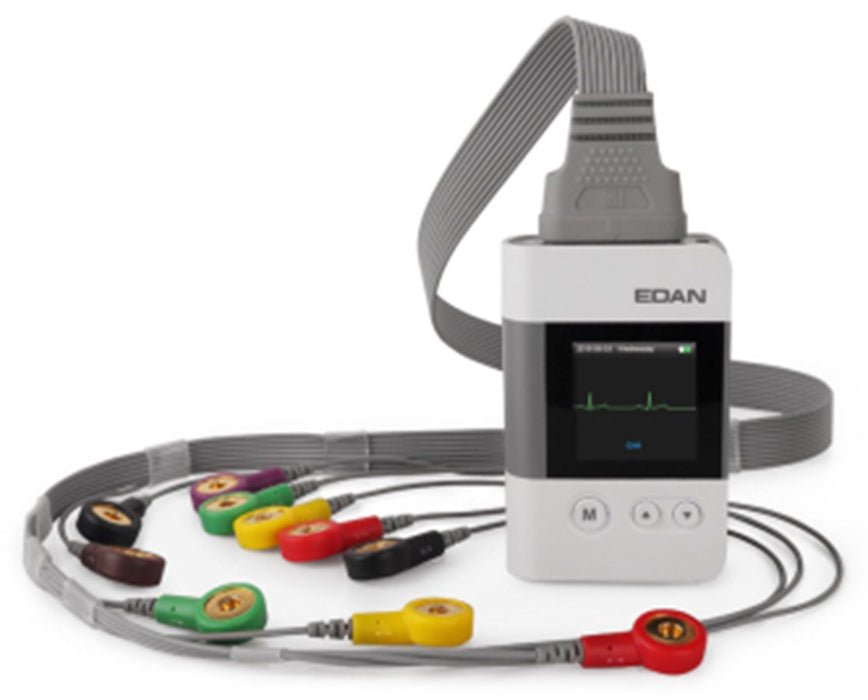

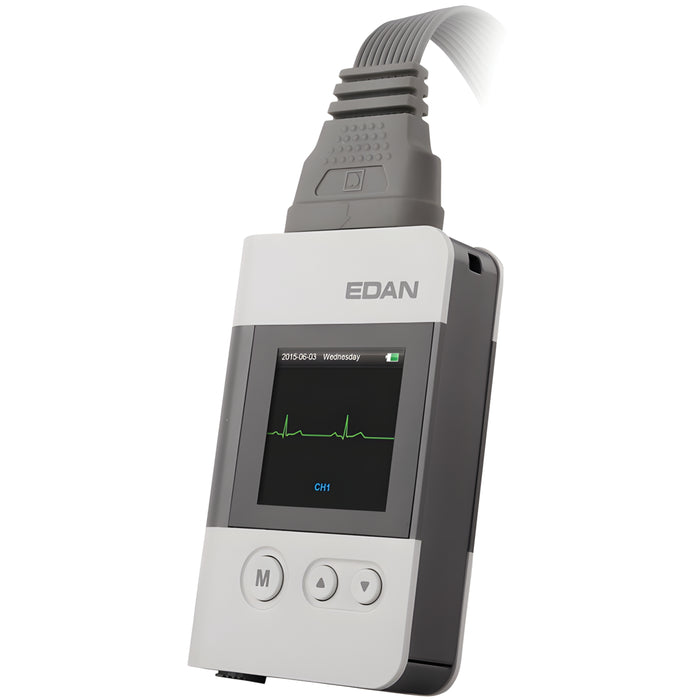

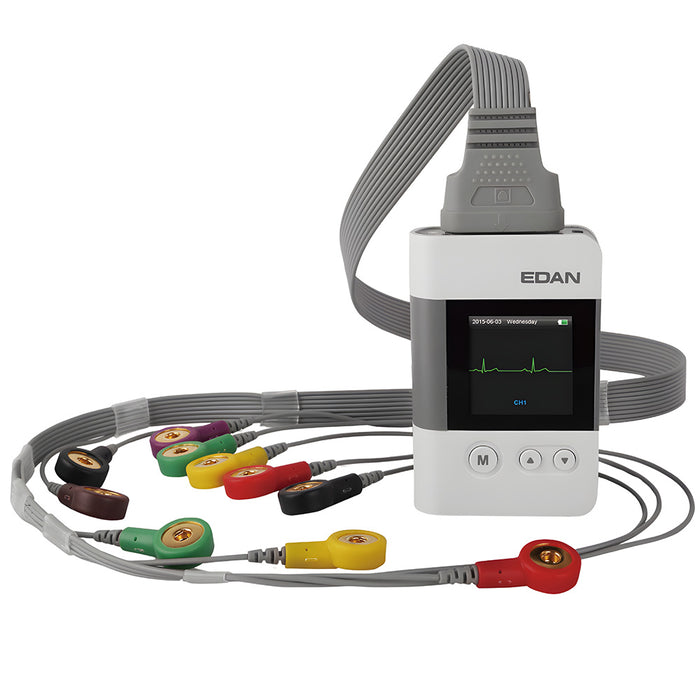

SE-2003 Digital Holter Recorder Package

• 3/12-Channel Digital ECG Recording
• Ultra Portable Size and Lightweight
• Powerful Software for Advanced ECG Data Analysis (sold separately)
• Outstanding Data Management Capacity with Customized Workflow
• Water & Dust Proof with IP27 Protection
• Comes in various package options .

The Edan Digital Holter Analysis System is a state-of-the-art and powerful solution designed to record, analyze, display, edit and generate reports of ambulatory ECG and provide optimal comfort to a patient. It has a small-form-factor for maximum mobility and can be used on all patient groups.

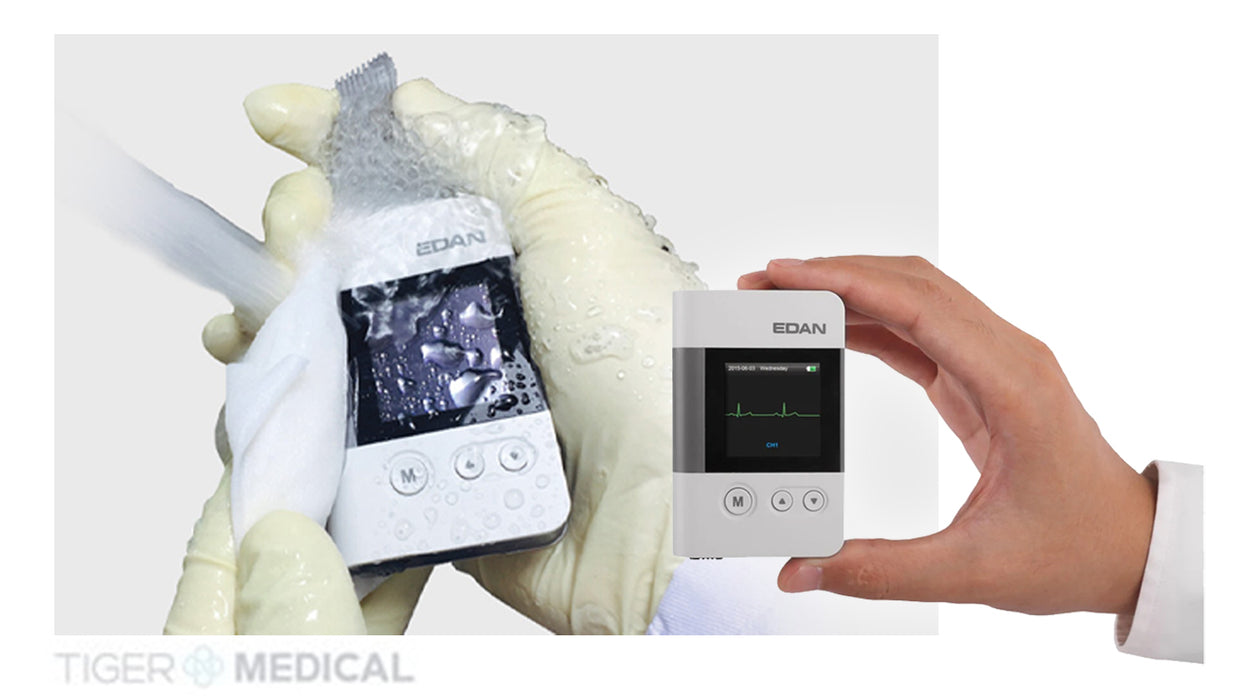

Awesome Design. Constructed with high-quality materials, the Edan Digital Holter Analysis System has an ultra-portable size of 2.6" L x 2.1" W x 0.63" H, weighs 0.11 lbs and can be brought wherever it is needed. The Digital Holter Analysis System has an IP27 protection and is water & dust proof which eliminates the risk of unexpected damage throughout continuous wear. It has a simple-to-read LCD display that shows ECG waveform, pacemaker pulse, time, date, battery status, and leads.

Continuous Monitoring. The Edan Digital Holter Analysis System has options to choose either the 3-Channel and 12-Channel Holter Models. The 3-Channel Holter Recorder ensures acquisition and recording of 5/7 leads simultaneously while the 12-Channel Holter offers a recording of 10 leads and features an auto 3/12 channel identification function. Both Holters facilitate 24 to 96 hours digital recording and comprise a pacemaker detection function.

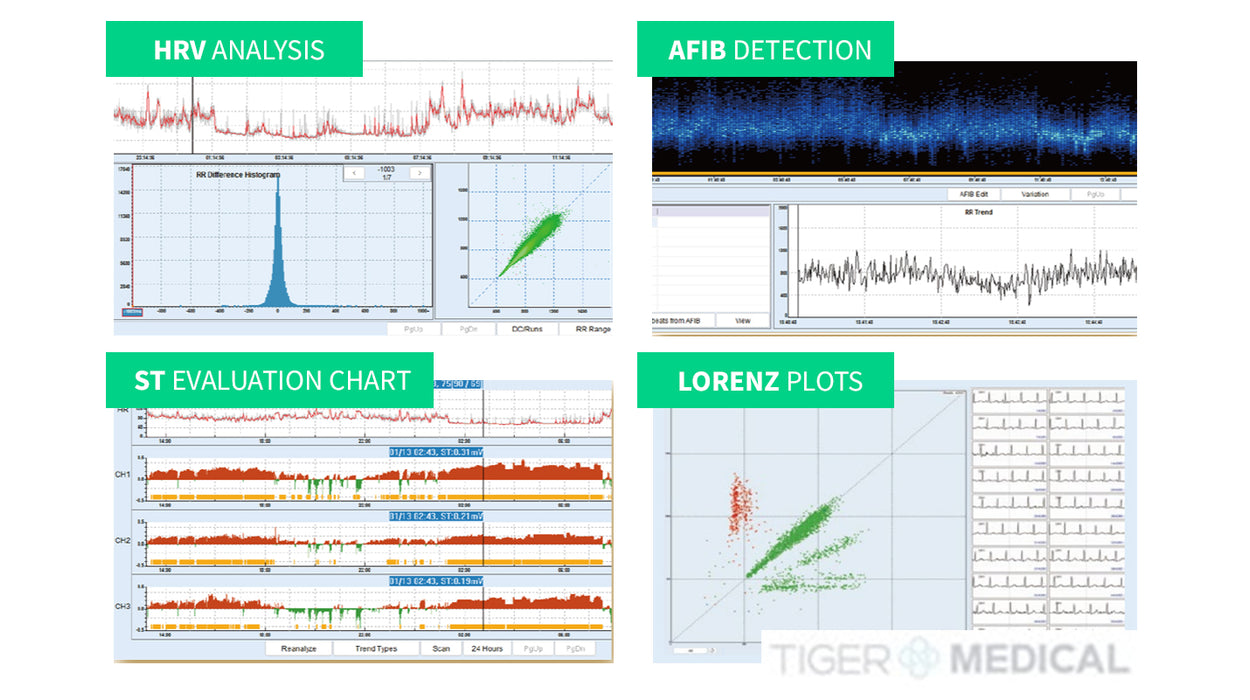

Powerful Analysis Software. Aimed to improve the diagnostic process, the Holter Analysis Software allows ECG data to run through any of the offered functions that include multi-channel beat detection, accurate classification of QRS morphology, automatic detection of arrhythmia and even re-analysis. It also has numerous analysis algorithms that include but are not limited to ST, Pacing, HRV, HRT, OSA, QT, and TWA Analysis. This software is sold separately and is not included in the package.

Improved Workflow. The Edan Digital Holter Analysis System allows the data to be transferred from the Holter to a PC with the use of an SD Card or can be connected via USB Cable. The System ensures less than 20 seconds load time. The Recorder Software offers a toolbar that can be customized based on the user's requirements. For optimal convenience, all templates are color coded that ensures fast visual assessment and better workflow management. Its bulk modification and fast editing functions are intended to save valuable time and optimize report compilation. It also has seamless integration to EMR and supports GDT/XML Protocols.

Available Options

The Edan Digital Holter Analysis System has a 2-Year Warranty and comes in various package options:

• 3-Channel Holter Recorder Kit Only (83.61.360483)
• 12-Channel Holter Recorder Kit Only (83.61.360485)
