DS20 Vital Signs Patient Monitor / Diagnostic Station

• PARAMETER: 3-Lead ECG, SpO2, Respiration, NIPB, Weight/Height/BMI through External Digital Scales
• OPTIONAL PARAMETER: 12-Lead ECG, Temperature
• Auto-Detects Connected Sensors

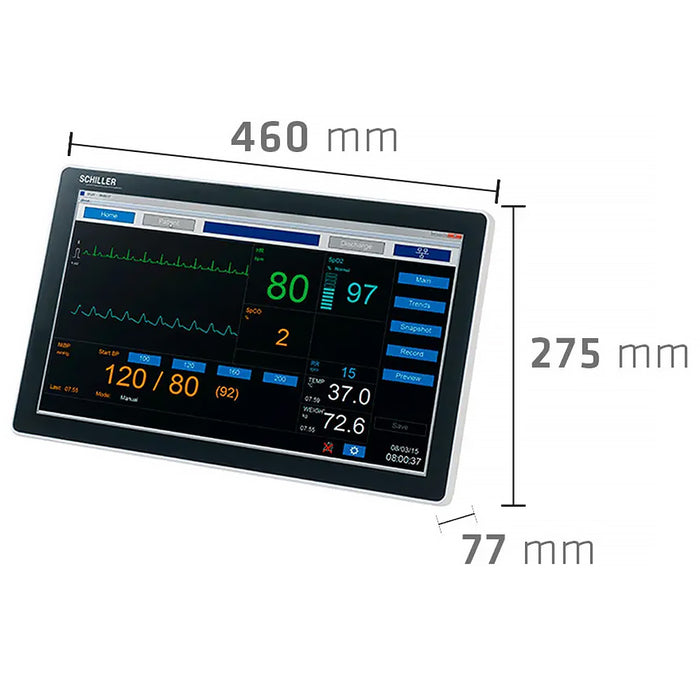

• 18.5" Touchscreen With Minimal Training Needed
• Stores 72 Hours of Vital Signs Trends
• EMR, PACS, and HIS Connectivity .

The Schiller DS20 Diagnostic Station combines vital signs, ECG, and physical assessments into a single, modern, and expandable device, designed to simplify workflows and expedite clinical decision-making.

✔ One-Touch Measurement | ✔ Auto-Sensor Detection | ✔ Seamless EMR Integration

SMART, STREAMLINED MONITORING

ALL-IN-ONE VITAL SIGNS: Monitors heart rate, respiration, NIBP, SpO₂, and temperature in one compact unit.

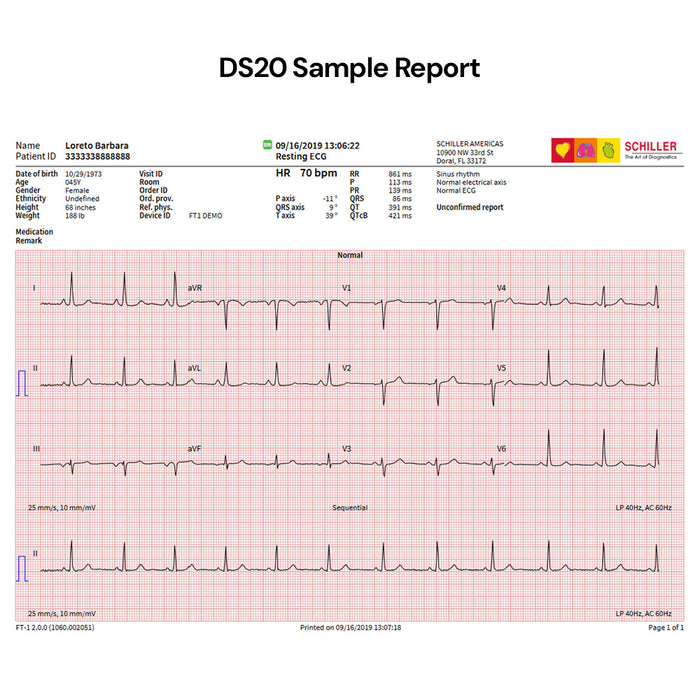

MULTI-LEAD ECG: Captures high-quality ECGs with optional 12-lead interpretation. Ideal for rhythm, ST, and atrial fibrillation assessments.

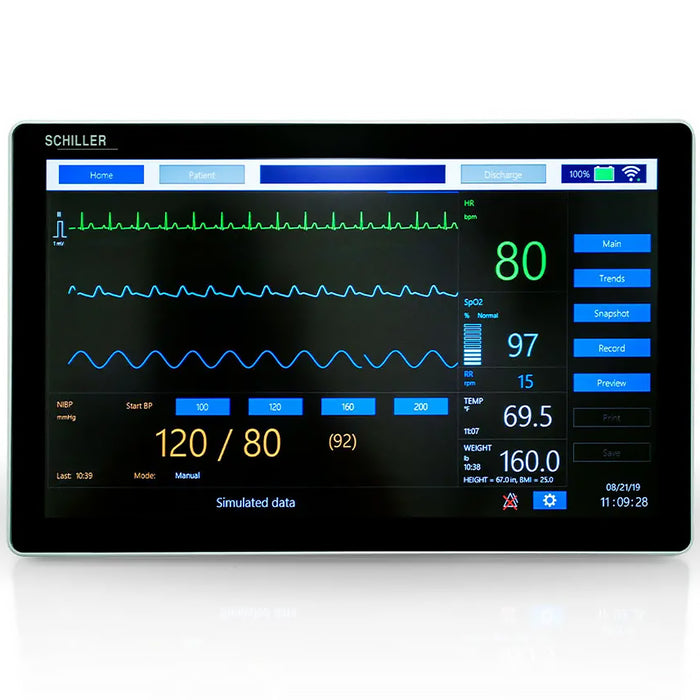

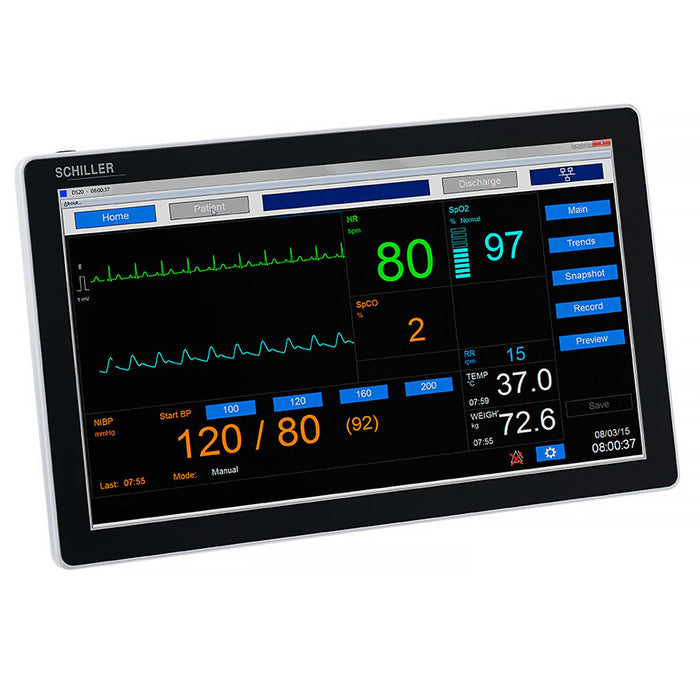

INTUITIVE INTERFACE: Large interactive touchscreen with self-guided menus requires minimal training and no complicated setup.

INSTANT SENSOR DETECTION: Automatically identifies connected modules and displays real-time values—no manual toggling required.

BUILT-IN CONNECTIVITY

SEAMLESS EMR INTEGRATION: Compatible with EMR, PACS, HIS, and SCHILLER’s SEMA for smooth data transfer and access.

BIDIRECTIONAL COMMUNICATION: Sends and receives patient data instantly, reducing manual entry and improving accuracy.

SECURE WI-FI ENABLED:  Fast wireless transmission with robust encryption for safe, real-time monitoring.

STANDARD PARAMETERS

3-LEAD ECG: Continuous rhythm monitoring using just three electrodes  — no need to undress the patient.

SPO2: Measures peripheral oxygen saturation using Masimo or Nellcor sensors.

RESPIRATION: Monitors respiratory rate through impedance or SpO₂ sensor.

NIBP: Accurately tracks blood pressure via oscillometric technology.

WEIGHT/HEIGHT/BMI: Connects with electronic scales (Detecto, HealthoMeter, among others) for obtaining Height, Weight, and BMI on adult and pediatric patients

AVAILABLE OPTIONS

ECG OPTIONS

12-LEAD: Ideal for resting ECGs with ETM interpretation, arrhythmia screening, and comprehensive cardiac assessments.

TEMPERATURE

FAST AND NON-INVASIVE: Accurately captures patient temperature in seconds with minimal discomfort.

EASY TO USE: Plug-and-play design is automatically detected and displayed on screen.

ORDERING INFORMATION

The Schiller DS20 Diagnostic Station has the following options:

• 3 Lead ECG Only (0A.800000)
• 3 Lead ECG w/ Temperature Probe (0A.800005)
• 12 Lead ECG Only (0A.800010)
• 12 Lead ECG w/ Temperature Probe (0A.800015)

Trusted in clinics worldwide, the DS20 offers accurate diagnostics, flexible expansion, and effortless integration, all in one easy-to-use, future-ready unit.
