DxH 560 Hematology Analyzer

• 50-Tube Continuous Autoloader with Walk-Away Operation
• 5-Part Differential via Dynamic Gating w/ 40% Fewer Flags
• Accurate Results from as Little as 17 µL Sample Volume
• Up to 30,000 Patient Records with Bidirectional LIS
• Autonomous Daily Startup and Cleaning
• Compact Footprint, Up to 1/3 Less Counter Space .

✔ 50-Tube Autoloader | ✔ 17 µL Micro-Sample | ✔ Walk-Away Automation

The Beckman Coulter DxH 560 is a compact autoloading hematology analyzer that delivers accurate 5-part differential results with minimal manual intervention, even from difficult-draw patients like infants, geriatric, and oncology cases. It runs itself through daily startup and cleaning, so your staff can stay focused on results, not the instrument.

LOAD IT AND LEAVE IT

CONTINUOUS 50-TUBE LOADING: Load samples and keep analysis running without stopping, up to 2x the capacity of the closest competitor.

HANDS-FREE DAILY STARTUP: The DxH 560 runs its own pre-programmed maintenance and system checks every morning, no bleaching or manual setup required.

FAST TURNAROUND: Results in 60 seconds or less with an intuitive touchscreen, any function accessible in three touches or fewer.

ONLY TWO REAGENTS TO MANAGE: Store and replace just two reagents for a full CBC/Diff, each swappable in under two minutes with barcode-assisted lot tracking.

RESULTS YOU CAN TRUST

PROPRIETARY DYNAMIC GATING: Automatically adjusts cell-population thresholds in real time, reducing unnecessary slide review flags by 40% compared to static gating without sacrificing clinical sensitivity.

WORKS WITH TINY SAMPLES: An aspiration volume of just 17 µL means fewer redraws from infants, oncology patients, and other hard-to-draw cases.

PEDIATRIC REFERENCE RANGES: The DxH line is the first hematology analyzer portfolio with comprehensive age- and sex-specific pediatric ranges built in.

PHI-PROTECTED RESULTS: Customizable user logins, automated timeouts, and account lockout thresholds keep patient data secure.

DATA THAT WORKS AS HARD AS YOU DO

30,000-RECORD ONBOARD STORAGE: Holds up to a full year of patient results with delta check and file retrieval built in.

EXTENDED QC ONBOARD: Monitor bias, precision, and accuracy without internet access or extra fees, Levey-Jennings graphs and XB/XM methodologies included.

BIDIRECTIONAL LIS INTERFACE: Ethernet and RS-232 support reduces transcription errors and keeps records synced automatically.

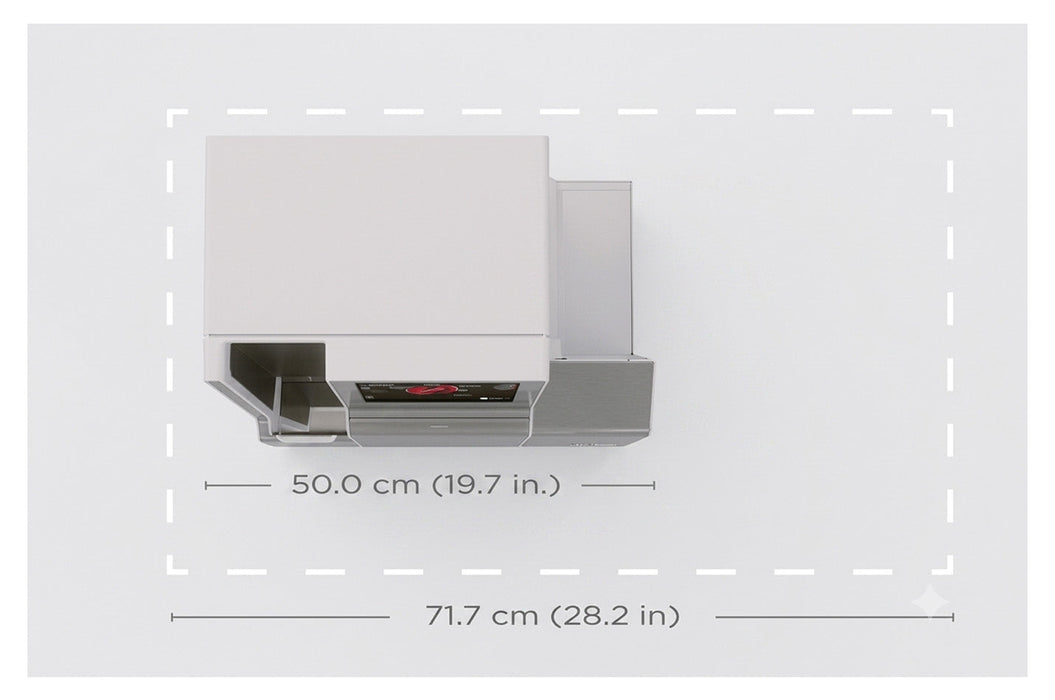

COMPACT BY DESIGN: At 19.7 x 18.1 x 17.3 inches with an integrated screen and keyboard, the DxH 560 uses up to a third less counter space than comparable analyzers, with only one external reagent required.

With autonomous operation, a space-saving design, and results reliable enough for the most vulnerable patients, the Beckman Coulter DxH 560 Hematology Analyzer is built to keep low- to mid-volume labs running at full capacity every day.
