e-sphyg Digital Aneroid Blood Pressure Monitor

by ADC
MFR#: 7002-11AOR
TIGER#: TM9650
Original price List Price: $84.92
You Save: $12.74 -15%
Original price $84.92 - Original price $84.92
Original price List Price: $84.92
Current price $72.18
$72.18 - $72.18
Current price $72.18
Add to cart for Lower Price
As low as $/mo.
Apply at Cart

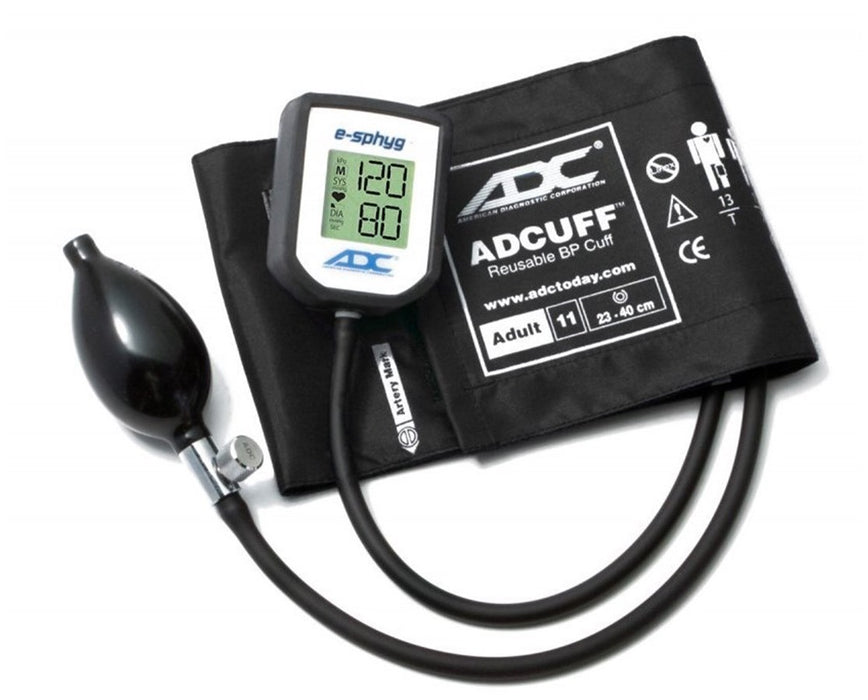

e-sphyg Digital Aneroid Blood Pressure Monitor
e-sphyg Digital Aneroid Blood Pressure Monitor - $72.18
*Must Purchase 1 for e-sphyg Digital Aneroid Blood Pressure Monitor

The cart will thereforce automatically set Qty to 1 when you order this product

IN STOCK Ships Out Within: 24 - 48 Hours Shipping Date By: 4/23/2024

Traditional aneroids are replete with delicate mechanical parts, rendering them inherently fragile. The concept behind the ADC e-sphyg™ is simple: perform the same functions of the traditional aneroid using solid state semiconductor components, while enclosed it in a virtually indestructible casing.

The result is a groundbreaking device that carries the same lifetime calibration warranty as traditional aneroids but is crafted to withstand harsh environments and conditions. It is also loaded with features with which traditional versions cannot compete.


The very components that make an aneroid vulnerable to shock, vibration, over-inflation and wear - the diaphragm, gears, springs, and leakage - have been completely replaced with electronic pressure sensors, IC chips and a backlit extra large, easy to read, liquid crystal digital display. The manometer has been tested against a high standard of accuracy and has been found to still be accurate after repeated five foot drops. Its splash-resistent housing ensures that it can withstand even the harshest environments.


The oversized, high-visibility LCD display boasts several uncommon features. It is easy to read in any light and displays pressure and pulse, deflation rate, calibration check reminder (after 10,000 cycles), and a low-battery warning icon. It also features the Systolic Assist Feature, which can be used as a training tool or in situations with more ambient noise. When the pressure comes within 20 mmHg of the systolic pressure of the patient, a flashing indicator comes up to alert you to pay close attention to hear the phase 1 Korotkoff sounds.

The unit is powered by 2 AAA batteries, included for your convenience, and is equipped with an auto-off function to prevent battery drain. The backlight and power switch function independently of each other for further battery conservation.

Inflation system

The included latex-free Adflow™ air valve provides a solid feel for ultimate deflation control. Filter screen protection provides a second dust barrier. The inflation system is held to leakage standards that are more stringent than ANSI standards.

Customize your e-sphyg™ Digital Aneroid

Select a Cuff

Included with the innovative e-sphyg™ is an equally innovative Adcuff™ latex-free cuff with ADC’s proprietary Size Guide™ marking system to prevent mis-cuffing and a properly-placed artery mark serving the same purpose.

The cuff features a gauge tab allowing convenient use with pocket, palm, and mercurial sphygs, and a hook and loop adhesive closure rated to a minimum of 30,000 open/close cycles, up to 50,000 cycles. The attached cuff clip swivels for manometer re-positioning and easy viewing.

These durable, comfortable cuffs are available in a wide variety of sizes and colors; select all in one color for uniformity or each size in a different color for easy differentiation between sizes and a simple way to add cheer to the exam.

The e-sphyg™ is available in cuff sizes infant, child, small adult, adult, large adult, and thigh.

Select a cuff size and color combination from the drop-down menu above.

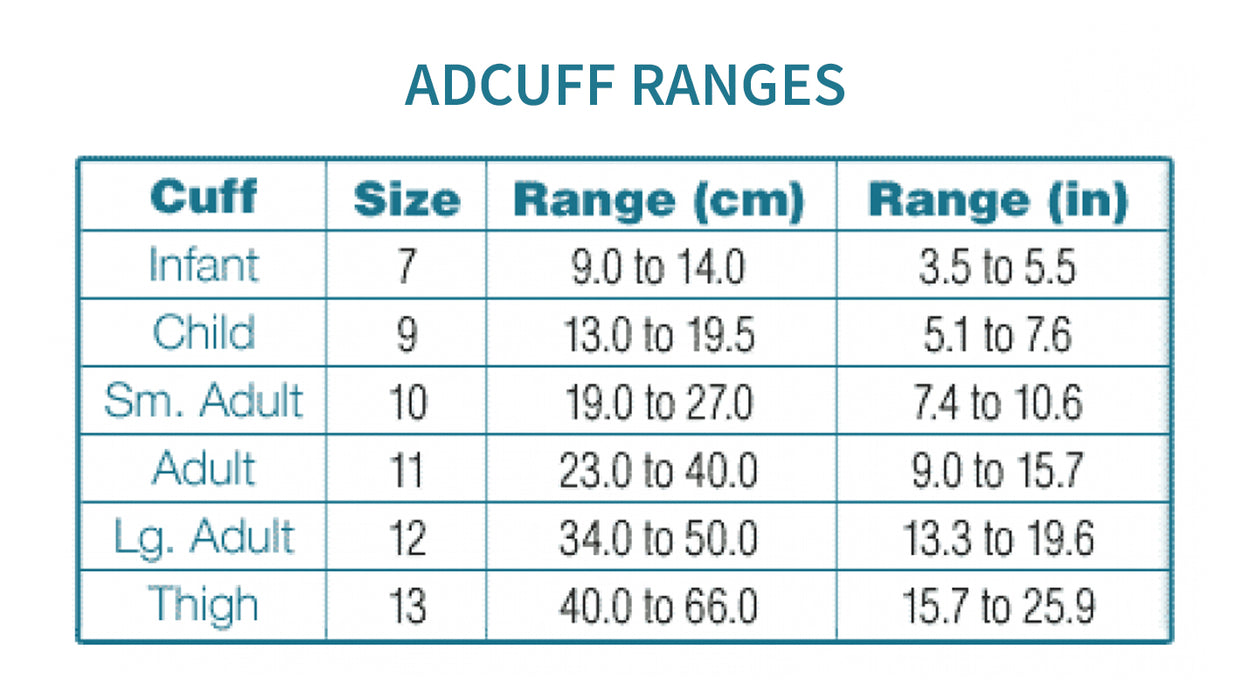

Please refer to the color chart below to view options. Color and Size Chart

Warning WARNING: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to

  • Eliminates breakable mechanical gauges
  • Compact lightweight design
  • Large, backlit, digital display
  • Reads pressure, pulse and deflation rate
  • Splash-resistant housing; can survive repeated 5 foot drops
  • Systolic Assist Feature
  • Virtually indestructible design can withstand repeated drops of 5 feet or more
  • Splash-resistant housing for use in harsh environments
  • Swivel cuff clip allows the manometer to be re-positioned for easy viewing
  • Auto-off function conserves battery strength
  • Dual low battery warnings
  • Recalibration reminder after 10,000 cycles (free lifetime recalibration)
  • Systolic assist alerts practitioner to the onset of Korotkoff sounds
  • Deflation rate display promotes proper technique in accordance with AHA guidelines
  • Pulse rate display at completion of measurement
  • Works with virtually every cuff on the market
  • Powered by 2 AAA batteries (included)

What’s in the Box

ADC 7002 e-sphyg™ Digital Aneroid, which includes:

  • Adcuff™ nylon cuff with Size Guide™ marking system
  • Adflow™ inflation system
  • Two AAA batteries
  • Zippered case
  • User's manual
  • Warranty

Returns: Tiger Medical offers a 30-day return policy from date of shipment for this product, subject to a 20% restocking fee, in addition to the return shipping charges. The product must be in brand new condition and in its original packaging. We take the responsibility to make sure this product arrives in brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you. For complete details of our return policy and process, please refer to our general return policy page.

Cancellations: Items made to order, cannot be returned or canceled after production.

Computer/Printer Connectivity
PC Link Option?
Country of Origin
Product made in:
China, inspected in USA
Auto Inflate/Deflate?
Cuff pressure display range
0-300 mmHg
Fits Arm Size
Infant through thigh
Infant through thigh
AdCuff™ with Size Guide™
Dimensions & Weight
3" x 2 3/8" x 1 1/8"
3.14 oz. (without batteries)
Readings may be affected by extreme altitude
85%-90% maximum
Safe Operating Temperature
32-115°F (0-46°C)
Storage Temperature
-4-131°F (-20-55°C)
Pressure within ±3 mmHg/pulse ± 5% of the reading
Calculate Average?
Pulse Range
30-240 bpm
0-299 mmGh
Battery Life
1500 readings with back light on; 3000 readings with back light off
AAA battery
Standards & Certifications
ANSI / AAMI SP10: 2002, Manual, Electronic, or Automated Sphygmomanometers
EN 1060-1: 1995, Non-invasive sphygmomanometers - Part 1: General Requirements; EN 1060-3: 1997, Non-invasive sphygmomanometers - Part 3: supplementary requirements for electro-mechanical blood pressure measuring systems
EV council directive 93/42/EEC; EMC directive 89/336/EEC
2-year parts, lifetime calibration
