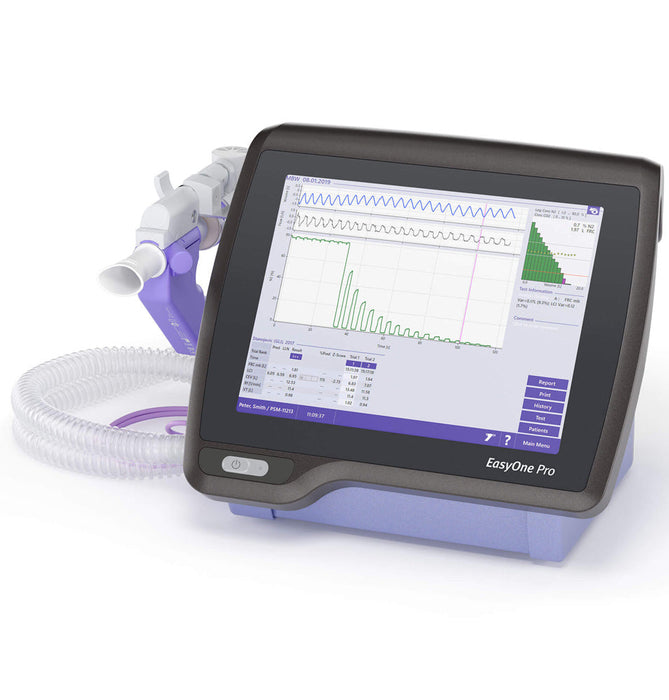

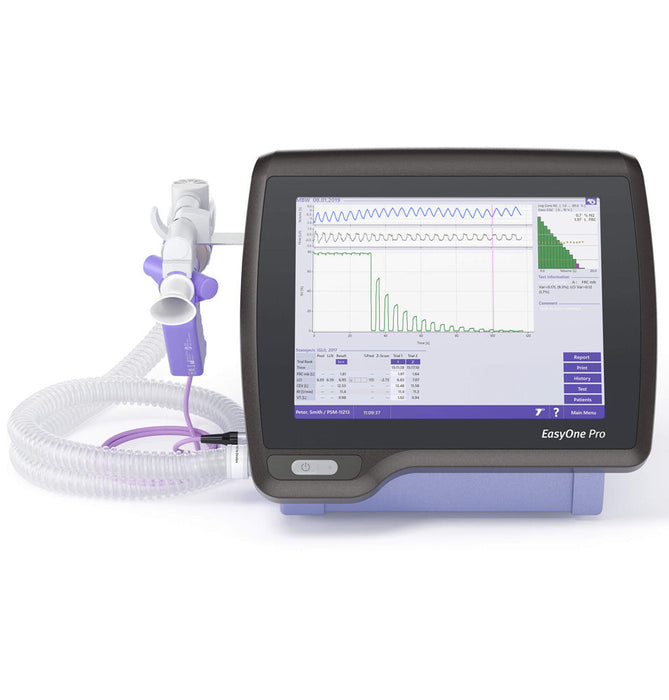

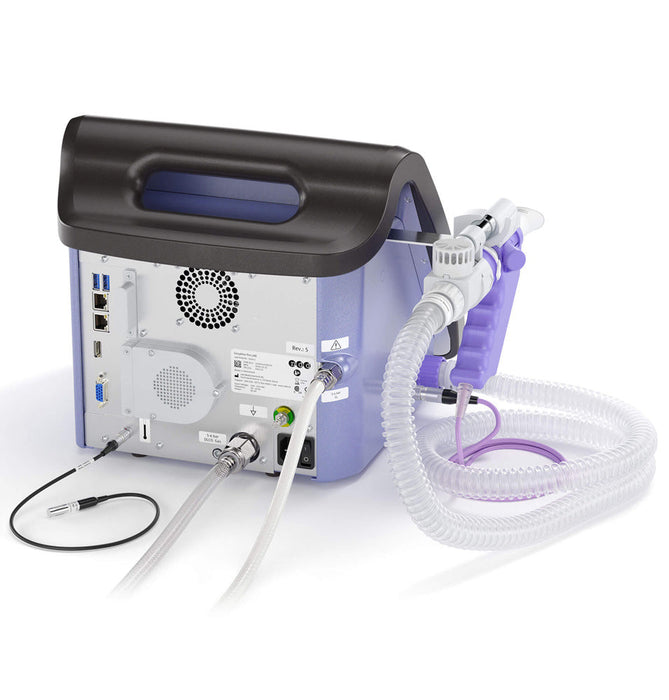

EasyOne Pro Lab Portable DLCO, Lung Volume & Spirometry Analyzer

Name: EasyOne Pro Lab Portable DLCO, Lung Volume & Spirometry Analyzer
Brand: NDC
SKU: MAS3100-1
Price: 39157.87 USD
Availability: InStock

by NDD

MFR#: 3100-1

TIGER#: TM165948

$38,857^.42 - $38,857^.42

List Price: $38,857^.42

$39,157^.87

$39,157^.87 - $39,157^.87

$39,157^.87

Add to cart for Lower Price

EasyOne Pro Lab Portable DLCO, Lung Volume & Spirometry Analyzer - $39,157^.87

$39,157^.87

*Must Purchase 1 for EasyOne Pro Lab Portable DLCO, Lung Volume & Spirometry Analyzer

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days

Documents

Manual Brochure Product Video

PARAMETERS: FVC, FVL,SVC, MVV, DLCO, Lung Volumes, Provocation and Pre/Post Testing, MBW, LCI
Complete Point-of-Care Pulmonary Function Testing
TrueCheck Automated Quality Control, No Warm-Up Needed
MBW Lung Clearance Index Testing Without SF6 Gas
Diffusion Capacity Results In Just 3 Minutes
Compact Design Eliminates Need For Body Box
Lightweight at 17.65 lbs (8 kg)
HL7, XML, and GDT EMR Connectivity .

✔ Calibration-Free Testing | ✔ No Body Box Needed | ✔ 3-Minute DLCO Results

The ndd EasyOne Pro Lab delivers complete pulmonary function testing with spirometry, DLCO, MBW, and LCI in one portable, calibration-free system. Built on patented TrueFlow and TrueCheck technology, it eliminates the need for a traditional body box while delivering consistently accurate results.

PRECISION WITHOUT THE HASSLE

CALIBRATION-FREE TRUEFLOW: Ultrasonic flow sensor stays accurate for life regardless of gas composition, pressure, temperature, or humidity, no daily calibration needed.

TRUECHECK AUTOMATED QC: Patented 5-point check verifies gas-sensor stability and linearity, eliminating the need for external DLCO simulators or warm-up time.

FAST DLCO RESULTS: Diffusion capacity results in as little as 3 minutes, keeping patient visits moving.

COMPLETE TEST MENU: FVC, FVL, SVC, MVV, provocation, pre/post, DLCO, MBW, and LCI testing, all on one device.

STANDARDS-BASED ACCURACY: Meets ATS/ERS 2022, 2019, and 2005 spirometry standards and ATS/ERS 2017 and 2005 DLCO standards, plus NIOSH, OSHA, and SSA Disability testing requirements.

BUILT FOR REAL CLINICS

NO BODY BOX REQUIRED: Full lung volume and DLCO testing without the space, cost, or claustrophobia concerns of a traditional body box.

MBW WITHOUT SF6 GAS: Multiple-breath nitrogen washout testing needs only an oxygen supply, no expensive specialty gas required.

SELF-MAINTAINABLE & COMPACT: Annual maintenance can be completed by clinic staff in about 10 minutes; fits easily into any exam room.

HYGIENIC SINGLE-USE CONSUMABLES: Spirette, DLCO Barriette, and FRC Barriette components are single-patient-use, minimizing cross-contamination and cleaning time.

SEAMLESS EMR INTEGRATION: Connects to major EMR/EHR systems via HL7, XML, or GDT.

The ndd EasyOne Pro Lab is a dependable, all-in-one investment for any practice serious about complete, accurate pulmonary diagnostics.

WARNING: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

PARAMETERS: FVC, FVL,SVC, MVV, DLCO, Lung Volumes, Provocation and Pre/Post Testing, MBW, LCI
Complete Point-of-Care Pulmonary Function Testing
TrueCheck Automated Quality Control, No Warm-Up Needed
MBW Lung Clearance Index Testing Without SF6 Gas
Diffusion Capacity Results In Just 3 Minutes
Compact Design Eliminates Need For Body Box
Lightweight at 17.65 lbs (8 kg)
HL7, XML, and GDT EMR Connectivity

What’s in the Box

EasyOne Pro Lab Portable DLCO, Lung Volumes, & Spirometry Testing System
DLCO Valve
Flow Sensor
Patient Gas Supply Tube
One-Way Valve
Gas Hose
Temperature/Humidity Sensor
DLCO and Oxygen regulators (E or H/K)
User Manual
2-Year Manufacturer's Warranty

WARRANTY: 2 Years or 3 Years

RETURNS: ITEMS WITH A LEAD TIME LONGER THAN 48 HOURS CANNOT BE RETURNED / CANCELLED. These are specially ordered, and we cannot accept returns or cancellations on such products for any reason. We take the responsibility to make sure your product arrives in brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

Items which ship out in 24-48 hours are covered by our standard 30 day return policy from date of shipment. Return shipping charges are the responsibility of the customer. The product must be in new condition and in its original packaging.

For complete details of our return policy and process, please refer to our general return policy page.

Test

Test Type

FVC, FVL, SVC, MVV, Provocation and Pre/Post testing, DLCO, MBW, LCI

Report Type

Not specified

Volume Range

±12 l

Flow Range

±16 l/s

Accuracy

Volume: ±2% or 0.050 l · Flow: ±2% or 0.020 l/s (except PEF) · PEF: ±5% or 0.200 l · MVV: ±5% or 5 l/min (per manual). DLCO gas mixture accuracy: <2% overall (10% helium ±10%, 0.3% CO ±10%, 18–25% oxygen, balance nitrogen)

Reproducibility

Not specified

Power

Power Supply Type

Mains-powered, up to 80 VA power consumption

Sensor

Sensor Type

Not specified

Interpretation

Details

Automatic interpretation using GOLD/Hardie, NICE, JRS, and NLHEP criteria; ATS/ERS interpretation decision tree; QC-grading based on NLHEP and ATS/ERS 2005 & 2019

Parameters

Details

FVC: ATI, BEV, EOTV, FEF10–90 variants, FET, FEV.25–FEV6 variants, FEV1 ratios, MEF20–90, MMEF, MTC1-3, MTCR, PEF, PEFT, t0, VC, VCmax (52 parameters) FVL: All FVC parameters plus CVI, E50/I50, FIF25-75, FIF50/FEF50, FIV.25–FIVC, MIF25-75, MMIF, PIF (68 parameters) SVC: ERV, IC, IRV, Rf, VC, VCex, VCin, VCmax, VT MVV: MVV, MVV6, MVVtime, Rf, VCext, VT DLCO: BHT, COHb, ColBarVol, CO/HE/O2 Conc, Dead Space (Anatomic/System), Discard Volume, DLadj, DLadj/VA, DLCO, DLCO/VA (KCO), ERV, FA/FE/FI CO & HE, FEV1/FVC, FRC (sb/Cor), Hb, tI, Kroghs K, PaO2, RV (sb/Cor), RV/TLC (sb/Cor), TLC (sb/Cor), TLCO, VA (sb/Cor), VCext, VCmax, Vd, VI, VT MBW: CEV, CEV5, Dead Space (Anatomic/System), ERV, FRC (base/extrapol/mb), IC, IRV, LCI, LCI5, LCIao, MO, MR1, MR2, Rf, RVmb, RV/TLCmb, TLCmb, VAmb, VC,

Predictive Norms

Details

Spirometry only: GLI (Stanojevic 2009, Quanjer 2012, Bowerman 2023); North America (NHANES III/Hankinson 1999, Knudson 1983/1976, Crapo 1981, Morris 1971/1976, Hsu 1979, Dockery/Harvard 1993, Polgar 1971, Gutierrez/Canada 2004, Eigen 2001, Cherniak 1972); Latin America (Chile 2010/1997, Jones 2022, Pereira 1992/2006/2008, Pereira-Prata 2018, Pérez-Padilla PLATINO 2006 & Mexico 2001/2003); Europe (ERS/ECCS/EGKS/Quanjer 1993, Garcia-Rio/SEPAR 2013, Falaschetti 2004, Forche/Austria 1988/1994, Klement/Russia 1986, Roca/Spain 1982, Rosenthal 1993, Sapaldia/Switzerland 1996, Vilozni 2005, Zapletal 1977/2003); Scandinavia (Hedenström 1985/1986, Gulsvik 1985, Berglund Birath 1963, Langhammer 2001, Finnish 1982/1998, Nystad 2002, Koillinen 1998/2001, Kainu 2016); Australia (Hibbert 1989, Gore Crockett 1995); Asia (Chhabra/India 2014, Dejsomritrutai/Thailand 2000, Indonesia 1992, IP/China-HongKong 2000/2006, JRS 2001/2014); Africa (Mengesha/Ethiopia 1985)

Connectivity

Details

HL7, XML, GDT export via USB or LAN network; Ethernet port, USB, optional WLAN upgrade; EasyOne Connect data management (SQLite or MS SQL Server); PCL standard printing, direct or via network

Compatibility

EHR Compatibility

Integrates via HL7, XML, or GDT

Operating System Requirements

Built-in industrial PC

Certifications

Standards

IEC 60601-1, IEC 60601-1-2, IEC 62304, IEC 62366, ISO 13485, ISO 14971, ISO 26782, ISO 23747; FDA 510(k) market clearance; MDD 93/42/EEC; CE marked; ATS/ERS 2022, 2019 & 2005 Spirometry Standards; NIOSH, OSHA, SSA Disability; ATS/ERS 2017 & 2005 DLCO Standards
