  • PARAMETERS: ECG (12-Lead), Heart Rate
  • 17" Touchscreen With Scratch-Resistant Glass
  • WAM Wireless Module for Tangle-Free Exams
  • VERITAS Algorithm With 10M+ ECG Database
  • Best 10 Tech for Cleaner Data
  • Auto-Sync Patient Orders and Demographics
  • DoD-Level Security With ATO Clearance .

The Welch Allyn ELI 380 is a high-performance, touchscreen ECG system built for high-volume care. It automates workflow, protects patient data, and delivers consistent, diagnostic-quality results.

✔️ Automated Workflow | ✔️ Wireless ECG Capture | ✔️ Military-Trusted Security



SMART WORKFLOW

CONNECT LEADS: Displays lead fail and lead reversals to avoid repeat tests

SYNC IN ONE STEP: Get the latest patient orders instantly, or enable auto-sync to keep everything up to date without lifting a finger.

SCAN & CONFIRM: Scan the patient ID to confirm identity and instantly link it to the correct order.

ACQUIRE ECG: Best 10 picks the quietest 10 seconds of heart data for you, or tap to select any segment from the full test.

TRANSMIT DATA: Send ECG results straight to your system using either a wired or wireless network.




BUILT FOR MODERN CARE

17” TOUCHSCREEN: Scratch-resistant, glare-free, and easy to clean.

WIRELESS ACQUISITION: WAM module delivers full diagnostic-quality ECGs without wires.

VERITAS INTERPRETATION: Trusted algorithm analyzes ECGs from a 10M+ record FDA-backed database.

ALERTS FOR CRITICAL TEST RESULTS: Enables fast decision-making for patient needs.

TWO BATTERY SUPPORT: Longer runtime with fewer charge cycles and replacements.


NEXT-LEVEL SECURITY

TRUSTED BY THE MILITARY: The only ECG approved for use on U.S. Department of Defence secure military networks.

USER CONTROL ACCESS: Authenticate users via unique logins, assign permissions by role, and auto-close idle sessions to protect patient data.

END-TO-END ENCRYPTION: All patient data is locked and protected from start to finish—even over Wi-Fi—using top-level security.

STANDARDS-BASED CONNECTIVITY: Supports secure data transfer through widely used healthcare formats including PDF, XML, HL7, and DICOM.




CONFIGURATION OPTIONS

The Welch Allyn ELI 380 Resting Electrocardiograph has two monitor options:

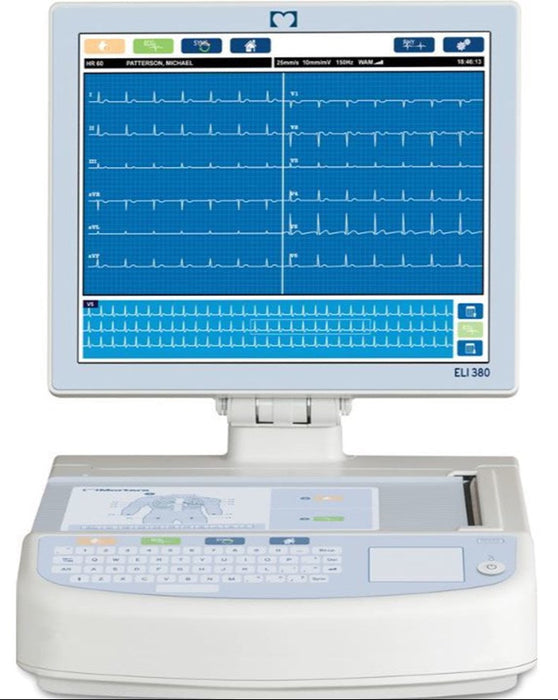

1️⃣ Standard Monitor – Fixed display (ELI380-ACX11)

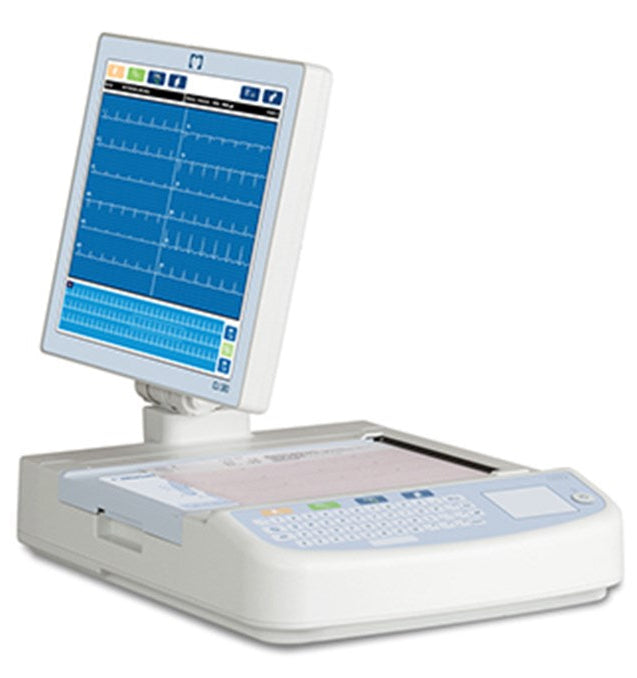

2️⃣ ERGO Swivel Monitor – Swivels 180°, tilts 120° (ELI380-DCS11)

The ERGO Swivel Monitor ensures the monitor moves with the doctor during exams without leaving the patient's side.


Built for today’s demanding care environments, the ELI 380 combines high-quality ECG acquisition with advanced security and a workflow that makes clinical teams' lives easier.

Warning WARNING: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

  • PARAMETERS: ECG (12-Lead), Heart Rate
  • 17" Touchscreen With Scratch-Resistant Glass
  • WAM Wireless Module for Tangle-Free Exams
  • VERITAS Algorithm With 10M+ ECG Database
  • Best 10 Tech for Cleaner Data
  • Auto-Sync Patient Orders and Demographics
  • DoD-Level Security With ATO Clearance

What’s in the Box

  • Welch Allyn ELI 380 Resting Electrocardiograph Includes:
    • 1 - Lithium-Ion Battery
    • 1 - Smart Paper (8.27" x 11")
    • 10 - ECG Clip Adapters
    • 100 - Tab Electrodes
    • 1 - AHA 10 Wire
    • 1 - 12-Lead Set w/ Banana Plugs
    • 1 - North American Power Cord
  • Two-Year Warranty

Available Package Options

Monitor Type: Standard or w/ ERGO Swivel Display

ITEMS WITH A LEAD TIME LONGER THAN 48 HOURS CANNOT BE RETURNED / CANCELLED. These are specially ordered, and we cannot accept returns or cancellations on such products for any reason. We take the responsibility to make sure your product arrives in brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

ITEMS WHICH SHIP OUT IN 24-48 HOURS. These are covered by our standard 30 day return policy from date of shipment. Return shipping charges are the responsibility of the customer. The product must be in new condition and in its original packaging.

For complete details of our return policy and process, please refer to our general return policy page.

ALLOCATED PRODUCTS BELOW ARE NON-CANCELLABLE, NON-RETURNABLE

  • PPE Apparel (Face Shields, Masks, Gloves, Gowns, Shoe Covers, Bouffant Caps, etc.) | COVID Tests | Alcohol / Alcohol prep pads | Batteries | Disinfecting solutions and wipes | Facial tissue | Hand sanitizers, soaps and dispensers | Hydrogen peroxide | | Spirometers | Thermometers | Saline / Solutions | Needles | Syringes
Connectivity
EMR Compatible?
Yes
PC Compatible?
Yes
Printer?
Yes
Dimensions
Dimensions
20" L x 15.5" W x 5.5" H
Weight
27 lbs.
Display
Display Type
17" LCD Capacitive Touchscreen
Environmental Specifications
Operating Humidity
10% to 95% RH, non-condensing
Safe Operating Temperature
+50 deg. to +104 deg. F
Safe Storage Temperature
-40 deg. to +158 deg. F
Storage Humidity
10% to 95% RH, non-condensing
Filters
low-pass filters 40 Hz, 150 Hz, or 300 Hz
AC interference filter 50/60 Hz
High-performance baseline filter
Measurement
Frequency Range
0.05 to 300 Hz
Sampling Rate
40,000 s/sec/channel used for pacemaker spike detection; 1000 s/sec/channel used for recording and analysis
Memory
Memory Capacity
up to 500 ECGs
Power Supply
Battery Life
up to 7 hours
Power Supply Type
110VA Power Supply; Internal rechargeable battery
Software Specification
Print formats
Standard or Cabrera
Print speeds
5, 10, 25 or 50 mm/s
Standards & Certifications
Electrodes: Meets or exceeds the requirements of ANSI/AAMI ES 60601-1
Patient cable and leads: Meets or exceeds the requirements of ANSI/AAMI/IEC 60601-2-25
Warranty
Warranty
Two Years
