EPM 12M Vital Signs Monitor

• PARAMETER: SpO2 (Masimo/Nellcor)
• OPTIONAL PARAMETER: Dual IBP

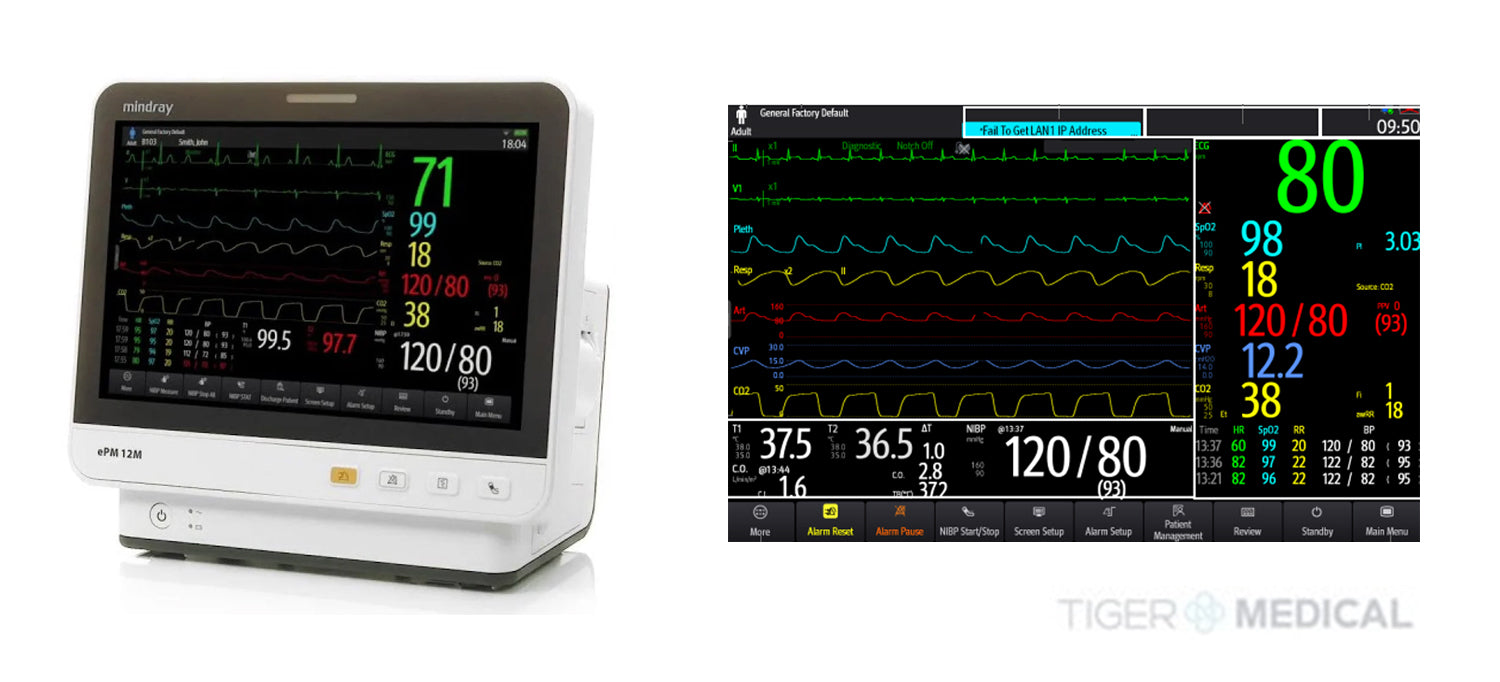

• High-Definition 12” Touchscreen With 10 Waveforms
• Built-In SpO₂, ECG, NIBP, Respiration, and Temperature
• Optional Wireless Connectivity
• Extensive Trend, Alarm, and Event Storage
• HL7 and DIAP Protocols for EMR Integration .

The MDPro Mindray EPM 12M is a high-performance monitor designed for speed, clarity, and flexible care, suitable for use in bedside monitoring, mobile units, and operating rooms.

✔ Dual SpO₂ Options | ✔ 12” Touchscreen Display | ✔ EMR-Ready Design

ALL-IN MONITORING

WIDE PARAMETER COVERAGE: 3/5-lead ECG, Masimo/Nellcor SpO₂, NIBP, respiration, and temperature; Optional IBP

ARRHYTHMIA DETECTION: Built-in Afib analysis with optional ST/QT monitoring.

CO₂ & MULTI-GAS READY: Expandable with sidestream, Microstream, or full multi-gas module (12M/15M only).

INTUITIVE INTERFACE

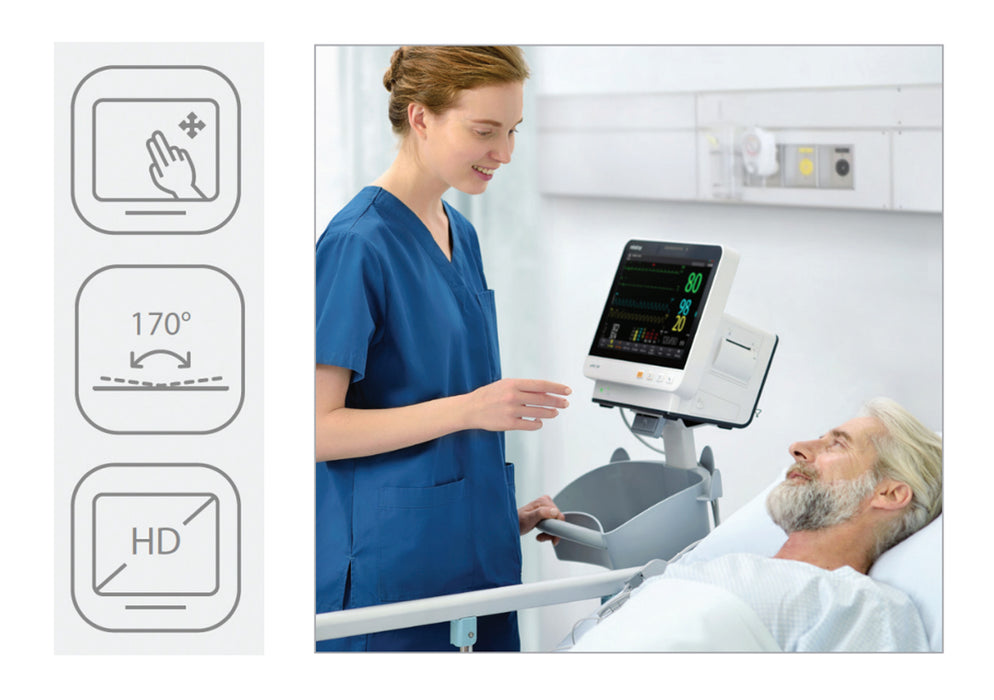

HD TOUCHSCREEN: 12" multi-gesture display with 170° viewing angle.

INTUITIVE INTERFACE: Access 90% of functions with just two taps, thanks to auto-highlighting smart tiles.

TREND SNAPSHOTS: Swipe to instantly reveal key data trends during monitoring.

BUILT FOR MOBILITY: IP44-rated, EMR-ready, and mounts easily for bedside or transport use.

AVAILABLE OPTIONS

MASIMO or NELLCOR SPO2

MASIMO SET: Provides industry-leading performance with high accuracy during motion or low perfusion. Ideal for critical care environments where reliability is non-negotiable.

NELLCOR OXIMAX: Delivers consistent oxygen saturation monitoring with broad sensor compatibility — a trusted choice for seamless integration in existing Nellcor environments.

OPTIONAL DUAL IBP

INVASIVE PRESSURE READINGS: Enables real-time arterial, venous, or intracranial pressure monitoring.

DUAL-CHANNEL CAPABILITY: Monitor two pressure lines simultaneously for enhanced clinical insight.

FACTORY-INSTALLED OPTION: This option must be selected at the time of purchase for internal integration.

WIRELESS CONNECTIVITY

WIRELESS EMR INTEGRATION: Transmit patient data directly to hospital systems via HL7 or DIAP.

FLEXIBLE MONITORING: Enables bed-to-bed remote viewing and supports mobile care workflows.

ORDERING INFORMATION

The Mindray EPM 12M Patient Monitor is available with different instruments to cater to user preferences and different use cases.

• Masimo SpO2 (121-001879-00)
• Masimo SpO2 and Dual IBP (121-001880-00)
• Masimo SpO2 and Wireless connectivity (121-001884-00)
• Nellcor SpO2 (121-001888-00)
• Nellcor SpO2 and Dual IBP (121-001889-00)
• Nellcor SpO2 and Wireless connectivity (121-001890-00)

With robust parameter support, modular flexibility, and seamless connectivity, the EPM 12M is built to adapt and perform wherever patient care happens.
