G8 HPLC Automated Glycohemoglobin Analyzer

• HbA1c Results in 1.6 Minutes with <2% CV Precision
• NGSP and IFCC Certified Ion-Exchange HPLC Technology
• Direct Stable HbA1c — No Sample Pre-Treatment Required
• Cap-Piercing Primary Tube Sampling with Integrated Barcode Reader
• Three Configurations: 90SL, 290SL, and Line Automation (LA)
• Automated Start-Up, Maintenance, and Shutdown .

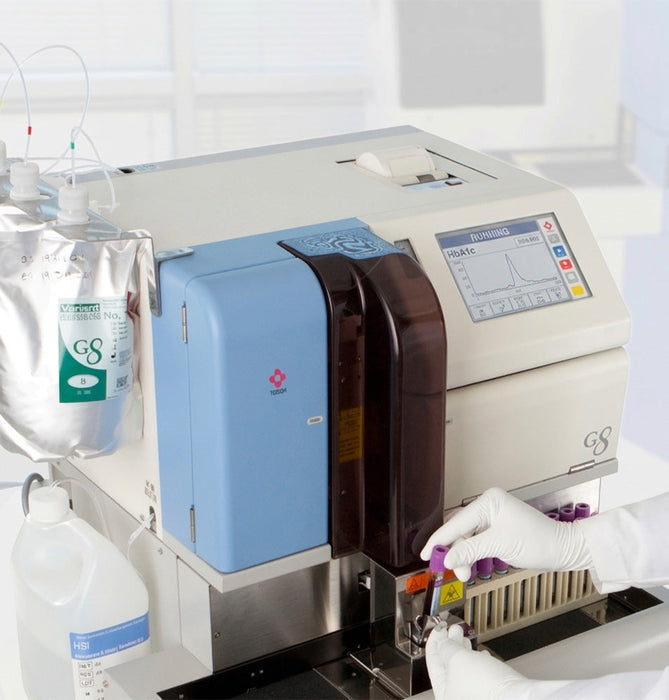

The Tosoh Bioscience G8 HLC-723G8 is a fully automated glycohemoglobin HPLC analyzer that delivers HbA1c results in 1.6 minutes using the gold standard ion-exchange method. Available in three configurations — 90-sample, 290-sample, and line automation — it scales from physician office labs to fully integrated high-throughput environments.

✔ 1.6 Min/Sample | ✔ NGSP & IFCC Certified | ✔ 3 Lab Configurations

FAST, ACCURATE RESULTS EVERYTIME

HbA1c IN 1.6 MINUTES: Ion-exchange HPLC delivers stable HbA1c (SA1c) results with intra-assay CVs as low as 0.42% and inter-assay CVs as low as 0.36%, well under the 2% threshold.

GOLD STANDARD METHODOLOGY: The same ion-exchange HPLC method used in the landmark DCCT study. NGSP and IFCC certified for reliable, compliant reporting.

NO INTERFERENCE FROM LABILE A1c: Results are not clinically affected by labile HbA1c, most hemoglobin variants, or derivatives. No offline pre-treatment needed.

VARIANT DETECTION INCLUDED: A simple mode switch activates the β-thalassemia program for in-depth hemoglobin variant analysis without changing workflows.

FIRST RESULT IN 3.5 MINUTES: Pre-reaction takes 1.9 minutes; analysis runs in 1.6 minutes, faster than any previous G-series model.

CHOOSE THE CONFIGURATION THAT FITS YOUR LAB

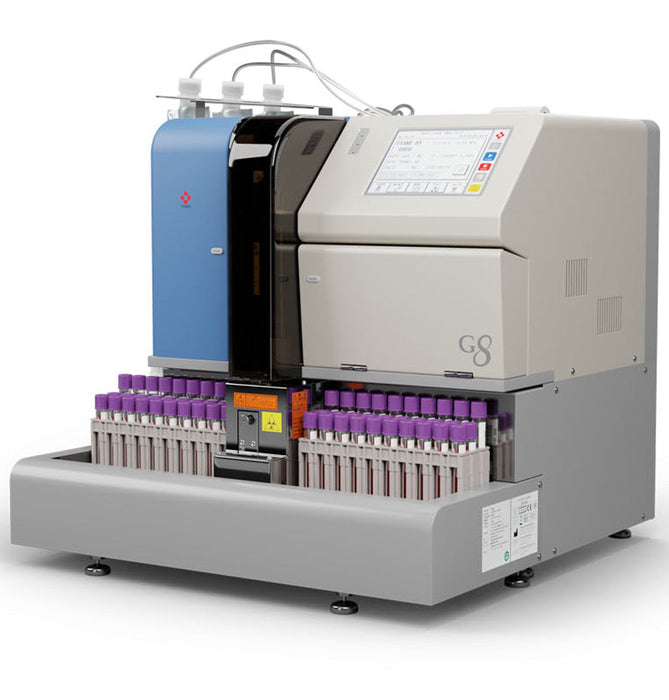

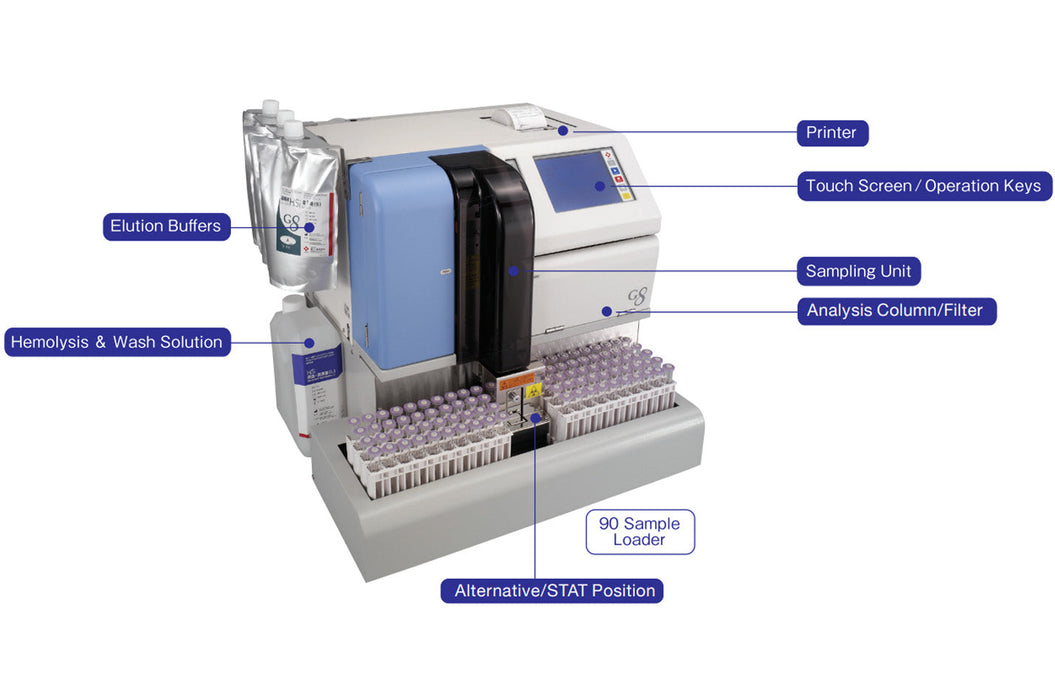

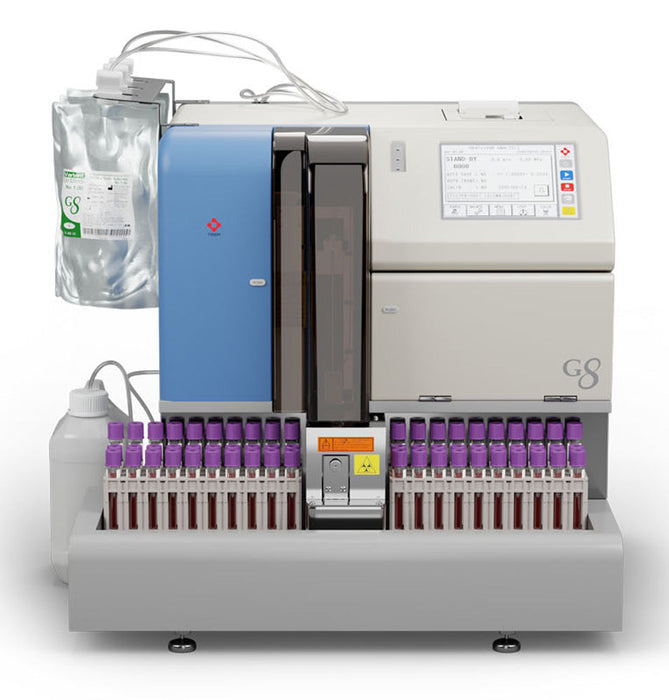

90SL — MID-VOLUME LABS: Loads 90 samples + 1 STAT position. Compact at 21"W × 20"D × 19"H / 75 lbs . Fits physician office labs, clinics, and smaller hospital labs.

290SL — HIGH-VOLUME LABS: Loads 290 samples + 1 STAT position at 44"W × 21"D × 19"H. Built for core labs and reference labs with high daily volumes.

LA — LINE AUTOMATION: At 21"W × 29"D × 19"H, the LA integrates into a full lab automation line via sample belt, no manual loading required.

FLEXIBLE TUBE LOADING: All three models accept mixed tube sizes and types, loaded continuously in the same rack in any order.

UPGRADE AS YOU GROW: Scale from 90SL to 290SL or LA as volumes increase. Core performance stays consistent across all configurations.

Whether you're running a small clinic or a fully automated reference lab, the G8 delivers the speed, precision, and scalability to keep your HbA1c workflow running without interruption.
