16 Parameters with 3-Part WBC Differential in ~50 Seconds
-
60 Samples/Hour Throughput
-
Open Tube, Capillary, and Pre-Diluted Modes
-
Built-In Tube Mixer for Continuous Sample Mixing
-
Shear Valve-Guided Aspiration for Accurate Sample Measurement
-
Comprehensive Onboard QC with Levey-Jennings and X-bar Statistics
-
5.7" TFT Color Touch Screen .

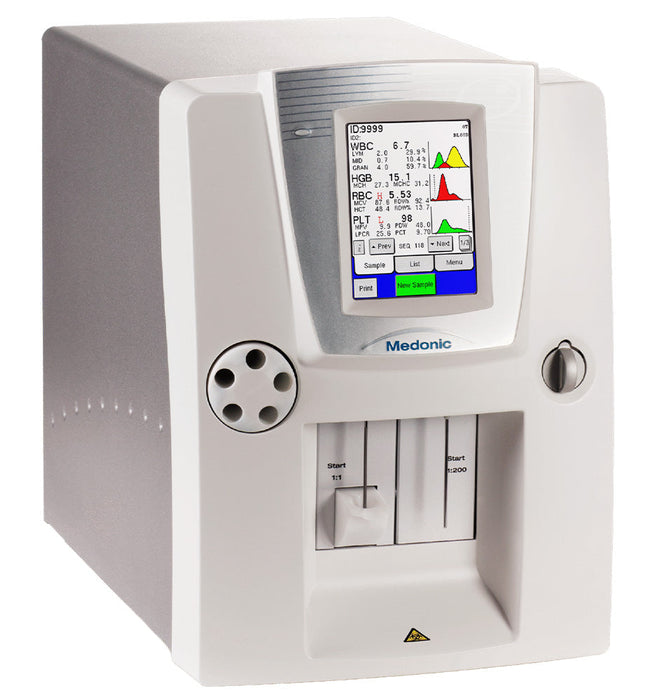

The Medonic M16M by Boule is a 16-parameter, 3-part differential hematology analyzer built for smaller labs that need fast, reliable CBC results without the complexity of a high-volume system. With a built-in tube mixer, shear valve-guided aspiration, and a compact footprint, it delivers accurate results in under a minute with minimal maintenance.
✔ 16 Parameters, 3-Part Diff | ✔ 60 Samples/Hour | ✔ Built-In Tube Mixer
FAST, ACCURATE RESULTS WITH MINIMAL INTERVENTION
16-PARAMETER CBC + 3-PART DIFFERENTIAL: Reports WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, PLT, MPV, LYM#/%, MID#/%, and GRA#/% - a complete hematology panel from a single sample.
60 SAMPLES/HOUR THROUGHPUT: Open tube mode delivers results in 50 seconds per sample, ideal for labs that need fast turnaround without a high-volume system.
SHEAR VALVE-GUIDED ASPIRATION: Precise aspiration mechanism ensures consistent sample uptake and measurement quality, reducing repeat testing and manual intervention.
BUILT-IN TUBE MIXER: Continuously mixes queued samples while awaiting analysis, eliminating manual mixing steps and reducing pre-analytical errors.
FLEXIBLE SAMPLE MODES: Accepts open tube (110 µL), capillary/MPA (20 µL), pre-diluted (20 µL), and cap-pierce (250 µL) samples, accommodating different collection types and patient populations.
BUILT FOR RELIABILITY AND EASY OPERATION

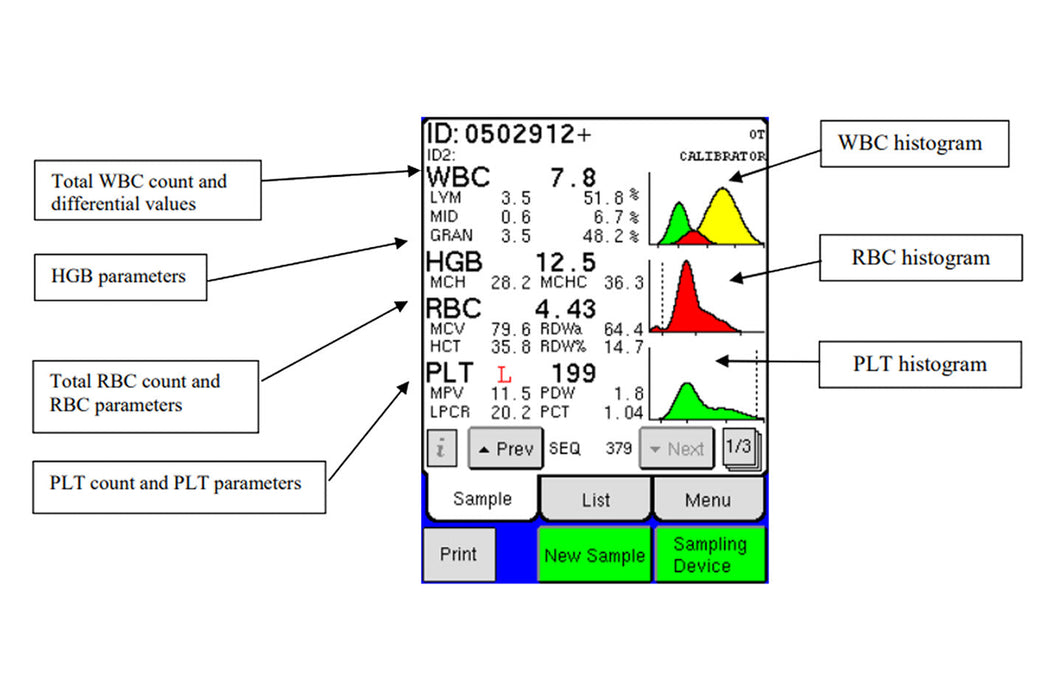

5.7" TFT COLOR TOUCH SCREEN: Intuitive graphical interface with onboard step-by-step guidance simplifies daily operation for any lab staff member.
COMPREHENSIVE ONBOARD QC: Tri-level controls (L, N, H) with Mean, SD, CV%, Levey-Jennings, and X-bar statistics built in, no external QC software required.
UP TO 1,000 SAMPLE STORAGE: Results stored onboard for easy retrieval and review without LIS dependency.
ROBUST, LOW-MAINTENANCE DESIGN: Built to maximize instrument uptime and minimize service calls, reducing operating costs for small and mid-volume labs.
BARCODE REAGENT ENTRY: Two-reagent system (Medonic M-Series Diluent and Lyse) with barcode entry for accurate, error-free reagent identification.

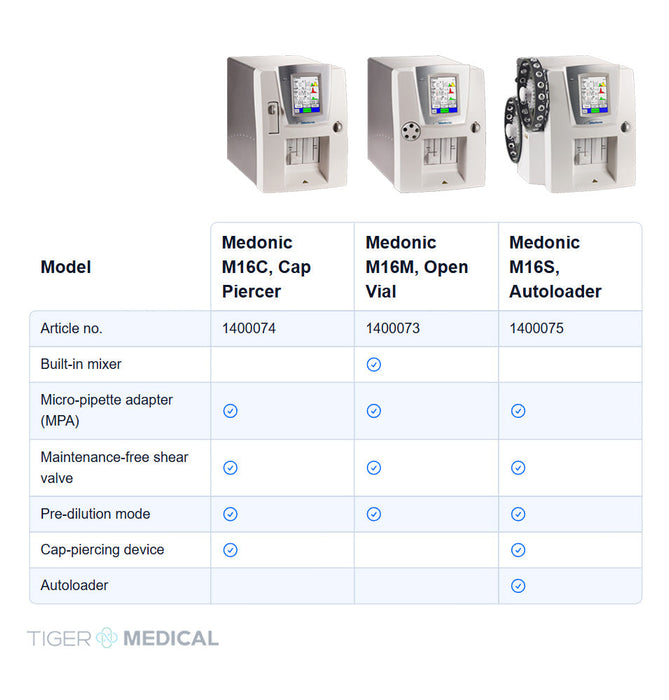

CHOOSE THE CONFIGURATION THAT FITS YOUR LAB
M16M - OPEN VIAL: The standard configuration with built-in tube mixer and micro-pipette adapter. Accepts open tube (110 µL) and capillary (20 µL) samples. Compact at 11.5"W × 18"D × 16"H / ≤18 kg, ideal for small labs with manual sample handling.
M16C - CAP PIERCE: Adds a cap-piercing device for closed-tube sampling (250 µL), reducing biohazard exposure and handling errors. Same compact footprint as the M16M at 11.5"W × 18"D × 16"H / ≤18 kg.
M16S - AUTOLOADER: The highest-capacity configuration with a built-in autosampler for continuous, hands-free processing. Accepts autoloader samples at 300 µL with constant sample mixing. Slightly larger at 13"W × 18"D × 17"H / ≤22 kg, suited for labs with higher daily volumes that need walk-away automation.
Backed by Boule's Total Quality Concept, from development through installation and training, the CDS Medonic M16M delivers the accuracy, reliability, and simplicity that small labs need to provide fast, confident hematology results every time.
