Nano EXP Portable Ultrasound Scanner

Edan
by Edan
MFR#: Nano C5 EXP
TIGER#: TM157600
List Price: $5,200.00
You Save: $1,200.00 -23%
$5,200.00 - $5,200.00
List Price: $5,200.00
$4,000.00
$4,000.00 - $4,000.00
$4,000.00
Add to cart for Lower Price

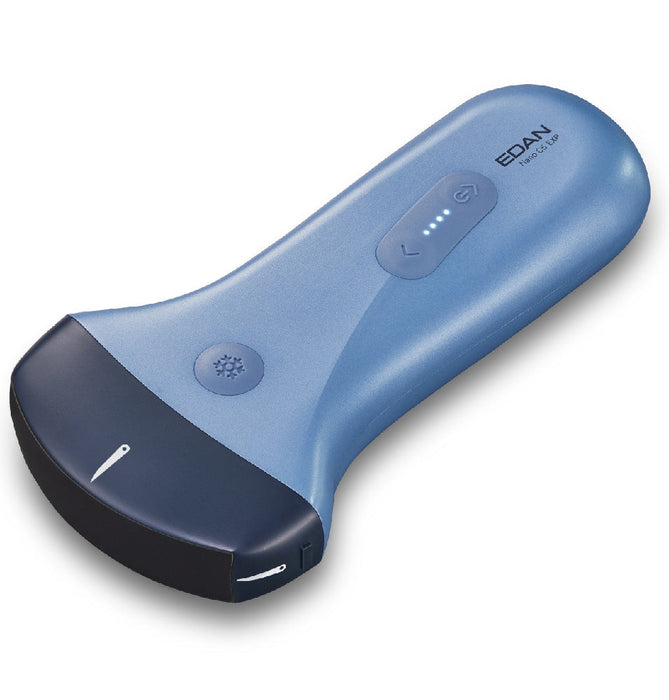

Nano EXP Portable Ultrasound Scanner
Nano EXP Portable Ultrasound Scanner - $4,000.00
$4,000.00
*Must Purchase 1 for Nano EXP Portable Ultrasound Scanner

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 5 - 7 Business Days
Documents
Brochure
  • Linear or Convex Probe Options for Superficial and Deep Imaging
  • B, M, Color, and PW Doppler Modes in One Pocket Device
  • IP67 Dustproof and Waterproof for Any Clinical Setting
  • Up to 5-Hour Battery with Type-C Fast Charging
  • Wi-Fi and Cable Connectivity with DICOM Transfer
  • Compact, Pocket-Sized Design for Android Smartphones and Tablets .

The Edan Nano EXP Ultrasound Scanner brings full-featured point-of-care ultrasound into a pocket-sized probe, available in Linear (L12) for high-resolution surface imaging or Convex (C5) for deep-structure imaging. Both pair with Android devices via Wi-Fi or cable, powered by Edan's SynSight zone sonography platform for consistently sharp results.

✔ Linear or Convex Probe | ✔ IP67 Rated | ✔ DICOM Ready

CHOOSE YOUR PROBE

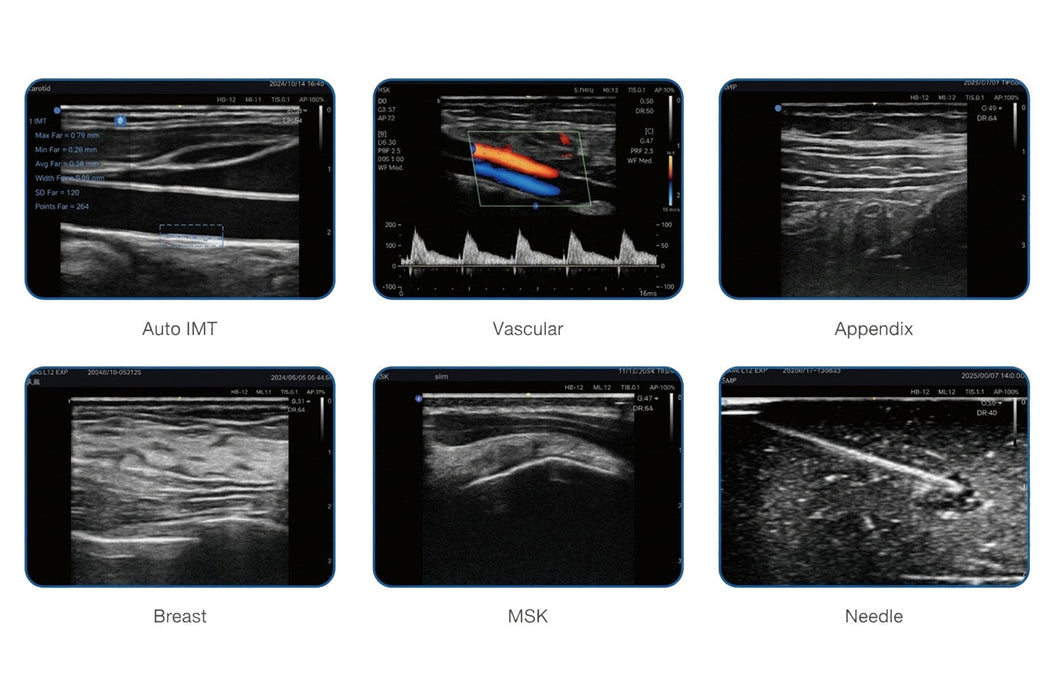

  • L12 LINEAR (4–12 MHZ): Best for superficial imaging for vascular, MSK, breast, nerve, thyroid, and needle-guided procedures. Includes Auto IMT for fast carotid screening
  • C5 CONVEX (2–5 MHZ): Best for deep-structure imaging for abdominal, OB/GYN, cardiac, and emergency assessments up to 30 cm deep. Has Auto Trace and Dual Simultaneous Imaging
  • SAME APP, DIFFERENT JOB: Both probes share the same app, connectivity, and battery life, only imaging depth and clinical use case differ
  • FOUR IMAGING MODES: B-mode, M-mode, Color Doppler, and Pulsed Wave Doppler support a full range of diagnostic and procedural needs.
  • SYNSIGHT PLATFORM: Efficiently processes echo data to deliver sharp, low-noise images on both probes.

BUILT TO GO ANYWHERE

  • POCKET SIZE, SERIOUS PROTECTION: IP67-rated and easy to wipe down between patients (L12: 215g, C5: 240g).
  • FLEXIBLE CONNECTIVITY: Connects via USB Type-C or Wi-Fi, with DICOM transfer and local JPEG/MP4 storage.
  • LONG RUNTIME: Up to 5 hours of use (50% scan/50% pause) with a ~2.5-hour full charge.
  • CONFIGURABLE CONTROLS: Three user-defined buttons plus custom presets, body marks, and multi-language display.

Whichever probe you choose, the Edan Nano EXP Ultrasound Scanner delivers dependable, cart-free diagnostic imaging built to keep up with your practice for years to come.

Warning WARNING: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

  • Linear or Convex Probe Options for Superficial and Deep Imaging
  • B, M, Color, and PW Doppler Modes in One Pocket Device
  • IP67 Dustproof and Waterproof for Any Clinical Setting
  • Up to 5-Hour Battery with Type-C Fast Charging
  • Wi-Fi and Cable Connectivity with DICOM Transfer
  • Compact, Pocket-Sized Design for Android Smartphones and Tablets

What’s in the Box

  • Edan Nano EXP Portable Ultrasound Scanner, C5 or L12
  • User Manual
  • Warranty

RETURNS: Tiger Medical offers a 30-day return policy from date of shipment for this product, subject to a 20% restocking fee, in addition to the return shipping charges. The product must be in brand new condition and in its original packaging. We take the responsibility to make sure this product arrives in brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you. For complete details of our return policy and process, please refer to our general return policy page.

Cancellations: Items made to order, cannot be returned or canceled after production.

Features
Configuration
C5 EXP: Handheld convex probe; connects to Android smartphones and tablets via Wi-Fi or USB Type-C cable L12 EXP: Handheld linear probe; connects to Android smartphones and tablets via Wi-Fi or USB Type-C cable
Applications
C5 EXP: Abdomen, Nephrology, FAST, Lung, MSK, Bladder, Anesthesiology, Pain Management, Obstetrics, Gynecology, Vascular, Cardiac L12 EXP: Carotid, Small Parts, Vascular, Needle Guidance, MSK, Nerve, Anesthesiology, Lung, Neo-head, Pediatric, Breast, Appendix
Transducer Frequency
C5 EXP: 2–5 MHz (center frequency 3.5 MHz) L12 EXP: 4–12 MHz
Transducer Connector
C5 EXP: USB Type-C L12 EXP: USB Type-C
Display
No onboard display; outputs to Android smartphone or tablet
Peripheral Ports
USB Type-C; Wi-Fi connectivity
Weight & Dimensions
Dimensions
C5 EXP: 158 mm × 81 mm × 29 mm L12 EXP: 161 mm × 64 mm × 29 mm
Weight
C5 EXP: 240 ± 5 g L12 EXP: 215 ± 5 g
Power
Power Supply
Built-in rechargeable Li-ion battery; charges via USB Type-C
Battery Duration And Type
Up to 5 hours (50% scan / 50% pause); charge time ~2.5 hours (8% to 90%)
Functions
Cine Loop
Not specified
Zoom
Not specified
Image Memory
Local storage on connected Android device; DICOM, JPEG, MP4 formats supported
Body Marks
C5 EXP: Yes L12 EXP: Yes
Transducer
C5 EXP: Convex array L12 EXP: Linear array
Imaging
Scanning Angle
Not specified
Scanning Depth (mm)
C5 EXP: Up to 300 mm (30 cm) L12 EXP: Up to 100 mm (10 cm)
Image Pre-Processing
SynSight zone sonography platform; retrospective raw echo reprocessing in channel domain processor
Image Post-processing
Auto Trace, B/C/PW auto optimization, dual imaging, post-processing adjustments confirmed in app
Imaging Mode
B-mode, M-mode, Color Doppler (C), Pulsed Wave Doppler (PW)
Gray Scales
Not specified
Beam-forming
Zone sonography (SynSight platform), processes full field of view in fewer transmit/receive cycles than conventional beamforming
Measurement & Calculation
B-mode
C5 EXP: Yes L12 EXP: Yes; Auto IMT (intima-media thickness)
M-mode
C5 EXP: Yes L12 EXP: Yes
Doppler
C5 EXP: Yes L12 EXP: Yes
