SE-1515 PC Based 12 Lead Wireless DX12 ECG Sampling Box

by Edan
MFR#: SE-1515 DX12
TIGER#: TM88617
Original price List Price: $2,529.00
You Save: $579.00 -23%
Original price $2,529.00 - Original price $2,529.00
Original price List Price: $2,529.00
Current price $1,950.00
$1,950.00 - $1,950.00
Current price $1,950.00
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
SE-1515 PC Based 12 Lead Wireless DX12 ECG Sampling Box
SE-1515 PC Based 12 Lead Wireless DX12 ECG Sampling Box - $1,950.00
$1,950.00
*Must Purchase 1 for SE-1515 PC Based 12 Lead Wireless DX12 ECG Sampling Box

The cart will thereforce automatically set Qty to 1 when you order this product

IN STOCK Ships Out Within: 24 - 48 Hours Shipping Date By: 6/21/2024
Documents
  • Wireless Communication via Bluetooth
  • PDF, DOC, BMP, XML, SCP, DICOM or JPG Reports Format Storage & Transfer
  • Includes Resting ECG, Stress ECG Upgrade Available
  • Advanced SE-1515 Data Management Software & Extendable Data Storage Option
  • Auto/Manual Measurement & Interpretation
  • Real-Time ECG Waveforms Display on PC Screen & Printing .

Edan PC Based 12 Lead Wireless DX12 Sampling Box presents a new age technology 12-channel wireless ECG solution. It is an ultra-compact, yet powerful diagnostic tool fitted for adult and pediatric patients undergoing stress exercise ECG test or resting ECG test. A versatile functionality of this unit allows reducing doctor’s workload and optimizes the workflow efficiency at any hospital setting. The combination of DX12 Sampling Box and the SE-1515 ECG Software turns your PC into a full capacity ECG system with outstanding measurement and data management capabilities.

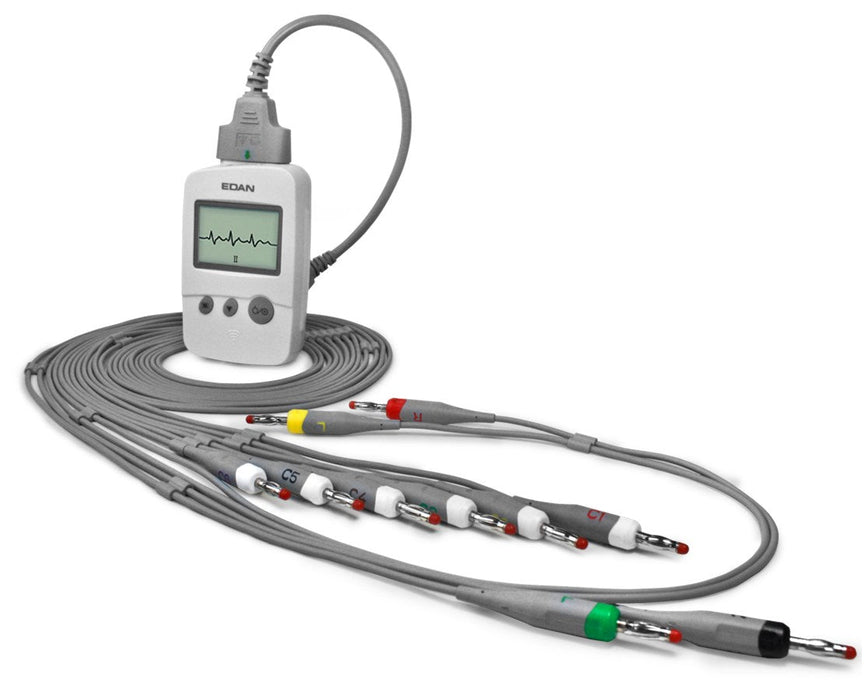

DX12 Sampling Box
The DX12 device consists of two boxes that function as a transmitter and a receiver connecting with each other with the use of Bluetooth technology. The 12-lead Wireless Sampling Box acquires the signal from all channels simultaneously in either standard or Cabrera leads modes. It features color-coded lead wires for a momentary assessment and the color-coded wire connection indicators that help easily indentify the missing or poor lead signal. One simple on/off button on the Box and a screen showing the current readings allow staying at the patient site throughout the procedure. Eliminating the need of wires, DX12 ensures freedom of movement and a hustle-free work process.

Resting ECG
The DX12 PC-Based ECG Machine acquires ECG signals from 12 leads simultaneously for as long as 30 minutes ECG waveforms. The obtained signals undergo real-time analysis and displaying on your PC while the full disclosure data can be stored for the further analysis. The 3/6/12-channel ECG waves can not only be displayed, but also printed simultaneously with the use of an external printer of your choice. The Machine comprises the latest version of high performance filters that guarantee stable ECG waveforms. Advanced filtering in a combination with automatic arrhythmia detection function and proof for diagnosis allow for a quick assessment of the test results and highly efficient cardiac decisions.

Stress ECG Option
The exercise ECG function allows stress diagnostics by obtaining myocardium hypotension and changing the ECG abnormally. The DX12 unit can be connected to many types of treadmills and ergometers, and the SE-1515 ECG Software allows automatic controlling and adjusting the speed and the elevation of the treadmill function. It provides standard exercise protocols and allows adding new customized protocols to the system. This PC-Based ECG Machine provides summaries, ST analysis, abundance of wave reviews types and trends along with such evaluation methods as METs, Double Product, Duke Score and FAI analysis. Extended stress ECG evaluation options help acquire a truly comprehensive picture with complete references that helps ensure proper diagnostic decisions. To realize stress ECG function with DX12 Sampling Box, you need to buy Stress ECG Software Upgrade Kit (#02.04.240223) available for purchase.

Advanced Data Analysis
Edan PC-Based ECG Machine supports auto measurement and diagnosis functions to simplify diagnostic process. The ECG waves can be frozen, zoomed and reviewed for the extended measurement analysis. The event marker allows for highlighting and saving any arrhythmia or other waveforms. This unit facilitates a large selection of analysis functions including Normal ECG, Frequency ECG, High Frequency ECG, QT Dispersion, Vector ECG, Time Vector ECG, HRT analysis, HRV analysis and Signal Averaged ECG (Only for resting ECG). The advanced Edan filter technology along with reliable SEMIP algorithm maximize the diagnostic confidence, while the newly added proof for diagnosis function delivers more detailed and therefore convincing reports.

Data Management
The SE-1515 ECG Software allows facilitating a bi-directional communication importing and exporting patient data directly to a standalone ECG machine. The obtained ECG data is displayed and analyzed via PC ECG software. The reports can be stored on your PC or transferred via E-mail in PDF, DOC, BMP, XML, SCP, DICOM or JPG formats. The newly acquired reports can be compared to the past patient records and manually customized outsides the borders of the provided templates. Moreover, SE-1515 supports HL7 and DICOM worklists allowing a seamless system integration to hospital’s EMR, HIS or PACs.

PC Requirements
Operation System: Windows XP PROFESSIONAL SP2/SP3, Windows Vista (32/64 bit) or Windows 7 (32/64 bit)
CPU: Pentium P4, Celeron D310 or above
RAM: 512MB or above
HDD: 40G or above

To purchase PC Based Wireless DX12 Sampling Box simply click “Add to Cart” and complete your online order in a few easy steps.

Replaces the Discontinued: PC Based 12/15 Lead Wired DE15 Sampling Box (SE-1515 DE15)

Warning WARNING: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

  • Wireless Communication via Bluetooth
  • PDF, DOC, BMP, XML, SCP, DICOM or JPG Reports Format Storage & Transfer
  • Includes Resting ECG, Stress ECG Upgrade Available
  • Advanced SE-1515 Data Management Software & Extendable Data Storage Option
  • Auto/Manual Measurement & Interpretation
  • Real-Time ECG Waveforms Display on PC Screen & Printing

What’s in the Box

  • PC Based 12 Lead Wireless DX12 Sampling Box
  • One (1) ECG Sampling Box (DX12)
  • One (1) ECG Receiving Box
  • SE-1515 PC ECG Software CD
  • One (1) ECG Cable (ф4mm, banana connector, AHA)
  • Bio ProTech Resting Tab Electrodes (100/Box)
  • Unomedical 10-Lead Universal Clips (10/Box)
  • One (1) USB Connection Cable (to connect Receiving Box)
  • One (1) Carrying Bag
  • Two (2) AA Alkalihne Batteries
  • SE-1515 PC ECG User Manual
  • SE-1515 PC ECG Quick Reference Card
  • Software Installation Guide
  • Warranty

5 Years

Returns: This is Product is not eligible for return. We take the responsibility to make sure it arrives in brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Cancellations: Items made to order, cannot be returned or canceled after production.

Connectivity
EMR Compatible?
Yes
PC Compatible?
PC Based
Printer?
Optinal External Printer
Country of Origin
Made In:
USA
Dimensions
Dimensions
8.6"L x 8.1"W x 2.1"H
Weight
Total: 0.63 lbs
Display
Display Type
Depends on the PC
Environmental Specifications
Operating Humidity
25%~80% Non-Condensing
Safe Operating Temperature
+5ºC (+41ºF) ~ +40ºC (+104ºF)
Safe Storage Temperature
-20? (-4ºF)~+55? (+131ºF)
Storage Humidity
25%~93% Non-Condensing
Filters
LOWPASS Filter: 25 Hz / 35 Hz / 45 Hz / 75 Hz / 100 Hz / 150 Hz
DFT Filter: weak/strong
Work Frequency
Measurement
Frequency Range
10,000 /sec/channel
Sampling Rate
0.05 Hz ~ 150 Hz (-3 dB)
Memory
Memory Capacity
Depends on the PC
Power Supply
Battery Life
=12 Hours
Power Supply Type
Transmitter: 2x1.5V Excell Alkaline AA Batteries, Receiver: DC 5V with 350mW Input Power
Software Specification
Monitoring formats
12-Lead Standard, Cabrera
Print formats
A4, Letter
Print speeds
5 mm/s, 10 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s(±3%)
Standards & Certifications
IEC/EN 60601-1+A1+A2, IEC/EN 60601-1-2+A1, IEC/EN60601-2-25, ANSI/AAMI EC11, IEC/EN60601-2-51
Warranty
Warranty
5 Years
