Portal made from Polysulfone/Titanium Material
-
Catheter Constructed with PolyFlow Polyurethane
-
Withstands up to 5mL/sec Power Injections & 300 psi Pressure
-
MR-Conditional & Has Radiopaque CT Marking
-
Compatible w/ Power Injectable Huber Needles
-
Designed for Long-Term Administration of Medicine in Bloodstream
-
Catheter Length: 30" L .

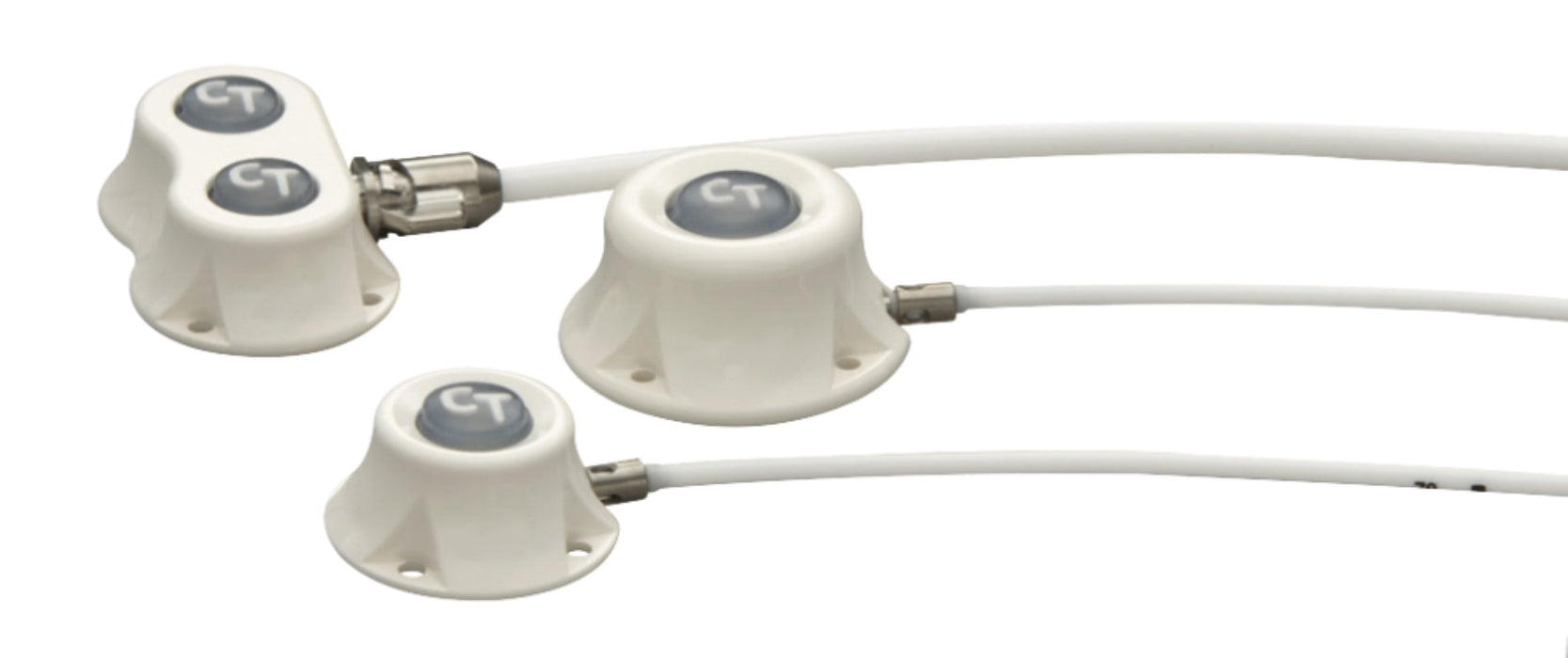

The Smiths Medical Port-A-Cath II Power P.A.C Implantable Vascular Access System is a complete set of devices used for long-term administration of medicine or any IV fluids into the bloodstream. Oftenly used for chemotherapy, frequent blood draws and transfusions, the set comes with a peripheral portal which is fully implanted to the patient's body and is placed for effective venous access.
High-Quality Construction
PORT DESIGN: The Portal, also known as Port, is made from heavy-duty Polysulfone/Titanium material, ensuring longevity and durability for long-term usage.
DEPENDABLE: A catheter is included in the set, which is constructed with PolyFlow Polyurethane material, offering a smooth and reliable fluid access into the vein.
EFFECTIVE: This system is able to withstand power injections up to 5mL/sec, and 300 psi pressure.
STANDARD SIZE: Its catheter has a standard length of 30" L.
MRI SCANNING: This device is MR conditional, making it safe to be MRI scanned up to 3-Tesla.
X-RAY VISIBILITY: Its port septum has an embedded radiopaque CT marking, making it visible under an x-ray.
VERSATILE: It is compatible with power injectable huber needles.
Flexible Options for your Needs
The Smiths Medical Port-A-Cath II Power P.A.C Implantable Vascular Access System comes in different configurations that vary in the package type, portal, introducer needle size, and catheter size. The inclusions of each option is indicated below. Kindly choose your preference on the options menu above.
- Kit w/ Single Lumen Portal, 6Fr, 1mm ID x 1.9mm OD Catheter (21-4452-24)
- Kit w/ Single Lumen Portal, 8.5Fr, 1.6mm ID x 2.6mm OD Catheter (21-4454-240
- Kit w/ Single Lumen Low Profile Portal, 6Fr, 1mm ID x 1.9mm OD Catheter (21-4482-24)
- Kit w/ Single Lumen Low Profile Portal, 8.5Fr, 1.6mm ID x 2.6mm OD Catheter (21-4470-24)
- Tray w/ Single Lumen Portal, 6Fr, 1mm ID x 1.9mm OD Catheter (21-4453-24)
- Tray w/ Single Lumen Portal, 8.5Fr, 1.6mm ID x 2.6mm OD Catheter (21-4455-24)
- Tray w/ Single Lumen Low Profile Portal, 6Fr, 1mm ID x 1.9mm OD Catheter (21-4483-24)
- Tray w/ Single Lumen Low Profile Portal, 8.5Fr, 1.6mm ID x 2.6mm OD Catheter (21-4471-24)
- Tray w/ Single Lumen Preassembled Portal, 6Fr, 1mm ID x 1.9mm OD Catheter (21-4463-24)
- Tray w/ Single Lumen Preassembled Portal, 8.5Fr, 1.6mm ID x 2.6mm OD Catheter (21-4465-24)
- Tray w/ Single Lumen Low Profile Preassembled Portal, 6Fr, 1mm ID x 1.9mm OD Catheter (21-4485-24)
- Tray w/ Single Lumen Low Profile Preassembled Portal, 8.5Fr, 1.6mm ID x 2.6mm OD Catheter (21-4473-24)
- Tray w/ Dual Lumen Low Profile Portal, 7Fr, 1mm ID x 2.2mm OD Catheter (21-8466-24)
- Tray w/ Dual Lumen Low Profile Portal, 10Fr, 1.4mm ID x 3.2mm OD Catheter (21-8468-24)
KIT INCLUSIONS:
- Portal
- Catheter
- Port-A-Cath Straight Needle
- Blunt Needle
- Vein Pick
- Point-Lok Device
TRAY INCLUSIONS:
- Portal
- Catheter
- Port-A-Cath Straight Needle
- Blunt Needle
- Vein Pick
- Point-Lok Device(s)
- 18G Extra thin wall Introducer Needle
- "J" Guidewire(s)
- Vessel/Dilator Sheath Assembly
- 90-deg Port-A-Cath Needle
- Gripper Plus Power P.A.C. Safety Needle(s)
- 2 Syringes
- Tunneling Tool
