Port-A-Cath Power P.A.C Implantable Vascular Access System Tray

• SafeSheath Valved Peel-Away Sheath Introducer Reduces Air Embolism
• Introducer Sheath: 5" L; Dilator Sheath: 7" L
• Designed for Long-Term Administration of Medicine in Bloodstream
• Portal made from Titanium Material for Durability
• Catheter Constructed w/ PolyFlow Polyurethane
• Withstands up to 5mL/sec Power Injections & 300 psi Pressure
• Catheter Length: 30" L .

The Smiths Medical Port-A-Cath Power P.A.C Implantable Vascular Access System Tray is a complete set of devices used for long-term administration of medicine or any IV fluids into the bloodstream. Oftenly used for chemotherapy, frequent blood draws and transfusions, the set comes with a peripheral portal which is fully implanted to the patient's body and is placed for effective venous access.

High-Quality Construction

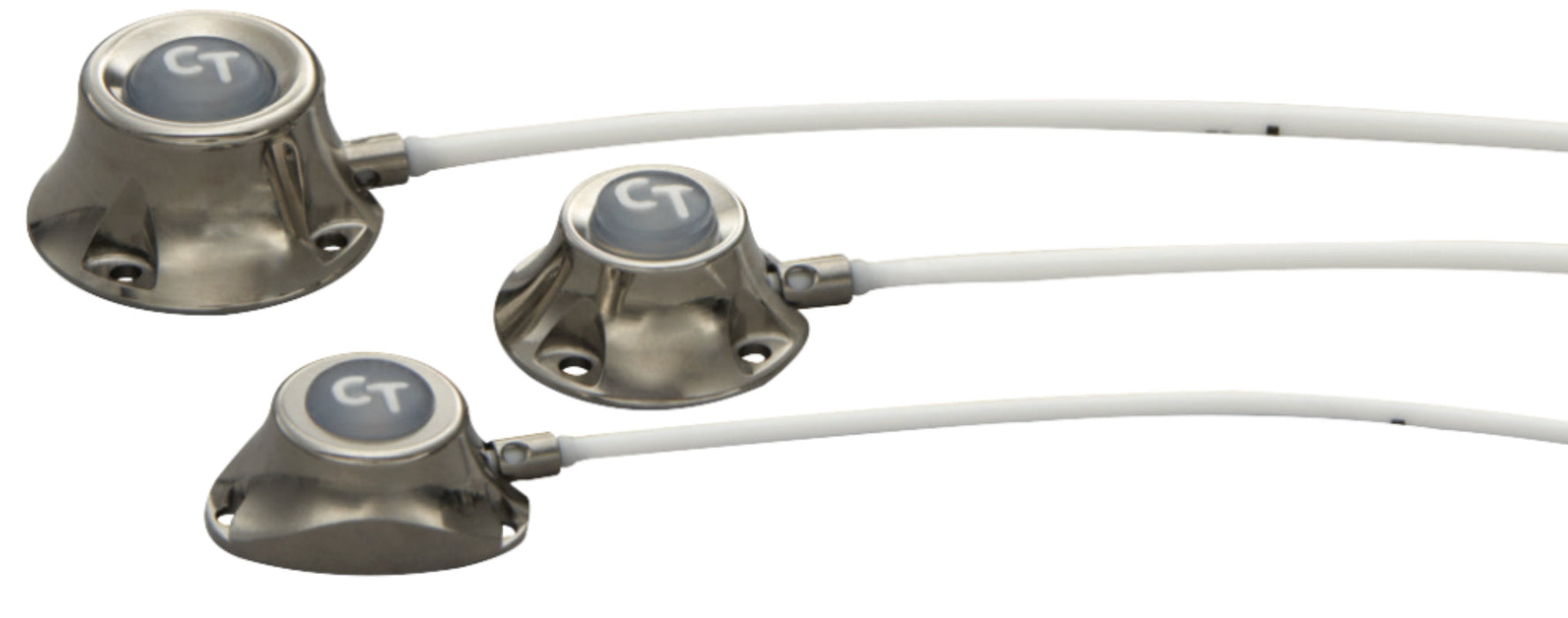

PORT DESIGN: The Portal, also known as Port, is made from heavy-duty Titanium material, ensuring longevity and durability for long-term usage.
DEPENDABLE: A catheter is included in the set, which is constructed with PolyFlow Polyurethane material, offering a smooth and reliable fluid access into the vein.
EFFECTIVE: This system is able to withstand power injections up to 5mL/sec, and 300 psi pressure.
STANDARD SIZE: Its catheter has a standard length of 30" L.

Reliable Features

MRI SCANNING: This device is MR conditional, making it safe to be MRI scanned up to 3-Tesla.
X-RAY VISIBILITY: Its port septum has an embedded radiopaque CT marking, making it visible under an x-ray.
VERSATILE: It is compatible with power injectable huber needles.

Ensures Safety during Port Implantation

SAFE INSERTION: This system features the SafeSheath Valved Peel-Away Sheath Introducer, which ultimately helps in reducing air embolism and blood loss during IV catheter insertion for port placement.
EASY SIZE IDENTIFICATION: The introducer is designed with an ergonomic hub, and is color-coded depending on it size.
INTRODUCER/DILATOR SHEATH SIZE: The Introducer Sheath has a length of 5", while the Dilator Sheath has 7" length.

Flexible Options for your Needs

The Smiths Medical Port-A-Cath Power P.A.C Implantable Vascular Access System Tray comes in different configurations that vary in the introducer size, and connector and portal type. 6Fr introducer has a 1.9mm outer diameter, while the 7Fr introducer has 2.2mm outer diameter. Kindly choose your preference on the dropdown menu above.

• 6Fr Introducer, Ultra-Lock Connector & Single Lumen Portal (21-4476-24)
• 7Fr Introducer, Wing-Lock Connector & Dual Lumen Low Profile Portal (21-8469-24)

TRAY INCLUSIONS:

• Portal
• Catheter
• SafeSheath Valved Peel-Away Sheath Introducer
• Port-A-Cath Straight Needle
• Blunt Needle

• Connector

• Vein Pick

• Point-Lok Device(s)

• 18G Extra thin wall Introducer Needle

• "J" Guidewire(s)

• Vessel/Dilator Sheath Assembly

• 90-deg Port-A-Cath Needle

• Gripper Plus Power P.A.C. Safety Needle(s)

• 2 Syringes

• Tunneling Tool
