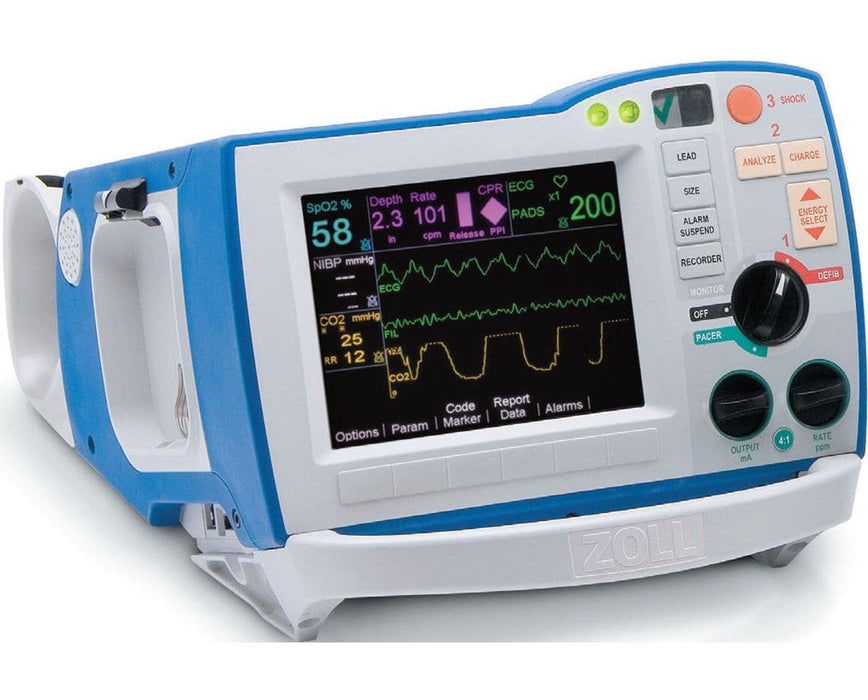

R Series ALS Hospital AED Defibrillator w/ One-Step Pacing Electrodes, See-Thru CPR, WiFi

• Fast Code-Ready ALS Defibrillator With Cardioversion
• Real CPR Help Technology for Live Compression Feedback
• Rectilinear Biphasic Waveform for Superior Efficiency
• Pediatric Algorithm for Safe Defibrillation in Children
• OneStep Pacing Delivers Monitoring, Pacing, and Defib Through One Pad
• Optional CPR Dashboard, See-Thru CPR, and WiFi Reporting to Defibrillator Dashboard .

The ZOLL R Series ALS Hospital Defibrillator combines advanced resuscitation technology with intuitive ease of use, helping clinicians deliver faster, more effective lifesaving care across adult, pediatric, and neonatal patients.

✔ Real-Time CPR Guidance | ✔ Continuous Rhythm Monitoring | ✔ Daily Self-Testing Reliability

CPR QUALITY ASSURANCE

REAL CPR HELP®: Tells responders to "push harder" or "continue CPR" and affirms them with "good compressions" to ensure CPR quality.

SEE-THRU CPR®: Displays heart rhythm in real time. No more pausing the CPR to check for the heart rhythm.

CPR INDEX: Rates overall CPR quality for quick adjustments.

ANALYZE SWITCH: Provides rescuers with a reliable "second opinion" to support confident decision-making during emergencies.

ADVANCED DEFIBRILLATION

RECTILINEAR BIPHASIC WAVEFORM: Proven performance with less energy, effective at 200 J vs. traditional 360 J.

CARDIOVERSION: Synchronized shock delivery aligned with the QRS complex for safer rhythm correction.

PEDIATRIC ALGORITHM: Automatically lowers energy to 50 J when pediatric electrodes are connected.

CODE-READY DESIGN: Performs daily self-tests of leads, electrodes, and circuitry for guaranteed readiness.

CONFIGURABLE FLEXIBILITY

NINE CONFIGURATIONS: Choose from models with NIBP, SpO2, EtCO2, and OneStep pacing.

ONESTEP ELECTRODES: Monitor, defibrillate, and pace with a single pad. No separate three-lead cable required.

CUSTOMIZABLE PARAMETERS: Adjust monitoring and pacing features to fit specific hospital workflows.

FLEXIBLE POWER OPTIONS: Runs on AC power or a lithium-ion battery for portability; includes a test port and data slot.

AVAILABLE OPTIONS

NIBP | ADVANCED BLOOD PRESSURE MONITORING

➡︎ Accurate systolic, diastolic, and heart rate readings even with patient movement
➡︎ SunTech Advantage R-Wave motion-tolerant technology
➡︎ Auto-adjusts cuff inflation pressure
➡︎ Stores a 4-hour history of readings
➡︎ Includes adult cuff and 3 m hose (other sizes sold separately; neonatal, pediatric, adult)

SPO2 | RELIABLE OXYGEN SATURATION

➡︎ Masimo SET® Signal Extraction Technology for precise readings
➡︎ Accurate even with motion, shock, or low perfusion
➡︎ Continuous monitoring for neonatal, pediatric, and adult patients
➡︎ Includes reusable adult sensor with extension cable

ETCO2 | FAST, ACCURATE CAPNOGRAPHY

➡︎ Plug-and-play CAPNOSTAT® 5 Mainstream Sensor
➡︎ Measures end-tidal CO₂ for early detection of abnormal waveforms
➡︎ Displays clear, printable capnograms
➡︎ Suitable for adult, pediatric, and neonatal patients

ONESTEP PACING | SIMPLIFIED PACING SOLUTION

➡︎ Combines pacing, defibrillation, and ECG in one pad
➡︎ No extra leads or electrodes required
➡︎ Delivers half the current with twice the capture for comfort
➡︎ Includes pacing electrode, cable, cable manager, and built-in ECG leads

ORDERING INFORMATION

The Zoll R Series ALS Hospital AED Defibrillator is available in the following configurations:

• Defibrillator only (30310000001030012)
• Defibrillator with OneStep Pacing (30320000001130012)
• Defibrillator with OneStep Pacing and SpO2 (30320001001130012)
• Defibrillator with OneStep Pacing, SpO2, and EtCO2 (30320003101130012)
• Defibrillator with OneStep Pacing, SpO2, EtCO2, and NIBP (30320005201330012)
• Defibrillator with OneStep Pacing, SpO2, and NIBP (30320009201330012)

With advanced CPR guidance, pediatric safety, and customizable monitoring options, the ZOLL R Series® ALS sets the standard for hospital defibrillators, delivering reliable performance when every second counts.

WARNING: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Lead time: 14 - 21 Business Days
