R Series BLS Hospital AED/Defibrillator

by Zoll
MFR#: 30210000001030013
TIGER#: TM24296
Original price List Price: $11,782.03
You Save: $2,070.03 -18%
Original price $11,782.03 - Original price $11,782.03
Original price List Price: $11,782.03
Current price $9,712.00
$9,712.00 - $9,712.00
Current price $9,712.00
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
R Series BLS Hospital AED/Defibrillator
R Series BLS Hospital AED/Defibrillator - $9,712.00
$9,712.00
*Must Purchase 1 for R Series BLS Hospital AED/Defibrillator

The cart will thereforce automatically set Qty to 1 when you order this product

On Sale to Non-Acute / Physician Offices only. Hospitals & EMS Markets must order from Manufacturer directly.

Ships Out Within: 14 - 21 Business Days Shipping Date By: 3/20/2024
Documents
Warning

WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

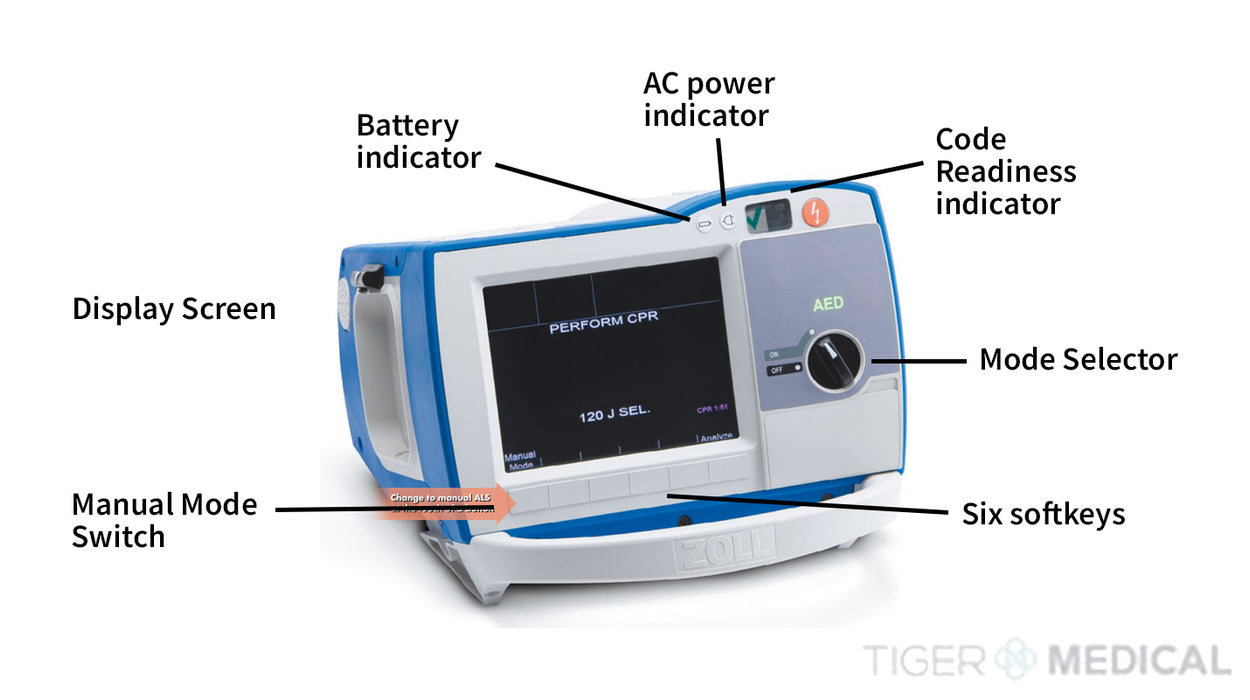

The Zoll R Series BLS Hospital AED/Defibrillator, the world's first Code-Ready® defibrillator, is an affordable, customizable, basic resuscitation device recommended for use in hospitals. When seconds count in life-and-death situations, it is imperative to have a defibrillator that is always ready and simple to use. The BLS monitor features a manual override switch to function as two full-featured devices with the push of a button: an AED, for laypersons and first responders, and a manual defibrillator for qualified users. In addition to high-quality defibrillation, the R Series provides Real CPR Help® to ensure that critical CPR is given correctly for optimal resuscitation efforts.

CPR Assistance

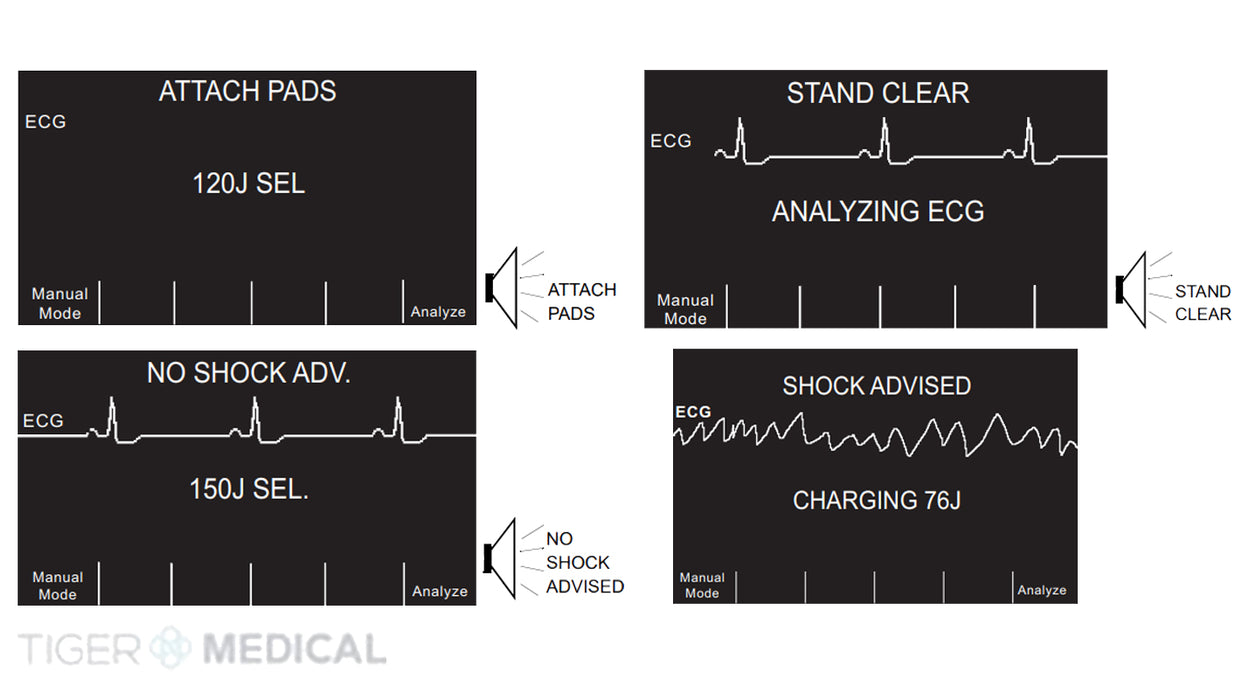

Real CPR Help® coaches responders to perform CPR correctly with real-time feedback, prompting users to begin compressions, push harder, and continue CPR, along with messages confirming that the CPR is being done effectively. It displays compression depth, compression rate, and lapse time indicators to ensure that CPR is consistent, properly timed, and deep enough; it also combines all three compression functions into the CPR Index™, one visual indicator that allows users to view the quality of their CPR efforts and adjust as necessary. Audio prompting urges users to "push harder" and "continue CPR," and exhorts "good compressions" when CPR is done correctly. The monitor is also capable of transmitting CPR data for review and playback of resuscitation efforts.

Back to top

Defibrillator features

The R Series defibrillator is always code-ready, performing automatic self-checks daily to ensure that it is always ready when needed; it even tests electrode quality and detects expired electrodes. All R Series units are equipped with an Analyze switch to provide rescuers with a "second opinion." They also feature a pediatric analysis algorithm, activated with the connection of OneStep™ pediatric cables (sold separately) for safe use on children. The R Series includes a built-in Defib Mentor™ for training and familiarity tutorials to refresh users' memories for proper use.

The unit utilizes rectilinear biphasic technology for superior performance with less energy use. Contrary to popular belief, defibrillators with higher energy settings are not more capable than others. The rectilinear biphasic waveform has shown superior results in defibrillation at 200 J (compared with the average 360 J of other biphasic waveforms), delivering the right amount of average current over the optimal duration to high impedance patients.

The defibrillator is powered by integrated 120V/60Hz AC power and is compatible with a 5.8 Ah lithium ion battery pack (sold separately) for portability. It includes a built-in test port and compact flash card slot and is guaranteed for 5 years for product quality assurance and peace of mind.

Back to top

Manual/automatic capabilities

When a code occurs, the first people on the scene are not always trained in the administration of manual defibrillation or are hesitant to use a regular defibrillator. The BLS monitor changes from a manual defibrillator to an automatic external defibrillator (AED) with the push of a button, enabling first responders - even laypersons - to defibrillate patients in those first critical moments of the code. When a code team member or more skilled individual arrives on scene, he or she can simply push the button to switch over to manual mode and continue resuscitation efforts. Both modes use the same cables and equipment so there is no need to switch any hardware when changing modes. When the unit includes pacing, it is activated as well when the mode is changed.

The R Series BLS is recommended for use in low acuity areas, where the need for advanced resuscitation is not typically necessary. It is fully upgradeable with See-Thru CPR and WiFi capabilities.

Back to top

Customize your Zoll R Series ALS Hospital Defibrillator

OneStep™ Pacing

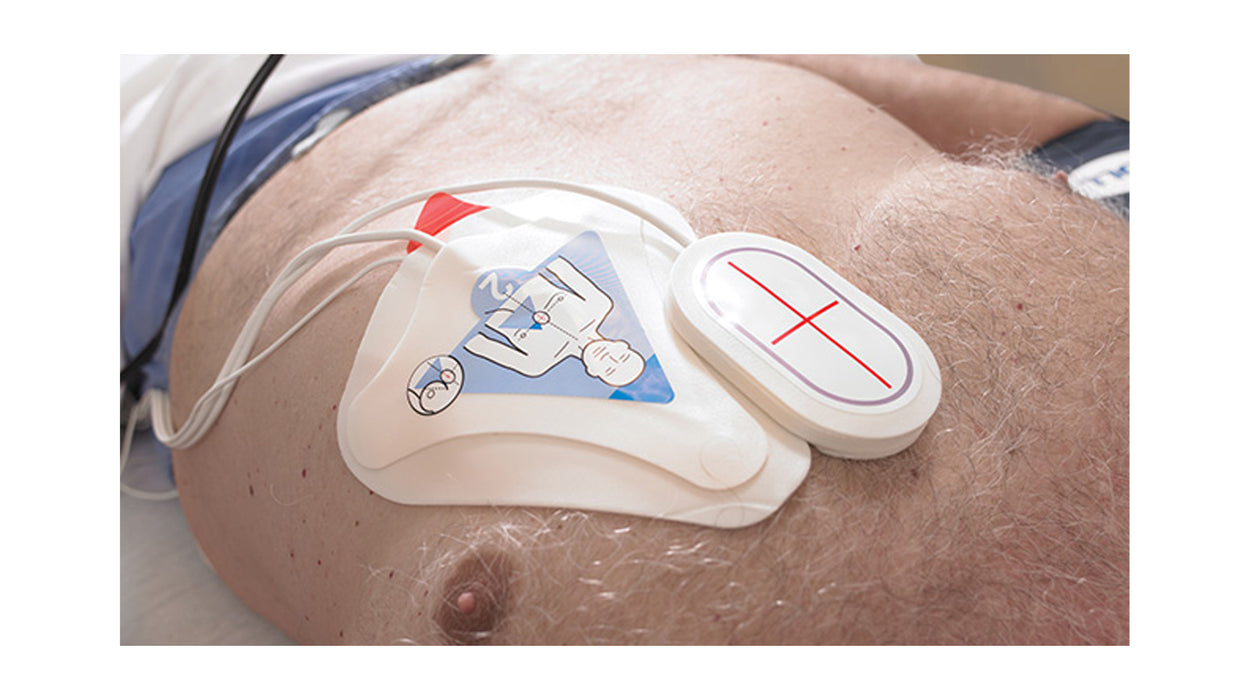

The R Series is customizable with additional external pacing. Zoll's innovative OneStep™ pacing technology provides half the current with twice the capture for heartbeat regulation with improved patient comfort. The external pacemaker may be temporarily stopped for observation of underlying ECG rhythm. Pacing relies on an external ECG signal and can often be cumbersome and confusing with extra ECG leads and electrodes. Zoll's OneStep™ Pacing electrodes combine ECG monitoring electrodes and pacing/defibrillation electrodes into one hands-free pad, eliminating tangles, confusion, and the need for multiple pads and wires.

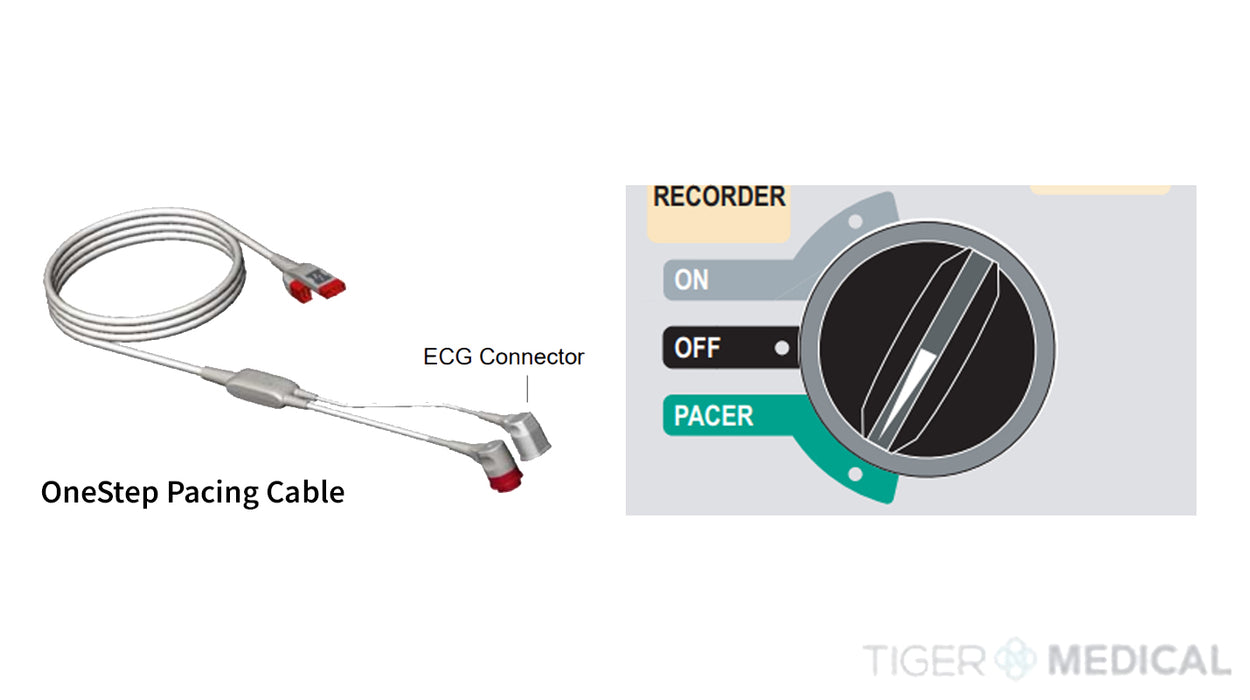

When ordered with OneStep™ pacing, the R Series includes a OneStep™ pacing electrode, OneStep™ pacing cable, OneStep™ cable manager, and three built-in ECG leads.

Use the drop-down menu in the upper right corner of this page to select your desired configuration, then click "add to cart" for hassle-free ordering at the lowest price.

Back to top

Made in the USA

Warning WARNING: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

  • Fast, reliable Code-Ready® hospital-grade BLS defibrillator
  • Changes from an AED to a full manual defibrillator with the push of a button
  • Designed for low acuity areas and users of all capabilities
  • Full-featured CPR assistance
  • For use in adult, pediatric, and neonatal patients
  • Rectilinear biphasic waveform technology
  • Optional OneStep™ pacing
  • High-quality BLS defibrillator with automatic and manual modes
  • Changes from an AED to a full manual defibrillator with the push of a button
  • Designed for low acuity areas and users of all capabilities
  • CPR assistance with Real CPR Help® for proper performance of CPR
  • Always code-ready; performs daily self-checks of leads, electrodes, and inner workings
  • Analyze mode for a "second opinion"
  • Pediatric analysis algorithm for use in children
  • Built-in Defib Mentor™ for on-the-spot refreshers and tutorials
  • Rectilinear biphasic technology provides superior performance with less energy use
  • Features built-in test port and compact flash card slot
  • Optional OneStep™ pacing technology combines pacing/defibrillation and ECG electrodes in one pad
  • 5-year warranty

What’s in the Box

  • Zoll R Series BLS AED/Defibrillator Main Unit
  • With optional OneStep™ Pacing:
    • OneStep™ pacing electrode
    • OneStep™ pacing cable
    • OneStep™ cable manager
    • ECG leads
  • User's manual
  • Instructional CD
  • Warranty card

ITEMS WITH A LEAD TIME LONGER THAN 48 HOURS CANNOT BE RETURNED / CANCELLED. These are specially ordered, and we cannot accept returns or cancellations on such products for any reason. We take the responsibility to make sure your product arrives in brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.ITEMS WHICH SHIP OUT IN 24-48 HOURS. These are covered by our standard 30 day return policy from date of shipment. Return shipping charges are the responsibility of the customer. The product must be in new condition and in its original packaging.For complete details of our return policy and process, please refer to our general return policy page.ALLOCATED PRODUCTS BELOW ARE NON-CANCELLABLE, NON-RETURNABLEPPE Apparel (Face Shields, Masks, Gloves, Gowns, Shoe Covers, Bouffant Caps, etc.) | COVID Tests | Alcohol / Alcohol prep pads | Batteries | Disinfecting solutions and wipes | Facial tissue | Hand sanitizers, soaps and dispensers | Hydrogen peroxide | | Spirometers | Thermometers | Saline / Solutions | Needles | Syringes

Environmental Specifications
Humidity
5% - 95% relative humidity
Operating Pressure
594 to 1060 millibars
Operating Temperature
0°C to 40°C
Storage Temperature
-20°C to 60°C
Parameters
Optional OneStep Pacing
Physical Specifications
Battery Indicator?
Yes
Charge Time
Less than 7 seconds
Dimensions
8.2" x 10.5" x 12.5"
Paddle Type
External apex/sternum paddles; adult plates slide off to expose pediatric electrode surface (paddles sold separately)
Power Supply Type
AC and/or battery pack (sold separately)
Weight
13.6 lbs.
Protection
Electromagnetic Compatibility
CISPR 11 Class B Radiated and Conducted Emissions
Electromagnetic Immunity
AAMI DF80, EN 61000-4-3 to 10 V/m
Electrostatic Discharge
AAMI DF80, EN 61000-4-2
Particle/Water Ingress
IEC 529, IP22
Patient Safety Measures
All patient connections are electrically isolated
Shock
IEC 68-2-27, 50 g 6mS half-sine
Susceptibility
EN 61000-4-4, 61000- 4-5, 61000-4-6
Standards & Certifications
Meets or exceeds applicable requirements of UL 60601, AAMI DF80, IEC 60601-2-4, EN 60601-2-25, and 60601-2-27
Technical Specifications
CPR Assistance?
Yes; Real CPR Help
Energy Selections
1 to 10, 15, 20, 30, 50, 75, 100, 120, 150 and 200 joules selected using controls on front of the defibrillator or sternum paddles
Patient Impedance Range
15-300 ohms
Self-Test Checks?
Yes, over 40 parameter automatically daily
Waveform
Rectilinear biphasic
Wireless Capability?
Not included
When using appropriate pediatric resuscitation electrodes, the 75 joule setting is replaced by 70 and 85 joule settings
