Rad-5 Pulse Oximeter

Name: Rad-5 Pulse Oximeter
Brand: NDC
SKU: MSM9196
Price: 710.34 USD
Availability: InStock

by Masimo

MFR#: 9196

TIGER#: TM166021

List Price: $860^.95

You Save: $150^.61 -17%

$860^.95 - $860^.95

List Price: $860^.95

$710^.34

$710^.34 - $710^.34

$710^.34

Add to cart for Lower Price

Rad-5 Pulse Oximeter - $710^.34

$710^.34

*Must Purchase 1 for Rad-5 Pulse Oximeter

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days

Documents

Manual Brochure

PARAMETERS: SpO2, Pulse Rate, Perfusion Index
Accurate SpO2 Readings During Motion and Low Perfusion
Lightweight Handheld Design with 30+ Hour Battery Life
FastSat and SmartTone for Real-Time Pulse Tracking
Three Sensitivity Modes: APOD, Normal, and MAX
Audible and Visual Alarms for High/Low SpO2 and Pulse Rate
Up to 72 Hours of Trending Memory Storage .

✔ SET Motion-Tolerant Accuracy | ✔ 72-Hour Trending Memory | ✔ Adjustable Sensitivity Modes

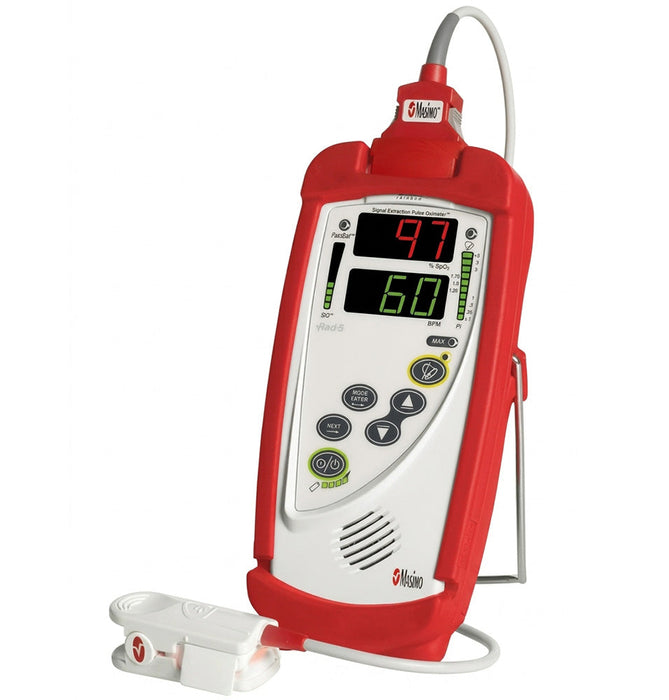

The Masimo Rad-5 Handheld Pulse Oximeter delivers the accuracy and reliability of Masimo SET technology for both continuous monitoring and spot-check use. Its motion-tolerant design gives clinicians dependable SpO2 and pulse rate readings even in low-perfusion patients.

RELIABLE MONITORING IN CHALLENGING CONDITIONS

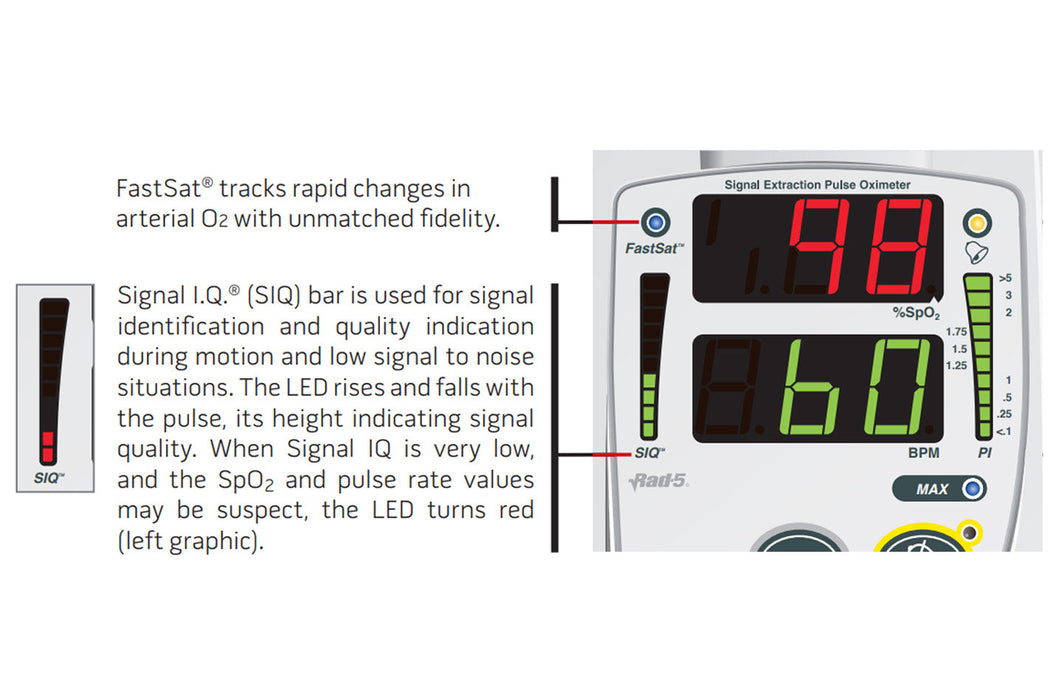

PROVEN SET ACCURACY: Masimo SET technology delivers clinically validated SpO2 and pulse rate accuracy during motion and low perfusion, with PI and Signal I.Q. (SIQ) bar for real-time confidence.

FASTSAT AND SMARTTONE: FastSat tracks rapid arterial oxygen changes with unmatched fidelity, while SmartTone keeps the pulse beep synced through motion.

CUSTOMIZABLE SENSITIVITY: Choose APOD, Normal, or MAX sensitivity to match the patient's perfusion status.

COMPREHENSIVE ALARMS: Audible and visual alarms flag high/low saturation, high/low pulse rate, sensor-off, and low battery.

BUILT FOR THE CLINIC: Lightweight handheld design with 30+ hour battery life, user-configurable power-up defaults, Sleep Mode, 72-hour trending memory, and an optional protective boot cover with table-top stand.

Trusted Masimo SET accuracy and thoughtful clinical features make the Masimo Rad-5 Handheld Pulse Oximeter a dependable addition to any practice for years of reliable patient monitoring.

WARNING: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

PARAMETERS: SpO2, Pulse Rate, Perfusion Index
Accurate SpO2 Readings During Motion and Low Perfusion
Lightweight Handheld Design with 30+ Hour Battery Life
FastSat and SmartTone for Real-Time Pulse Tracking
Three Sensitivity Modes: APOD, Normal, and MAX
Audible and Visual Alarms for High/Low SpO2 and Pulse Rate
Up to 72 Hours of Trending Memory Storage

What’s in the Box

Masimo Rad-5 Handheld Pulse Oximeter
Sensor
User Manual
1-Year Manufacturer's Warranty

WARRANTY: 1 Year

RETURNS: ITEMS WITH A LEAD TIME LONGER THAN 48 HOURS CANNOT BE RETURNED / CANCELLED. These are specially ordered, and we cannot accept returns or cancellations on such products for any reason. We take the responsibility to make sure your product arrives in brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

Items which ship out in 24-48 hours are covered by our standard 30 day return policy from date of shipment. Return shipping charges are the responsibility of the customer. The product must be in new condition and in its original packaging.

For complete details of our return policy and process, please refer to our general return policy page.

Display

Displaying Data

SpO₂, Pulse Rate, Perfusion Index (PI), Signal IQ/pleth bar, alarm status, alarm silenced status, battery status, MAX, FastSat

Display Type

LED

Other Info Displaying

Perfusion Index, Signal IQ/pleth bar, battery status, alarm status, MAX, FastSat

SpO2 Measurement

Measurement Range

1%–100%

Accuracy

±2% for adults/pediatrics/infants; ±3% for neonates, at 70%–100% SpO₂. Low perfusion: ±2% for adults/pediatrics/infants and neonates.

Averaging?

Yes — 2, 4, 8, 10, 12, 14, or 16 seconds

Display range

1%–100%

Resolution

Pulse Rate Measurement

Display Range

25–240 bpm

Accuracy

±3 bpm no motion; ±5 bpm during motion; ±3 bpm at low perfusion

Averaging

2, 4, 8, 10, 12, 14, or 16 seconds

Measurement range

25–240 bpm

Resolution

1 bpm

Power

Type

4 × AA alkaline batteries

Battery Life

>30 hours

Weight & Dimensions

Length

6.2"

Width

Height

1.4"

Weight

13 oz

Certifications

Standards

ANSI/AAMI ES 60601-1:2005+A1:2012; CAN/CSA C22.2 No. 60601-1:2014; IEC 60601-1:2005+A1:2012; EN/ISO 80601-2-61:2011; IEC 60601-1-8:2006+A1:2012

Environmental

Safe Operating Temperature Range

2°C–43°C (36°F–109°F)

Safe Storage Temperature

−50°C–70°C (−58°F–158°F)

Safe Operating Humidity Level

Not specified

Material(s)

Sensors

Compatible Masimo sensors; device connects to a Red Direct Connect Spot Check sensor or Masimo patient cable

Warranty

Info

1 year

Country of Origin

Made In

Not specified

Alarm

Alarm Indicating

High/Low SpO₂, High/Low Pulse Rate, sensor condition, system failure, low battery

Alarm Mode

Audible and visual

Alarm limits range

SpO₂ High: 2%–100%; SpO₂ Low: 1%–100%; Pulse Rate High: 30–240 bpm; Pulse Rate Low: 25–235 bpm

Measurement Wavelengths and Output Power

Red

Not specified

Infrared

Not specified

FiO2 Measurement

Range

N/A; FiO₂ is not measured by the Rad-5

Accuracy

N/A; FiO₂ is not measured by the Rad-5
