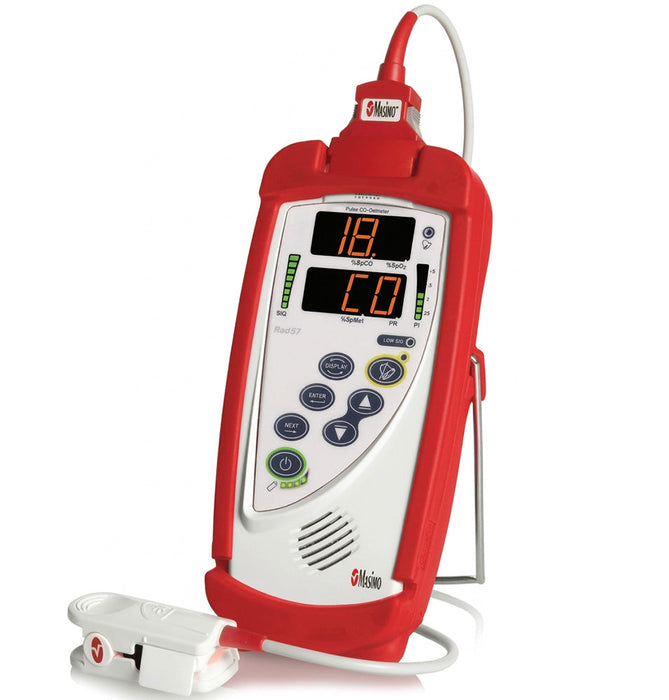

Rad-57 Pulse Oximeter

Masimo
by Masimo
MFR#: 9216
TIGER#: TM166011
List Price: $1,311.59
You Save: $229.45 -17%
$1,311.59 - $1,311.59
List Price: $1,311.59
$1,082.14
$1,082.14 - $1,082.14
$1,082.14
Add to cart for Lower Price
Rad-57 Pulse Oximeter
Rad-57 Pulse Oximeter - $1,082.14
$1,082.14
*Must Purchase 1 for Rad-57 Pulse Oximeter

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days
Documents
Manual Brochure
  • PARAMETERS: SpO2, Pulse Rate, Perfusion Index
  • Continuous SpO₂, Pulse Rate, and Perfusion Index Monitoring
  • Upgradeable rainbow Parameters for Expanded Monitoring
  • SpCO and SpMet Options for EMS Assessment
  • Signal I.Q. Helps Identify Low-Confidence Readings
  • Up to 72 Hours of Trending Memory
  • Portable Handheld Design for Hospital and EMS Use .

✔ Continuous Patient Monitoring | ✔ Upgradeable rainbow Technology | ✔ 72-Hour Trending Memory

The Masimo Rad-57 Handheld Pulse CO-Oximeter provides continuous monitoring of SpO₂, pulse rate, and perfusion index, with configurable rainbow options for additional measurements such as SpCO and SpMet. Its portable design and trending memory make it suitable for rapid patient assessment in hospital and EMS settings.


EXPAND MONITORING AS YOUR NEEDS GROW

CORE MONITORING: Measures SpO₂, pulse rate, and perfusion index using Masimo SET pulse oximetry.

UPGRADEABLE PARAMETERS: The 9216 configuration can be upgraded with rainbow parameters including SpHb, PVi, SpCO, SpMet, and SpOC.

CO-OXIMETRY OPTIONS: Selected EMS configurations add SpCO for carboxyhemoglobin and/or SpMet for methemoglobin monitoring.

CONFIGURATION OPTIONS: Choose from standalone or EMS kit configurations with adult and pediatric rainbow sensors, depending on the model.


KEEP TRACK OF PATIENT TRENDS

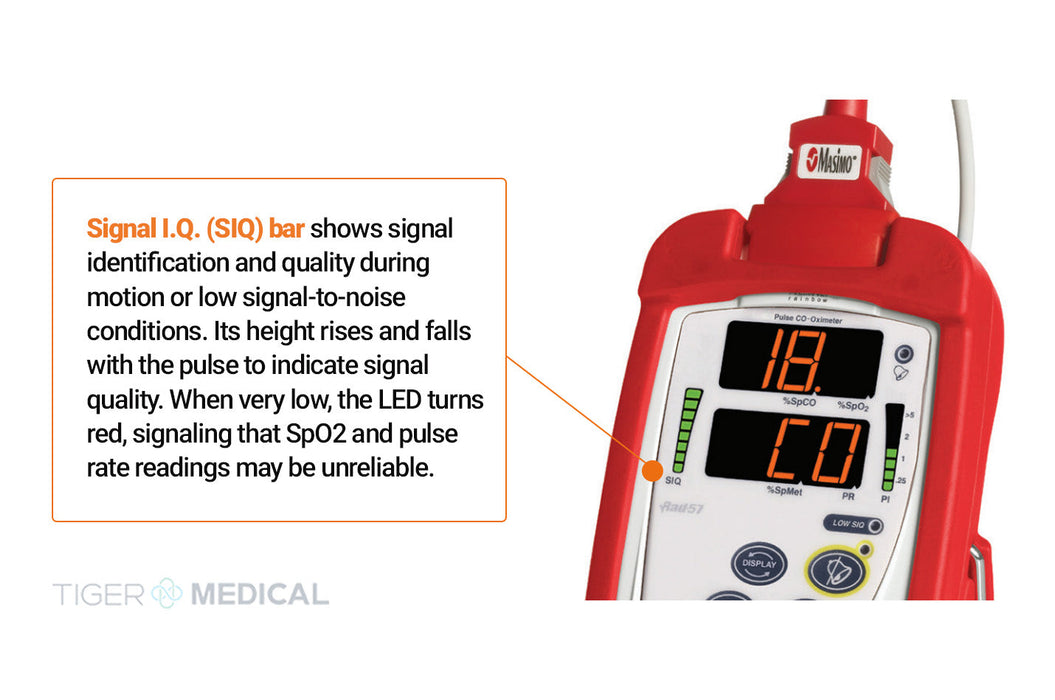

SIGNAL I.Q.: Helps identify periods of low measurement confidence, including situations involving poor sensor placement or other signal-quality issues.

CONTINUOUS MONITORING: Designed for continuous patient monitoring, providing clinicians with ongoing measurements rather than a single spot check.

72-HOUR TRENDS: Stores up to 72 hours of SpO₂, pulse rate, and perfusion index trend data at 2-second intervals.

PORTABLE DESIGN: The handheld format supports monitoring when patients need to be assessed or transported across different care environments.



AVAILABLE OPTIONS:

  • Rad-57 Handheld Pulse CO-Oximeter Only (9216)
  • Rad-57 EMS Kit w/ SpCO option, adult rainbow sensor for adults, RC-01 cable and red case (3734)
  • Rad-57 EMS Kit w/ SpCO option, pediatric & adult rainbow sensors, RC-01 cable and red case (3735)
  • Rad-57 EMS Kit w/ SpCO and SpMet options, adult rainbow sensor, RC-01 cable and red case (3736)
  • Rad-57 EMS Kit w/ SpMet option, pediatric & adult rainbow sensors, RC-01 cable and red case (3737)

With configurable monitoring options and long-term trend storage, the Masimo Rad-57 Pulse CO-Oximeter provides a flexible solution that can adapt to changing patient monitoring needs across clinical and EMS settings.

Warning WARNING: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

  • PARAMETERS: SpO2, Pulse Rate, Perfusion Index
  • Continuous SpO₂, Pulse Rate, and Perfusion Index Monitoring
  • Upgradeable rainbow Parameters for Expanded Monitoring
  • SpCO and SpMet Options for EMS Assessment
  • Signal I.Q. Helps Identify Low-Confidence Readings
  • Up to 72 Hours of Trending Memory
  • Portable Handheld Design for Hospital and EMS Use

What’s in the Box

  • Masimo Rad-57 Handheld Pulse Oximeter
  • User Manual
  • 1-Year Manufacturer's Warranty

WARRANTY: 1 Year

RETURNS: ITEMS WITH A LEAD TIME LONGER THAN 48 HOURS CANNOT BE RETURNED / CANCELLED. These are specially ordered, and we cannot accept returns or cancellations on such products for any reason. We take the responsibility to make sure your product arrives in brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

Items which ship out in 24-48 hours are covered by our standard 30 day return policy from date of shipment. Return shipping charges are the responsibility of the customer. The product must be in new condition and in its original packaging.

For complete details of our return policy and process, please refer to our general return policy page.

Display
Displaying Data
%SpO2, pulse rate (PR), Perfusion Index (PI); upgraded units also display SpHb, SpOC, PVI
Display Type
LED
Other Info Displaying
Alarm status, alarm silenced status, Low Signal IQ (Low SIQ) indicator, battery status, SIQ bar, PI bar
SpO2 Measurement
Measurement Range
0-100%
Accuracy
70–100%: No motion Adults/Infants/Pediatrics ±2%, Neonates ±3% Motion (all populations) ±3%; Low Perfusion ±2%. 60–80%: No motion ±3%
Averaging?
2, 4, 8, 10, 12, 14, or 16 seconds (with FastSat, 2‑sec setting averages 2–4 sec and 4‑sec setting averages 4–6 sec depending on input signal)
Display range
0–100%
Resolution
1%
Pulse Rate Measurement
Display Range
25–240 bpm
Accuracy
No motion ±3 bpm; Motion ±5 bpm; Low Perfusion ±3 bpm
Averaging
Same as SpO2 — 2, 4, 8, 10, 12, 14, or 16 seconds
Measurement range
25–240 bpm
Resolution
1 bpm
Power
Type
4 AA alkaline batteries
Battery Life
Up to 10 hours (per spec table); "Over 8 hours" cited in Features/Benefits list
Weight & Dimensions
Length
6.2"
Width
3"
Height
1.4"
Weight
13 oz
Certifications
Standards
EN60601‑1‑2 Class B (EMC); IEC 60601‑1; FCC Part 15 Class B; Canadian ICES‑003; CE Mark (Medical Device Directive 93/42/EEC); UL (Underwriter's Laboratories) approved
Environmental
Safe Operating Temperature Range
0°F to 129°F (‑18°C to 54°C)
Safe Storage Temperature
‑40°F to 158°F (‑40°C to +70°C) (transportation/storage)
Safe Operating Humidity Level
5% to 95%, non‑condensing
Material(s)
Sensors
Not specified
Warranty
Info
1 year from date of purchase
Country of Origin
Made In
Not specified
Alarm
Alarm Indicating
Audible alarm tone, Visual Alarm Indicator (illuminates on any alarm condition, cannot be overridden), flashing out‑of‑limit parameter/measurement
Alarm Mode
High Priority: 800 Hz tone, 5‑pulse burst, pulse spacing 78ms/78ms/320ms/78ms, repeats every 10s. Medium Priority: 500 Hz tone, 3‑pulse burst, repeats every 5s. Volume: 67 dB (max)
Alarm limits range
SpO2 Low: 1–98%; SpO2 High: 2–99% (or Off). PR Low: 30–230 bpm; PR High: 35–235 bpm. SpHb Low: 1–23.5 g/dL (or Off); SpHb High: 2–24.5 g/dL (or Off). PVI Low/High: 1–98% / 2–99% (or Off). PI Low: 0.03–18% (or Off); PI High: 0.04–19% (or Off)
Measurement Wavelengths and Output Power
Red
Not specified
Infrared
Not specified
FiO2 Measurement
Range
N/A
Accuracy
N/A
