Rad-5V Pulse Oximeter

Masimo
by Masimo
MFR#: 9540
TIGER#: TM166025
List Price: $860.95
You Save: $150.61 -17%
$860.95 - $860.95
List Price: $860.95
$710.34
$710.34 - $710.34
$710.34
Add to cart for Lower Price
Rad-5V Pulse Oximeter
Rad-5V Pulse Oximeter - $710.34
$710.34
*Must Purchase 1 for Rad-5V Pulse Oximeter

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days
Documents
Manual Brochure
  • PARAMETERS: SpO2, Pulse Rate, Perfusion Index
  • Masimo SET Technology for Accurate Motion-Tolerant Readings
  • Available in Adult and Pediatric Configurations
  • Lightweight Handheld Design with Over 30-Hour Battery Life
  • FastStart for Rapid Measurement at Start-Up
  • Perfusion Index Indicates Arterial Pulse Signal Strength
  • Audible and Visual Alarms for Sensor Off and Low Battery .

✔ Motion-Tolerant Accuracy | ✔ Adult & Pediatric Kits | ✔ Over 30-Hour Battery

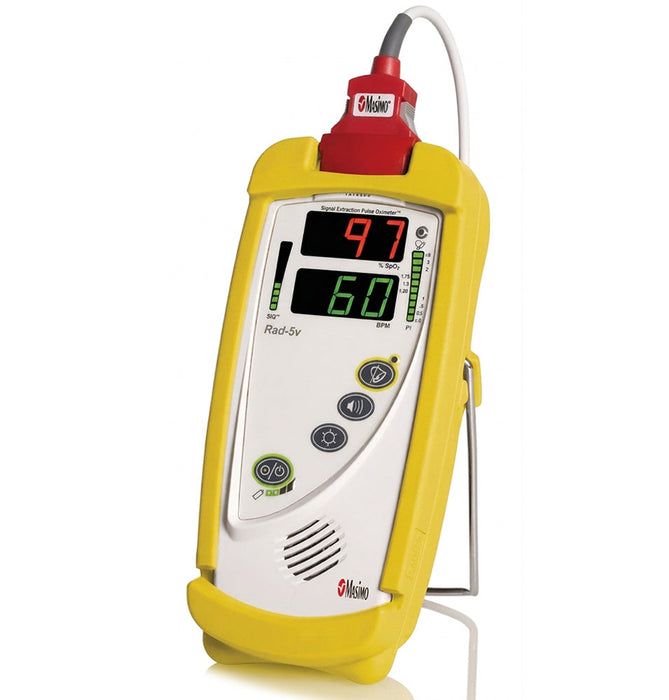

The Masimo Rad-5V Handheld Pulse Oximeter is built for fast, accurate spot-check and triage monitoring, powered by clinically proven Masimo SET technology. Available in Adult and Pediatric kit configurations, it delivers dependable SpO2 and pulse rate readings even during patient motion or low perfusion.

RELIABLE READINGS, EVEN IN TOUGH CONDITIONS

MASIMO SET TECHNOLOGY: Clinically proven to deliver accurate SpO2 and pulse rate readings during motion and low perfusion, where conventional oximeters often struggle, with FastStart for faster readings at start-up.

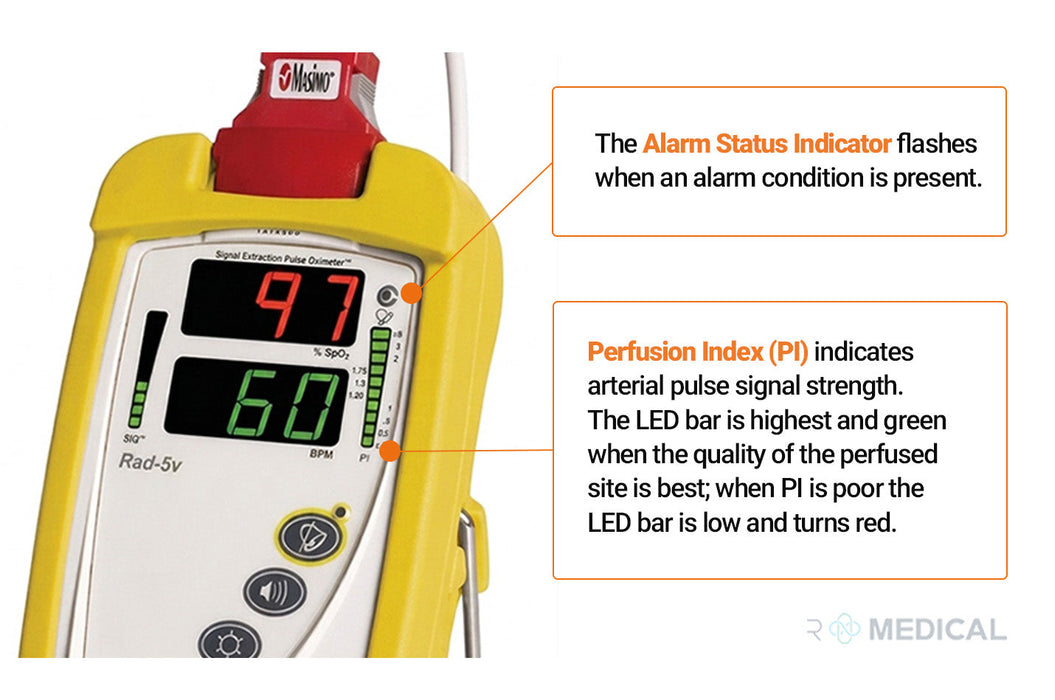

SIGNAL QUALITY YOU CAN TRUST: Signal I.Q. bar shows the timing and confidence level of each reading; Perfusion Index displays the strength of the arterial pulse signal at the monitoring site, helping clinicians judge reading confidence at a glance.

LIGHTWEIGHT & PORTABLE: Compact handheld design with over 30 hours of battery life on 4 AA alkaline batteries, plus audible and visual alarms for sensor-off and low-battery conditions.

BROAD PATIENT USE: Indicated for adult, pediatric, and neonatal patients, in both motion and no-motion conditions, and for patients who are well or poorly perfused.



AVAILABLE OPTIONS:

  • Adult Kit: Rad-5V Device with Adult Sensor and 3ft Cable (9197)
  • Pediatric Kit: Rad-5V Device Configured for Pediatric Use (9540)

Fast, accurate, and easy to use, the Masimo Rad-5V Handheld Pulse Oximeter is a dependable spot-check solution built to keep pace with busy clinical settings, whatever your patient population.


Warning WARNING: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

  • PARAMETERS: SpO2, Pulse Rate, Perfusion Index
  • Masimo SET Technology for Accurate Motion-Tolerant Readings
  • Available in Adult and Pediatric Configurations
  • Lightweight Handheld Design with Over 30-Hour Battery Life
  • FastStart for Rapid Measurement at Start-Up
  • Perfusion Index Indicates Arterial Pulse Signal Strength
  • Audible and Visual Alarms for Sensor Off and Low Battery

What’s in the Box

  • Masimo Rad-5V Handheld Pulse Oximeter
  • User Manual
  • 1-Year Manufacturer's Warranty

WARRANTY: 1 Year

RETURNS: ITEMS WITH A LEAD TIME LONGER THAN 48 HOURS CANNOT BE RETURNED / CANCELLED. These are specially ordered, and we cannot accept returns or cancellations on such products for any reason. We take the responsibility to make sure your product arrives in brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

Items which ship out in 24-48 hours are covered by our standard 30 day return policy from date of shipment. Return shipping charges are the responsibility of the customer. The product must be in new condition and in its original packaging.

For complete details of our return policy and process, please refer to our general return policy page.

Display
Displaying Data
SpO2, Pulse Rate, Perfusion Index, Battery Status, Alarm Status, Alarm Silenced Status
Display Type
LED
Other Info Displaying
-
SpO2 Measurement
Measurement Range
1% to 100%
Accuracy
No Motion — Adults/Pediatrics/Infants: 2%, Neonates: 3% Motion — Adults/Pediatrics/Infants: 2%, Neonates: 3% Low Perfusion — Adults/Pediatrics/Infants: 2%, Neonates: 2% (ARMS accuracy)
Averaging?
Yes — fixed at 8 seconds (not user-adjustable on Rad-5v; Rad-5 offers adjustable averaging)
Display range
1% to 100%
Resolution
1%
Pulse Rate Measurement
Display Range
25 bpm to 240 bpm
Accuracy
No Motion: 3 bpm Motion: 5 bpm Low Perfusion: 3 bpm (all patient populations)
Averaging
Fixed at 8 seconds
Measurement range
25 bpm to 240 bpm
Resolution
1 bpm
Power
Type
4 "AA" Alkaline batteries
Battery Life
Over 30 hours
Weight & Dimensions
Length
6.2"
Width
3"
Height
1.4"
Weight
13 oz.
Certifications
Standards
ANSI/AAMI ES 60601-1:2005+A1:2012; CAN/CSA C22.2 No. 60601-1:2014; IEC 60601-1:2005+A1:2012; EN/ISO 80601-2-61:2011; IEC 60601-1-2, Class B (EMC)
Environmental
Safe Operating Temperature Range
2°C to 43°C (36°F to 109°F)
Safe Storage Temperature
-50°C to 70°C (-58°F to 158°F)
Safe Operating Humidity Level
Not specified
Material(s)
Sensors
Not specified
Warranty
Info
1 year
Country of Origin
Made In
Not specified
Alarm
Alarm Indicating
Audible tone plus visual Alarm Indicator (illuminates on any alarm condition; cannot be turned off or overridden)
Alarm Mode
Sensor condition (Sensor Off/No Sensor), system failure, and low battery alarms only
Alarm limits range
N/A
Measurement Wavelengths and Output Power
Red
Not specified
Infrared
Not specified
FiO2 Measurement
Range
N/A
Accuracy
N/A
