Rad-97 Bedside Patient Pulse CO-Oximeter (NIBP / Capnography Option)

Masimo
by Masimo
MFR#: 9738
TIGER#: TM165996
List Price: $2,725.75
You Save: $476.84 -17%
$2,725.75 - $2,725.75
List Price: $2,725.75
$2,248.91
$2,248.91 - $2,248.91
$2,248.91
Add to cart for Lower Price
Rad-97 Bedside Patient Pulse CO-Oximeter (NIBP / Capnography Option)
Rad-97 Bedside Patient Pulse CO-Oximeter (NIBP / Capnography Option) - $2,248.91
$2,248.91
*Must Purchase 1 for Rad-97 Bedside Patient Pulse CO-Oximeter (NIBP / Capnography Option)

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days
Documents

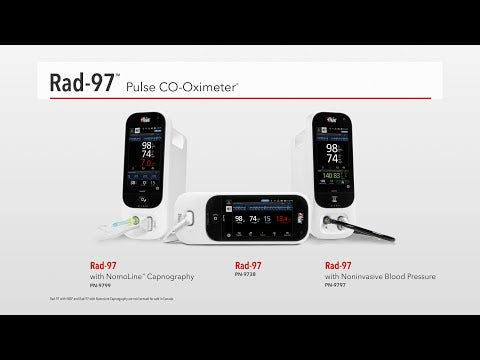

Manual Brochure Product Video
  • PARAMETERS: SpO2, PR, Pi, SpHb
  • OPTIONAL PARAMETERS: NIBP
  • Masimo SET Measure-Through Motion Pulse Oximetry
  • Available With Integrated NIBP or Capnography
  • Bright High-Resolution Touchscreen Display
  • Upgradeable Rainbow SET Technology
  • Configurable Adult, Pediatric, and Neonatal Profiles
  • Trends Up To 96 Hours of Patient Data .

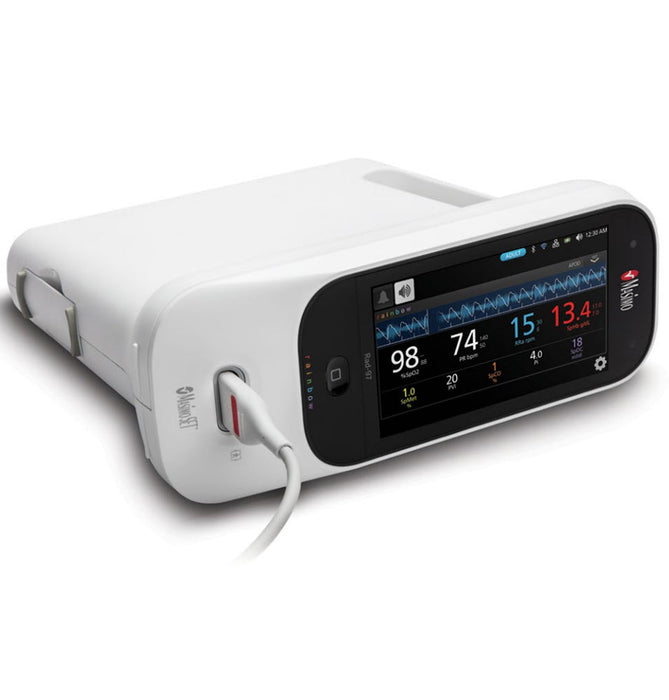

The Masimo Rad-97 Bedside Pulse CO-Oximeter delivers advanced, customizable patient monitoring in a compact, portable unit,available configured with integrated NIBP or integrated Capnography to match your clinical workflow. Built on Masimo SET pulse oximetry with upgradeable rainbow SET technology, it puts pertinent patient data at clinicians' fingertips.

✔ Configurable Patient Profiles | ✔ NIBP or Capnography Options | ✔ Multi-Touch Display



MONITORING THAT MATCHES YOUR NEEDS

SET PULSE OXIMETRY: Delivers SpO2, Pulse Rate, Perfusion Index (Pi), and Pleth Variability Index (PVi) with measure-through motion and low perfusion performance.

INTEGRATED NIBP: Adds noninvasive blood pressure monitoring alongside pulse oximetry for a fuller picture of a patient's vital signs.

INTEGRATED CAPNOGRAPHY: Adds respiratory monitoring alongside pulse oximetry to help assess ventilation status at the bedside.

UPGRADEABLE PLATFORM: rainbow SET technology can be added to expand monitoring to SpHb, SpCO, SpMet, SpOC, and RRa.

CONNECTED CARE: WiFi, Bluetooth LE, Ethernet, USB, and nurse call interface options; compatible with Patient SafetyNet for electronic charting.



BUILT FOR THE BEDSIDE

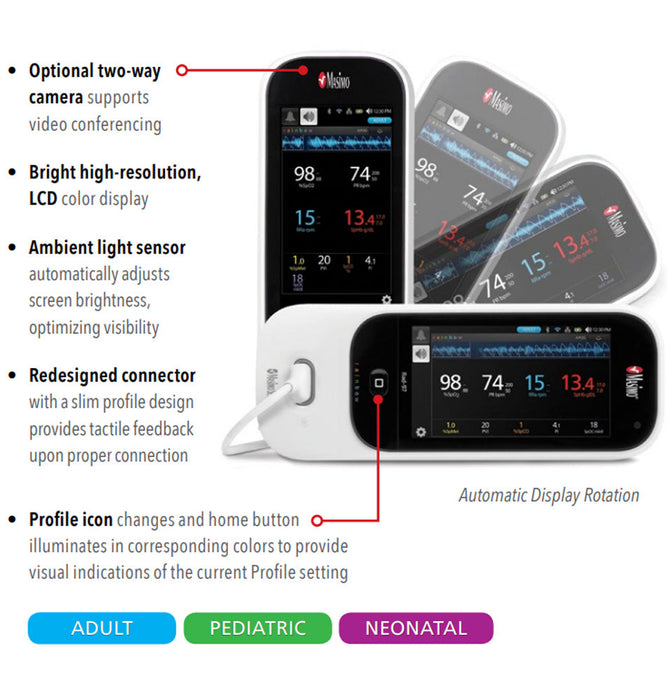

CUSTOMIZABLE DISPLAY: Use intuitive touch gestures to select and arrange the most relevant measurements for each patient.

CONFIGURABLE PROFILES: Color-coded Adult, Pediatric, and Neonatal profiles let staff reconfigure monitoring settings in seconds.

TRENDED DATA: View up to 96 hours of parametric data to track patient status over time.

MOBILE-READY: Built-in rechargeable Li-ion battery (approx. 4 hours) and roll-stand compatibility support tetherless bedside transport.

CLEAR ALARMS: Audible and visual alerts, including a system status light, flag out-of-range parameters quickly.


AVAILABLE OPTIONS

  • Rad-97 Co-Oximeter with NIBP (9867)
  • Rad-97 Co-Oximeter with Capnography (9868)

The Masimo Rad-97 gives clinicians a dependable, adaptable monitoring platform that grows with their patients' needs.

Warning WARNING: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

  • PARAMETERS: SpO2, PR, Pi, SpHb
  • OPTIONAL PARAMETERS: NIBP
  • Masimo SET Measure-Through Motion Pulse Oximetry
  • Available With Integrated NIBP or Capnography
  • Bright High-Resolution Touchscreen Display
  • Upgradeable Rainbow SET Technology
  • Configurable Adult, Pediatric, and Neonatal Profiles
  • Trends Up To 96 Hours of Patient Data

What’s in the Box

  • Masimo Rad-97 Bedside Pulse CO-Oximeter (Rx)
  • Sensor (Adult/Pediatric)
  • AC Power Cord
  • Patient Cable
  • User Manual
  • 1-Year Manufacturer's Warranty

WARRANTY: Main Unit: 1 Year. Batteries: 6 Months

RETURNS: ITEMS WITH A LEAD TIME LONGER THAN 48 HOURS CANNOT BE RETURNED / CANCELLED. These are specially ordered, and we cannot accept returns or cancellations on such products for any reason. We take the responsibility to make sure your product arrives in brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

Items which ship out in 24-48 hours are covered by our standard 30 day return policy from date of shipment. Return shipping charges are the responsibility of the customer. The product must be in new condition and in its original packaging.

For complete details of our return policy and process, please refer to our general return policy page.

Display
Displaying Data
SpO2, Pulse Rate (PR), Perfusion Index (Pi), Pleth Variability Index (PVi), Respiration Rate (RRa/RRp), SpHb, SpCO, SpMet, SpOC, plus trend graphs and waveform view
Display Type
Backlit Active Matrix TFT LCD, capacitive touchscreen
Other Info Displaying
720 x 1280 pixel resolution; 1-second display update rate; trend memory up to 96 hours at 2-second resolution
SpO2 Measurement
Measurement Range
Accuracy validated 70–100% (no motion, low perfusion); 60–80% under no-motion conditions per separate table
Accuracy
No motion: 2% (SpO2 70–100%, adults/pediatrics/infants), 3% (neonates); No motion: 3% (SpO2 60–80%); Motion: 3% (all populations); Low perfusion: 2% (all populations)
Averaging?
Not specified
Display range
0% to 100%
Resolution
1%
Pulse Rate Measurement
Display Range
0 bpm to 240 bpm
Accuracy
No motion: 3 bpm; Motion: 5 bpm; Low perfusion: 3 bpm
Averaging
Not specified
Measurement range
25 to 240 bpm
Resolution
1 bpm
Power
Type
Lithium ion rechargeable battery; AC power
Battery Life
Approx. 4 hours; charging time approx. 6 hours
Weight & Dimensions
Length
9"
Width
4"
Height
6.5"
Weight
Approx. 2.0 lbs without NIBP/NomoLine 2.3 lbs with NIBP 2.2 lbs with NomoLine Capnography
Certifications
Standards
ANSI/AAMI ES 60601-1:2005, ANSI/AAMI SP10 (NIBP), CAN/CSA C22.2 No. 60601-1, IEC 62366, IEC 60601-1-6, IEC 60601-1:2005, IEC 60601-1-8, IEC 60601-1-11, IEC 60601-2-49, IEC 80601-2-30 (NIBP), ISO 81060-2 (NIBP), ISO 80601-2-55 (Capnography), EN/ISO 80601-2-61:2011, IEC 60601-1-2:2007 Class B
Environmental
Safe Operating Temperature Range
0°C to 40°C (32°F to 104°F)
Safe Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Safe Operating Humidity Level
10% to 95% non-condensing (non-NIBP/non-NomoLine models); 15% to 95% non-condensing (NIBP/NomoLine models)
Material(s)
Sensors
Not specified
Warranty
Info
1 year on hardware product and software media
Country of Origin
Made In
Not specified
Alarm
Alarm Indicating
High priority: flashing red, 571 Hz tone, 10-pulse burst; Medium priority: flashing yellow, 550 Hz tone, 3-pulse burst; Low priority: solid yellow, no audible alarm
Alarm Mode
Audio + visual (System Status Light + on-screen alarm status); Audio Pause and Alarm Silence functions available
Alarm limits range
Configurable high/low limits per parameter (specific numeric ranges NOT SPECIFIED in extracted section — flag for rep confirmation); Alarm Volume: High Priority 75 dB (min), Medium Priority 70 dB (min) at highest volume setting
Measurement Wavelengths and Output Power
Red
Not specified
Infrared
Not specified
FiO2 Measurement
Range
N/A
Accuracy
N/A
