Rad-G Pulse Oximeter

Masimo
by Masimo
MFR#: 95164
TIGER#: TM166015
List Price: $860.95
You Save: $150.61 -17%
$860.95 - $860.95
List Price: $860.95
$710.34
$710.34 - $710.34
$710.34
Add to cart for Lower Price
Rad-G Pulse Oximeter
Rad-G Pulse Oximeter - $710.34
$710.34
*Must Purchase 1 for Rad-G Pulse Oximeter

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days
Documents
Manual Brochure Product Video
  • PARAMETERS: SpO2, Pulse Rate, Pi, Pvi, RRp
  • OPTIONAL PARAMETER: Temperature
  • Rugged Handheld Design Withstands 6-Foot Drops
  • Masimo SET Measure-Through Motion and Low Perfusion Technology
  • Spot-Checks SpO2, Pulse Rate, Pi, PVi, and RRp
  • Rechargeable Battery Delivers 24 Hours of Use
  • Compatible with Reusable and Single-Patient Sensors .

✔ Masimo SET Technology | ✔ 24-Hour Battery Life | ✔ Drop-Tested Rugged Casing

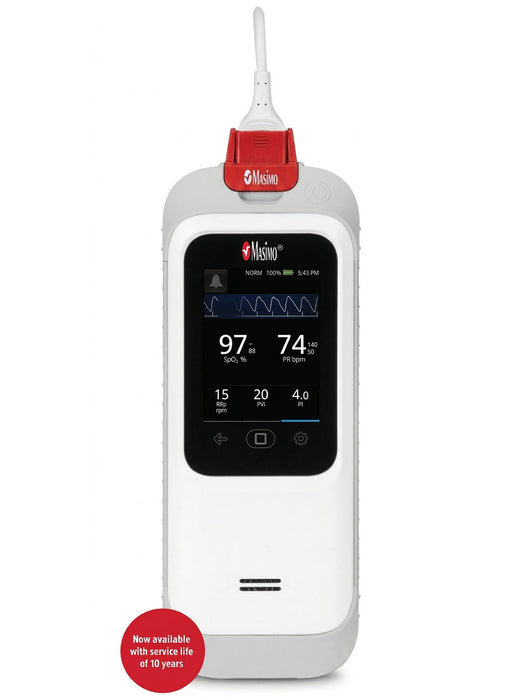

The Masimo Rad-G Handheld Spot-Check Pulse Oximeter is a rugged, handheld device that delivers clinically proven Masimo SET pulse oximetry for fast, reliable spot-checks of SpO2, pulse rate, perfusion index, pleth variability index, and respiration rate. Available with or without an integrated infrared temperature sensor, Rad-G is built to withstand daily use in clinics, EMS settings, and the field.


RELIABLE READINGS, ANYWHERE

ACCURATE THROUGH MOTION: Masimo SET Measure-through Motion and Low Perfusion technology delivers dependable readings even with patient movement or weak perfusion.

TRUSTED TECHNOLOGY: Powered by the same Masimo SET platform used to monitor over 200 million patients each year worldwide.

OPTIONAL TEMPERATURE: Choose a version with an integrated infrared sensor for fast, non-contact temperature measurement.

CONTINUOUS MONITORING OPTION: The Rad-G with Temperature, Spot-Check & Continuous Monitoring (9210) is an earlier-generation model with alarms, ideal for unsupervised oximeter + temperature monitoring.


BUILT TO GO WHERE CARE HAPPENS

RUGGED CASING: Strong external housing withstands drops from 6 feet onto a hard surface.

LIGHTWEIGHT AND PORTABLE: Slim, light profile makes it easy to carry, store, and use across care settings.

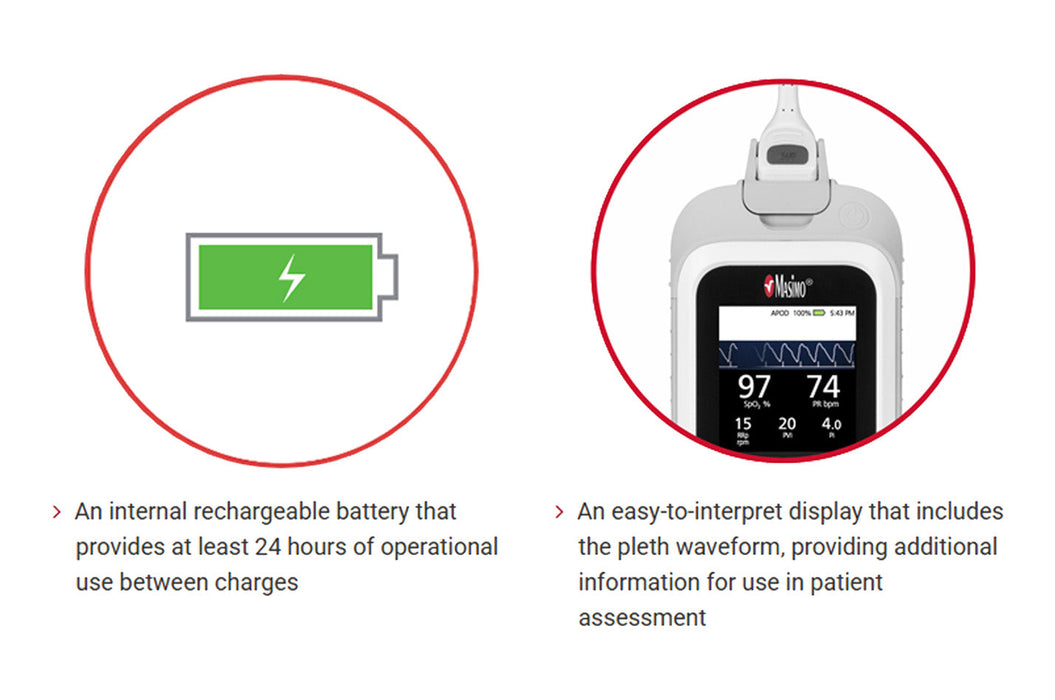

ALL-DAY BATTERY: Internal rechargeable lithium-ion battery provides at least 24 hours of operational use between charges.

SENSOR COMPATIBILITY: Includes one Rad-G reusable sensor and works with Masimo single-patient-use sensors to fit different patients and settings.

CLEAR DISPLAY: Easy-to-read screen with pleth waveform supports quick, confident patient assessment.



AVAILABLE OPTIONS:

  • Rad-G Oximeter with Reusable Sensor, Spot-Check (95164)
  • Rad-G Oximeter with Reusable Sensor + Temperature, Spot-Check (95165)
  • Rad-G Oximeter with Sensor + Temperature, Spot-Check & Continuous (9210)

Whether in the clinic, the field, or on the road, Rad-G gives care teams a dependable, long-lasting tool for fast and accurate patient assessment.


Warning WARNING: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

  • PARAMETERS: SpO2, Pulse Rate, Pi, Pvi, RRp
  • OPTIONAL PARAMETER: Temperature
  • Rugged Handheld Design Withstands 6-Foot Drops
  • Masimo SET Measure-Through Motion and Low Perfusion Technology
  • Spot-Checks SpO2, Pulse Rate, Pi, PVi, and RRp
  • Rechargeable Battery Delivers 24 Hours of Use
  • Compatible with Reusable and Single-Patient Sensors

What’s in the Box

  • Masimo Rad-G Masimo SET Handheld Spot-Check Pulse Oximeter
  • Rad-G Reusable Sensor
  • AC/DC Power Supply
  • User Manual
  • 1-Year Manufacturer's Warranty

WARRANTY: 1 Year

RETURNS: ITEMS WITH A LEAD TIME LONGER THAN 48 HOURS CANNOT BE RETURNED / CANCELLED. These are specially ordered, and we cannot accept returns or cancellations on such products for any reason. We take the responsibility to make sure your product arrives in brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

Items which ship out in 24-48 hours are covered by our standard 30 day return policy from date of shipment. Return shipping charges are the responsibility of the customer. The product must be in new condition and in its original packaging.

For complete details of our return policy and process, please refer to our general return policy page.

Display
Displaying Data
SpO₂, PR, Pi, PVi, RRp, pleth waveform, Signal IQ
Display Type
TFT LCD, 320 x 240 pixels, touchscreen
Other Info Displaying
Status bar (sensitivity mode, status message, battery/AC indicator, current time), alarm silence icon, Surgical Safety Checklist icon; update rate 1 second
SpO2 Measurement
Measurement Range
0% to 100% (display range); accuracy validated 70–100%
Accuracy
No motion: 2% (Adults/Pediatrics/Infants), 3% (Neonates); Motion: 3% (all populations); Low perfusion: 2% (all populations)
Averaging?
Yes — Averaging Time setting: 2–4, 4–6, 8, 10, 12, 14, or 16 sec (default 8 sec); FastSat On/Off option (averaging time dependent on input signal when On)
Display range
0% to 100%
Resolution
1%
Pulse Rate Measurement
Display Range
25 bpm to 240 bpm
Accuracy
No motion: 3 bpm (all populations); Motion: 5 bpm (all populations); Low perfusion: 3 bpm (all populations)
Averaging
Not specified
Measurement range
25 bpm to 240 bpm
Resolution
1 bpm
Power
Type
Internal rechargeable lithium-ion battery; AC/DC power supply (PN 38602), Input 100–240V~, 50–60Hz, 0.6A; Output 5V, 1.2A, 6W
Battery Life
≥24 hours (typical run time at default display brightness, indoor lighting, no audio/alarms); charging time 8 hours (to 80% capacity at 25°C)
Weight & Dimensions
Length
7.8"
Width
2.9"
Height
1"
Weight
0.59 lbs
Certifications
Standards
ANSI/AAMI ES 60601-1 + Am 1; CAN/CSA C22.2 No. 60601-1; IEC 60601-1 + Am 1; IEC 62366; IEC 60601-1-6; IEC 60601-1-8; IEC 60601-1-11; EN/ISO 80601-2-61; IEC 60601-1-2:2014 (EMC); FCC Part 15 Class B; Industry Canada RSS-Gen; CE Mark (0123); ETL Classified
Environmental
Safe Operating Temperature Range
While charging: 0°C to 40°C (32°F–104°F); While not charging: 0°C to 50°C (32°F–122°F)
Safe Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Safe Operating Humidity Level
10% to 95%, non-condensing
Material(s)
Sensors
Not specified
Warranty
Info
12 months (hardware/software media); 6 months (batteries)
Country of Origin
Made In
Not specified
Alarm
Alarm Indicating
Audible (High priority: 10-pulse burst; Medium priority: 3-pulse burst) and visual (parameter/system-level red or yellow illumination + on-screen text)
Alarm Mode
Configurable Alarm Volume (High/Med/Low), Alarm Delay (0/5/10/15 sec), Silence Duration (1/2/3 min or All Mute — requires Access Control), Rapid Desat (Off/-5%/-10%)
Alarm limits range
SpO2 High: 2–99% or Off; Low: 1–98%; PR High: 35–235 bpm; Low: 30–230 bpm; PVi High: 2–99 or Off; Low: Off or 1–98; Pi High: 0.04–19 or Off; Low: Off or 0.03–18; RRp High: 6–69 or Off; Low: Off or 5–68 breaths/min
Measurement Wavelengths and Output Power
Red
Not specified
Infrared
Not specified
FiO2 Measurement
Range
N/A
Accuracy
N/A
