Radical-7 Pulse CO-Oximeter

Masimo
by Masimo
MFR#: 9500
TIGER#: TM166002
List Price: $3,095.77
You Save: $541.57 -17%
$3,095.77 - $3,095.77
List Price: $3,095.77
$2,554.20
$2,554.20 - $2,554.20
$2,554.20
Add to cart for Lower Price
Radical-7 Pulse CO-Oximeter
Radical-7 Pulse CO-Oximeter - $2,554.20
$2,554.20
*Must Purchase 1 for Radical-7 Pulse CO-Oximeter

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days
Documents
Manual Brochure
  • PARAMETERS: SpO2, Pulse Rate, Perfusion Index
  • Upgradeable With Optional Rainbow Parameters And Features
  • Customizable, High-Resolution Display With Auto Rotation
  • 4-Hour Rechargeable Battery For Extended Use
  • Wireless Capability for Seamless Data Management
  • Prescription Device For Continental US And Puerto Rico .

✔ Handheld & Portable | ✔ Upgradeable Rainbow Platform | ✔ Pairs With Root

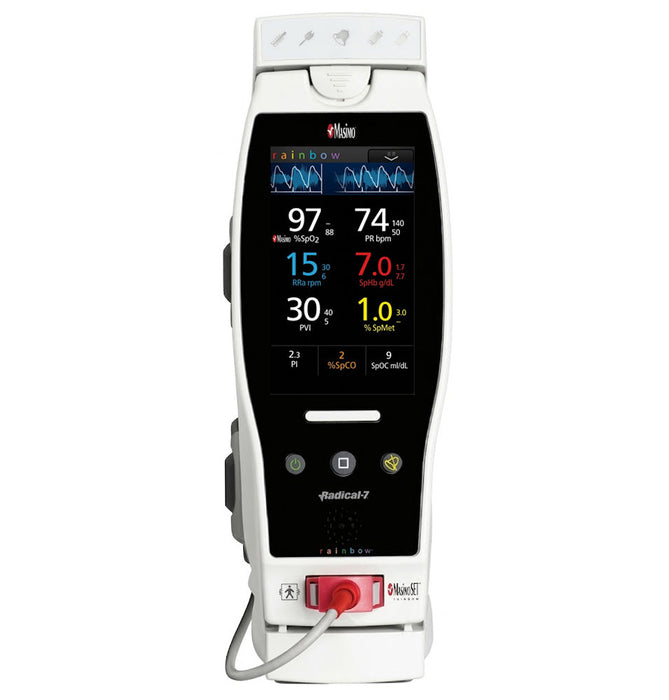

The Masimo Radical-7 Handheld Pulse CO-Oximeter delivers reliable SpO2, pulse rate, and perfusion index monitoring in a compact, portable design. Its upgradeable platform lets clinicians add rainbow parameters as monitoring needs grow.


RELIABLE MONITORING, ON THE GO

LIGHTWEIGHT DESIGN: At just 1.2 lbs, it's easy to carry between patients and care areas.

LONG-LASTING BATTERY: Up to 4 hours of runtime on a full charge keeps monitoring uninterrupted.

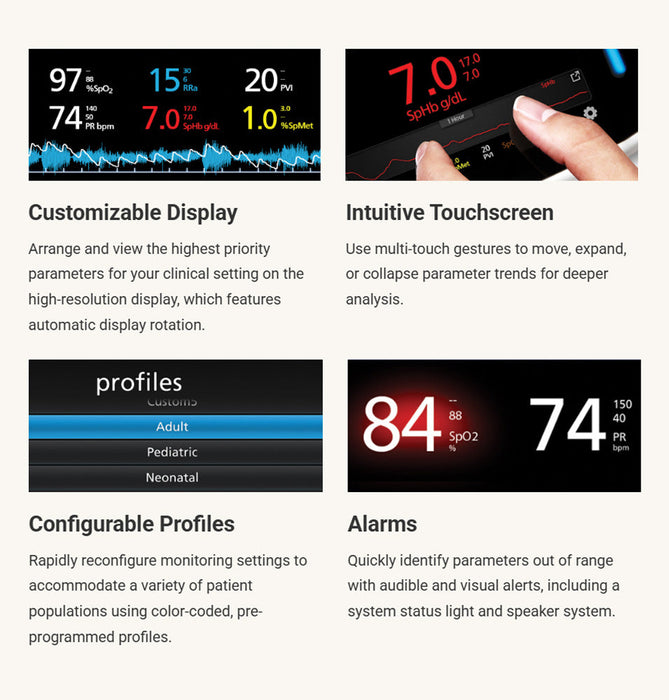

CUSTOMIZABLE TOUCHSCREEN DISPLAY: Arrange priority parameters on a high-resolution, auto-rotating screen, then use multi-touch gestures to expand or collapse trends.

CONFIGURABLE PROFILES: Switch between color-coded, pre-programmed settings for different patient populations in seconds.

CLEAR ALARMS: Audible and visual alerts, including a status light and speaker system, flag out-of-range parameters fast.


GROWS WITH YOUR PRACTICE

UPGRADEABLE PLATFORM: Add optional rainbow parameters and features as clinical needs expand.

PAIRS WITH ROOT DISPLAY (SOLD SEPARATELY): Dock to the Root Patient Monitoring and Connectivity Platform for seamless multimodal monitoring, up to 96 hours of trend data, and Analog View gauges showing alarming, caution, and normal ranges at a glance.

SEAMLESS EMR CONNECTIVITY: Built-in enterprise Wi-Fi links to Masimo Patient SafetyNet or Iris Gateway, feeding data straight into EMR systems to help reduce charting errors and streamline workflows.



The Masimo Radical-7 Handheld Pulse CO-Oximeter gives clinics dependable core monitoring today, with room to scale up as needs change.


Warning WARNING: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

  • PARAMETERS: SpO2, Pulse Rate, Perfusion Index
  • Upgradeable With Optional Rainbow® Parameters And Features
  • Customizable, High-Resolution Display With Auto Rotation
  • 4-Hour Rechargeable Battery For Extended Use
  • Wireless Capability for Seamless Data Management
  • Prescription Device For Continental US And Puerto Rico

What’s in the Box

  • Masimo Radical-7 Handheld Pulse CO-Oximeter (Rx)
  • (1) RD rainbow SET, Red LNCS or rainbow Patient Cable
  • AC Power Supply
  • User Manual
  • 1-Year Warranty on Main Unit
  • 6-Month Warranty on Batteries

WARRANTY: Main Unit: 1 Year. Batteries: 6 Months

RETURNS: ITEMS WITH A LEAD TIME LONGER THAN 48 HOURS CANNOT BE RETURNED / CANCELLED. These are specially ordered, and we cannot accept returns or cancellations on such products for any reason. We take the responsibility to make sure your product arrives in brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

Items which ship out in 24-48 hours are covered by our standard 30 day return policy from date of shipment. Return shipping charges are the responsibility of the customer. The product must be in new condition and in its original packaging.

For complete details of our return policy and process, please refer to our general return policy page.

Display
Displaying Data
SpO2, PR, Pi
Display Type
Backlit Active Matrix TFT LCD, 480 x 272 pixels, 0.25 mm dot pitch
Other Info Displaying
Trend memory up to 96 hours at 2-second resolution; 1-second display update rate; Signal IQ indicator; Pleth waveform
SpO2 Measurement
Measurement Range
0% to 100%
Accuracy
No Motion: 2% (Adults/Peds/Infants, 70–100%), 3% (60–80%); 3% Neonates; Motion: 3% (70–100%, all populations); Low Perfusion: 2% (70–100%, all populations)
Averaging?
Yes — factory default 8 seconds; user-configurable to 2-4, 4-6, 8, 10, 12, 14, or 16 sec; optional FastSat mode (input-signal-dependent averaging)
Display range
0% to 100%
Resolution
1%
Pulse Rate Measurement
Display Range
0 bpm to 240 bpm
Accuracy
Range 25–240 bpm; No Motion: 3 bpm; Motion: 5 bpm; Low Perfusion: 3 bpm (all patient populations)
Averaging
Not specified
Measurement range
25 bpm to 240 bpm
Resolution
1 BPM
Power
Type
Lithium-ion (rechargeable, internally powered/battery)
Battery Life
4 hours (handheld); charge time 6 hours when docked to Docking Station or Root
Weight & Dimensions
Length
8.8"
Width
3.5"
Height
1.7"
Weight
1.3 lbs
Certifications
Standards
IEC 60601-1:2005/AMD1:2012, IEC 60601-1-2:2007 & 2014, IEC 62304:2006/AMD1:2015, IEC 60601-1-6:2010/AMD1:2013, IEC 60601-1-8:2006/AMD1:2012, EN/ISO 80601-2-61:2011, EN 60601-1:2006/AMD1:2013, ANSI/AAMI ES60601-1:2005/A1:2012, CAN/CSA C22.2 No. 60601-1:2014; IPX1 liquid ingress protection; Defibrillation-proof BF-Applied Part
Environmental
Safe Operating Temperature Range
0°C to 50°C (32°F to 122°F)
Safe Storage Temperature
-40°C to 70°C (-40°F to 158°F)
Safe Operating Humidity Level
10% to 95%, non-condensing
Material(s)
Sensors
Not specified
Warranty
Info
12 months on hardware (Radical-7 unit); 6 months on batteries
Country of Origin
Made In
Not specified
Alarm
Alarm Indicating
Visual: flashing red (High Priority), flashing yellow (Medium Priority), solid yellow (Low Priority, no audible tone); Audible tone patterns vary by priority
Alarm Mode
High Priority: 571 Hz tone, 5-pulse burst, repeat every 10s; Medium Priority: 550 Hz tone, 3-pulse burst, repeat every 7s; Low Priority: visual only
Alarm limits range
SpO2 High Limit: 2–99% in 1% steps (or Off); SpO2 Low Limit: 1–98% in 1% steps (factory default 88%); Rapid Desat: Off, -5%, or -10% below Low Limit; Alarm Volume: 70 dB minimum at highest setting
Measurement Wavelengths and Output Power
Red
Not specified
Infrared
Not specified
FiO2 Measurement
Range
N/A
Accuracy
N/A
