RCS-100 Digital Camera Diagnostic Set

The Riester RCS-100 Digital Medical Camera System is a high-quality, state-of-the-art and portable medical capturing device designed to take still images and MP4 videos that allow accurate diagnosis and hasten treatment. It is a great choice to be used in ENT, dermatology and general practices in any hospital, clinic or medical facility.

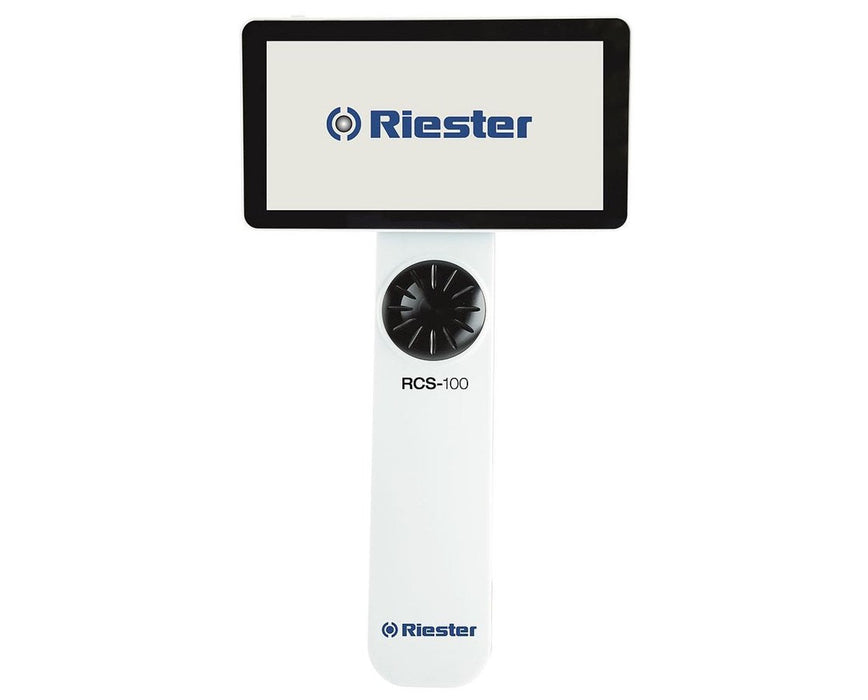

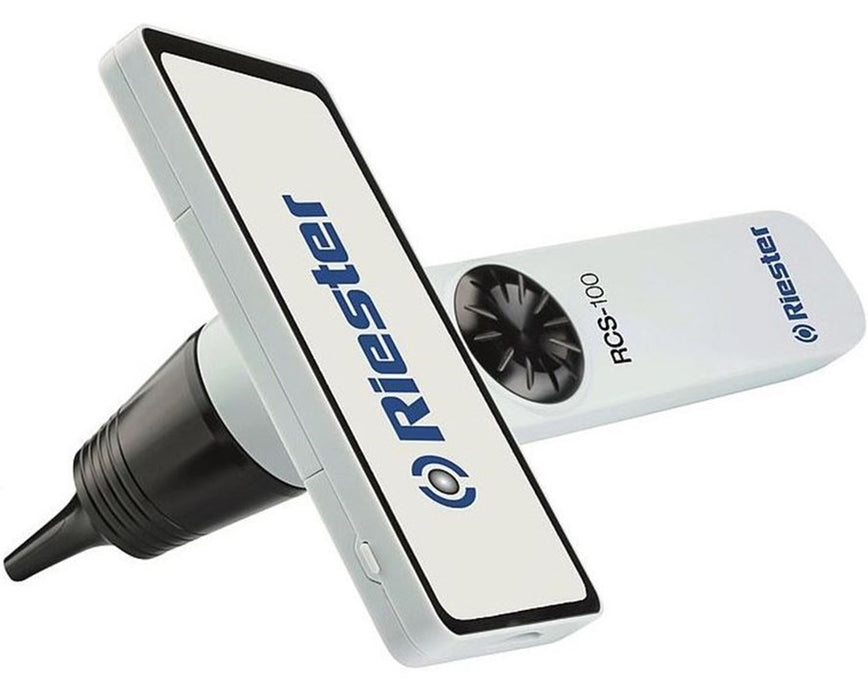

RCS-100 Camera Unit

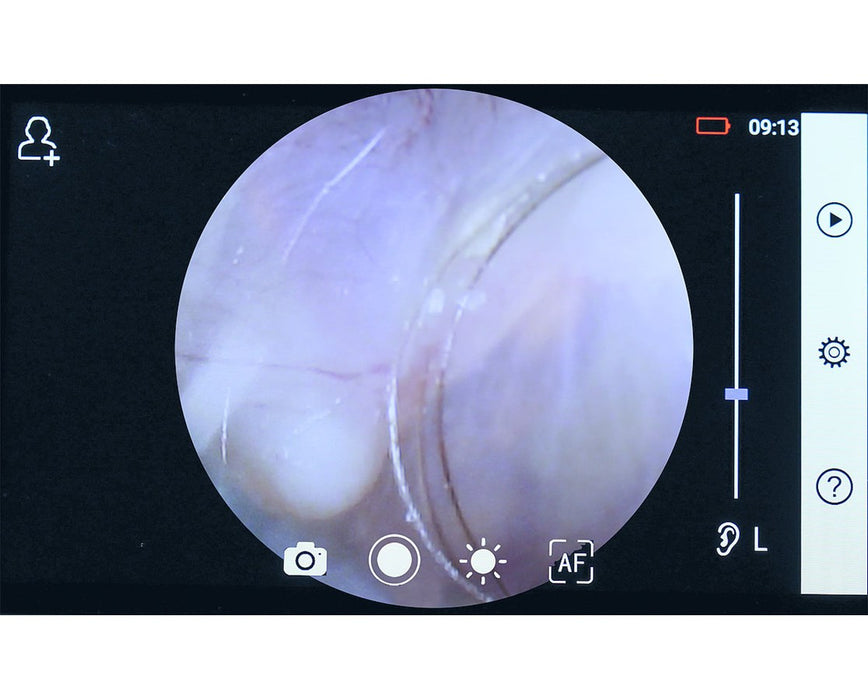

Designed with a small-form-factor, the RCS-100 Digital Medical Camera System can be used and carried around anywhere in the medical facility with ease. It features a Rotary Wheel meant to provide easy one-handed operation. The RCS-100 Camera has 5" full HD Color TFT-LCD Touch Screen Display that can display 1,280 x 720 pixels that is easy-to-use and includes a scratch-proof cover. This unit's 8-Mega Pixel CMOS camera captures high-resolution, scaleable images that allow reliable first diagnosis which can lead to consistent follow-up treatment. Changing the camera's lens is quick and easy. With the different available lenses, the camera's focus settings are either automatic (otoscope/general lens) or manual (all lens). It also has a 16-GB internal memory and a 2600 mAh Rechargeable Li-Ion Battery with a charging time of 3 hours & operating time in video mode for 3.5 hours.

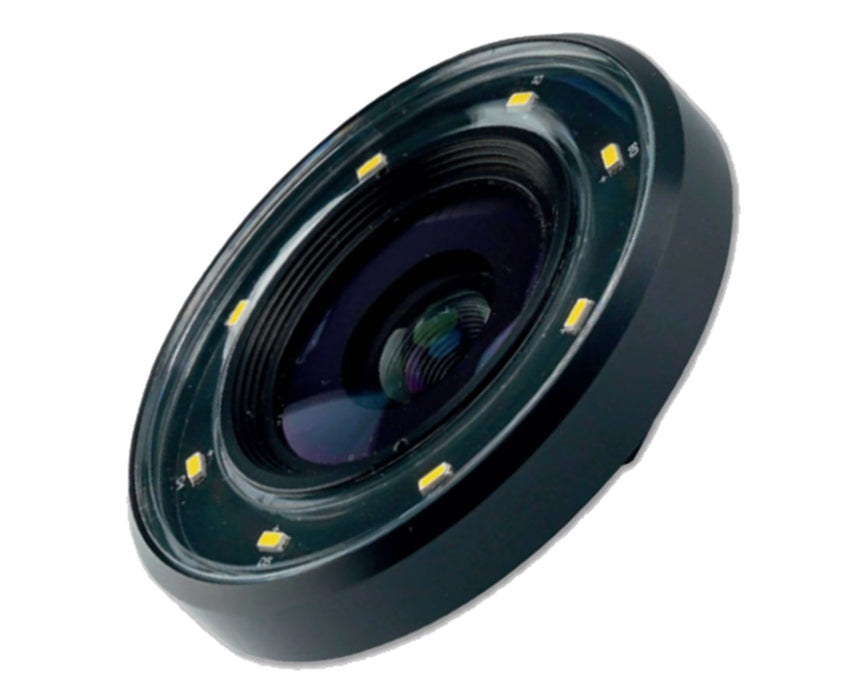

General Lens

The General Lens is a high-quality and reliable attachment for the camera unit. It is made with a 78-deg field of view, an optical magnification of 2x and a digital magnification of 4x. It also features a visible white LED with a 5500K color temperature and a resolution of 8 MP CMOS, a focus range of 30mm to 4,000mm and a display magnification of 1x to 4x at a 30mm object distance.

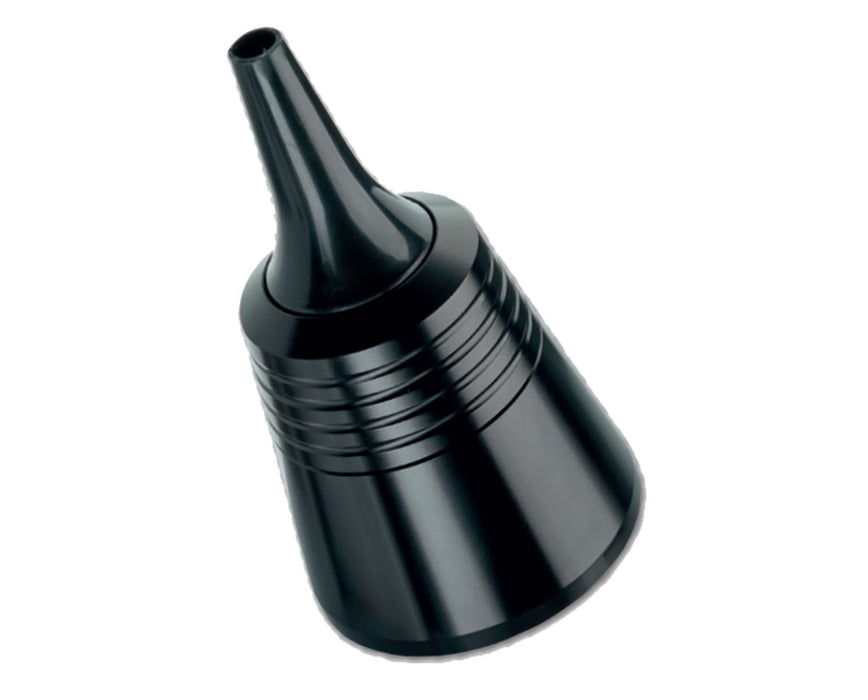

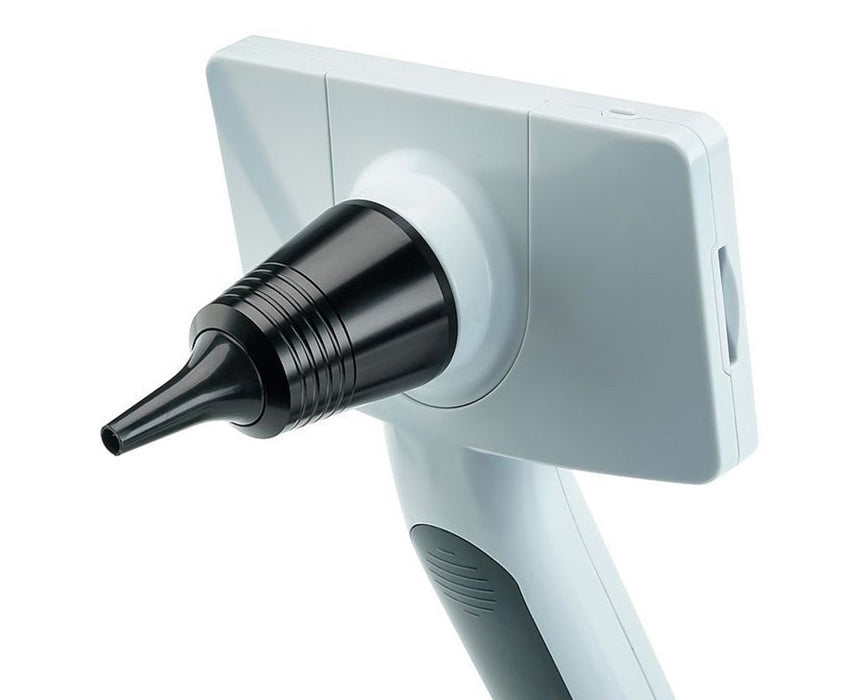

Otoscope Lens

The Riester Otoscope Lens is designed to provide medical practitioners with an enhanced view of the auditory canal. It uses a visible white LED with a color temperature of 4000K. This lens has a resolution of 8 MP CMOS, a focus range of 8mm to 25 mm and 6x magnification on display. With a 4mm specula being attached, the lens has an 8mm Ø field of view at 10mm distance, a 9mm Ø field of view at 15mm distance and a 12mm Ø field of view at a 25mm distance from viewing the object.

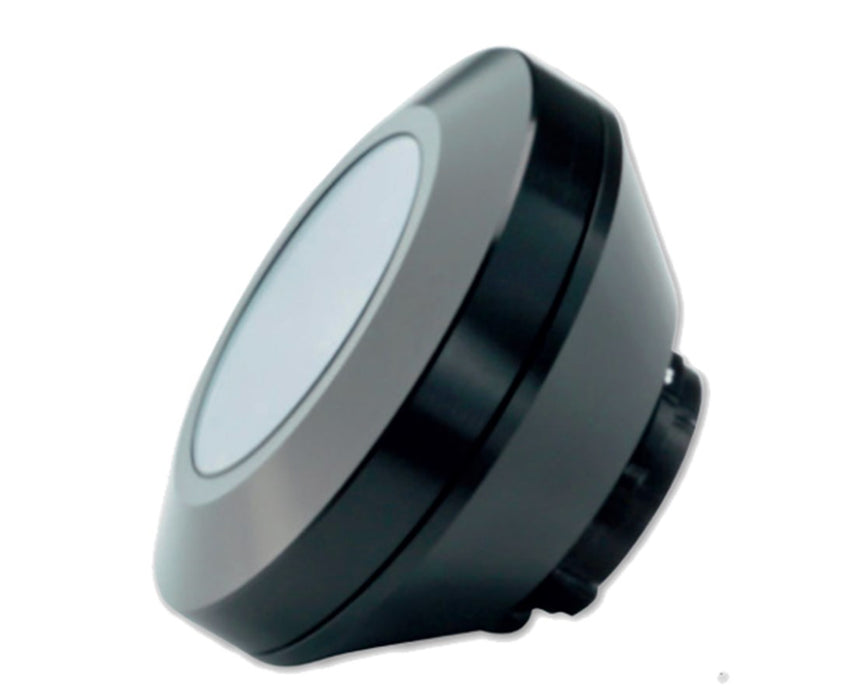

Dermatoscope Lens

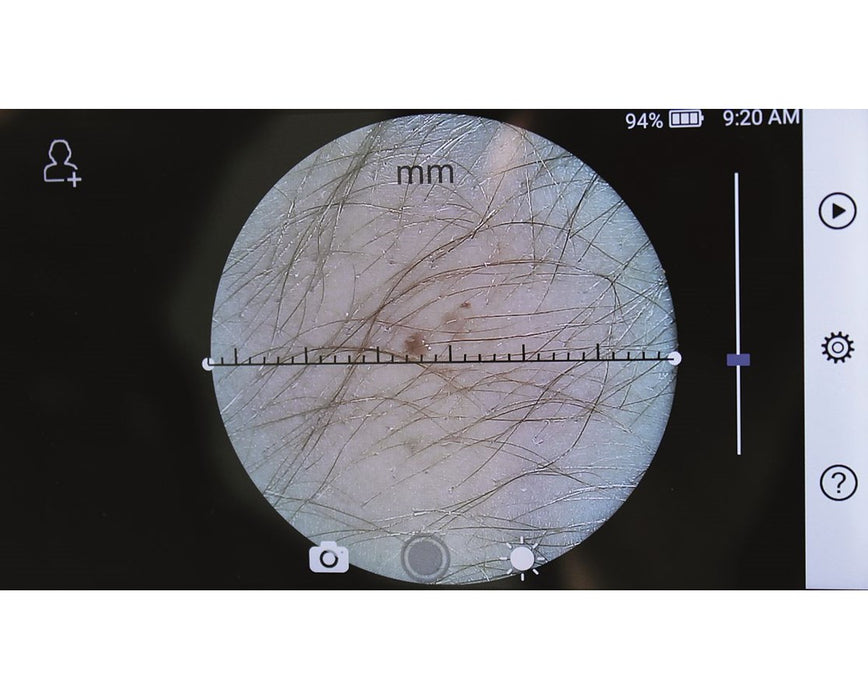

Designed for accuracy and reliability, the Dermatoscope Lens allows clinicians to correctly identify and measure skin lesions with no immersion necessary. This lens has 4000K visible white LED with a resolution of 8 MP CMOS and a field of view 30 mm Ø. It features a digital movable ruler with a displayed magnification of 2x to 8x, an optical magnification of 2x (from optics) and a digital magnification of 4x (on top).

Available Options

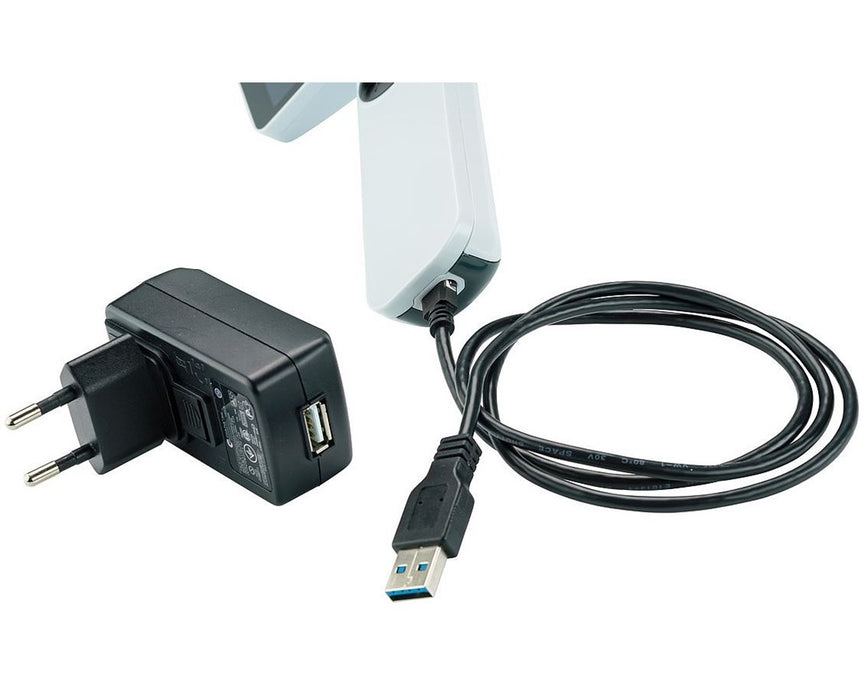

The Riester RCS-100 Digital Medical Camera System includes a 3.6V 2600 mAH Rechargeable Li-Ion Battery, a cable, 4 plugs, and a power supply. It has a 2-Year Warranty and comes in various camera systems to choose from:

• Camera Only (1970-H)

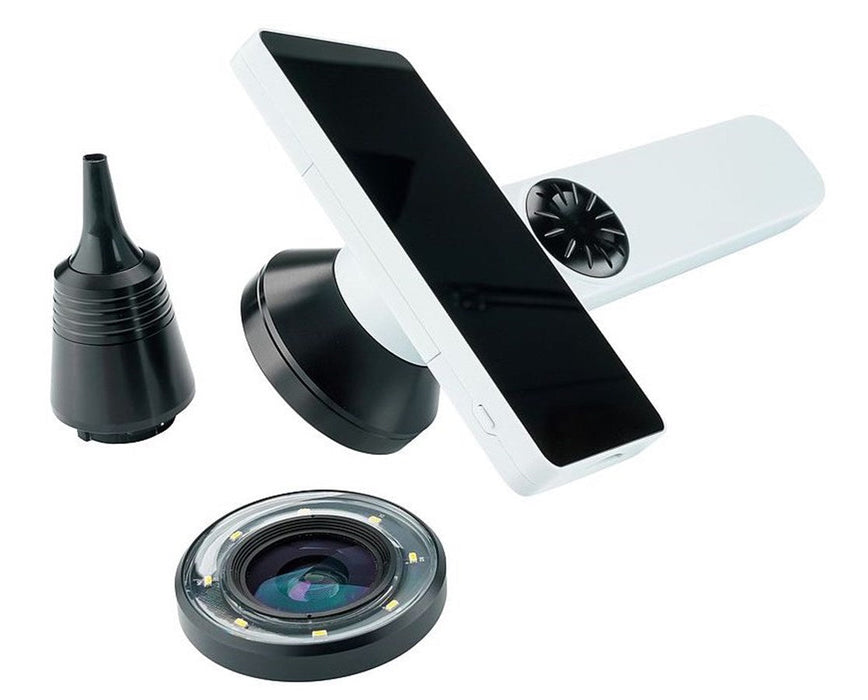

• Camera w/ General, Otoscope & Dermatoscope Lenses (1970-HDGO)
