PARAMETERS: Otoscope & Ophthalmoscope Heads, 2 Instrument Handles, Coil Tubing & Wall Fixtures
-
OPTIONAL PARAMETER: Blood Pressure Monitor w/ Adult Latex-Free Cuff, Thermometer, Specula Dispenser, Wallboard
-
Modular, Expandable Wall Diagnostic System
-
LED Otoscope & Ophthalmoscope with Anti-Theft Heads
-
Handles Offer Stepless Brightness & Auto On/Off
-
Heavy-Duty Construction for Daily Clinical Use
-
Backed by 3-Year Warranty & German Engineering .
The Riester Ri-former Wall Diagnostic System is an advanced Modular System designed to adapt to the evolving Needs of Modern Medical Practices. Combining Innovation, Cost-Efficiency, and Practicality, this System is an essential addition for Hospitals, Clinics, and Medical Facilities focused on delivering exceptional Care while optimizing Resources.
✔️ Modular Expandable System | ✔️ LED Auto-Dimming Handles | ✔️ Durable German Craftsmanship
Flexible, Budget-Friendly Design
Customizable Modular System: Offers a variety of Combinations, including Instrument Handles, Anti-Theft Heads, Specula Dispensers, Blood Pressure Devices w/ Cuff, and Thermometers, to meet specific clinical Requirements
Environmentally Conscious: Built to reduce Waste and Operating Costs, making it a smart, eco-friendly Investment
Scalable Capacity: Accommodates up to five Rechargeable Handles, offering seamless Workflow even in busy Settings
Durable Construction: Designed to withstand the Demands of daily clinical Use while maintaining consistent Performance
10-Foot Coiled Tubing and Wall-Mounting Plate: Includes all necessary Components for easy Setup and extended Reach
Standard Package Inclusions
Instrument Handles
Ergonomic Handle Design: Features a non-slip Grip, ensuring maximum Comfort and Ease of Use for Healthcare Professionals during Examinations
Automated On/Off Feature: Automatically powers on and off when removed or replaced, conserving Energy and extending the System's Lifespan
Rheotronic Function: Enables Continuously Variable Electronic Light Intensity Adjustment for precise Illumination
Solid Metal Construction: Crafted with a Chrome-Plated Finish to ensure Outstanding Durability and long-term Use
Available Configurations
Otoscope Options
EliteVue LED Otoscope
Enhanced Optics: Delivers twice the Field of View and 66% higher Magnification than standard Otoscopes, ensuring more detailed Examinations
Adjustable Focus Ring: Allows easy Adjustment for variable Ear Canal Lengths and includes a default Autofocus Setting for Farsighted Users
Wide Field of View: Provides a clear Ø 11mm View without Reflections, enabling more precise and comprehensive Diagnoses
5-Fold Magnification: Offers superior Clarity for faster and more accurate Diagnostic Procedures
High-Performance 3.5V LED Light (4000 Kelvin): Ensures bright, natural Illumination for excellent Visibility and accurate Color Representation
Ri-Scope L1 Xenon Otoscope
Affordable: The most cost-effective Otoscope Model in the Wall System
Direct Illumination: Provides clear Visibility for effective Examination
Bi-Directional Swiveling Optical Glass: 3x Magnification for detailed View
Pneumatic Examination Compatibility: Suitable for thorough Pneumatic Testing
Ri-Scope L2 LED Otoscope
Advanced Fiber Optics: Ensures optimal Beaming and Light Transmission for clearer Views
High-Performance Illumination: 3.5V LED Light with 4000 Kelvin for Natural Colors and excellent Illumination
Enhanced Diagnostic Features: 3-Fold Magnification with Bi-Directional Swiveling Optical Glass and Integrated F.O. Throat Illuminator for thorough Exams
Compatibility: Works with Riester’s E-Scope, Ri-Mini, Pen-Scope Specula, and Other Leading Brands
Additional Flexibility: Suitable for Pneumatic Tests and equipped with an Anti-Theft Device for Security
Power Source Options: Offers Versatility with a wide Range of Power Sources
Ri-Scope L3 LED Otoscope
Superior Fiber Optics: Delivers optimal Beaming and Light Transmission for exceptional Clarity
High-Quality Lighting: 3.5V LED Light with 4000 Kelvin for outstanding Illumination and True-to-Life Colors
Advanced Diagnostic Tools: 3-Fold Magnification, Bi-Directional Swiveling Glass, and F.O. Throat Illuminator for Precision Exams
Safe Specula Handling: Features the SpecEject System for Hygienic Disposal of used Cannula to prevent Cross-Contamination
Additional Functionality: Suitable for Pneumatic Tests and equipped with an Anti-Theft Feature for reliable Security
Flexible Power Options: Compatible with a Range of Power Sources for User Convenience
Ophthalmoscope Options
Ri-scope L1 3.5V Xenon Ophthalmoscope
Cost-Effective Option: The most affordable Ophthalmoscope Model in the Wall System with essential Features
Comprehensive Diopter Wheel: Includes 29 Corrective Lenses for accurate Adjustments
Versatile Aperture Wheel: Marked Wheel with multiple Aperture Options for enhanced Visibility
High-Performance Optics: Aspherical Condenser Lens and Parallel Beam Path for clear, precise Diagnosis
Dust-Proof Design: Easy to clean and maintain for long-lasting Use
Ri-scope L2 3.5V Ophthalmoscope (Xenon/LED)
Illumination Options: Available with Xenon or LED Light Illumination to suit your Diagnostic Needs
Advanced Dioptre Wheel: Includes 29 Corrective Lenses (+1 to +10, +12, +15, +20, +40, -1 to -10, -15, -20, -25, -30, -35) for precise Vision Adjustment
Versatile Aperture Handwheel: Features 6 Apertures (Semi-Circle, Small/Medium/Large Circle, Fixation Star, and Slit) for comprehensive Examination
Integrated Filter Wheel: Includes Symbol Display, Red-Free Filter, Blue Filter, and Polarization Filter for enhanced Diagnostic Flexibility
Ri-scope L3 3.5V Ophthalmoscope (Xenon/LED)
Advanced Corrective Lenses: Features 89 Dioptre Values for Single-Step Adjustments (+1 to +45, -1 to -44) for unmatched Precision in Eye Examinations
Expanded Aperture Options: Includes 7 Apertures (Semi-Circle, Small/Medium/Large Circle, Fixation Star, Grid, and Slit) for comprehensive Diagnostic Flexibility
Integrated Filter Wheel: Equipped with Red-Free, Blue, and Polarization Filters, Alongside a Symbol Display, for enhanced Diagnostic Accuracy
Focusing Device: Zero Retention Force Mechanism ensures quick and smooth Correction of Ametropias, improving Examination Efficiency
Blood Pressure Monitor Options
Big Ben Clock Aneroid
Large, High-Contrast Scale: 5.7" Scale for easy Readability and precise Measurements
Non-Wearing Air-Release Valve: Fine Adjustment for accurate Pressure Readings
Flexible Swivel Function: Swivels 65° Left or Right for optimal Positioning
Durable Components: Includes hardened Copper-Beryllium Membrane and Micro-Filter Protection
Ri-Medic Clinical Automatic BP Monitor
Medical-Grade Accuracy: Validated by British Hypertension Society, ESH, and AAMI SP10 for adults and children (from 3 years old)
One-Touch Operation: Quick and easy BP Measurement in Automated or Manual Mode
Fast Readings: Displays Systolic, Diastolic, Heart Rate, and MAP Readings in 30-40 Seconds
Manual SphygMode Mode: Manual Inflate and Auto-Deflate at 3 mmHg/sec for Verification of Automated Readings without Cuff Removal
Thermometry Options
Infra-Red Tympanic Ri-Thermo N Thermometer
Clinical-Grade Accuracy: Provides fast, accurate Temperature Readings in 1-2 Seconds in °C or °F
Memory Function: Stores up to 12 Previous Readings for easy Tracking
Convenient Accessories: Includes 40 Probe Covers, Probe Cover Dispenser, and CR2032 Battery with 1000 Measurements Capacity
User-Friendly Digital Display: Clear and easy-to-read Temperature Display for quick Assessments
RPT-100 Predictive Probe Thermometer
Covidien Filac 3000 Technology: Provides reliable and accurate Temperature Readings
Multiple Measurement Modes: Includes Oral/Axillary or Rectal Probes and a Cold Mode for hypothermic Patients
Wide Measurement Range: Measures from 86°F to 109°F to accommodate various Patient Needs
Convenient Features: Automated On/Off Function, Backlit Display, and Last Measurement Recall
Additional Component Options
Pre-Drilled Wall Board
Convenient Wall-Mounting: The Pre-Drilled Holes make Wall Mounting hassle-free
Blood Pressure Cuff
Comfortable BP Monitoring: BP devices include a latex-free Adult-sized (21.5" x 5.7") Cuff offering safe and easy blood pressure checking
Ri-spec Ear Specula Dispenser
Five-Tube Capacity: Holds up to Five Specula Sizes for convenient Organization
Wide Compatibility: Works with most Riester Specula for Versatility
Clear Tube Design: Allows easy viewing of Specula for quick Access
Hygienic and Easy Maintenance: Designed for simple Cleaning and Disinfection
Order Information
The Riester Ri-Former Wall Diagnostic System is backed by a 3-year warranty, and comes with various system options to choose from:
- L1 Xenon Otoscope, L1 Xenon Ophthalmoscope (3653-X1X1-XXXXU)

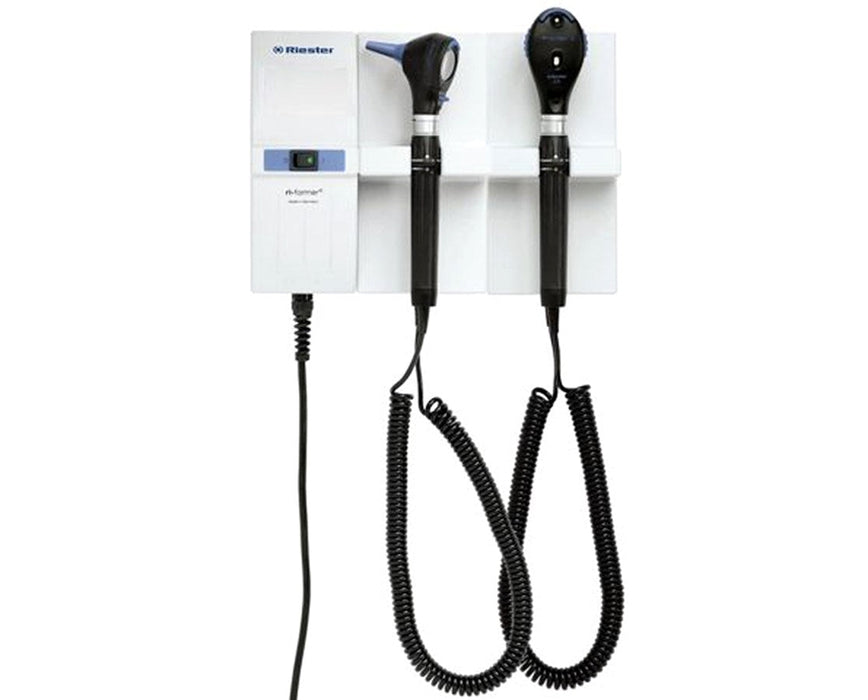

- L2 LED Otoscope, L2 LED Ophthalmoscope (3653-L2L2-XXXXU)
- L2 LED Otoscope, L2 Xenon Ophthalmoscope (3653-L2X2-XXXXU)
- L3 LED Otoscope, L3 LED Ophthalmoscope (3653-L3L3-XXXXU)
- L2 LED Otoscope, L2 Xenon Ophthalmoscope, Big-Ben Aneroid BP w/ Cuff, Infrared Tympanic Thermometer, Specula Dispenser, Wallboard (3653-L2X2-SATWU)
- L2 LED Otoscope, L2 Xenon Ophthalmoscope, Big-Ben Aneroid BP w/ Cuff, Specula Dispenser, Wallboard (3653-L2X2-SAXWU)
- L2 LED Otoscope, L3 Xenon Ophthalmoscope, Big-Ben Aneroid BP w/ Cuff, Specula Dispenser, Wallboard (3653-L2X3-SAXWU)
- L3 LED Otoscope, L2 LED Ophthalmoscope, Big-Ben Aneroid BP w/ Cuff, Specula Dispenser, Electric Thermometer, Wallboard (3653-L3L2-SABWU)
- L3 LED Otoscope, L2 LED Ophthalmoscope, Big-Ben Aneroid BP w/ Cuff, Specula Dispenser, Wallboard (3653-L3L2-SAXWU)
- L3 LED Otoscope, L3 LED Ophthalmoscope, Big-Ben Aneroid BP w/ Cuff, Specula Dispenser, Wallboard (3653-L3L3-SAXWU)
- EliteVue LED Otoscope, L2 LED Ophthalmoscope, Big-Ben Aneroid BP w/ Cuff, Predictive Thermometer, Specula Dispenser, Wallboard (3653-LEL2-SABWU)
- EliteVue LED Otoscope, L2 LED Ophthalmoscope, Big-Ben Aneroid BP w/ Cuff, Specula Dispenser, Wallboard (3653-LEL2-SAXWU)
- EliteVue LED Otoscope, L3 LED Ophthalmoscope, RBP-100 Automatic BP w/ Cuff, Predictive Thermometer, Specula Dispenser, Wallboard (3653-LEL2-SDBWU)
- EliteVue LED Otoscope, L3 LED Ophthalmoscope, Ri-Medic Automatic BP w/ Cuff, Predictive Thermometer, Specula Dispenser, Wallboard (3653-LEL3-SDBWU)
- EliteVue LED Otoscope, L3 LED Ophthalmoscope, Ri-Medic Automatic BP w/ Cuff, Predictive Thermometer, Specula Dispenser, Wallboard (3653-LEL3-SDPWU)
- EliteVue LED Otoscope, L2 Xenon Ophthalmoscope, Big-Ben Aneroid BP w/ Cuff, Predictive Thermometer, Specula Dispenser, Wallboard (3653-LEX2-SABWU)
- EliteVue LED Otoscope, L2 Xenon Ophthalmoscope, Big-Ben Aneroid BP w/ Cuff, Infrared Tympanic Thermometer, Specula Dispenser, Wallboard (3653-LEX2-SATWU)
- EliteVue LED Otoscope, L2 Xenon Ophthalmoscope, Ri-Medic Automatic BP w/ Cuff, Predictive Thermometer, Specula Dispenser, Wallboard (3653-LEX2-SDBWU)
- EliteVue LED Otoscope, L2 Xenon Ophthalmoscope, Ri-Medic Automatic BP w/ Cuff, Infrared Tympanic Thermometer, Specula Dispenser, Wallboard (3653-LEX2-SDTWU)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Lead time: Discontinued
