Root Touchscreen SpO2 Patient Monitor

Name: Root Touchscreen SpO2 Patient Monitor
Brand: NDC
SKU: MSM9515-
Price: 3627.27 USD
Availability: InStock

by Masimo

MFR#: 9515

TIGER#: TM165934

List Price: $4,396^.36

You Save: $769^.09 -17%

$4,396^.36 - $4,396^.36

List Price: $4,396^.36

$3,627^.27

$3,627^.27 - $3,627^.27

$3,627^.27

Add to cart for Lower Price

Root Touchscreen SpO2 Patient Monitor - $3,627^.27

$3,627^.27

*Must Purchase 1 for Root Touchscreen SpO2 Patient Monitor

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days

Documents

Manual Brochure Product Video

AVAILABLE PARAMETERS: NIBP, Temperature
Touchscreen Display and Connectivity Hub for Bedside Monitoring
Two Configurations: Base Display or with Integrated NIBP & Temp
SpO2 Ready with Radical-7 or Radius-7 (Sold Separately)
Expandable with MOC-9 Measurement Modules
Automated Early Warning Scores at Bedside
Direct EMR Charting and Remote Alarms .

✔ Expandable Display Hub | ✔ Automated Early Warnings | ✔ Direct EMR Charting

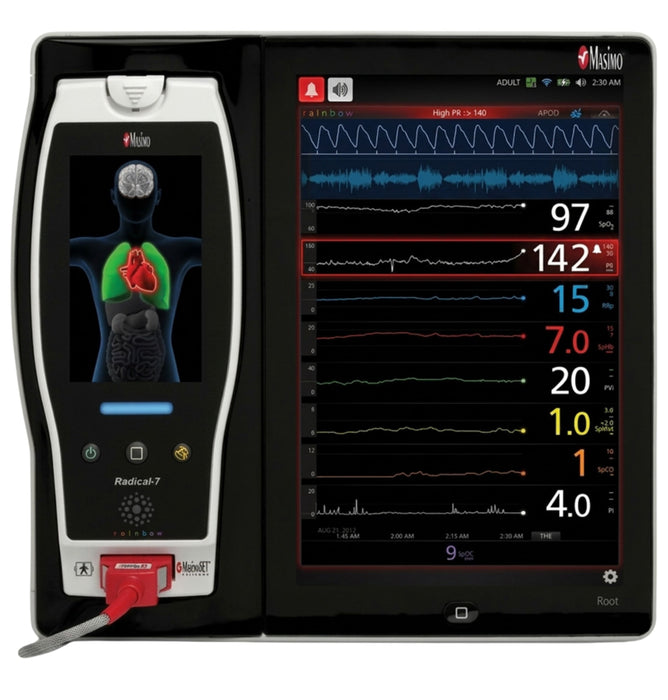

The Masimo Root Touchscreen Vital Signs Monitor is an expandable, customizable platform that centralizes patient monitoring and connectivity in a single hub, available as a base display or bundled with integrated noninvasive blood pressure and temperature. Pair it with a Radical-7 or Radius-7 for SpO2, or expand further with MOC-9 modules. Root adapts to what your practice measures today and tomorrow.

TWO CONFIGURATIONS, ONE PLATFORM

BASE DISPLAY (9515): The Root touchscreen hub on its own. Connects with a Radical-7 handheld or Radius-7 wearable for SpO2 and rainbow parameters, or with MOC-9 modules for NIBP, temperature, capnography, brain function monitoring, and regional oximetry, all sold separately.

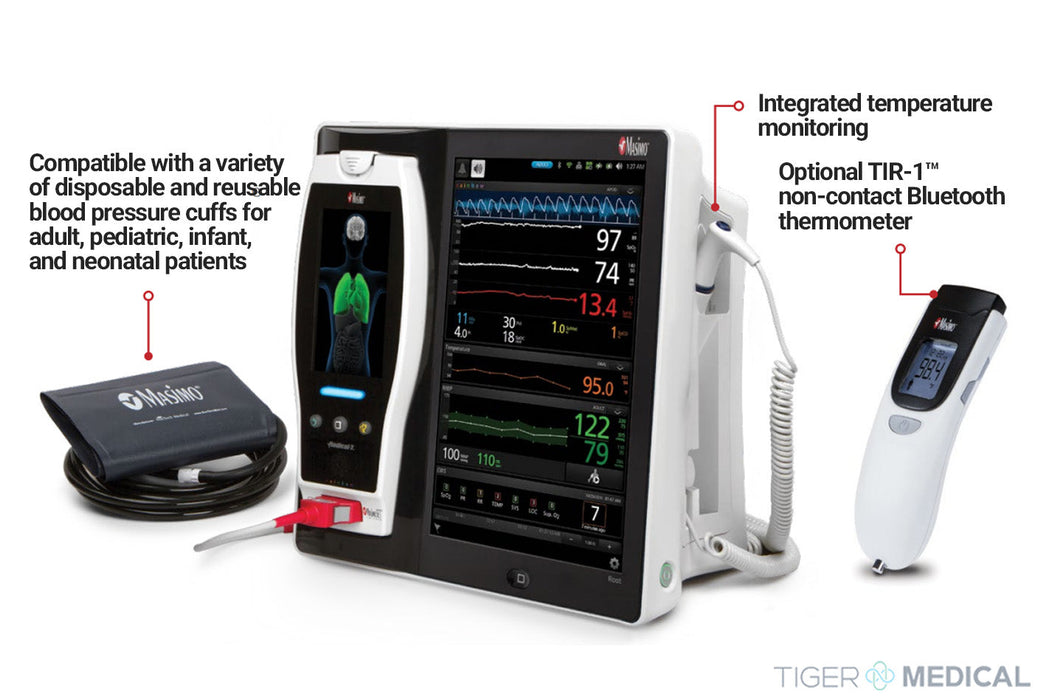

NIBP & TEMP BUNDLE (9695): Integrates noninvasive blood pressure with three modes (Automatic Interval, Stat Interval, on-demand Spot-check) plus a built-in oral/axillary temperature module for spot-check and continuous readings. NIBP cuffs available for adult, pediatric, infant, and neonatal patients.

SPO2 MONITOR OPTIONS: Radical-7 is handheld and dockable for bedside use; Radius-7 is wearable for patient mobility. Both feature Masimo SET, upgradeable with rainbow parameters, and sold separately.

MOC-9 EXPANSION: Beyond NIBP and Temp, modules add capnography, brain function monitoring, and regional oximetry, growing either configuration without a new monitor.

SMARTER WORKFLOWS, LESS MANUAL WORK

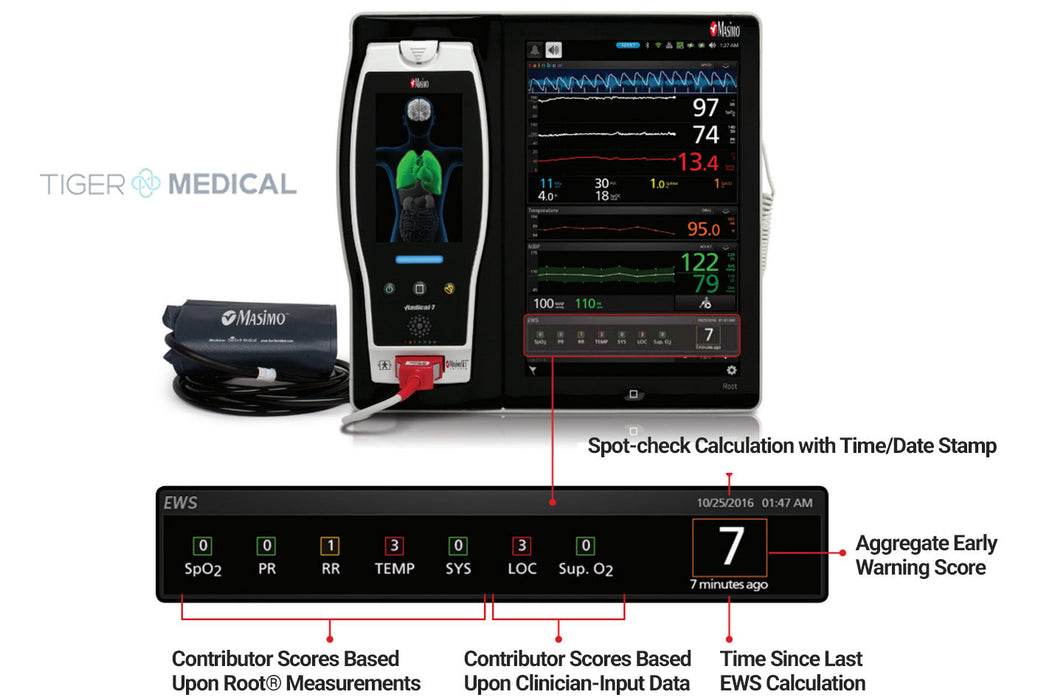

AUTOMATED EARLY WARNING SCORES: Root calculates EWS at the bedside so staff spend time with patients instead of doing manual math.

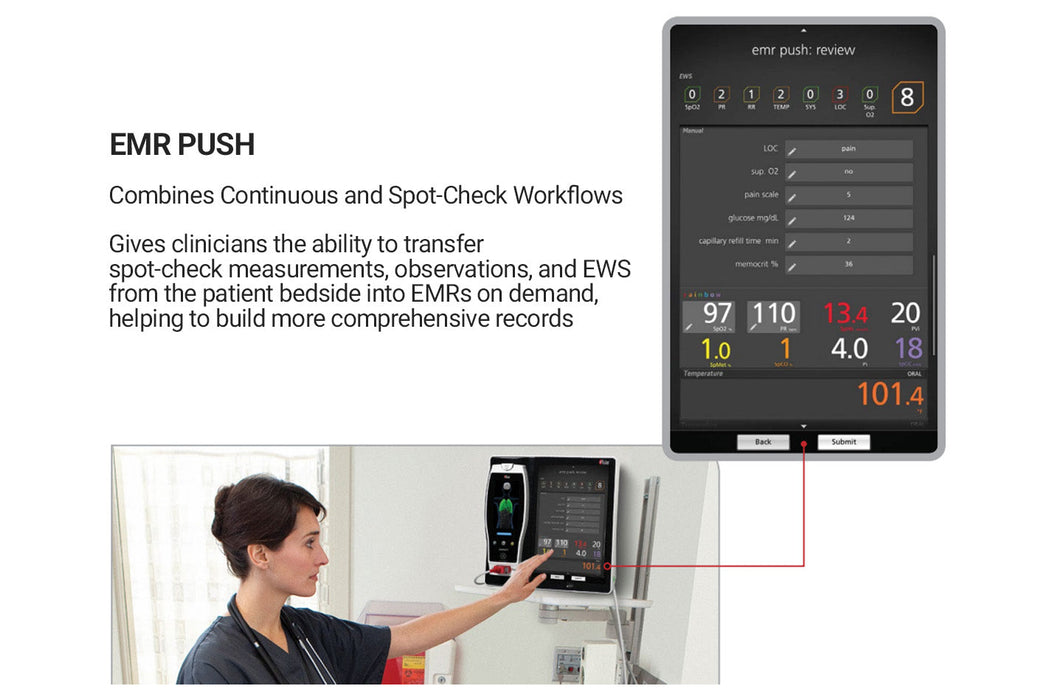

ONE-TAP EMR CHARTING: Send spot-check vitals and observations straight into the patient record through Iris connectivity.

CONTINUOUS TO SPOT-CHECK: Switch seamlessly between continuous monitoring and vital signs check mode without missing data.

BARCODE ID SCANNING: ADT scanning ties patients and clinicians to each reading for accurate records.

HOSPITAL-WIDE ALERTS: Communicates alarms wirelessly to Patient SafetyNet for remote clinician notification.

As your monitoring needs evolve, the Masimo Root Vital Signs Monitor scales with them, protecting your investment for years of dependable bedside care.

WARNING: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

AVAILABLE PARAMETERS: NIBP, Temperature
Touchscreen Display and Connectivity Hub for Bedside Monitoring
Two Configurations: Base Display or with Integrated NIBP & Temp
SpO2 Ready with Radical-7 or Radius-7 (Sold Separately)
Expandable with MOC-9 Measurement Modules
Automated Early Warning Scores at Bedside
Direct EMR Charting and Remote Alarms .

What’s in the Box

Masimo Root Touchscreen Vital Signs Display (Rx)
Internal 10.8 V Lithium Ion Rechargeable Battery
AC Power Capability, 100-240 VAC
User Manual
Warranty

RETURNS: ITEMS WITH A LEAD TIME LONGER THAN 48 HOURS CANNOT BE RETURNED / CANCELLED. These are specially ordered, and we cannot accept returns or cancellations on such products for any reason. We take the responsibility to make sure your product arrives in brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

Items which ship out in 24-48 hours are covered by our standard 30 day return policy from date of shipment. Return shipping charges are the responsibility of the customer. The product must be in new condition and in its original packaging.

For complete details of our return policy and process, please refer to our general return policy page.

Blood pressure information

Systolic Range

Adult 40-260 mmHg / Pediatric 40-230 mmHg / Neonatal 40-130 mmHg

Diastolic Range

Adult 20-200 mmHg / Pediatric 20-160 mmHg / Neonatal 20-100 mmHg

Arterial Mean Pressure Range

Adult 26-220 mmHg / Pediatric 26-183 mmHg / Neonatal 26-110 mmHg

Accuracy

±3 mmHg between 0 and 300 mmHg

Calculates Average?

BP Determination Time

Thermometry Information

Measurement Range

80-110°F (26.7-43.3°C)

Measurement Time

Measurement Method

Integrated corded oral/axillary probe, spot-check and continuous modes, multi-site application. Optional TIR-1 non-contact infrared Bluetooth thermometer sold separately.

Measurement Accuracy

±0.2°F (0.11°C) between 80°F and 110°F

SpO2 Information

Measurement Range

Measurement Accuracy

Display Range

Measurement Time

SpO2 Type

Masimo SET Measure-through Motion and Low Perfusion, upgradeable to rainbow SET, via paired handheld or wearable monitor

Data management

Wireless connection?

Yes. Communicates alerts and alarms wirelessly to Masimo Patient SafetyNet. Bluetooth pairing supported for optional TIR-1 thermometer.

WiFi compliant?

PC Link Option?

Yes. Ethernet 10/100 MBps (1), Iris RS-232/RJ-45 (4), USB 2.0 (2). Automated EMR charting via Patient SafetyNet or Iris Gateway.

Cuff(s)

Type

Compatible with a variety of disposable and reusable Masimo cuffs

Size

Adult, pediatric, infant, and neonatal sizes available

Auto Inflate/Deflate?

Yes. Automatic interval, stat interval (up to 10 minutes of consecutive readings), and on-demand spot-check modes.

Cuff pressure display range

Fits arm size

Mount

Type

Roll stand (sold separately)

Power

Power Type

AC 100-240 VAC, 47-63 Hz, 180 VA max, with internal rechargeable battery. Fuses: 2 Amp fast acting, metric (5x20 mm), 250 V.

Auto-off?

Battery life

Battery Duration

Up to 4 hours (approximate run time at lowest brightness on a fully charged battery). Maximum charging time: 4 hours.

Battery BP determinations

Environmental

Safe Operating Temperature

50°F to 104°F (10°C to 40°C). Transport/storage: -4°F to 122°F (-20°C to 50°C)

Humidity

15% to 95% non-condensing (operating and storage)

Memory

Capacity

Warranty

Info

Country of Origin

Made In

Pulse Rate Information

Range

Accuracy

Details

Pulse rate is delivered by Masimo SET technology in the paired Radical-7 or Radius-7 and displayed on Root

Application

Patient Populations

Adult, pediatric, infant, and neonatal sizes available

Usage

Workflow

Continuous monitoring and vital signs check mode. Workflow: ADT barcode scanning, collect and review measurements, send to EMR via Iris connectivity.

Options Included

Thermometer

Integrated oral/axillary temperature module. TIR-1 non-contact Bluetooth thermometer optional, sold separately.

Cuff

Integrated printer

N/A

USB port

Yes. USB 2.0, two ports.

ECG

N/A

Device Alarms

Yes. Audible and visual alarms on Root and on the paired Radical-7. Remote alarm notification via Patient SafetyNet and Replica.

Nurse Calling

Yes. Nurse call port, 1/4 in round female, one port.
