Standard (Lamp) English MacIntosh Laryngoscope Blade

• Single-piece stainless steel construction ensures blade integrity
• Removable light pipe and smooth surface design
• Blades can be economically upgraded from lamp to fiber-optic illumination
• Repairable at a fraction of the cost of a replacement blade
• Free repolishing service extends product life
• Choice of blade sizes 1, 2, 3, 4 .

Standard (Lamp) English MacIntosh Laryngoscope Blade

E-MacIntosh, or “English”-MacIntosh, blades are the most popular style of laryngoscope blade
outside of the United States.

The English Macintosh design differs in several aspects from the original Macintosh blade:

First, the curve of the E-Macintosh is more continuous from the proximal to distal end. This improves lifting mechanics.

Second, the overall length is increased to help assist intubation in patients with an anterior larynx.

Finally, the profile or height of the instrument had been reduced for easier intubation in patients with limited oral access.

The Welch Allyn English Macintosh blades are the result of continual discussions with customers regarding improvement in the design and manufacture of laryngoscope blades.

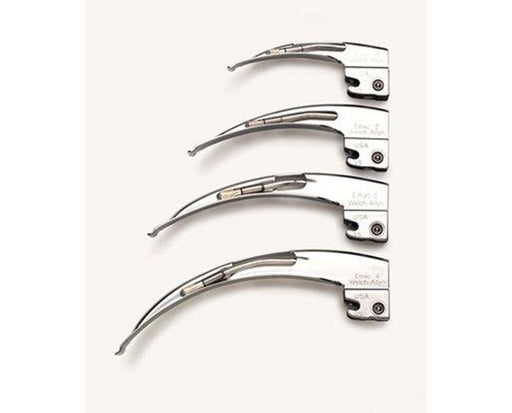

The Standard (Lamp) English MacIntosh Laryngoscope Blade is available in sizes: 1, 2, 3, 4.

Robust Design

Welch Allyn’s laryngoscope design uses a single piece of 304-series stainless steel as its load-bearing member.This one-piece construction of the Welch Allyn blade is more robust than the typical competitive product.Furthermore, its one-piece blade construction eliminates the potentially weaker soldered or brazed joint.

Design Features

Welch Allyn’s innovative design incorporates an easy-to-remove light pipe that eliminates the difficult-to clean areas of most competitive laryngoscopes.

Removable Light Pipe

Another feature designed to help improve the cleaning of a Welch Allyn blade is its surface finish. Typical laryngoscope finishes have a surface roughness of 32μ in. The surface finish used on all Welch Allyn blades has a roughness of just 8μ in. This creates a surface texture that is approximately four times smoother than competitive blades, resulting in an easier-to-clean, stain-resistant laryngoscope blade. What’s more, the surface finish is not a plating, and therefore does not alter the 304-series stainless steel construction of the blade itself.

More Value by Design

There are primarily two causes of reduced light transmission in fiber optic laryngoscopes: fiber optic breakage and epoxy blockage. Light degradation caused by fiber optic breakage will occur in varying degrees in any laryngoscope that is subjected to severe changes in temperature.

• When a fiber optic laryngoscope is steam-sterilized, the heat involved causes the epoxy (used to hold the fibers in place within the fiber optic bundle) to expand and extrude past the end of the light pipe.
• The epoxy cools following the autoclave process and hardens over the optics, blocking light emissions from those fibers. As more and more fibers are blocked, less and less light is emitted and the accuracy of the intubation process may be jeopardized.

FREE Polishing Service

Welch Allyn’s state-of-the-art blade design allows for the removable fiber optic light pipe to be repolished throughout the life of the blade. When the optics are repolished, occluding epoxy is removed from the input and output points of the fiber optic pipe. This restores the light transmission to its optimum level, thus increasing the overall life of the blade. A Welch Allyn light pipe can be repolished three times over its lifetime—and can then be replaced at a fraction of the cost of a complete blade.

Welch Allyn will provide this repolishing service free of cost whenever it is needed over the life of the laryngoscope blades.

Upgradable and Repairable by Design

The removable fiber optic design truly makes Welch Allyn blades the smart choice for you. That’s because this unique design makes our blades the most affordable way to upgrade from standard to fiber optic lighting—while still offering the benefits of one-piece blade construction.

To upgrade to fiber optics, simply replace your current, standard lamp light pipe with the fiber optic pipe.

Welch Allyn Warranty

Welch Allyn laryngoscope blades and handles are guaranteed against all manufacturing defects for the life of the instrument. Welch Allyn will repair or replace, free of charge, any parts of its own manufacture proven to be defective through causes other than misuse, neglect, damage in shipment or normal wear. Every Welch Allyn laryngoscope blade comes with a lifetime warranty against manufacturing defects.
