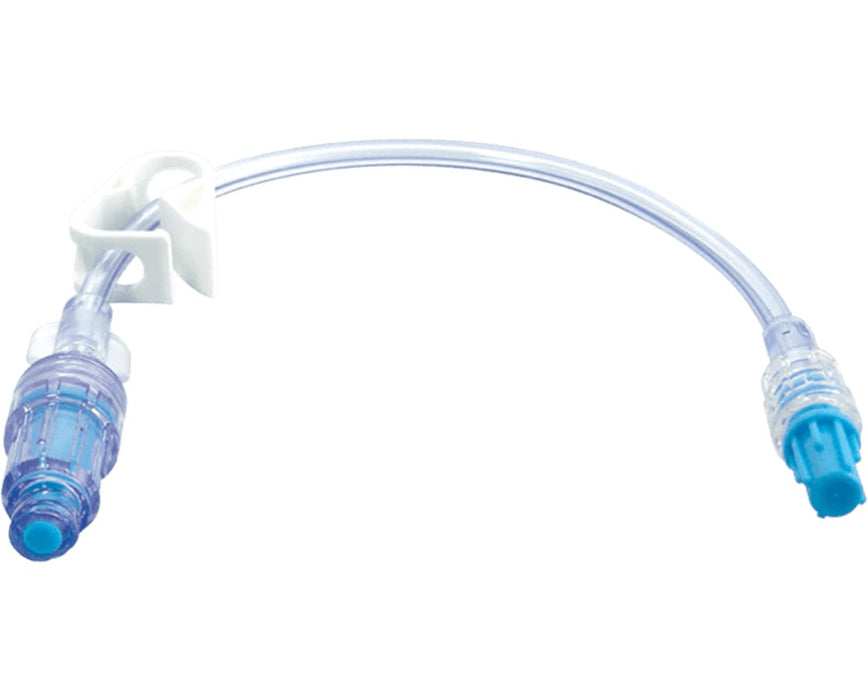

The BD Standardbore IV Extension Set w/ Clear MaxPlus Connector is a latex-free and DEHP-free medical supply designed to provide much-needed flexibility and additional infusion capabilities to IV infusion while ensuring patient safety with the MaxPlus Connector. It is available in several configurations that differ in features and length.
Lower Infection Risks: Medical studies found that hospitals using the MaxPlus Needlefree Connector had lower unadjusted CLABSI rates and lower standardized infection ratios compared to those that are not using the MaxPlus Connector. The MaxPlus Connector has no interstitial space between the connector’s components, leaving bacteria zero room to grow.

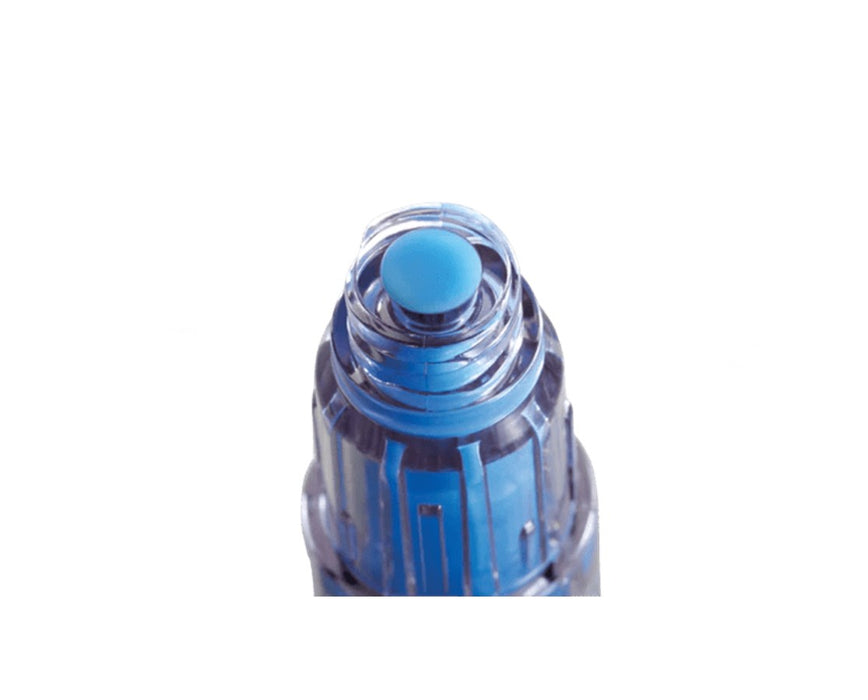

This Standardbore Extension Set also has a smooth, swabable surface that is easy to disinfect. The clear, transparent connector housing allows for better flushing visibility and the solid sealed surface helps prevent contamination. It is also equipped with an anti-reflux mechanism for reduced catheter occlusions.
Versatile: The BD Standardbore IV Extension Set w/ Clear MaxPlus Connector is available in monofuse, bifuse, and trifuse designs so you can choose the best fit for your IV setup. It is also available in pressure-rated models for use with lower-pressure injectors of up to 325 psi and a maximum flow rate of 10 mL/second.
Select Your BD Minibore Extension Set w/ Clear MaxPlus Connector
The BD Minibore Extension Set w/ Clear MaxPlus Connector is available in several configurations with different styles and lengths. All packages are DEHP-free, are content sterile, and come in 50 packs per case.
With Removable MaxPlus Connector:
- MP5303-C: Standardbore Extension Set with Removable MaxPlus Connector, Pressure Rated, Pinch Clamp, Male Spin Lock, 7" Length, 0.7 ml PV (Continental US Only)
- MP9259-C: Standardbore Extension Set with Removable MaxPlus Connector, Kink Resistant, Non-Removable Slide Clamp, Male Spin Lock, 7" Length, 0.9 mL PV
- MPX5302-C: Standardbore Extension Set with (1) Removable MaxPlus Connector, Pressure Rated, Needleless Y-Site, Pinch Clamp, Male Spin Lock, 9" Length, 1.2 mL
With Removable MaxPlus Connector and Purple Striped Tubing:
- MP5314-C: Standardbore Extension Set with (1) Removable MaxPlus Connector, Pressure Rated, Purple Striped, Slide Clamp, Spin Male Luer Lock, 7" Length, 0.7ml PV
- MP5305-C: Standardbore Extension Set with (1) Removable MaxPlus Connector, Pressure Rated, Purple Striped, Spin Male Luer Lock, 7" Length, 0.7ml PV
- MPX5301-C: Standardbore Extension Set with (1) Removable MaxPlus Connector, Pressure Rated, Purple Striped, Slide Clamp, 1 NAC-y Needle-Free Valve 3" from Spin Male Luer Lock, 7.5" Length, 1 ml PV
With Removable MaxPlus Connector and Bifuse Design:
- MP9256-C: Standardbore Extension Set with (2) Removable MaxPlus Connector, Bifuse, Kink Resistant, Removable Slide Clamp, Male Spin Lock, 7" Length, 1.4 mL PV
- MP9238-C: Standardbore Extension Set with (2) Removable MaxPlus Connectors, Bifuse, (2) Non-Removable Slide Clamps, Male Spin Lock, 8.5" Length, 2.3 mL PV
With Removable MaxPlus Connector and Trifuse Design:
- MP9220-C: Standardbore Extension Set with (3) Removable MaxPlus Connectors, Trifuse, (3) Removable Slide Clamps, Spin Male Luer Lock, 7" Length, 1.5ml PV
With Non-Removable MaxPlus Connector:
- MP9002-C: Standardbore Extension Set with MaxPlus Connector, Kink Resistant, Removable Slide Clamp, Male Spin Lock, 7" Length, 0.9 ml PV
- MP2005-C: Standardbore Extension Set with (1) MaxPlus Connector, Slide Clamp, Fixed Male Luer Lock, Kink Resistant, 7" Length, 1ml PV
- MP9081-C: Standardbore Extension Set with MaxPlus Connector, Kink Resistant, Removable Slide Clamp, Male Spin Lock, 8" Length, 1.2 ml PV
- MP9213-C: Standardbore Extension Set with (1) MaxPlus Connector, Kink Resistant, Pinch Clamp, Spin Male Luer Lock, 7" Length, 1ml PV
With Non-Removable MaxPlus Connector and Purple Striped Tubing:
- MP5301-C: Standardbore Extension Set with (1) MaxPlus Connector, Pressure Rated, Purple Striped, Pinch Clamp, Spin Male Luer Lock, 8.5" Length, 0.8 ml PV
- MP5312-C: Standardbore Extension Set with (1) MaxPlus Connector, Pressure Rated, Purple Striped, Spin Male Luer Lock, 8.5" Length, 0.8 ml PV
With Non-Removable MaxPlus Connector and Bifuse Design:
- MP9246-C: Standardbore Extension Set with (2) MaxPlus Connectors, Bifuse, (2) Non-Removable Slide Clamps, Male Luer Locks, 8" Length, 2.2 mL PV
With Non-Removable MaxPlus Connector and Y-Site:
- MPX5304-C: Standardbore Extension Set with MaxPlus Connector, Pressure Rated, Needleless Y-Site, Non-Removable Slide Clamp, Male Spin Lock
- MPX9102-C: Standardbore Extension Set with MaxPlus Connector, Kink Resistant, Needleless Y-Site, Male Spin Lock, 9.5" Length, 1.6 mL PV
- MPX5300-C: Standardbore Extension Set with MaxPlus Connector, Needless Y-Site, Pressure Rated, Pinch Clamp, Male Spin Lock, 9" Length, 1.2 mL PV
- MPX9108-C: Standardbore Extension Set with (1) MaxPlus Connector, Check Valve, (1) NAC-y Needle-Free Valve 6" from Spin Male Luer Lock, 12.5" Length, 2.4ml PV
With Non-Removable MaxPlus Connector and T-Connector:
- MPXT1001-C: Standardbore Extension Set with (1) Removable MaxPlus Connector and T-Connector, Pressure Rated, Pinch Clamp, Male Spin Lock, 6" Length, 1.3 mL PV, 50/cs
- MPXT5301-C: Standardbore Extension Set with (1) MaxPlus Clear Needleless Connector and T-Connector, Pressure Rated, Pinch Clamp, Male Spin Lock, 7.5" Length, 1.3 mL PV, 50/cs
Please choose your preference from the drop-down menu above to place your order.
