Tango M2 Digital Blood Pressure Monitor w/Cuffs (1/ea)

• Dual Measurement: Auscultatory (R-Wave Gated) & Oscillometric
• Engineered for Exercise & Cardiac Stress Tests
• Compatible w/ Q-Stress Cardiac Stress Testing System
• 7" High-Res Color Display w/ Korotkoff Sound Monitoring
• Automatic Integration w/ Leading Stress ECG Systems
• Stores Up To 300 Readings w/ USB Data Export
• Orbit-K Cuff Technology For Secure Fit During Motion .

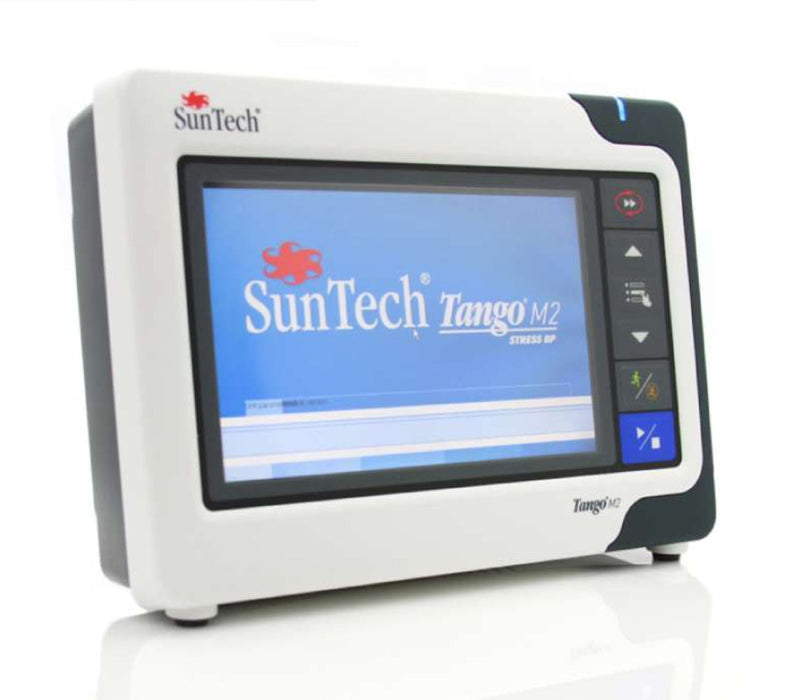

The Welch Allyn-Hillrom Tango M2 Digital Blood Pressure Monitor is a professional-grade monitoring system designed specifically for cardiac and exercise stress testing environments. Built to perform reliably during patient movement and treadmill protocols, it delivers dependable blood pressure measurements while integrating directly with stress ECG systems for streamlined clinical workflow.

✓ Designed For Dynamic Testing | ✓ Reliable During Motion | ✓ Optimized For Stress Labs

INTELLIGENT SYSTEM INTEGRATION & DISPLAY

COLOR LCD WITH AUDIO MONITORING: Clear visual BP readouts on its wide 7" LCD display, combined with Korotkoff sound monitoring (onscreen and using headphone), provide clinicians with additional verification during auscultatory measurements.

SEAMLESS ECG SYSTEM COMPATIBILITY: Compatible with major cardiac stress monitoring devices, like the Hillrom Q-Stress Cardiac Stress Testing System, and connects via RS-232, USB, and ECG trigger cables, ensuring effective measurements and synchronization at specific protocol stages, reducing manual intervention.

DATA STORAGE, EXPORT & UPDATES: Internal memory retains up to 300 blood pressure readings, with USB connectivity for data retrieval, reporting, and system updates, maintaining long-term system performance and compatibility.

EFFECTIVE BP MEASUREMENT DURING STRESS TESTING

DUAL MODE TECHNOLOGY: Offers R-wave gated Auscultatory Mode using K-sound analysis, which synchronizes with ECG signals to capture Korotkoff sounds during active exercises, and Oscillometric Mode using pneumatic pressure, which is ideal for resting or non-exercise measurements when ECG synchronization is not required.

MEASUREMENT CAPABILITIES: Provides Systolic Range of 40 - 270 mmHg (Auscultatory), 40 - 260 mmhg (Oscillometric), Diastolic Range of 20 - 160 mmHg, and Heart Rate measurement from 40 - 200 bpm, ensuring precision and accuracy during monitoring.

NON-EXERCISE & STAT MODES: Supports automated readings before and after exercise sessions, and rapid repeat measurements for time-sensitive clinical scenarios.

DESIGNED FOR STRESS LAB ENVIRONMENTS

ORBIT-K CUFF TECHNOLOGY: Patented cuff design helps maintain consistent positioning and patient comfort during repetitive inflation cycles and active movement.

CLINICAL-READY INCLUSIONS: The Kit includes the main Tango M2 Monitor device, Orbit-K Cuffs (Adult Sizes), cables for connection to the ECG system, headphone for Korotkoff sound monitoring, wrist straps, clamp with screws for attachment, quick start guide and user manual.

TECHNICAL SPECIFICATIONS: Standard dimensions of the main monitor are 9.5"L x 6.9"W x 4.5" H, with an approximate weight of 3.7lbs (1.68kg), has power input of 100–240 VAC, 50–60 Hz (internal) and power output of +9 VDC.

The Welch Allyn-Hillrom Tango M2 Digital Blood Pressure Monitor is purpose-built for demanding cardiac stress testing applications, providing dependable blood pressure monitoring for high-performance diagnostic environments.
