Tranquility II Multi-Parameter Patient Monitor

• PARAMETERS: ECG, NIBP, OXYCrg, Respiration, SPO2, Temp
• OPTIONAL PARAMETERS: ETCO2, CO2, O2, N2O, 5AA, AA ID, ISA Gas Analyzer
• Optional Built-in Thermal Printer
• Compact Design for Mobile Monitoring
• Multi-Lead ECG Monitoring
• Drug Dose Calculations
• Multi-Lingual Settings
• Large Font Display .

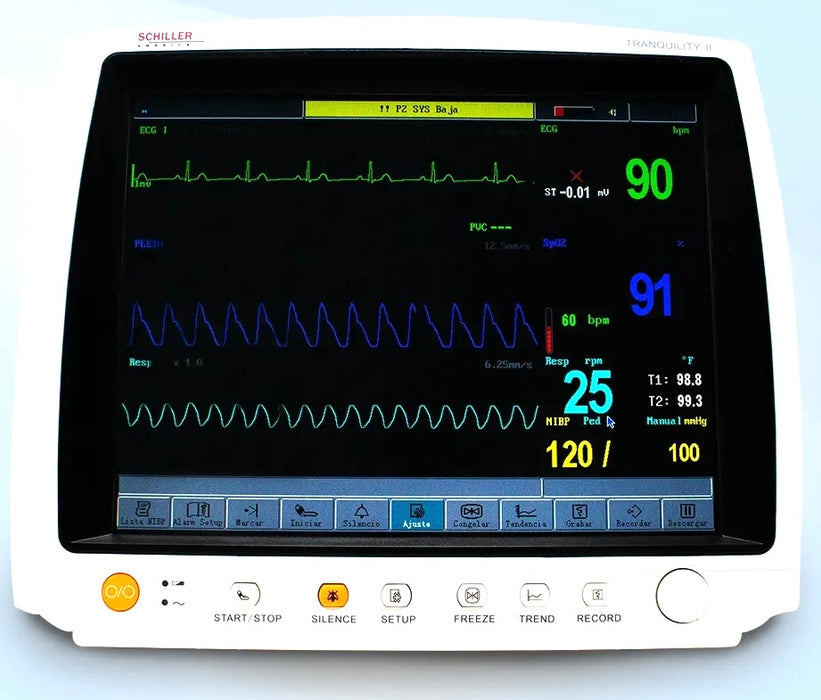

The Schiller Tranquility II is an all-in-one solution for Continuous Patient Monitoring in demanding clinical environments. Built for use with adults, pediatrics, and neonates, it’s ideal for Emergency Rooms, ICUs, Recovery Units, and Outpatient Clinics.

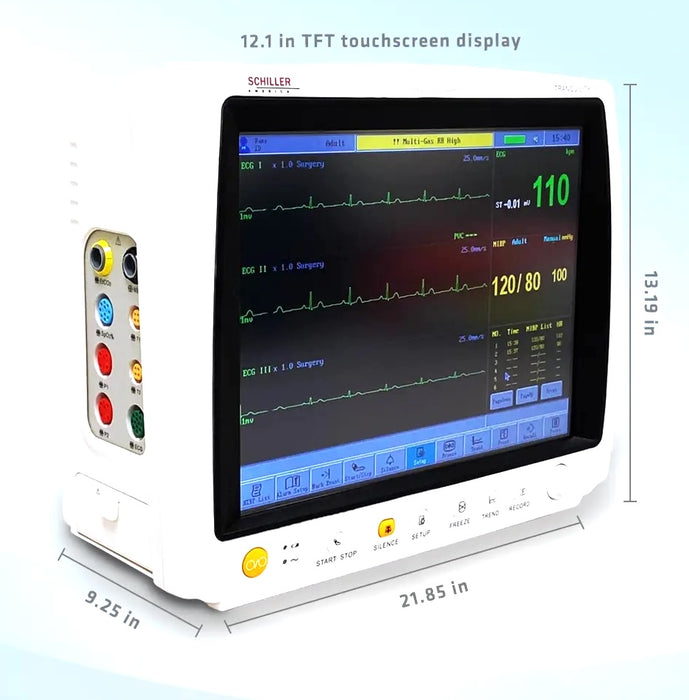

✔️ Tracks 9 Parameters | ✔️ 12" Color Touchscreen Display | ✔️ Provides 72 Hours of Trend Data

COMPACT, CONNECTED, & READY FOR ANY SETTING

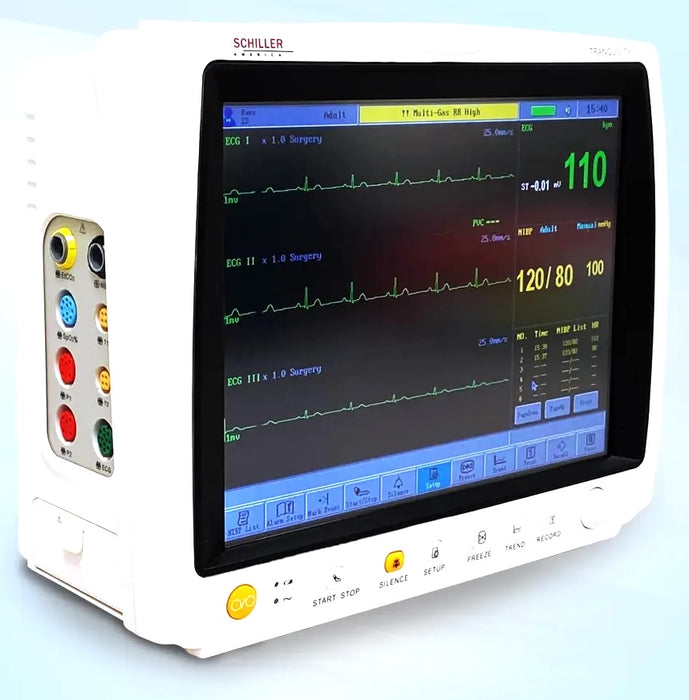

PORTABLE: Lightweight build with a built-in battery for easy transport across care settings.

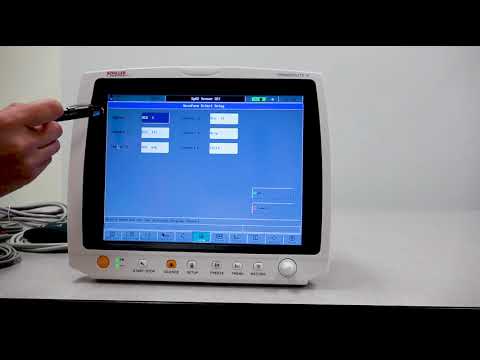

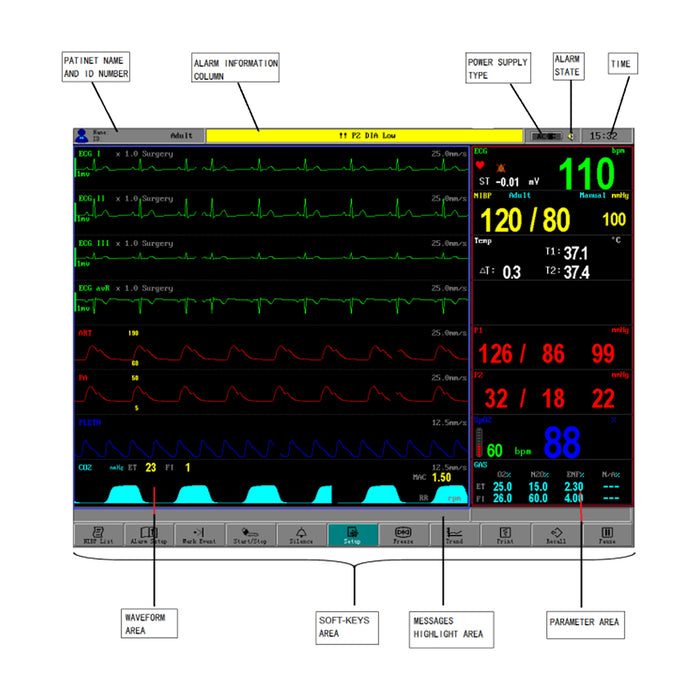

INTUITIVE TOUCHSCREEN: Large fonts and swipe navigation for fast, stress-free use.

SMART CONNECTIVITY: Seamlessly integrates with SCHILLER’s TRANQUILITY VIEW or EMRs via Wi-Fi, LAN, and HL7.

CUSTOMIZABLE & UPGRADABLE: Adjustable alarms and optional add-ons like dual IBP, EtCO₂, and gas analysis.

EFFICIENT DATA ACCESS: View and print ECGs on the spot (with the optional printer) or access records remotely for streamlined workflows.

STANDARD FEATURES

▪︎ ECG ▪︎ NIBP ▪︎ OXYCrg ▪︎ Respiration ▪︎ SpO2 ▪︎ Dual Temperature ▪︎ Arrhythmia ▪︎ Drug Calculation ▪︎ ST Segment

ECG

ADVANCED ECG CAPABILITIES: Offers 3- or 5-lead ECG monitoring with ST segment analysis and arrhythmia detection.

REAL-TIME ST SEGMENT MONITORING: Continuously tracks ST segment deviations to detect signs of myocardial ischemia or infarction early, improving diagnostic confidence in critical care settings.

REAL-TIME ARRYTHMIA DETECTION & ANALYSIS: Detects and classifies abnormal patterns, helping clinicians respond quickly to potentially life-threatening arrhythmic events.

OXYCRG

INTEGRATED OXYCRG TREND DISPLAY: Combines heart rate, SpO₂, and respiration data into a single dynamic view, allowing clinicians to assess cardiorespiratory stability at a glance. Ideal for neonatal and pediatric monitoring.

NIBP

ACCURATE NON-INVASIVE BLOOD PRESSURE MONITORING: Provides real-time systolic, diastolic, and mean arterial pressure readings with customizable intervals and manual measurement options

RESPIRATION

REAL-TIME BREATHING MONITORING: Continuously tracks respiratory rate using impedance technology, helping detect irregular breathing patterns early and supporting better clinical decisions.

ANALOG SPO2

ACCURATE OXYGEN MONITORING: Provides real-time, non-invasive measurement of blood oxygen saturation using high-performance analog sensors. Ideal for detecting hypoxia and monitoring respiratory function across all patient types.

TEMPERATURE

DUAL-CHANNEL MONITORING: Tracks body temperature from two sites simultaneously, offering continuous, accurate readings to help identify fever, infection, or hypothermia.

DRUG CALCULATION

ON-SCREEN SMART DRUG CALCULATOR: Helps calculate precise medication dosages based on patient weight and drug concentration for enhanced treatment accuracy and faster critical decisions.

AVAILABLE CONFIGURATIONS

Customize the Tranquility II to match your clinical environment with optional modules that expand its monitoring capabilities and streamline your workflow:

GAS MONITORING MODULES

EtCO2: Captures end-tidal carbon dioxide for accurate, breath-by-breath ventilation assessment—critical in anesthesia and intensive care.

CO2 Capnography: Provides continuous waveform tracking of respiratory carbon dioxide for real-time respiratory evaluation.

O2 Monitoring: Measures inspired and expired oxygen concentrations to ensure proper oxygen delivery and detect hypoxia risk.

N2O Monitoring: Tracks nitrous oxide levels to help maintain safe and effective anesthetic dosing during procedures.

ISA Gas Analyzer: A hardware component that enables integrated monitoring of all respiratory gases and anesthetic agents through a single, compact module.

ANESTHETIC AGENT MONITORING

5AA (5 ANESTHETIC AGENTS): Supports simultaneous real-time measurement of Halothane, Isoflurane, Sevoflurane, Desflurane, and Enflurane—displaying both inspired and expired values.

AA ID (ANESTHETIC AGENT IDENTIFICATION): Automatically detects and labels the anesthetic agent in use, enhancing safety and reducing manual input errors.

MASIMO SpO₂

ADVANCED OXYGEN MONITORING: Upgrade from standard analog SpO₂ to Masimo® SpO₂ for faster, more accurate oxygen readings — even during motion or low perfusion —ideal for critical and neonatal care.

BUILT-IN THERMAL PRINTER

CONVENIENT PRINTING: Optional integrated printer for on-the-spot ECG reports and real-time waveform documentation.

ORDERING INFORMATION

The Schiller Tranquility II Patient Monitor comes with various configurations to choose from:
