SD5 Ultrasonic Tabletop Doppler

by Edan
MFR#: SD5
TIGER#: TM77371
Original price List Price: $1,529.81
You Save: $286.06 -19%
Original price $1,529.81 - Original price $1,529.81
Original price List Price: $1,529.81
Current price $1,243.75
$1,243.75 - $1,243.75
Current price $1,243.75
Add to cart for Lower Price
SD5 Ultrasonic Tabletop Doppler
SD5 Ultrasonic Tabletop Doppler - $1,243.75
$1,243.75
*Must Purchase 1 for SD5 Ultrasonic Tabletop Doppler

The cart will thereforce automatically set Qty to 1 when you order this product

Discontinued
Documents
  • 2MHz and 3MHz Probe Support
  • Eye-Catching Backlight LCD Screen
  • Powerful Battery for Over 10 Hours of Continuous Working
  • Built-In Recorder
  • Dual High-Fidelity Speakers and Earphones Connection Option
  • Includes Carry Case .

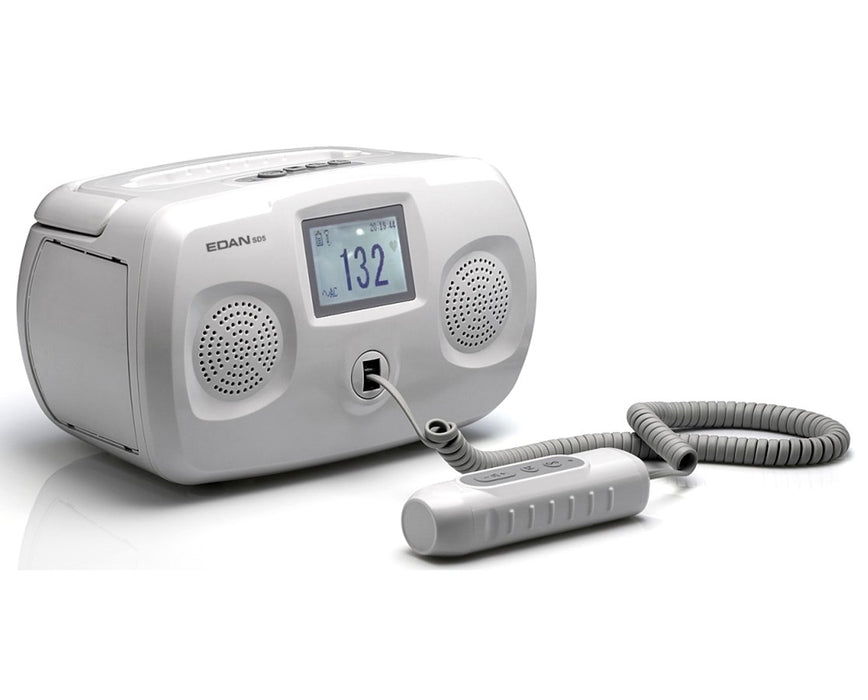

Edan SD5 Ultrasonic Tabletop Doppler is a one of a kind instrument that features excellent mobility, dependable performance and great exterior design. SD5 facilitates a full range of FHR monitoring accross the applications from early gestation thru delivery period, showing outstanding accuracy of the results acquisition and calculation.

Excellent Features
Edan SD5 Tabletop Doppler supports 2Mhz and 3Mhz probes that feature a remote operation function. The probes have On, Off and volume adjustment functional keys that allow controlling the monitoring procedure being on the distance from the main unit. The eye-catching 2.7” LCD screen displays measuring results in large digital numbers. The SD5 unit has 4 working modes that include Examining, Recording, Playing and Setting options. The Setting mode is a great tool that helps to optimize your workflow by providing options for screen backlight, key sound, auto-shut-off, language, and date and time adjustment. While dual high-fidelity speakers ensure superior sound for the mother to hear the baby’s heart beat, the care-giver can use earphones if conducting the monitoring procedure in a noisy environment. The Tabletop Wireless Doppler comprises a built-in recorder that allows recording and playing the fetal heart sound. The user can control recording time and make it as long as 240 seconds. The main unit is powered by the Ni-MH battery that provides over 10 hours of continuous working.

Probe Options

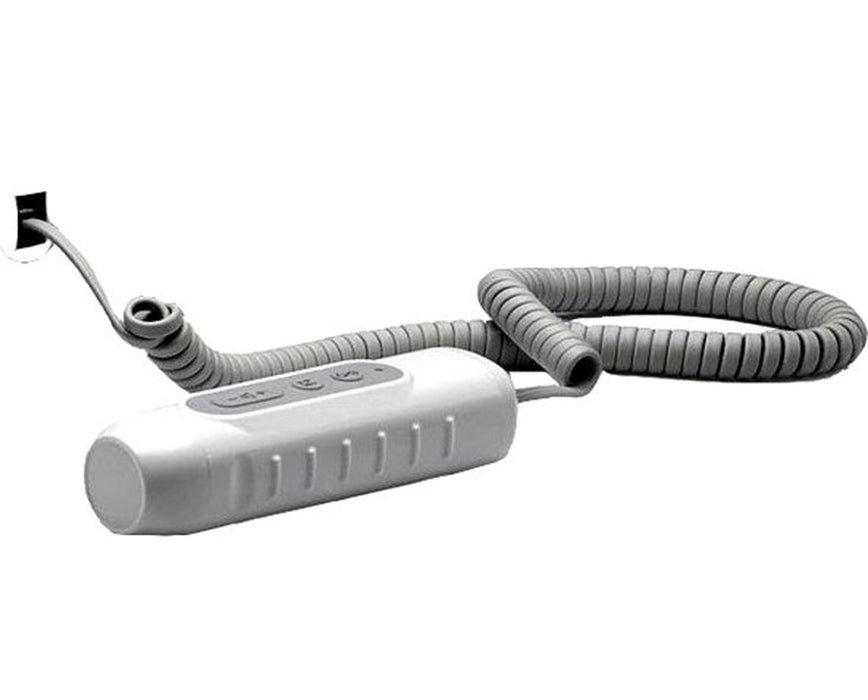

Edan SD5 supports 2MHz and 3MHz obstetrical wireless probes that provide a great range of FHR monitoring capabilities. The 2MHz probe is recommended for the use in the third trimester pregnancy as it is optimized for a deep penetration. The 3MHz probe has a higher frequency and therefore features a wider detection range with a higher resolution. It is intended for the use on an early gestation stage.

Outstanding Design

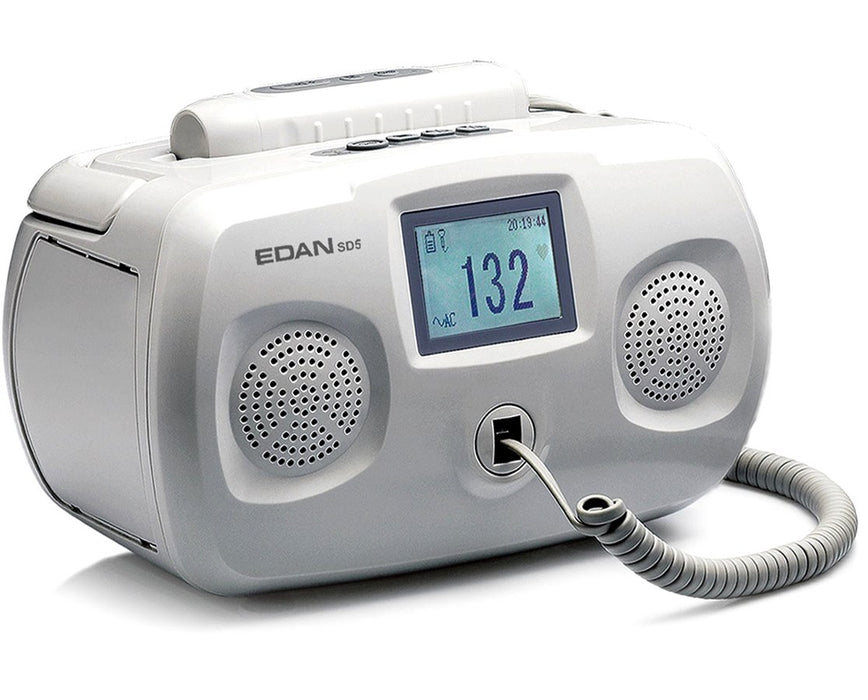

The superb design of SD5 features a great folding handle for hand carrying and a wireless probe holder situated on the top of the main unit exterior. The main unit and the probe are very easy to clean with the use of a cloth. The SD5 Doppler weight including battery and probe is only 3.75 lbs and the main unit measures 10.45” L x 6.10” W x 7.1” H. It includes a carrying case for easy transport.

Optional Accessories
12.01.110744 - 2MHz Wired Interchangeable Probe
12.01.110745 - 3MHz Wired Interchangeable Probe
01.13.036108 - Probe Cable
03-08 - Parker Ultrasonic Gel (0.25 liter)

To purchase this product simply click “Add to Cart” and complete your online order in a few easy steps.

Warning WARNING: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

  • 2MHz and 3MHz Probe Support
  • Eye-Catching Backlight LCD Screen
  • Powerful Battery for Over 10 Hours of Continuous Working
  • Built-In Recorder
  • Dual High-Fidelity Speakers and Earphones Connection Option
  • Includes Carry Case

What’s in the Box

  • 1 Main Unit
  • 1 2MHz Wired Interchangeable Probe
  • 1 Probe Cable
  • 1 Ultrasound Gel (CE Mark, 250g)
  • 1 Rechargeable Ni-MH Battery for Main Unit
  • 1 Power Cord (U.S.A. Standard)
  • 2 T400mA 250V Fuse
  • 1 Carry Case
  • Quick Reference Card
  • User Manual
  • Warranty

2 Years

Returns: This is Product is not eligible for return. We take the responsibility to make sure it arrives in brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Cancellations: Items made to order, cannot be returned or canceled after production.

Application
Application
FHR Monitoring
Physical Specifications
Dimensions
10.45" L x 6.10" W x 7.1" H
Weight
3.75 lbs
Power
Power Supply
7.2V/2000mAh (Ni-MH Battery)
Probe(s)
Probe Type(s)
2MHz Wired Interchangeable Probe
Warranty
Warranty
2 Years
