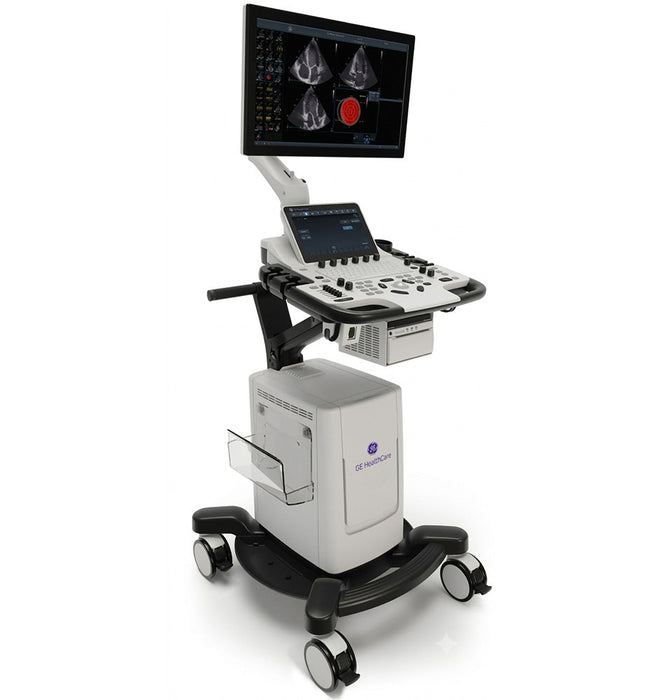

Vivid T9 Ultra Cardiovascular Ultrasound, v208

GE
by GE
MFR#: H8015TA
TIGER#: TM166003
List Price: $23,956.36
You Save: $3,654.36 -15%
$23,956.36 - $23,956.36
List Price: $23,956.36
$20,302.00
$20,302.00 - $20,302.00
$20,302.00
Add to cart for Lower Price
Vivid T9 Ultra Cardiovascular Ultrasound, v208
Vivid T9 Ultra Cardiovascular Ultrasound, v208 - $20,302.00
$20,302.00
*Must Purchase 1 for Vivid T9 Ultra Cardiovascular Ultrasound, v208

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days
Documents
Brochure Product Video
  • AI-Powered Auto Measure for Fast 2D Quantification
  • One-Click Doppler Measurements with Spectrum Recognition
  • Lightweight, Maneuverable System for Busy Practices
  • Dedicated Presets for Pediatric and Neonatal Imaging
  • Advanced Vascular and Abdominal Measurement Tools
  • Expanding Vivid Heart Applications Portfolio .

✔ AI Auto Measure | ✔ One-Click Doppler | ✔ Lightweight & Ergonomic

The GE HealthCare Vivid T9 Ultra Edition Ultrasound brings AI-powered quantification tools to your cardiovascular practice for fast, reproducible diagnostic output in an ergonomic, easy-to-maneuver system. Built for busy clinics, it turns tedious manual steps into one-click results without compromising image quality.


WORK FASTER, NOT HARDER

AUTO MEASURE 2D: AI completes manual caliper measurements in 3 clicks (Freeze, Measure, Auto), with a full set of reproducible results appearing instantly.

AUTO MEASURE SPECTRUM RECOGNITION: A wide range of Doppler measurements are completed in 2 clicks (Freeze, Measure), with the trace and results shown automatically.

MODERN ERGONOMICS: A familiar, streamlined design helps you move through exams comfortably and efficiently.

VIVID HEART APPLICATIONS: An expanding portfolio covering visualization, flow quantification, valve quantification, chamber quantification, and AFI functional imaging.


BUILT FOR EVERY PATIENT

PEDIATRIC IMAGING: High-resolution imaging and dedicated pediatric probes let you visualize small anatomies with speed and clarity.

NEONATAL CEPHALIC: Crisp 2D imaging, dedicated presets, and pediatric probes support clear visualization of anatomical structures.

VASCULAR IMAGING: Advanced measurement tools deliver fast, complete quantitative assessment of vascular anatomies.

ABDOMINAL IMAGING: High-resolution imaging and dedicated presets provide impressive detail of tissues and flow patterns.


The GE Healthcare Vivid T9 Ultra Edition Ultrasound helps your practice deliver faster, more consistent cardiovascular care for years to come.

Warning WARNING: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

  • AI-Powered Auto Measure for Fast 2D Quantification
  • One-Click Doppler Measurements with Spectrum Recognition
  • Lightweight, Maneuverable System for Busy Practices
  • Dedicated Presets for Pediatric and Neonatal Imaging
  • Advanced Vascular and Abdominal Measurement Tools
  • Expanding Vivid Heart Applications Portfolio

What’s in the Box

  • GE Healthcare Vivid T9 Ultra Edition Ultrasound, v208
  • User Manual
  • Warranty

RETURNS: ITEMS WITH A LEAD TIME LONGER THAN 48 HOURS CANNOT BE RETURNED / CANCELLED. These are specially ordered, and we cannot accept returns or cancellations on such products for any reason. We take the responsibility to make sure your product arrives in brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

Items which ship out in 24-48 hours are covered by our standard 30 day return policy from date of shipment. Return shipping charges are the responsibility of the customer. The product must be in new condition and in its original packaging.

For complete details of our return policy and process, please refer to our general return policy page.

Features
Configuration

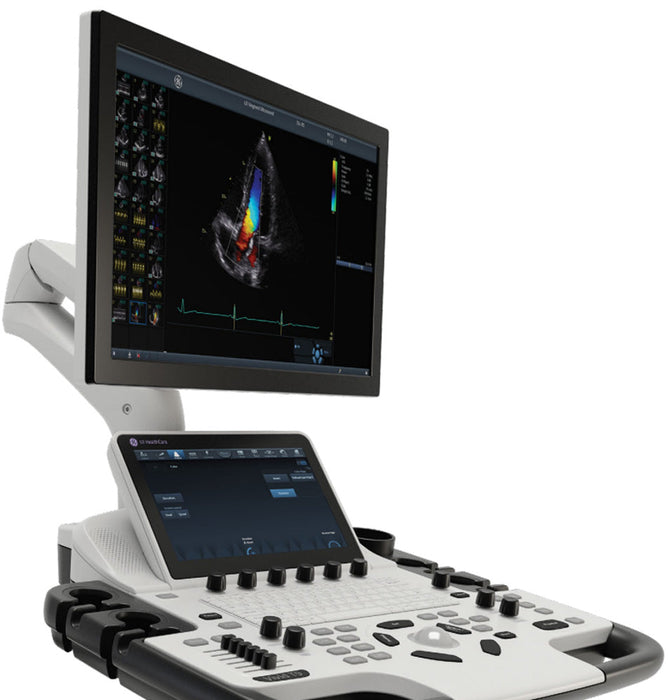

Multipurpose cardiovascular system console with articulating 21.5" monitor, 10.1" touch panel, integrated HDD, and rolling cart with locking casters
Applications
Abdominal, Cardiac (adult and pediatric), Musculoskeletal (conventional and superficial), Small Organ, Pediatric, OB/GYN, Fetal (heart and body), Transesophageal, Peripheral Vascular, Transvaginal, Transrectal, Intraoperative, Adult, Neonatal Cephalic
Transducer Frequency
3Sc-RS: 1.3–4.0 MHz; 6S-RS: 2.0–7.0 MHz; 12S-RS: 4.5–12.0 MHz; 6Tc-RS: 3.0–8.0 MHz; 9T-RS: 4.0–10.0 MHz; 9L-RS: 3.0–10.0 MHz; 12L-RS: 4.0–13.0 MHz; L6-12-RS: 4.0–13.0 MHz; L8-18i-RS: 4.5–18.0 MHz; 4C-RS: 1.5–5.0 MHz; C1-5-RS: 1.5–5.0 MHz; 8C-RS: 3.5–10.0 MHz; E8Cs-RS: 3.5–10.0 MHz; E8C-RS: 3.5–11.0 MHz; P2D: 1.9–2.1 MHz
Transducer Connector
Four active probe ports
Display
21.5" wide-screen HD flicker-free LCD (1920 x 1080, 256 shades of gray, 16.7 million colors); 10.1" ultra-high-resolution multi-touch color LCD control panel
Peripheral Ports
4 active probe ports, ECG port, USB (3 rear, 3 under keyboard), VGA output (1080p), composite video (via adapter), S-Video (via adapter), stereo audio output, 100BASE-TX Ethernet (RJ45); optional DVD-RW
Weight & Dimensions
Dimensions
Width: 19.8" keyboard / 23.2" base Depth (max): 31.9" Height: 55.3–69.1"
Weight
132 lbs
Power
Power Supply
100–240 VAC, 50/60 Hz; max power consumption 300 VA with peripherals
Battery Duration And Type
Not specified
Functions
Cine Loop
500 MB cine memory; selectable cine sequence for review; independent cine playback in multi-image/split-screen; cine loops can contain 1,000+ images
Zoom
Display zoom with zoom area control; High-Resolution (HR) Zoom concentrates acquisition power into selected ROI
Image Memory
500 GB integrated HDD; 500 MB cine memory; storage also via USB stick, DVD (4.7 GB), 1 TB mobile hard drive
Body Marks
Body mark icons for probe location/position; auto-activate on freeze; touch-screen selection; dual-screen layout support
Transducer
Sector phased array, convex array, linear array, CW pencil, endovaginal, TEE — four active probe ports
Imaging
Scanning Angle
Width range 10°–168° (probe dependent)
Scanning Depth (mm)
Image Pre-Processing
Variable transmit frequency, TGC (6 pods, auto-calculated), auto lateral gain, adjustable dynamic range, contour filtering
Image Post-processing
Digital replay/retrospective adjustment, Clarity+ image optimization (2024 release), UD Clarity and UD Speckle Reduction, True Scan Raw Data reprocessing
Imaging Mode
2D tissue, 2D color flow, 2D angio flow, Color M-mode, Tissue velocity M-mode, Continuous wave Doppler, Tissue M-mode, Pulsed wave Doppler (high PRF), Anatomical M-mode, Curved anatomical M-mode (optional), Tissue velocity imaging
Gray Scales
256 shades of gray
Beam-forming
Digital beamformer with up to 974,026 effective digital channels
Measurement & Calculation
B-mode
Comprehensive cardiac (e.g., LVIDd/s, IVSd/s, LVPWd/s, LA Diam, Ao Root Diam), abdominal (splenic index, liver volume, renal, aorta), vascular (carotid, vertebral, upper/lower extremity velocities), and OB/GYN (GS, CRL, FL, BPD, AC, HC, EFW, ovarian/uterine measurements) calculation packages
M-mode
%FS, %IVS Thck, %LVPW Thck, EPSS, IVCT, IVRT, LV Mass (M-mode), CO (Teicholtz), SV (Teicholtz), Anatomical and Curved Anatomical M-mode
Doppler
PW, HPRF, and CW modes; extensive valve/flow parameters (AV, MV, PV, TV gradients and velocities), PISA regurgitant calculations, TAMAX/TAMIN/TAMEAN, Cardiac Auto Doppler (AI-automated)
Warranty
Info
3-year standard warranty
