Volumetric Edema Gauge

by Baseline

MFR#: 12-3500

TIGER#: TM100246

List Price: $217^.50

You Save: $47^.85 -22%

$217^.50 - $217^.50

List Price: $217^.50

$169^.65

$169^.65 - $169^.65

$169^.65

Add to cart for Lower Price

Volumetric Edema Gauge - $169^.65

$169^.65

*Must Purchase 1 for Volumetric Edema Gauge

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 2 - 4 Business Days Shipping Date By: 10/31/2025

Documents

Brochure

Precise measurement process.
Convenient in diagnostics and in progress tracking.
Wide range of designs .

The Baseline Volumetric Edema Gauge is designed to provide a convenient and effective way to measure edema. The volumetric measuring device is designed to objectively measure volume of the body part by using the fluid displacement method. The body part is placed in a water-filled tank, the resultant overflow is collected and measured. By taking measurements over time, the amount of edema can be measured and quantified.

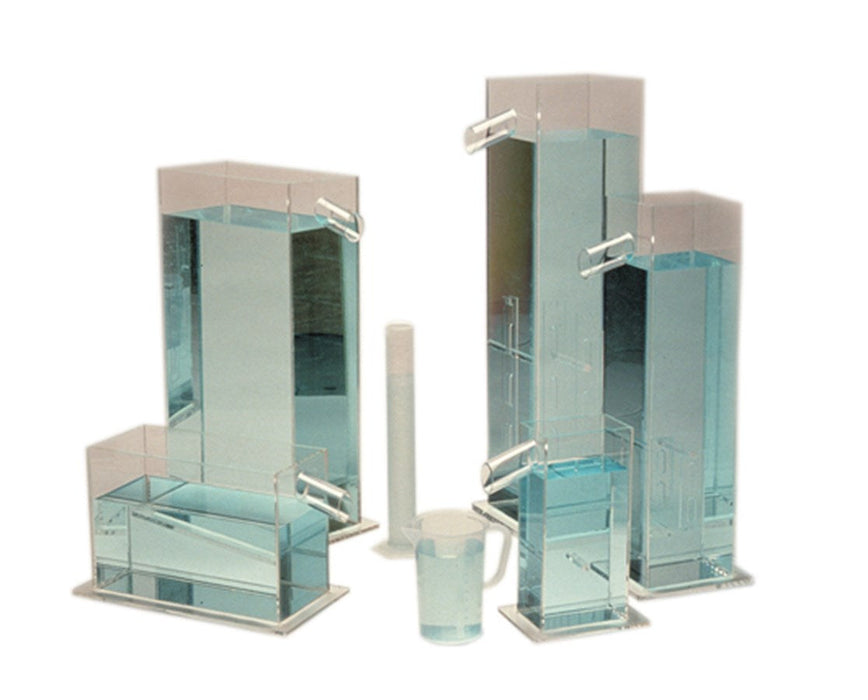

Sets include a graduated cylinder, overflow cup and measurement vessel. This versatile and convenient line of edema gauges measures the amount of space that an object takes up in three dimensions, with a range of models that accommodate a wide variety of body parts.

Available Options

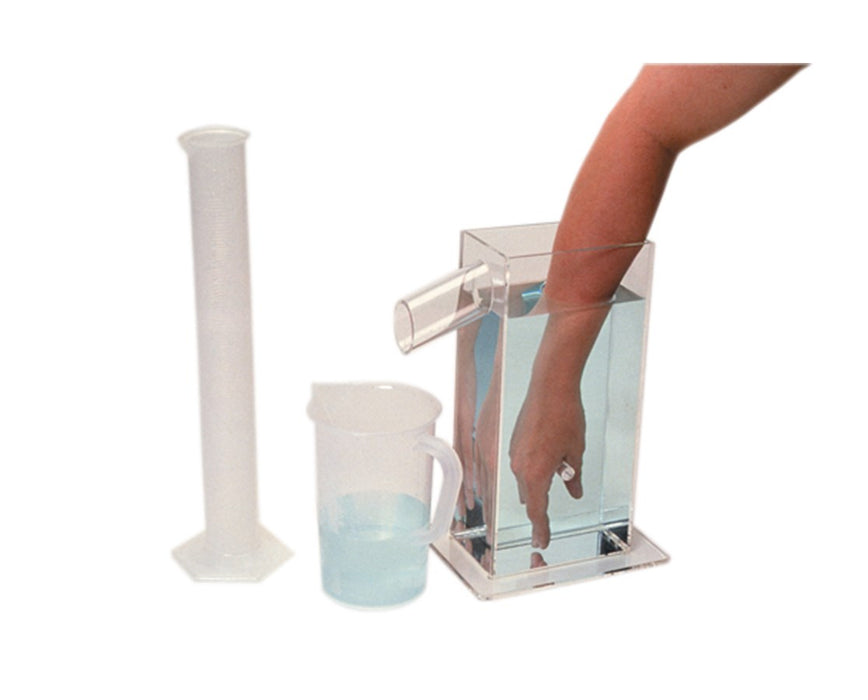

(12-3500): Baseline Volumetric Edema Gauge- Hand set.

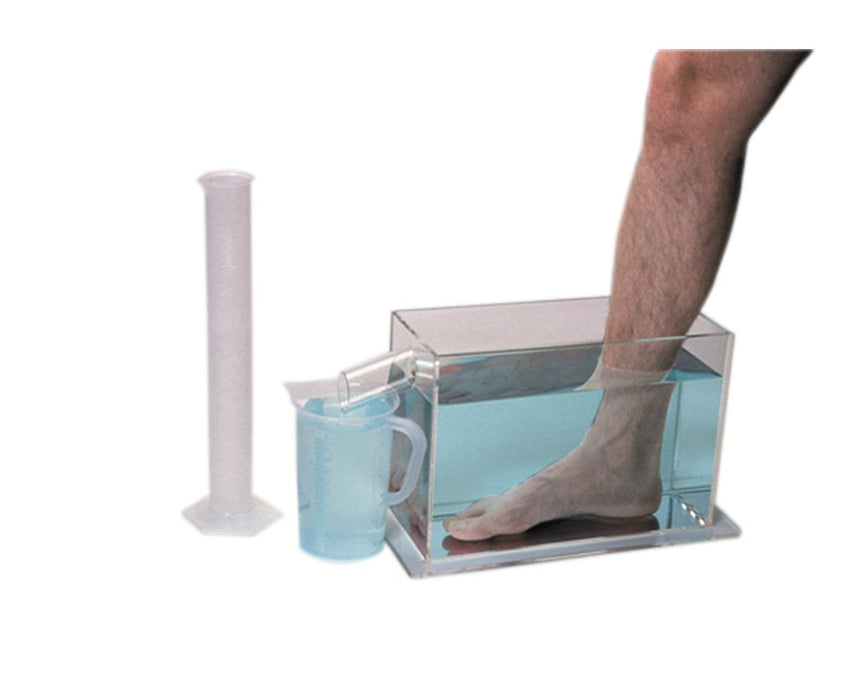

(12-3502): Baseline Volumetric Edema Gauge- Foot set.
(12-3504): Baseline Volumetric Edema Gauge- Forearm set.
(12-3501): Baseline Volumetric Edema Gauge- Arm set.
(12-3505): Baseline Volumetric Edema Gauge- Partial leg set.
(12-3508): Baseline Volumetric Edema Gauge- Large Partial leg set.

WARNING: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Precise measurement process.
Convenient in diagnostics and in progress tracking.
Wide range of designs

What’s in the Box

Measurement tank.
Overflow beaker.
Graduated cylinder.

Available Sets

Hand set, 3L x 5W x 9H inch cavity.
Foot set, 5L x 13W x 9H inch cavity.
Forearm set, 6L x 6W x 24H inch cavity.
Arm set, 7L x 7W x 30H inch cavity.
Partial leg set, 6L x 13W x 24H inch cavity.
Large partial leg set, 8x13x16 inch cavity.
