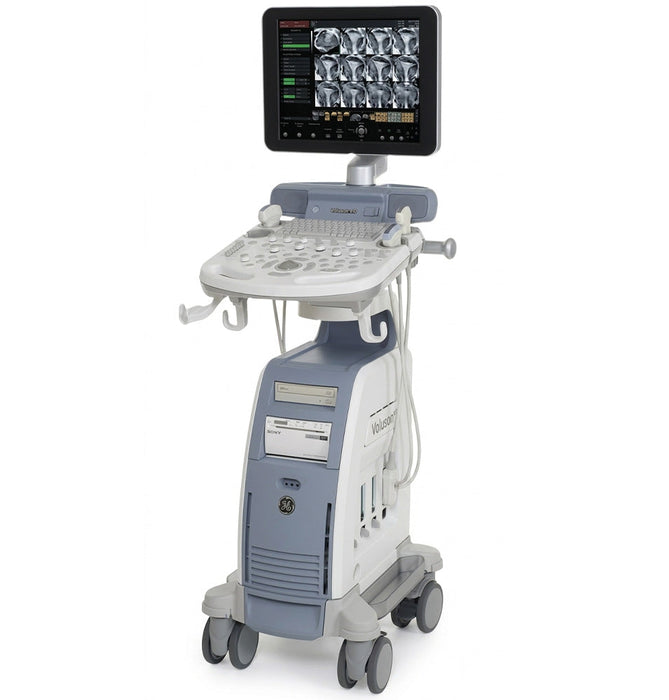

Voluson P8 BT22 Ultrasound

GE
by GE
MFR#: H8051PE
TIGER#: TM166030
List Price: $29,654.58
You Save: $5,334.58 -18%
$29,654.58 - $29,654.58
List Price: $29,654.58
$24,320.00
$24,320.00 - $24,320.00
$24,320.00
Add to cart for Lower Price
Voluson P8 BT22 Ultrasound
Voluson P8 BT22 Ultrasound - $24,320.00
$24,320.00
*Must Purchase 1 for Voluson P8 BT22 Ultrasound

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days
Documents
Brochure Product Video
  • Excellent Image Quality Built on Voluson Core Architecture
  • 3D/4D Tools Included: Static 3D, HDlive, Real-Time 4D
  • 17" High-Resolution LED Flat Panel Screen
  • Battery Pack With Sleep Mode and Fast Wake
  • Sono-Automation Suite Cuts Repetitive Keystrokes
  • CrossXBeam and Speckle Reduction Imaging Included
  • Bi-Directional HD-Flow Doppler for Vascular Studies
  • Sleek, Lightweight Design With Battery Operation .

✔ Voluson Core Imaging | ✔ 3D/4D Tools Included | ✔ Sono-Automation

The GE Healthcare Voluson P8 Ultrasound with 3D/4D Tools (BT22) pairs Voluson Core Architecture imaging with standard 3D/4D capability, including Static 3D, Real-Time 4D, HDlive, and SonoRenderlive, in a lightweight, battery-powered console. Built for growing OB/GYN practices, it delivers consistent image quality without the workflow slowdowns of manual scanning.


3D/4D IMAGING STANDARD

STATIC 3D AND REAL-TIME 4D: View and manipulate volume data as it's acquired, without added software steps.

HDLIVE: Adds a realistic, lifelike perspective to 3D imaging for clearer anatomical detail.

SONORENDERLIVE: Automates render-line placement to simplify volume rendering during OB and GYN exams.

3D PRINT FILE EXPORT: Export volume data directly for 3D printing, useful for patient education or specialist review.


LESS CLICKING, MORE SCANNING

SONOBIOMETRY: Semi-automated biometry measurements (BPD, HC, AC, FL, HL, Vp, CM, Cereb, FHR) reduce keystrokes during OB exams.

SONONT | SONOIT: Semi-automatic, standardized measurements of nuchal and intracranial translucency support consistent screening.

SONOAVC FOLLICLE: Automatically calculates the number, dimensions, and volume of hypoechoic structures in a volume sweep to speed up follicle monitoring.

SONOL&D: Automated monitoring and documentation of labor helps evaluate second-stage labor progression.

UTERINE CLASSIFICATION: Simplifies identification and reporting of uterine abnormalities based on ESHRE, ESGE, and ASRM guidelines.


BUILT FOR EVERYDAY USE

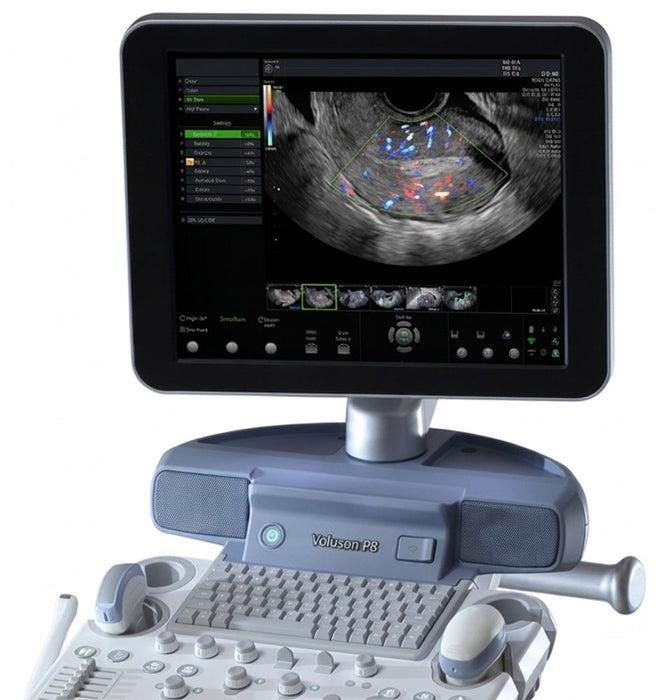

17" LED SCREEN: A high-resolution flat panel provides sharp, clear imaging for daily exams.

BATTERY PACK: Sleep mode with fast wake keeps the system ready to scan between patients without a full reboot.

CROSSXBEAM AND SRI: Compound resolution imaging and speckle reduction sharpen tissue borders and cut down image noise.

LIGHTWEIGHT CONSOLE: A compact, maneuverable design fits easily into small exam rooms.


The GE Healthcare Voluson P8 Ultrasound gives growing practices a dependable, high-performing entry into the Voluson family for years of confident patient care.

Warning WARNING: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

  • Excellent Image Quality Built on Voluson Core Architecture
  • Practical 3D With SonoRenderlive and OmniView
  • Sono-Automation Tools Cut Repetitive Keystrokes
  • Bi-Directional HD-Flow Doppler for Vascular Studies
  • Sleek, Lightweight Design With Battery Operation
  • Rapid Wake From Sleep for Instant Readiness

What’s in the Box

  • GE Healthcare Voluson P8 Ultrasound
  • User Manual
  • Warranty

RETURNS: ITEMS WITH A LEAD TIME LONGER THAN 48 HOURS CANNOT BE RETURNED / CANCELLED. These are specially ordered, and we cannot accept returns or cancellations on such products for any reason. We take the responsibility to make sure your product arrives in brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

Items which ship out in 24-48 hours are covered by our standard 30 day return policy from date of shipment. Return shipping charges are the responsibility of the customer. The product must be in new condition and in its original packaging.

For complete details of our return policy and process, please refer to our general return policy page.

Features
Configuration
Console-based system with 17" LED flat panel display, 3 active universal probe ports, integrated 500 GB HDD, integrated DVD+R(W)/CD-R(W) drive, 4 wheels (125 mm diameter), integrated cable management, front and rear handles
Applications
Obstetrics, Gynecology, Abdominal, Small Parts, Breast, Vascular, Pediatrics, Cardiology, Transrectal, Cephalic, Musculoskeletal (MSK)
Transducer Frequency
4C-RS: 2–5 MHz; IC9-RS: 2.9–9.7 MHz; IC9B-RS: 2.9–9.7 MHz; E8C-RS: 4–10 MHz; 12L-RS: 4–12 MHz; 3Sc-RS: 1–4 MHz; RAB2-6-RS: 2–5 MHz; RIC5-9A-RS: 3.8–9.3 MHz
Transducer Connector
3 active universal probe ports
Display
17" High Resolution LED Flat Panel Display; SXGA resolution (1280 x 1024 pixels); image size 969 x 668; tilt +40°/-90°, rotate +90°/-90°; digital backlight and color temperature adjustment (10 default settings)
Peripheral Ports
HDMI, VGA port, S-Video (via integrated video converter option), Composite BNC (via integrated video converter option), Network (RJ45), USB 2.0 (2 front, 1 rear), external audio out, AC power input, probe connector
Weight & Dimensions
Dimensions
Height (standard console): 54.5" Height (high console): 58.5" Width: 16.5" Depth (overall): 33.5"
Weight
143 lbs (no peripherals) 209 lbs (max, with peripherals)
Power
Power Supply
100–240 VAC, 50/60 Hz (±2%); max 900 VA (with all power options); typical consumption ~120 VA; max thermal output 3,071 BTU/h (typical 410 BTU/h)
Battery Duration And Type
Battery (optional): 20 minutes of scanning, longer in standby; Sleep Mode (low power state) with Fast Wake in approximately 15 seconds.
Functions
Cine Loop
2D: 512 MB, up to 10 min / 13,200 frames (typical ~3 min/4,000 images); M-Mode: 32 MB, up to 1 min; PW/CW-Mode: 32 MB, up to 1 min; manual and auto-run playback (25–200% of real-time rate), forward-forward and forward-backward-forward repeat modes
Zoom
Write Zoom up to 8x magnification; Read Zoom 0.8x–3.4x (with HD-Zoom functionality up to 22x)
Image Memory
Integrated 500 GB HDD (~450 GB available storage); volume file size typically 0.8–5 MB; compression options for 2D (JPEG, lossless/high/mid/low) and 3D/4D (lossy and lossless)
Body Marks
Body Pattern library with more than 110 types organized into 10 anatomical groups
Transducer
Convex Array, Microconvex Array, Linear Array, Sector Array; Volume probes (4D): Convex Array and Microconvex Array
Imaging
Scanning Angle
B-Mode scan angle: 5° (probe dependent); individual probe FOV ranges from 38 mm (linear) up to 185° (endocavity, max)
Scanning Depth (mm)
Maximum depth of field: 0–42 cm (probe dependent); individual probe max depths range from 11 cm (linear) to 42 cm (4C-RS)
Image Pre-Processing
Gain, transmission frequency, TGC, persistence control, dynamic range, line density control, acoustic output, reject, transmission focus, sweep speed position (mode-dependent: B/M, PW, and Color Flow parameters)
Image Post-processing
2D Gain, Colorized B, Dynamic Contrast, SRI (Speckle Reduction Imaging), Gray Map, Edge Enhance; plus mode-specific post-processing for M-Mode, PW-Mode, and Color Flow Imaging Modes
Imaging Mode
B-Mode (2D), M-Mode (conventional), Anatomical M-Mode (AMM), PW Doppler with HPRF, CW Doppler, Color Flow Doppler (CFM), Power Doppler (PD), HD-Flow, combination modes (M/CFM, M/HD-Flow, PW/CFM, PW/HD-Flow, PW/PD), Extended View (XTD), Volume Mode (3D Static, Real-Time 4D, VCI-SingleView/OmniView)
Gray Scales
256 gray levels; 16.8 million colors, 24-bit
Beam-forming
Digital Beamformer with 107,177 system processing channel technology
Measurement & Calculation
B-mode
Distance, 2D trace, stenosis %, ratios, area/circumference (ellipse, trace, area), volume (1-distance, 3-distance, ellipse methods), angle measurements; full calculation packages for Abdomen, Small Parts, Breast, Obstetrics (biometry, growth, Z-scores), Gynecology (including IOTA LR2, Simple Rules, ADNEX Model), Cardiology, Vascular, Cephalic, Pediatric, and Transrectal
M-mode
Distance, HR, time, slope, IMT, stenosis %, vessel diameter/ratio; cardiology M-mode parameters (LV, AV/LA, MV, HR, TAPSE)
Doppler
PW and CW auto/manual trace parameters (PS, ED, MD, S/D ratio, TAmax, HR, PI, RI, volume flow, PGmax/mean, VTI); Color Doppler, Power Doppler, and HD-Flow with full parameter sets; cardiology Doppler calculations (dp/dt, PAP, TEI-Index, PISA, Ejection Fraction, Cardiac Output)
