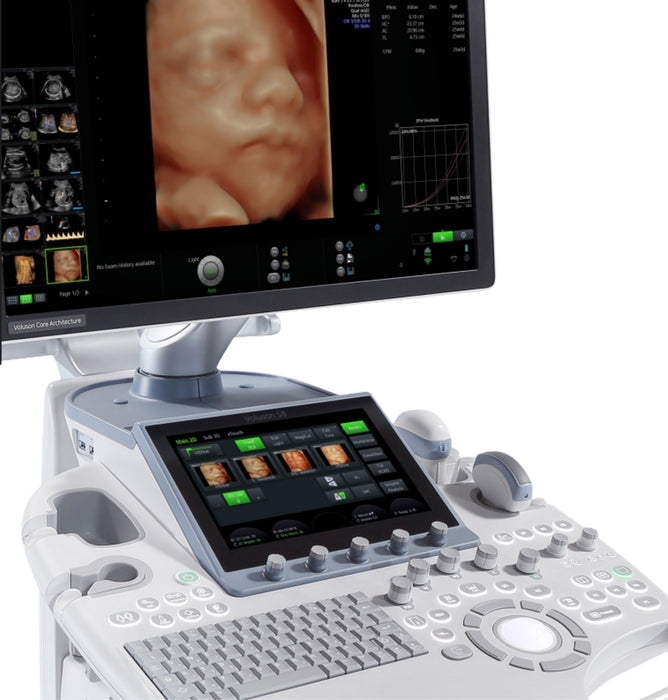

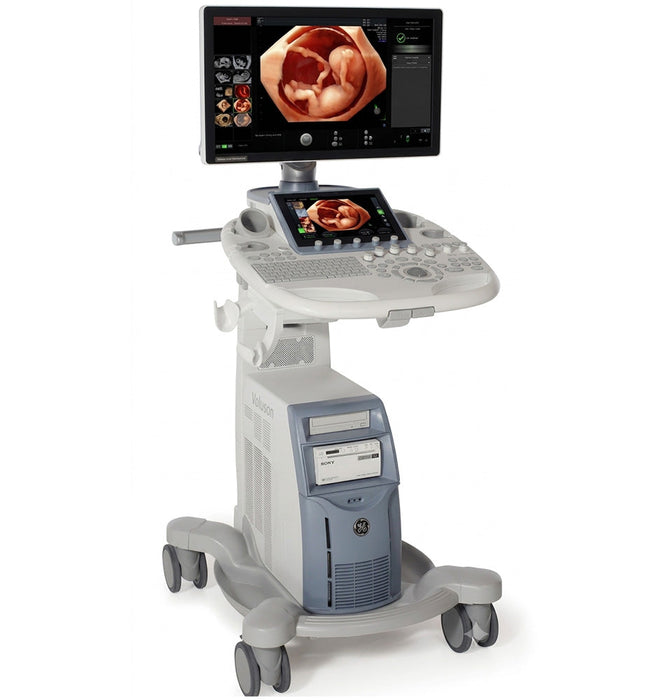

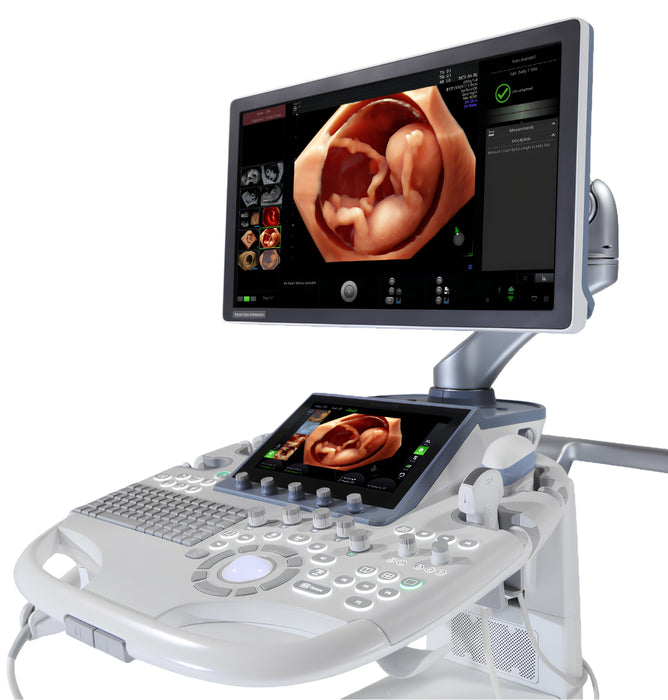

Voluson S8 Ultrasound w/ Touch Panel

GE
by GE
MFR#: H8051SS
TIGER#: TM165984
List Price: $39,854.40
You Save: $4,894.40 -12%
$39,854.40 - $39,854.40
List Price: $39,854.40
$34,960.00
$34,960.00 - $34,960.00
$34,960.00
Add to cart for Lower Price
Voluson S8 Ultrasound w/ Touch Panel
Voluson S8 Ultrasound w/ Touch Panel - $34,960.00
$34,960.00
*Must Purchase 1 for Voluson S8 Ultrasound w/ Touch Panel

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days
Documents
Brochure Product Video
  • Radiantflow Color Doppler for Small Vessel Visualization
  • AI-Powered SonoCNS for Fetal Brain Assessment
  • Automated Uterine Trace for Easy 3D Volume Capture
  • SonoVCADheart Extracts Standard Cardiac Views Automatically
  • Scan Assistant Guides You Through Customizable Exams
  • Built on Voluson Core Architecture for Effortless Imaging .

✔ Radiantflow Color Doppler | ✔ AI Automation Tools | ✔ Touch Panel Interface

The GE Healthcare Voluson S8 Ultrasound with Touch Panel combines AI-powered automation with Radiantflow color Doppler to simplify image acquisition and cut down exam time. Built on Voluson Core Architecture, it delivers excellent image clarity and highly sensitive Doppler for busy women's health practices.


IMAGING THAT KEEPS UP WITH YOU

EFFORTLESS IMAGING: Voluson Core Architecture lets you place the transducer and start scanning with minimal manipulation for consistent image quality.

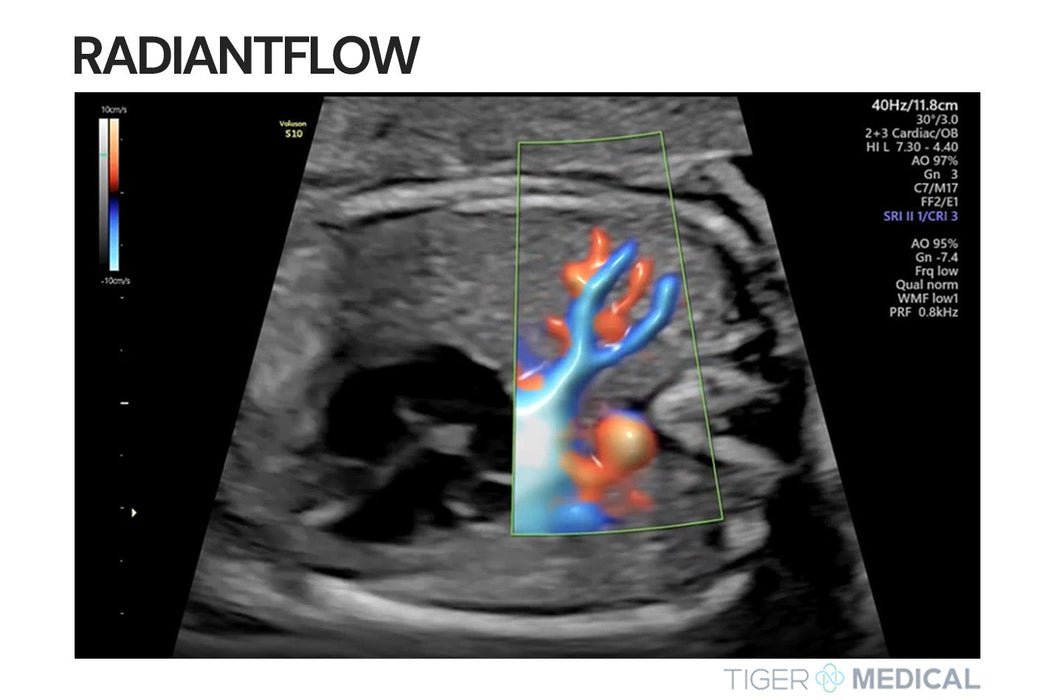

RADIANTFLOW: Enhanced color sensitivity improves visualization of small vessels and fetal heart borders for a more dynamic, 3D-like appearance.

HDLIVE TECHNOLOGIES: Advanced skin illuminating and shadowing techniques display images with added depth and clarity.

VOLUME CONTRAST IMAGING (VCI): Adjustable slice thickness on 3D or 4D images enhances contrast resolution using bone and tissue rendering.


AUTOMATION THAT SAVES YOU TIME

SONOCNS: AI-powered, deep-learning technology helps properly align and display recommended views and measurements of the fetal brain.

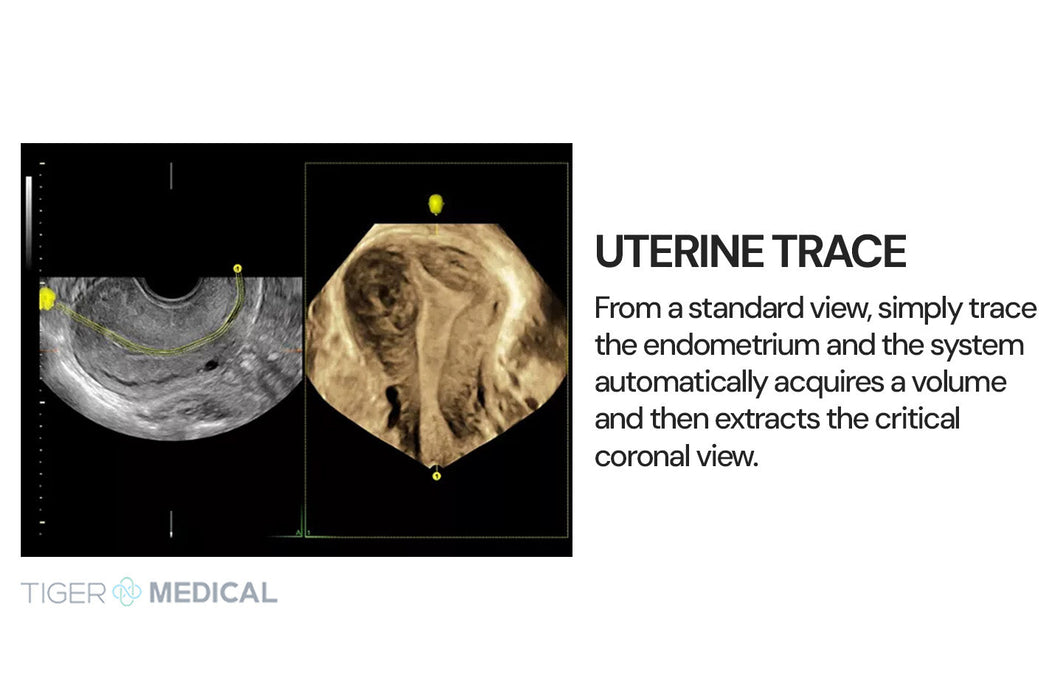

UTERINE TRACE: Trace the endometrium from a standard view and the system automatically acquires a volume and extracts the critical coronal view.

SONOVCADHEART: Automatically extracts and displays standard recommended cardiac views from a single STIC volume acquisition.

SONOAVC FOLLICLE AND SONOAVCANTRAL: Automatically calculates the number, dimensions, and volume of hypoechoic structures for follicle monitoring or antral follicle count.

SCAN ASSISTANT: A flexible, customizable exam protocol guides you through exams to speed up annotation, measurement, and reporting.



BUILT FOR YOUR PRACTICE

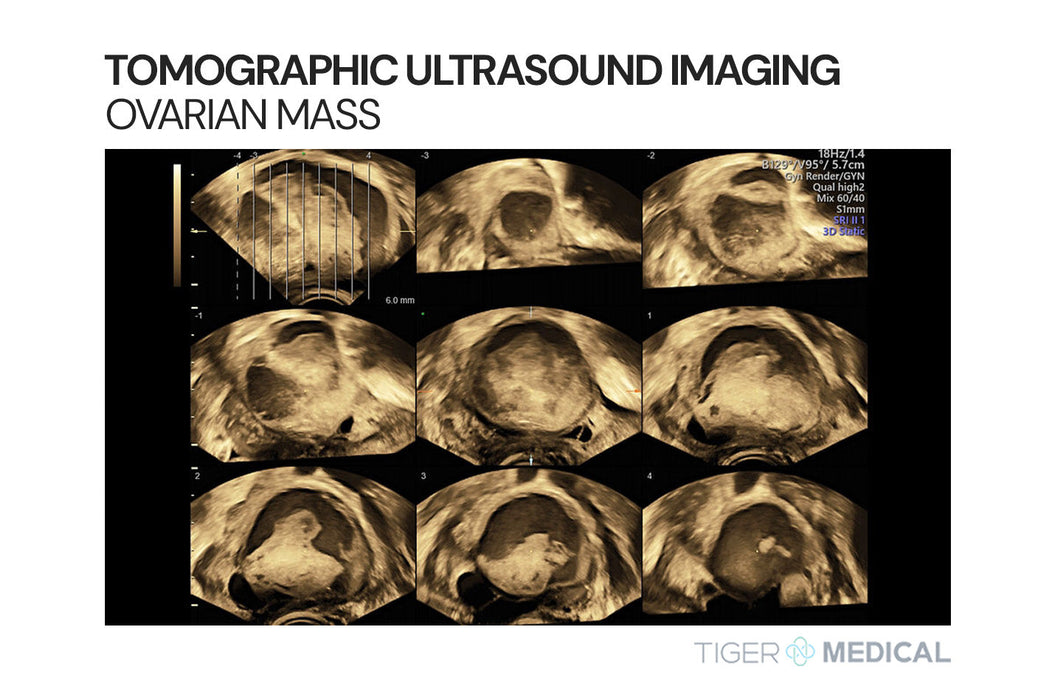

TOMOGRAPHIC ULTRASOUND IMAGING (TUI): Simultaneously displays multiple parallel slices of a volume data set to simplify analysis and documentation.

ADVANCED ERGONOMICS: Features focused on your clinical specialty offer comfort and choice at an affordable price.

FULL SUPPORT ECOSYSTEM: Access GE service, support, education, and the Voluson Club community of women's health ultrasound users.


The GE Healthcare Voluson S8 Ultrasound with Touch Panel gives busy women's health practices the speed, automation, and image confidence needed to focus on patient care.

Warning WARNING: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

  • Radiantflow Color Doppler for Small Vessel Visualization
  • AI-Powered SonoCNS for Fetal Brain Assessment
  • Automated Uterine Trace for Easy 3D Volume Capture
  • SonoVCADheart Extracts Standard Cardiac Views Automatically
  • Scan Assistant Guides You Through Customizable Exams
  • Built on Voluson Core Architecture for Effortless Imaging

What’s in the Box

  • GE Healthcare Voluson S8 Ultrasound with Touch Panel
  • User Manual
  • Warranty

RETURNS: ITEMS WITH A LEAD TIME LONGER THAN 48 HOURS CANNOT BE RETURNED / CANCELLED. These are specially ordered, and we cannot accept returns or cancellations on such products for any reason. We take the responsibility to make sure your product arrives in brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

Items which ship out in 24-48 hours are covered by our standard 30 day return policy from date of shipment. Return shipping charges are the responsibility of the customer. The product must be in new condition and in its original packaging.

For complete details of our return policy and process, please refer to our general return policy page.

Features
Configuration
Lightweight, maneuverable console with 23" high-resolution LCD LED screen, 10.1" touch screen control panel, 4 active probe ports, integrated 500 GB HDD, integrated DVD+R(W)/CD-R(W) drive, front and rear handles
Applications
Obstetrics, Gynecology, Abdominal, Small Parts, Breast, Vascular, Pediatrics, Cardiology, Transrectal, Cephalic, Musculoskeletal (MSK)
Transducer Frequency
RAB6-RS: 2–8 MHz; C1-5-RS: 2–5 MHz; 4C-RS: 2–5 MHz; RIC5-9A-RS: 3.8–9.3 MHz; IC9-RS: 2.9–9.7 MHz; 9L-RS: 3–8 MHz; 12L-RS: 4–12 MHz; 8C-RS: 4–10 MHz; 3Sc-RS: 1–4 MHz
Transducer Connector
4 active universal probe ports
Display
23" high-resolution LCD LED screen with DVI interface, Full HD 1920 x 1080 resolution, image size 1136 x 786; fully articulating monitor arm (tilt +30°/-90°, rotate +90°/-90°, horizontal range >250mm, vertical range >100mm); plus separate 10.1" high-resolution color LCD multi-touch screen with adjustable brightness
Peripheral Ports
HDMI Out, VGA port, S-Video (via integrated video converter option), Composite BNC (via integrated video converter option), Network (RJ45), external audio out, USB 2.0 (2 in monitor, 2 front, 1 rear), USB 3.0 (2 front), AC power input, probe connector
Weight & Dimensions
Dimensions
Height: 51.6"-68.1" Width: 24.4" Depth: 34.1"
Weight
No peripherals: 198 lbs; Maximum: 267 lbs
Power
Power Supply
100–120, 220–240 VAC; 50/60 Hz (±2%); Sleep mode (low power state) with wake-and-scan in 15 seconds
Battery Duration And Type
Battery pack listed as a peripheral option
Functions
Cine Loop
512 MB: up to 10 min / 13,200 frames (typical ~3 min/4,000 images); M-Mode: 32 MB, up to 1 min; PW-Mode: 32 MB, up to 1 min; manual and auto-run playback (25–200% of real-time rate), forward-forward and forward-backward-forward repeat modes
Zoom
Write Zoom up to 8x; Read Zoom 0.8x–3.4x (with HD-Zoom functionality up to 22x)
Image Memory
Integrated 500 GB HDD (~450 GB available storage); volume file size typically 0.8–5 MB; 2D compression via JPEG (lossless/high/mid/low); 3D/4D lossy and lossless compression available
Body Marks
Body pattern library with 117 types organized into 10 anatomical groups
Transducer
Convex Array, Microconvex Array, Linear Array, Sector Array, Active Matrix Linear Array (1.5D); Volume probes (4D): Convex Array and Microconvex Array
Imaging
Scanning Angle
B-Mode scan angle in 5° increments (probe dependent); individual probe FOV ranges from 38 mm (12L-RS linear) up to 181° (IC9-RS endocavity, wide)
Scanning Depth (mm)
Maximum depth of field: 42 cm (probe dependent); individual probe max depths range from 11 cm (12L-RS) to 42 cm (C1-5-RS and 4C-RS)
Image Pre-Processing
Gain, TGC, dynamic range, acoustic output, transmission focus position/number, transmission frequency, persistence control, line density control, reject, sweep speed, M-cursor position (B/M-Mode); plus mode-specific pre-processing for PW-Mode and Color Flow Imaging Modes (CFM, PD, TD, HD-Flow)
Image Post-processing
2D Gain, Dynamic Contrast, Gray Map, Edge Enhance, Colorized B, Advanced SRI (SRI II); plus mode-specific post-processing for M-Mode, PW-Mode, Color Flow Imaging Modes, and B-Flow
Imaging Mode
B-Mode (2D), M-Mode (conventional), PW Doppler with HPRF, Color Flow Doppler (CFM), Power Doppler (PD), HD-Flow, Tissue Doppler (TD), B-Flow (BF), combination modes (M/CF, M/HD-Flow, M/TD), Extended View (XTD), Volume Mode (3D Static, 4D Real Time, VCI-A, VCI-OmniView, 4D Biopsy)
Gray Scales
256 shades of gray; 16.8 million colors, 24-bit
Beam-forming
Digital Beamformer with 1,714,833 system processing channel technology
Measurement & Calculation
B-mode
Distance, 2D trace, stenosis %, ratios, area/circumference (ellipse, trace, area), volume (1-distance, 3-distance, 1-ellipse, multiplane-planimetric), angle measurements; full calculation packages for Abdomen, Small Parts, Breast, Obstetrics (biometry, growth tables, Z-scores, fractional limb volume), Gynecology (including IOTA LR2/Simple Rules, Uterus classification ESHRE/ESGE/ASRM), Cardiology, Vascular, Cephalic, Pediatrics, and Transrectal
M-mode
Distance, HR, time, slope, IMT, stenosis %, vessel diameter/ratio; cardiology M-mode parameters (LV, AV/LA, MV, HR/Atrial HR)
Doppler
PW auto/manual trace parameters (PS, ED, MD, S/D ratio, TAmax, HR, PI, RI, volume flow, PGmax/mean, VTI); Color Doppler, Power Doppler, HD-Flow, and Tissue Doppler with full parameter sets; cardiology Doppler calculations (PISA, PAP, TEI-Index, Ejection Fraction, Cardiac Output, Fractional Shortening)
