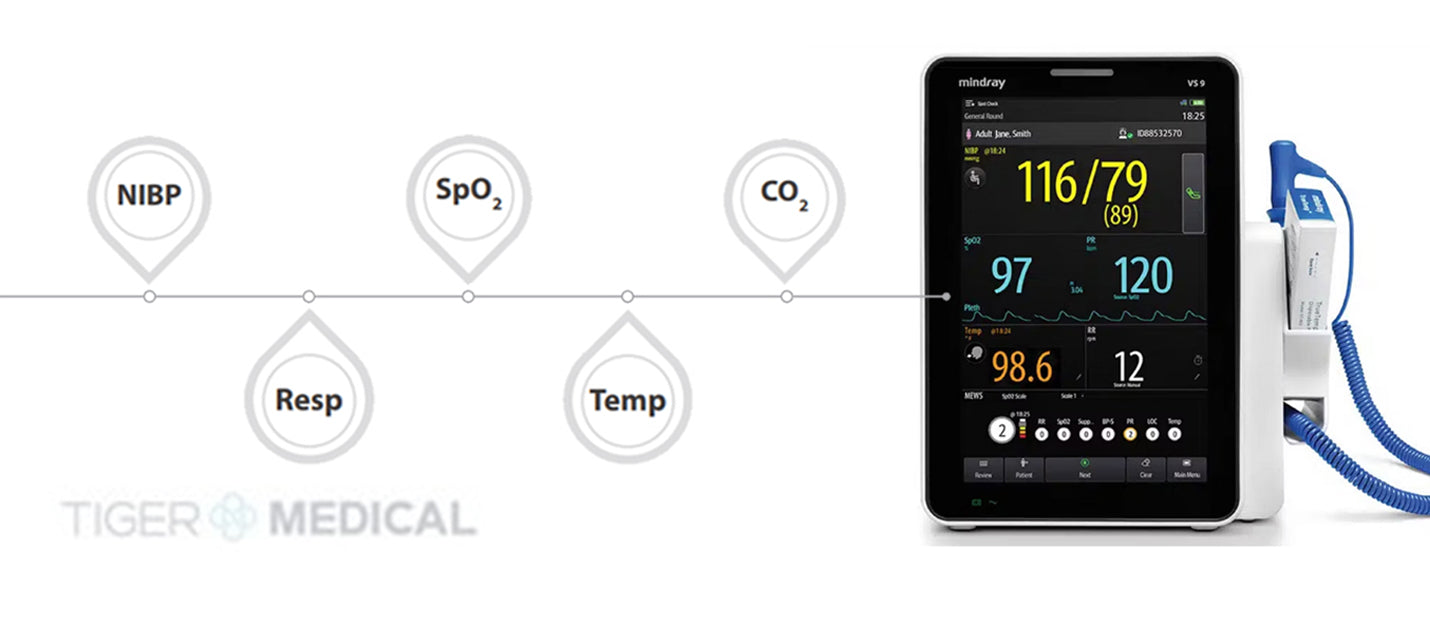

PARAMETERS: NIBP, Pulse Rate
-
OPTIONAL PARAMETERS: Temperature, SPO2, Sidestream CO2
-
10.1″ Capacitive Touchscreen with Custom Workflows
-
15-Second Blood Pressure with TrueBP
-
SpO₂ Options: Masimo, Nellcor, or Mindray
-
Thermometry: Exergen, Genius, or SmarTemp
-
Integrated MEWS and Orthostatic BP Tools
-
Optional Wireless Capability .
The Mindray VS 9 is a powerful and intuitive vital signs monitor built for speed, comfort, and clinical clarity, enhancing workflows in low-acuity and general care settings.
✔️ 15-Second NIBP | ✔️ Flexible SpO₂ + Temp | ✔️ Custom Workflow Profiles
VITAL ACCURACY, FAST
TRUEBP MEASUREMENTS: Inflation-based BP readings in just 15 seconds for more comfortable assessments.
ADVANCED SpO₂ OPTIONS: Choose from Masimo SET, Nellcor, or Mindray’s in-house tech for accurate pulse oximetry.
THERMOMETRY CHOICE: Exergen TemporalScanner, Genius 3 tympanic, or SmarTemp oral/axillary.
AUTOMATED RESPIRATION: Use TrueResp to capture RR from the SpO₂ sensor or count manually via timer.
TAILORED WORKFLOWS
CUSTOM PROFILES: Build and save workflows by department or patient type — spot checks, step-down, admission, and more.
FLEXIBLE INPUTS: Document up to 30 manual parameters like glucose, FiO₂, or fluid balance.

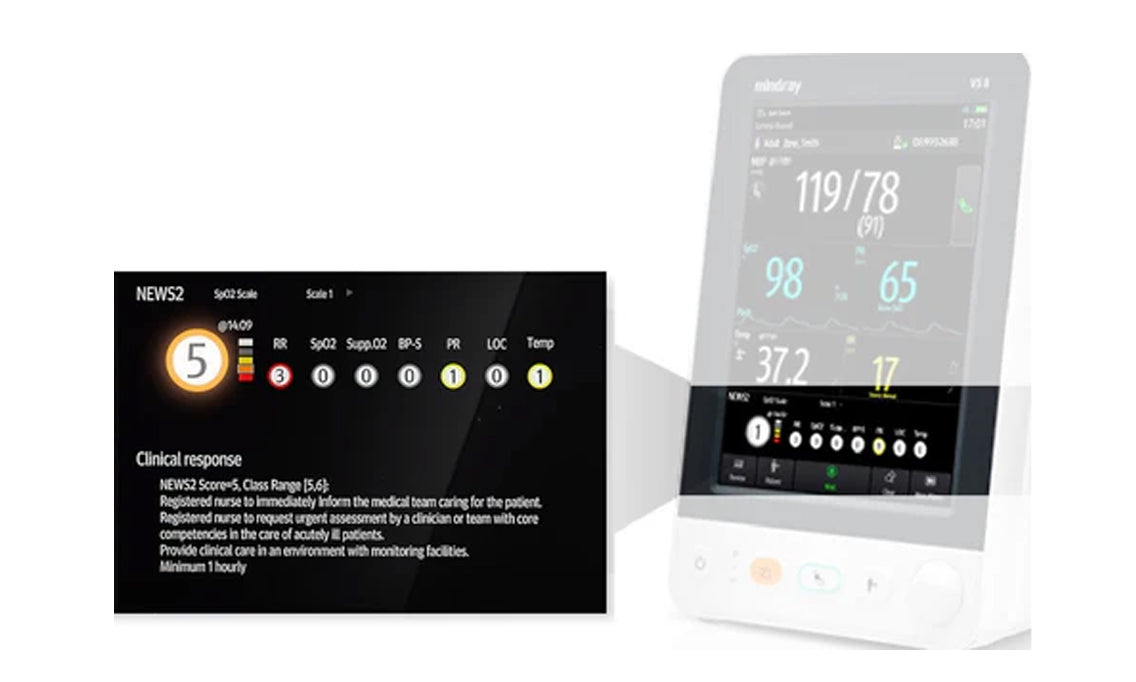

PAIN SCALE & SCORING: Visual pain chart and integrated MEWS help support early detection.
SMART INTERFACE: Swipe-based, smartphone-style navigation for seamless bedside use.
SCALABLE CONNECTIVITY
WIRELESS OR WIRED: Choose the setup that fits your hospital’s infrastructure.
EMR INTEGRATION: Transmit vital signs data directly from the bedside to EMR.
CENTRAL MONITORING: Connect to Mindray CMS for remote viewing and mobile alerts.
CLEAN & COMPLIANT: Designed for compatibility with hospital-grade disinfectants.
AVAILABLE OPTIONS
SPO2 OPTIONS
MASIMO SET: Industry-leading motion tolerance and low perfusion accuracy, ideal for critical patients.
NELLCOR: Features SatSeconds alarm management to reduce false alerts caused by motion.
MINDRAY: Reliable in-house solution offering accurate, cost-effective oxygen saturation monitoring.
THERMOMETRY OPTIONS
EXERGEN TEMPORALSCANNER: Non-invasive infrared scan of the forehead—fast, gentle, and ideal for all ages.
GENIUS 3 TYMPANIC: Tympanic readings in under 2 seconds with peak temperature technology for clinical accuracy.
SMARTEMP ORAL/AXILLARY: Affordable digital thermometer for oral, axillary, or rectal readings (adults and pediatrics).
WIRELESS CONNECTIVITY
MOBILITY & FLEXIBILITY: Enables cable-free monitoring and easier patient transfers with real-time data transmission.
With speed, accuracy, and scalable smart tools, the VS 9 makes routine vitals monitoring feel anything but routine — built for care teams who never settle for “good enough.”
ORDERING INFORMATION
The Mindray VS 9 Vital Signs Monitor is available with different sensors and the option to have a wireless capability. Kindly choose your preference on the dropdown menu above.
- NIBP & Pulse Rate (121-002174-00)
- NIBP, Pulse Rate & 2.4/5GHz Wireless (121-002192-00)
- NIBP, Pulse Rate, SmarTemp & 2.4/5GHz Wireless (121-002193-00)
- NIBP, Pulse Rate, Exergen Temporal Temp & 2.4/5GHz Wireless (121-002198-00)
- NIBP, Pulse Rate & Masimo SpO2 (121-002176-00)
- NIBP, Pulse Rate, Masimo SpO2 & 2.4/5GHz Wireless (121-002194-00)
- NIBP, Pulse Rate, Masimo SpO2 & SmarTemp (121-002178-00)
- NIBP, Pulse Rate, Masimo SpO2, SmarTemp & 2.4/5GHz Wireless (121-002196-00)
- NIBP, Pulse Rate, Masimo SpO2 & Exergen Temporal Temp (121-002181-00)
- NIBP, Pulse Rate, Masimo SpO2, Exergen Temporal Temp & 2.4/5GHz Wireless (121-002199-00)
- NIBP, Pulse Rate, Masimo SpO2 & Mindray Low Flow Sidestream CO2 (121-002185-00)
- NIBP, Pulse Rate, Masimo SpO2, Mindray Low Flow Sidestream CO2 & 2.4/5GHz Wireless (121-002203-00)
- NIBP, Pulse Rate, Masimo SpO2, SmarTemp & Mindray Low Flow Sidestream CO2 (121-002187-00)
- NIBP, Pulse Rate, Masimo SpO2, SmarTemp, Mindray Low Flow Sidestream CO2 & 2.4/5GHz Wireless (121-002205-00)
- NIBP, Pulse Rate, Masimo SpO2, Exergen Temporal Temp & Mindray Low Flow Sidestream CO2 (121-002190-00)
- NIBP, Pulse Rate, Masimo SpO2, Exergen Temporal Temp, Mindray Low Flow Sidestream CO2 & 2.4/5GHz Wireless (121-002208-00)
- NIBP, Pulse Rate & Nellcor OxiMax SpO2 (121-002177-00)
- NIBP, Pulse Rate, Nellcor OxiMax SpO2 & 2.4/5GHz Wireless (121-002195-00)
- NIBP, Pulse Rate, Nellcor OxiMax SpO2 & SmarTemp (121-002179-00)
- NIBP, Pulse Rate, Nellcor OxiMax SpO2, SmarTemp & 2.4/5GHz Wireless (121-002197-00)
- NIBP, Pulse Rate, Nellcor OxiMax SpO2 & Exergen Temporal Temp (121-002182-00)
- NIBP, Pulse Rate, Nellcor OxiMax SpO2, Exergen Temporal Temp & 2.4/5GHz Wireless (121-002200-00)
- NIBP, Pulse Rate, Nellcor OxiMax, SpO2 & Mindray Low Flow Sidestream CO2 (121-002186-00)
- NIBP, Pulse Rate, Nellcor OxiMax SpO2, Mindray Low Flow Sidestream CO2 & 2.4/5GHz Wireless (121-002204-00)
- NIBP, Pulse Rate, Nellcor OxiMax SpO2, SmarTemp & Mindray Low Flow Sidestream CO2 (121-002188-00)
- NIBP, Pulse Rate, Nellcor OxiMax SpO2, SmarTemp, Mindray Low Flow Sidestream CO2 & 2.4/5GHz Wireless (121-002206-00)
- NIBP, Pulse Rate, Nellcor OxiMax SpO2, Exergen Temporal Temp & Mindray Low Flow Sidestream CO2 (121-002191-00)
- NIBP, Pulse Rate, Nellcor OxiMax SpO2, Exergen Temporal Temp, Mindray Low Flow Sidestream CO2 & 2.4/5GHz Wireless (121-002222-00)
