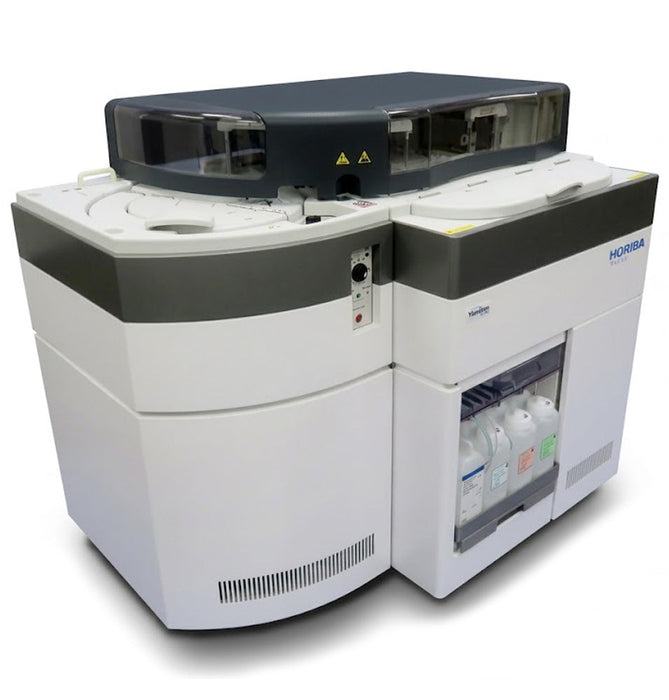

Yumizen C1200 Chemistry Analyzer

• 1200 Tests/Hour with Integrated ISE for Na+, K+, and Cl-
• Dedicated STAT Position with Random Continuous Access
• 90 Refrigerated Reagent Positions Across 2 Trays
• 61 Dedicated Refrigerated Positions for Calibrators and Controls
• Liquid Level, Clot, Cap/Shock, and HIL Detection
• Optional Autoloader for High-Volume Continuous Operation .

The Horiba Yumizen C1200 is a high-throughput clinical chemistry analyzer built for small- to medium-sized hospital laboratories processing 2 million or more tests annually. It delivers 1200 tests per hour with integrated ISE, a dedicated STAT position, and an extensive test menu spanning routine metabolic panels through specialty assays, drugs of abuse, and therapeutic drug monitoring.

✔ 1200 Tests/Hour | ✔ Dedicated STAT Position | ✔ Optional Autoloader

ONE SYSTEM FOR EVERY PANEL

COMPREHENSIVE TEST MENU: Covers Comprehensive Metabolic, Hepatic, Lipid, Renal, Anemia, Diabetes/Stroke, Therapeutic Drug Monitoring, Drugs of Abuse and Adulterants, Specialty Assays, and Inflammation/Allergy panels — all on a single platform.

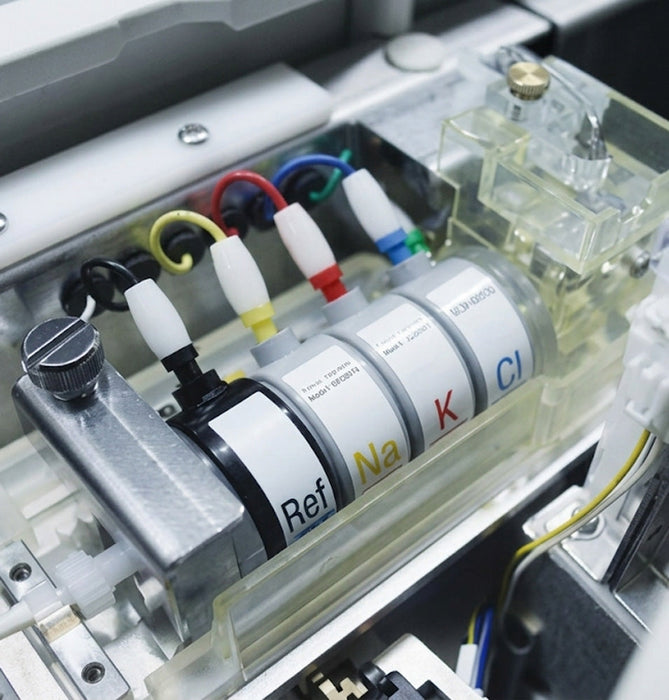

1200 TESTS/HOUR WITH ISE: Spectrophotometry (colorimetric and turbidimetric) plus indirect ISE for Na+, K+, and Cl- run simultaneously. Automatic maintenance during start-up and shutdown keeps the system ready without manual intervention.

DEDICATED STAT POSITION: Urgent samples load directly without disrupting the main queue. Random continuous access keeps routine workflows uninterrupted while STAT samples are processed in parallel.

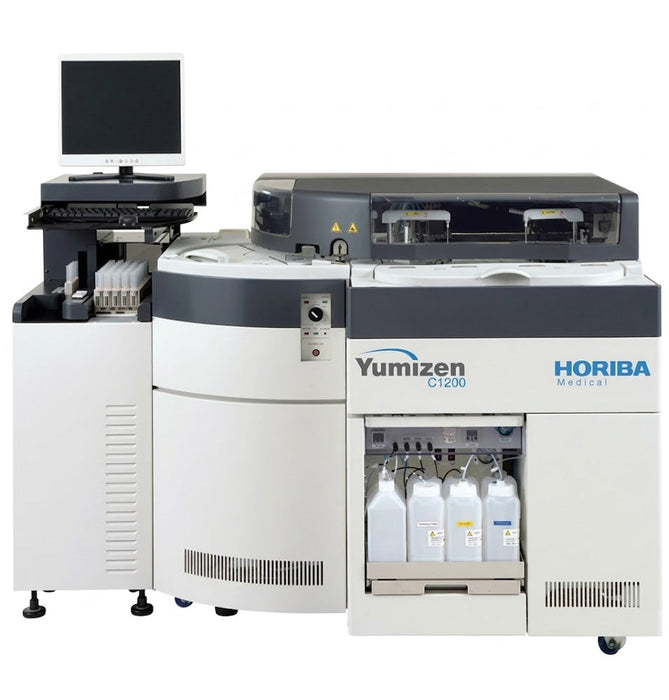

OPTIONAL AUTOLOADER: Expands continuous sample loading capacity for high-volume environments, with the analyzer footprint scaling from 122 × 85 cm to 158 × 109 cm when the autoloader is attached.

BUILT-IN INTELLIGENCE WITH MINIMAL INTERVENTION

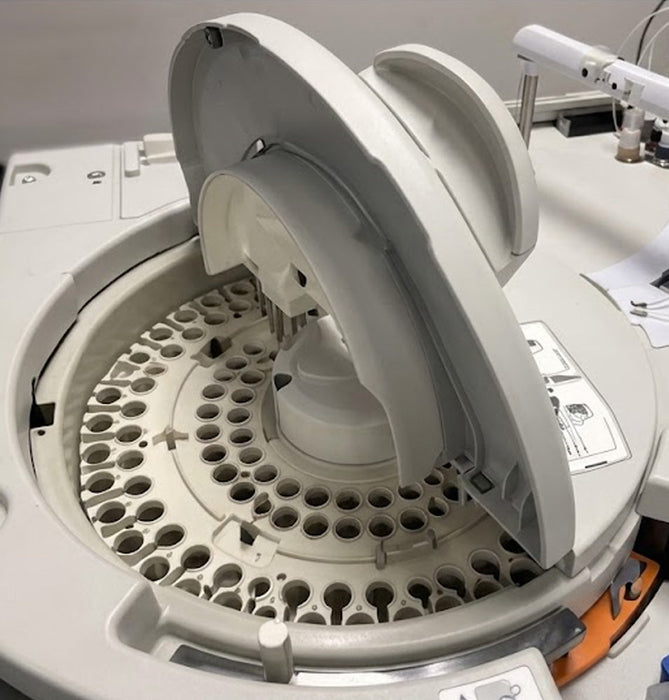

84-SAMPLE CONTINUOUS TRAY: Handles serum, plasma, and urine across 5, 7, and 10 mL tubes and sample cups. Sample volumes from 1 to 25 µL with automatic dilution from 1/2 to 1/300 and integrated barcode identification.

90 REFRIGERATED REAGENT POSITIONS: Two trays of 45 positions each, all refrigerated at 2–8°C, with a 3-part reagent dispensing system, integrated barcode identification, and reagent volumes from 5 to 300 µL.

61 DEDICATED CALIBRATOR AND CONTROL POSITIONS: Refrigerated and separate from the reagent tray, ensuring calibrators and controls are always on board and ready without consuming reagent space.

MULTI-LAYER SAMPLE PROTECTION: Liquid level sensing, clot detection, cap/shock detection, and hemolysis, icterus, and lipemia (HIL) checks flag compromised samples before they affect results.

The Horiba Yumizen C1200 Clinical Chemistry Analyzer gives hospital laboratories the throughput, test menu breadth, and workflow intelligence to handle high daily volumes without sacrificing turnaround time or result quality.
