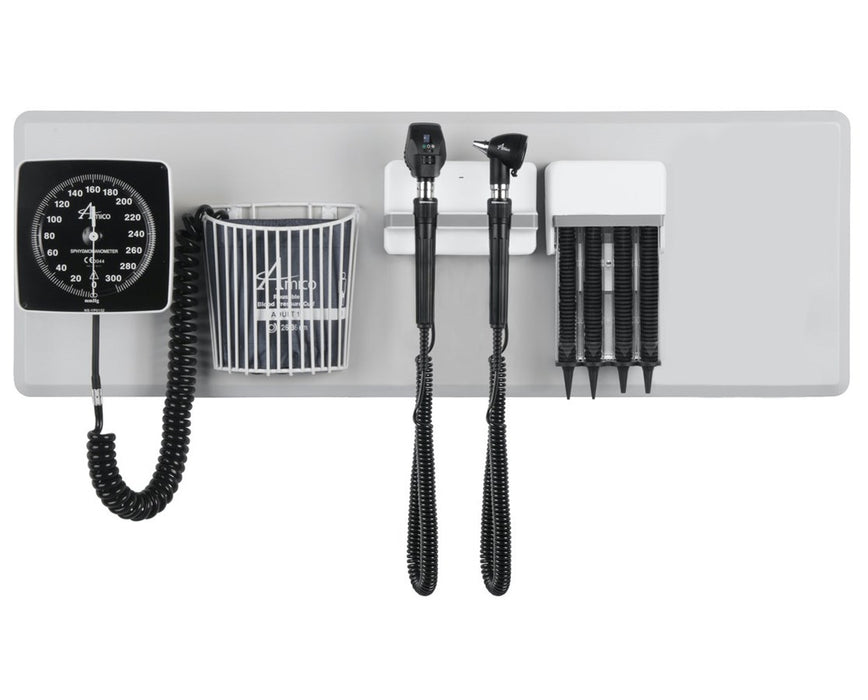

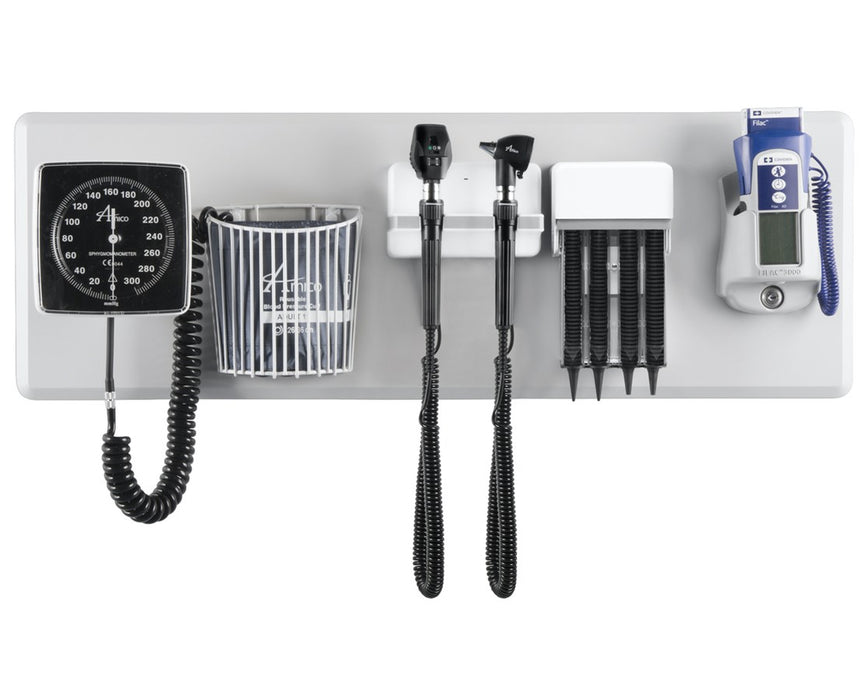

The Amico Wallboard-Mounted Diagnostic Station is a simple-to-use and simple-to-install set of medical devices designed for the accurate and reliable detection of a patient's medical conditions in any hospital, clinic or medical facility.

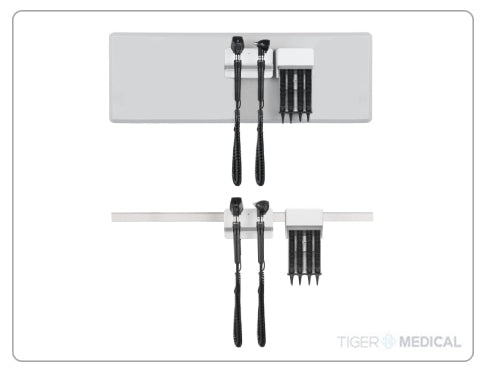

Durability and Hassle-free Usage. Mounted on pre-drilled wallboard, the Amico Wallboard-Mounted Diagnostic Station ensures medical professionals with a durable, stable and easy-to-install diagnostic station. This Diagnostic Station is designed to be easy-to-clean and is antimicrobial treated which helps with infection control. The ergonomic handles have automatic ON/OFF functionality, a 10-foot, expandable spiral cord and a rheostat that allows for simple light intensity control. To ensure the lowest power consumption, the Diagnostic Station features a state-of-the-art Smart Bulb System that automatically turns off power to the bulb to increase bulb life.

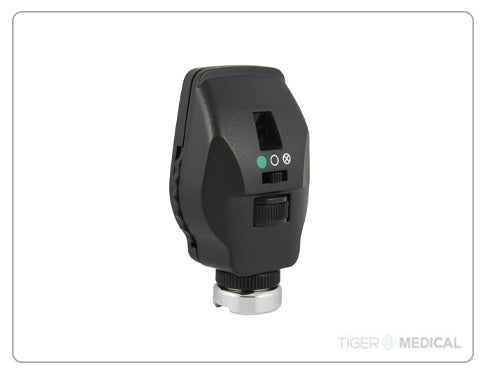

Coaxial Ophthalmoscope
The Amico Coaxial Ophthalmoscope is a state-of-the-art medical device designed to accurately detect and evaluate patient symptoms that may confirm various retinal vascular diseases such as glaucoma. The Coaxial Ophthalmoscope features 28 Adjustable Diopter Lenses (+40 to -25) which gives a more clear and precise resolution while compensating any refractive error for patients or examiners. It has 18 unique apertures and filter combinations that are very useful in various medical examinations. This ophthalmoscope has a sealed design that keeps dust out and ensures correct findings during medical examinations. It also has an Anti-Theft Locking Feature that locks the head from unauthorized removal.

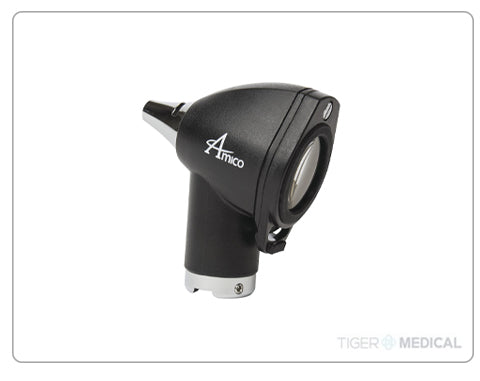

Fiber-Optic Otoscope
Created to project light without obstruction, the Amico Fiber-Optic Otoscope ensures medical professionals with a clear view of a patient's ear canal, tympanic membrane and/or eardrum. The Otoscope features a swivel lens that permits for easy instrument access and is compatible with insufflation bulbs. It has the same Anti-Theft Locking Feature with the Amico Coaxial Ophthalmoscope which secures the head from unauthorized removal.

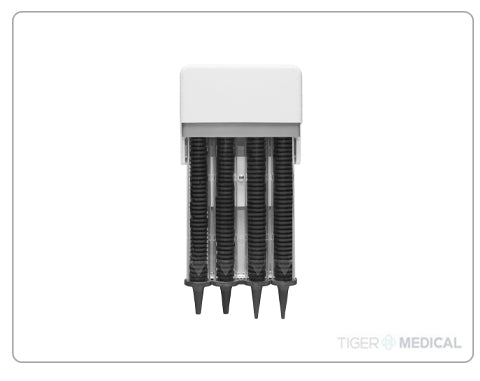

Specula Dispenser
The Amico Specula Dispenser is a robust and high-quality medical device that is built to store and dispense multiple ear specula, up to 4 specula sizes, and can withstand daily rigorous use for years to come. It features a clear housing that allows for quick and reliable inventory management. This specula dispenser also has a compartment for deep or shallow storage needs and is compatible with all leading brands of specula.

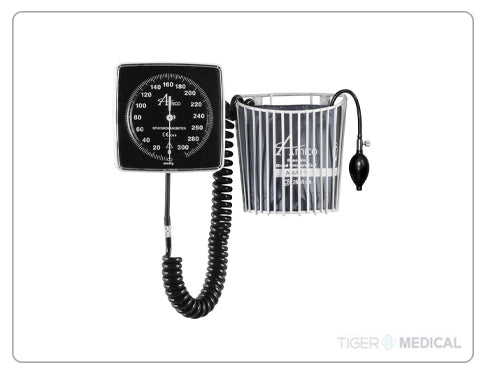

Aneroid Sphygmomanometer
The Amico Aneroid Sphygmomanometer is a durable and reliable medical instrument that provides correct blood pressure readings within 3mm Hg. It features a jeweled movement that ensures an accurate to 1% full-scale reading. This sphygmomanometer has a large, 6-inch high-contrast recessed dial face that lessens parallax errors and has a thermally-treated diaphragm that allows for stable calibrations. It is also luminescent for hassle-free reading in low light.

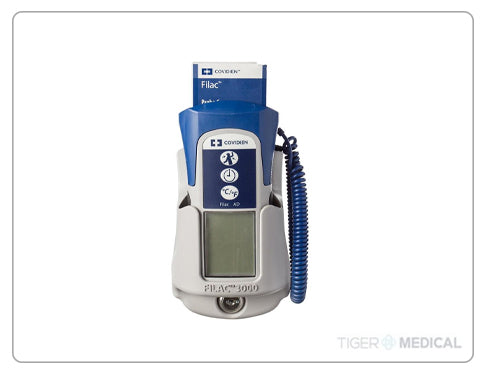

Oral/Axillary Thermometer
Made to be easy-to-use, the Amico Oral/Axillary Thermometer is a state-of-the-art medical device that comes with multiple features to ensure accurate and reliable detection of a patient's current temperature reading. This predictive thermometer features different modes that can be used in various scenarios. The quick mode has a less than 4-second Oral response time, a Standard Mode with less than 10 seconds on Oral and less than 14 seconds on Axillary Response time, a Direct Mode with a 1-2 minute Oral and Axillary response time and a Cold Mode with less than 15 seconds Oral and less than 20 seconds Axillary response time. It has an accuracy of ±0.3 °C (±0.6 °F) for Quick Mode, ±0.1 °C (±0.2 °F) for Standard Mode and ±0.1 °C (±0.2 °F) for Direct Mode.

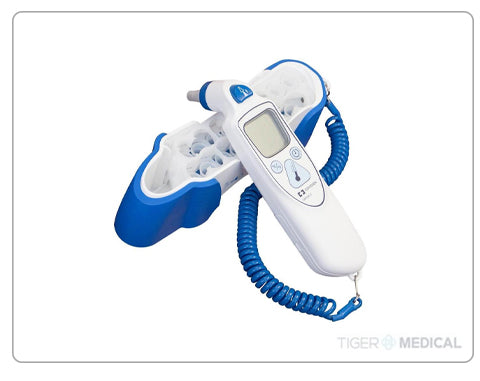

Infrared Tympanic Thermometer
The Amico Infrared Tympanic Thermometer is a state-of-the-art temperature-reading device designed to provide fast and precise non-invasive measuring of a patient's temperature. It has a hygienic touch-less loading and ejecting of probe covers that aid in minimizing the risk of cross-contamination. Built with a durable, stainless steel tapered tip design, the Tympanic Thermometer is one of the best options for babies, children, and adults. This thermometer has a battery life of 15,000 measurements and a response time of 1 to 2 seconds. It has a temperature measurement range of 33.0°C to 42.0°C (91.4°F to 107.6°F) for Ear, 33.0°C to 41.9°C (91.4°F to 107.4°F) for Oral and 33.6°C to 42.0°C (92.4°F to 107.6°F) for Rectal. It also has a calibrated accuracy limit of 16°C to 33°C ± 0.3°C (60.8°F to 91.4°F) (± 0.5°F) and 33°C to 42°C ± 0.3°C (91.4°F to 107.6°F) (± 0.5°F).
Available Options
The Amico Wallboard-Mounted Diagnostic Station has a 7-Year Warranty for Station Base, 5-Year Warranty for Aneroid, 3-Year Warranty for Diagnostic Head, 3-Year Warranty for Blood Pressure Cuffs, and 1-Year Warranty for Thermometer. It comes with various configurations to choose from:

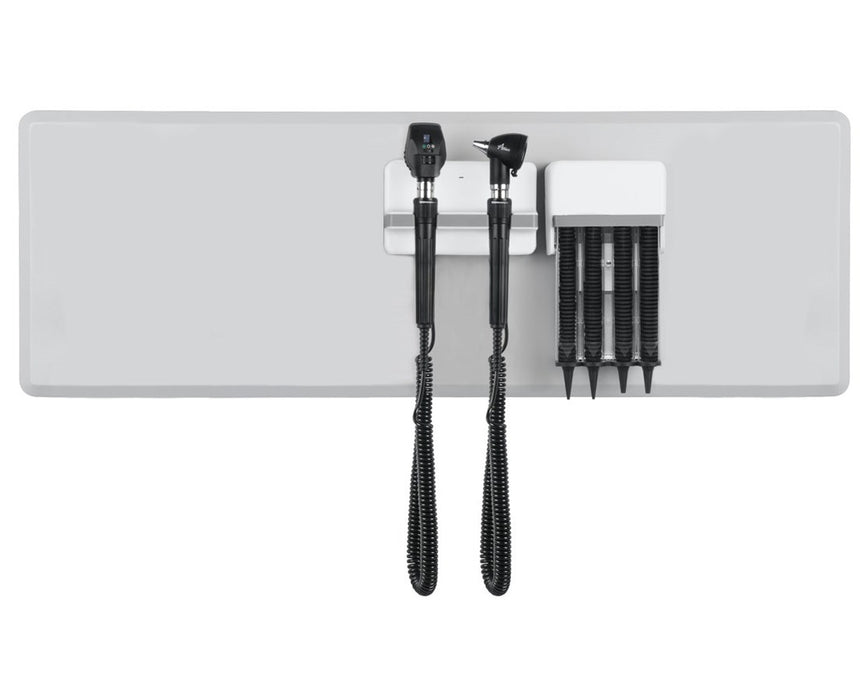

- Station with Halogen Coaxial Ophthalmoscope and Halogen Fiber Optic Otoscope (DS-ULG-CHFH-DXX)
- Station with Halogen Coaxial Ophthalmoscope, Halogen Fiber Optic Otoscope and Aneroid (DS-ULG-CHFH-DAX)
- Station with Halogen Coaxial Ophthalmoscope, Halogen Fiber Optic Otoscope, Aneroid and Infrared Tympanic Thermometry (DS-ULG-CHFH-DAI)

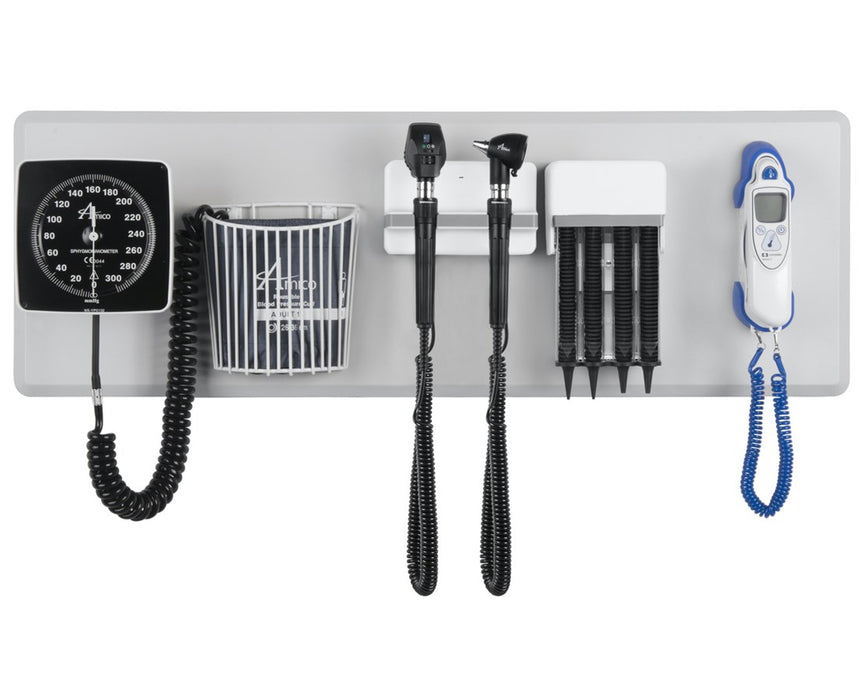

- Station with Halogen Coaxial Ophthalmoscope, Halogen Fiber Optic Otoscope, Aneroid and Oral/Axillary Thermometry (DS-ULG-CHFH-DAO)
- Station with Halogen Coaxial Ophthalmoscope and LED Fiber Optic Otoscope (DS-ULG-CHFL-DXX)
- Station with Halogen Coaxial Ophthalmoscope, LED Fiber Optic Otoscope and Aneroid (DS-ULG-CHFL-DAX)
- Station with Halogen Coaxial Ophthalmoscope, LED Fiber Optic Otoscope, Aneroid and Infrared Tympanic Thermometry (DS-ULG-CHFL-DAI)
- Station with Halogen Coaxial Ophthalmoscope, LED Fiber Optic Otoscope, Aneroid and Oral/Axillary Thermometry (DS-ULG-CHFL-DAO)
- Station with LED Coaxial Ophthalmoscope and LED Fiber Optic Otoscope (DS-ULG-CLFL-DXX)
- Station with LED Coaxial Ophthalmoscope, LED Fiber Optic Otoscope and Aneroid (DS-ULG-CLFL-DAX)
- Station with LED Coaxial Ophthalmoscope, LED Fiber Optic Otoscope, Aneroid and Infrared Tympanic Thermometry (DS-ULG-CLFL-DAI)
- Station with LED Coaxial Ophthalmoscope, LED Fiber Optic Otoscope, Aneroid and Oral/Axillary Thermometry (DS-ULG-CLFL-DAO)
