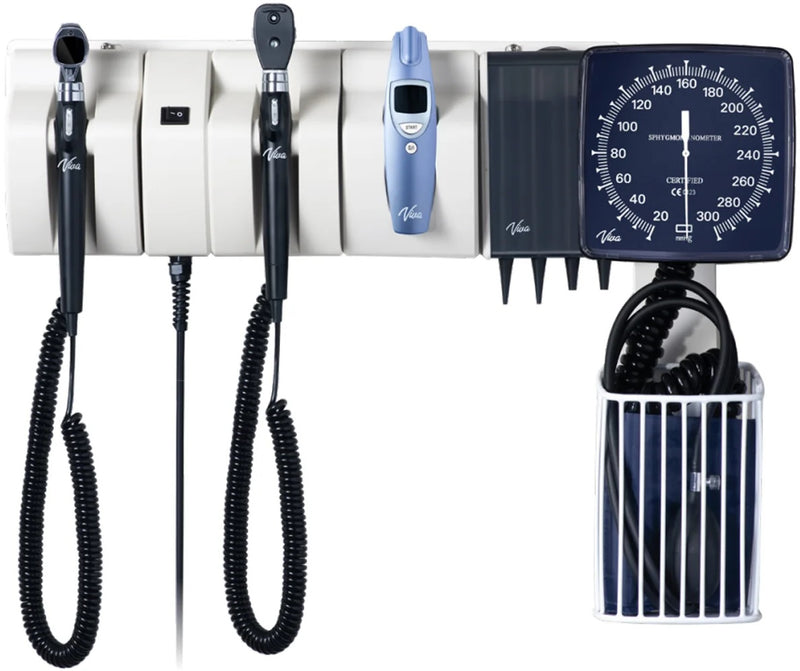

Green 777 Integrated Wall Diagnostic System

• INCLUDES: Transformer, Mounting Board, Specula Dispenser & USB power cable
• For Visual, Auditory & Vital Signs Assessment
• Offers Wide-View Visualization & Improved Design
• Enhanced Function w/ Long-Lasting LED Lamps on Ophthalmoscopes & Otoscopes
• Organized, Easy-to-Use & Accessible Diagnostic Tools
• Green Series Encourages Environmentally-Friendly Practice
• Compatible with Connex and Connex EMR Spot Vital Sign Monitors .

The Welch Allyn Green Series 777 Integrated Wall Diagnostic System is a set of medical devices combined together to help healthcare professionals in providing fast and efficient diagnostic examinations in a clinic or hospital set-up. Designed to easily access high-quality physical exam tools, this easy-to-install wall system effectively produces a more organized and reliable health facility, improving patient care.

Energy-efficient and reliable, the Green Series Integrated Wall System offers improved eye and ear assessments with the help of the Welch Allyn Ophthalmoscopes and Otoscopes, and an effective vital signs assessment with high-quality thermometer and BP measuring devices. Incorporating long-lasting LED lamps and automated handles on the medical tools, this wall system provides cost-efficient and productive day-to-day clinical practices.

STANDARD PACKAGE INCLUSIONS

WALL MOUNTING BOARD

The included Wall System Mounting Board is built with pre-drilled holes for an easier mounting of the medical devices. Made with high-quality and heavy-duty material, this wall board can be installed on any part of a clinic or hospital facility, providing a sturdy and accessible mount for Welch Allyn diagnostic tools.

WALL TRANSFORMER W/ POWER HANDLES

With an improved design, this Wall Transformer offers an energy-efficient usage of the physical exam tools, and provides a simple yet efficient way to undergo consultations. Each handle comes with a rheostat, allowing quick adjustments of the light intensity of the instrument, maximizing the potential of the Welch Allyn medical devices. The transformer includes modular coiled cords and an eight foot power cable, which allows for unrestricted installation. The handles are compatible with any Welch Allyn instrument heads.

KLEENSPEC EAR SPECULA DISPENSER

The KleenSpec Ear Specula Dispenser holds 524 series Ear Specula, which is compatible with the Welch Allyn MacroView LED Otoscopes. The dispenser attaches to the wall system, allowing an accessible reach of the Otoscope tips whenever needed during ear examinations.

MEDICAL DEVICES CONFIGURATION

COAXIAL LED OPHTHALMOSCOPE

The Welch Allyn Coaxial LED Ophthalmoscope has a patented Coaxial Vision System, which provides clear, precise examination of differently-sized pupils, vitreous disorders, and fundus, by eliminating shadows and reflections during viewing. Versatile and reliable, this improved Welch Allyn Ophthalmoscope features 28 lenses with a range of -25 - +40 diopters, 18 possible apertures, and polarizing and colored filters, which help to compensate for refractive errors.

PANOPTIC LED OPHTHALMOSCOPE

The Welch Allyn PanOptic LED Ophthalmoscope helps in the proper viewing of the inner part of a patient’s eye, also known as fundus, and its surrounding structures. It has long-lasting LED lamps for efficient illumination, has Durashock Technology for enhanced durability, and can provide a 20x larger viewing area than a typical Ophthalmoscope. It comes with a reusable eye cup to maintain a proper distance from clinician to patient. Available in Basic option with standard features, or Plus version that has an additional Quick Eye Alignment Technology feature, helpful in achieving a better patient optic disc alignment during eye exams.

MACROVIEW LED OTOSCOPE

The Macroview LED Otoscope comes with a long-lasting ColorSure LED illumination, has a field of view that is three times larger than a single-lens otoscope, and five times magnification feature that aids in a clearer visual of the ear canal and eardrum during ear exams. This device has a focus-free design, with an extended focal length, ensuring a clear and sharp image for a better ear examination. It can also be used for Pneumatic Otoscopy procedure, assessing the mobility and flexibility of the tympanic membrane through air pressure, since it has a closed system and an airtight seal. You can choose between a Basic LED Otoscope, or the Plus LED Otoscope compatible with the iExaminer feature.

SURETEMP PLUS 690 THERMOMETER

Providing reliable and accurate reading, the Suretemp Plus 690 Thermometer aids in capturing patient temperature efficiently - approximately 4-6 seconds (oral), 10-13 seconds (rectal or pediatric axillary), and 12-15 seconds (adult axillary). It has interchangeable probes and probe wells, and comes with disposable probe covers which significantly prevents cross-contamination. The device has a large LCD screen with a last temperature recall button, and captures 6,000 readings on a single set of 3 AA batteries.

767 WALL ANEROID SPHYGMOMANOMETER

The 767-Series Wall Aneroid Sphygmomanometer is a high-quality medical instrument designed to accurately obtain a patient’s blood pressure during physical examinations. It comes with a certified accuracy of ±3mmHg and features a laser-engraved dial for precise calibration offering dependable accuracy with every reading. It has a large dial face and brightly colored pointer for easy reading, and 40° swivel for clear viewing at all angles.

IEXAMINER SMARTBRACKET ACCESSORY

This accessory is compatible with Welch Allyn MacroView Plus LED Otoscope, which provides a more enhanced way to view the auditory structures during clinical examinations. Together with the iExaminer app and an iPhone device, the clinician can easily view, capture, and send clinical images digitally through this innovative accessory.

Available Options

The Welch Allyn Green Series 777 Integrated Wall Diagnostic System comes in different variations that differ on the package inclusions. Kindly choose your preference on the drop-down menu above.

Note: Two product options - 777-PM3WCX-US and 777-PM2WCX-US - come with mounting brackets, which are specially designed to accommodate Connex Spot Monitor (CSM) or Spot Vital Signs 4400 Device (Spot). These Connex medical devices are sold separately.

• w/ Coaxial LED Ophthalmoscope, MacroView Basic LED Otoscope (777-SM2WXX)
• w/ Coaxial LED Ophthalmoscope, MacroView LED Otoscope, Aneroid BP (777-SM2WAX)
• w/ PanOptic LED Ophthalmoscope, MacroView LED Otoscope, SureTemp Plus Thermometer (777-PM2WXS-US)
• w/ PanOptic LED Ophthalmoscope, MacroView LED Otoscope, Mounting Bracket for Connex Devices (777-PM2WCX-US)
• w/ PanOptic LED Ophthalmoscope, MacroView LED Otoscope (777-PM2WXX-US)
• w/ Coaxial LED Ophthalmoscope, MacroView LED Otoscope, Aneroid BP, SureTemp Plus Thermometer (777-SM2WAS)
• w/ PanOptic Plus LED Ophthalmoscope, MacroView Plus LED Otoscope, iExaminer SmartBracket, SureTemp Plus Thermometer (777-PM3WXS-US)
• w/ PanOptic Plus LED Ophthalmoscope, MacroView Plus LED Otoscope, iExaminer SmartBracket, Mounting Bracket for Connex Devices (777-PM3WCX-US)
• w/ PanOptic Plus LED Ophthalmoscope, MacroView Plus LED Otoscope, iExaminer SmartBracket (777-PM3WXX-US)
• w/ PanOptic LED Ophthalmoscope, MacroView LED Otoscope, Aneroid BP (777-PM2WAX-US)
• w/ PanOptic Plus LED Ophthalmoscope, MacroView Plus LED Otoscope, iExaminer SmartBracket, Aneroid BP (777-PM3WAX-US)
• w/ PanOptic LED Ophthalmoscope, MacroView LED Otoscope, Aneroid BP, SureTemp Plus Thermometer (777-PM2WAS-US)
• w/ PanOptic Plus LED Ophthalmoscope, MacroView Plus LED Otoscope, iExaminer Smart Bracket, Aneroid BP, SureTemp Plus Thermometer (777-PM3WAS-US)

Replaces the Discontinued Welch Allyn Wall Diagnostic Systems: 77710, 77791-MXL, 77797-X, 77795-MX, 77791-MX, 77792-ML, 77796-M, 77798, 77792-M, 77794-MCSM, 77791-MXPROBP, 77791-MXNOBP, 77792-MNOBP
