R Series ALS Hospital AED Defibrillator

by Zoll
MFR#: 30310000001030012
TIGER#: TM24221
Original price List Price: $12,073.60
You Save: $1,171.60 -10%
Original price $12,073.60 - Original price $12,073.60
Original price List Price: $12,073.60
Current price $10,902.00
$10,902.00 - $10,902.00
Current price $10,902.00
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
R Series ALS Hospital AED Defibrillator
R Series ALS Hospital AED Defibrillator - $10,902.00
$10,902.00
*Must Purchase 1 for R Series ALS Hospital AED Defibrillator

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 3/20/2024

The Zoll R Series ALS Monitor Defibrillator, the world's first Code-Ready® defibrillator, is an affordable, customizable, advanced resuscitation device recommended for use in hospitals. When seconds count in life-and-death situations, it is imperative to have a defibrillator that is always ready and simple to use. In addition to high-quality defibrillation, the R Series provides Real CPR Help® and See-Thru CPR to ensure that critical CPR is given correctly for optimal resuscitation efforts.

CPR Assistance

Real CPR Help® coaches responders to perform CPR correctly with real-time feedback, prompting users to begin compressions, push harder, and continue CPR, along with messages confirming that the CPR is being done effectively. It displays compression depth, compression rate, and lapse time indicators to ensure that CPR is consistent, properly timed, and deep enough; it also combines all three compression functions into the CPR Index™, one visual indicator that allows users to view the quality of their CPR efforts and adjust as necessary. Audio prompting urges users to "push harder" and "continue CPR," and exhorts "good compressions" when CPR is done correctly. The monitor is also capable of transmitting CPR data for review and playback of resuscitation efforts.

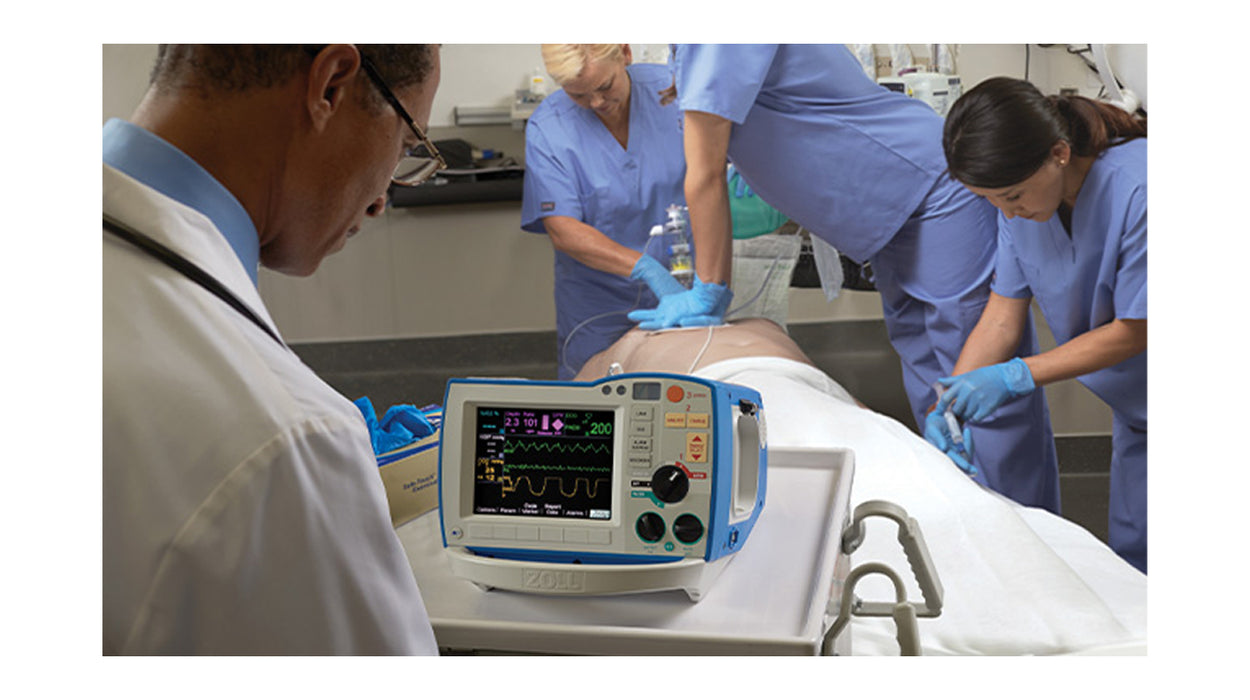

CPR is frequently interrupted unnecessarily to determine if a viable heart rhythm has developed. This cuts down on valuable lifesaving CPR time. See-Thru CPR allows responders to see heart rhythm in real time while performing CPR without stopping. It displays a filtered signal by separating the underlying heart rhythm from compression artifact so that rescuers don't have to stop multiple times in order to check if a shockable rhythm has been established.

Back to top

Defibrillator features

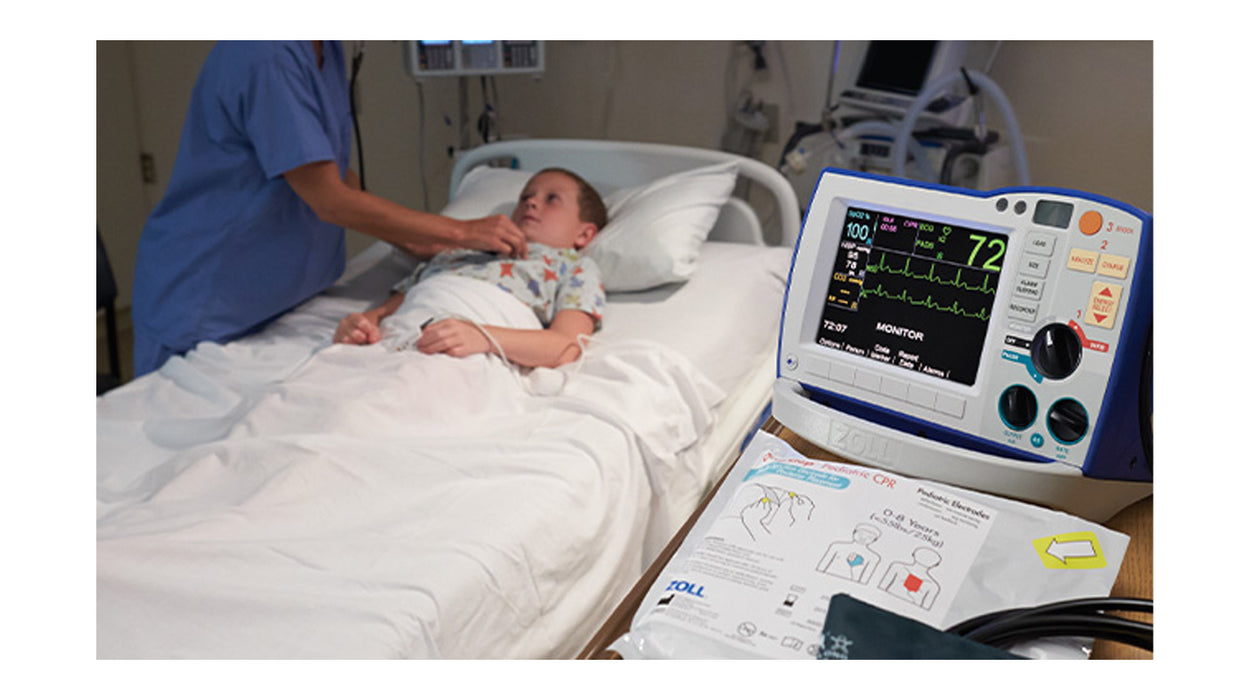

The R Series defibrillator is always code-ready, performing automatic self-checks daily to ensure that it is always ready when needed; it even tests electrode quality and detects expired electrodes. All R Series units are equipped with an Analyze switch to provide rescuers with a "second opinion." They also feature a pediatric analysis algorithm, activated with the connection of OneStep™ pediatric cables (sold separately) for safe use on children. The R Series includes a built-in Defib Mentor™ for training and familiarity tutorials to refresh users' memories for proper use.

The unit utilizes rectilinear biphasic technology for superior performance with less energy use. Contrary to popular belief, defibrillators with higher energy settings are not more capable than others. The rectilinear biphasic waveform has shown superior results in defibrillation at 200 J (compared with the average 360 J of other biphasic waveforms), delivering the right amount of average current over the optimal duration to high impedance patients.

The defibrillator is powered by integrated 120V/60Hz AC power and is compatible with a 5.8 Ah lithium ion battery pack (sold separately) for portability. It includes a built-in test port and compact flash card slot and is guaranteed for 5 years for product quality assurance and peace of mind.

Back to top

Parameters

The R Series is customizable with four high-quality parameters to suit every hospital's individual needs and budget. It may be ordered with various combinations of the four. Please see below for available configurations.

Customize your Zoll R Series ALS Hospital Defibrillator

The defibrillator may be ordered alone or with several combinations of the optional parameters above. Available configurations includes:

Only these configurations are available for purchase.

Use the drop-down menu in the upper right corner of this page to select your desired configuration, then click "add to cart" for hassle-free ordering at the lowest price.

Back to top

Non-invasive blood pressure (NIBP)

The R Series may be programmed to take single or multiple blood pressure readings for improved diagnostic testing. It uses SunTech's Advantage R-Wave motion-tolerant technology, which isolates pulses from outside noises even with patient movement and transport motion. It provides systolic, diastolic, and heart rate measurements simultaneously and automatically adjusts cuff inflation pressure based on the previous systolic reading. With NIBP, the R Series may be programmed to sound an alarm when blood pressure goes above or below user-configured limits and displays a four-hour history of blood pressure readings. A one-button function aborts any in-progress measurement or series of measurements at any time.

When ordered with NIBP, the defibrillator includes a 23-33 cm adult-sized latex-free cuff and 3 m air hose. It is compatible with neonatal, pediatric and adult patients (cuffs in other sizes sold separately).

Back to top

Pulse oximetry (SpO2)

The monitor may also be configured to measure pulse oximetry, or the level of oxygen saturation in blood. Featuring Masimo with Signal Extraction Technology, it provides highly accurate readings even with motion, external pacing, and patients in shock or with low perfusion. It monitors neonatal, pediatric and adult patients at risk of hypoxemia non-invasively and continuously. When simultaneously pacing, it monitors ECG and pulse rate as well.

When ordered with SpO2, the unit includes a reusable adult sensor and four-foot extension cable.

Back to top

End-tidal CO2 (EtCO2)

The lightweight, plug-and-play CAPNOSTAT® 5 Mainstream CO2 Sensor adds capnography, or a measure of carbon dioxide in expired gases, to the R Series defibrillator. Fast, reliable, printable capnograms are prominently displayed on the defibrillator screen for indication of abnormal waveforms in adult, pediatric, and neonatal patients.

Back to top

OneStep™ Pacing

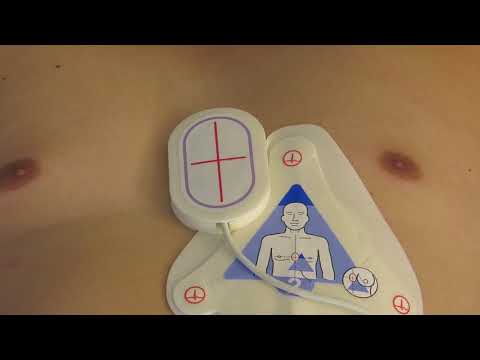

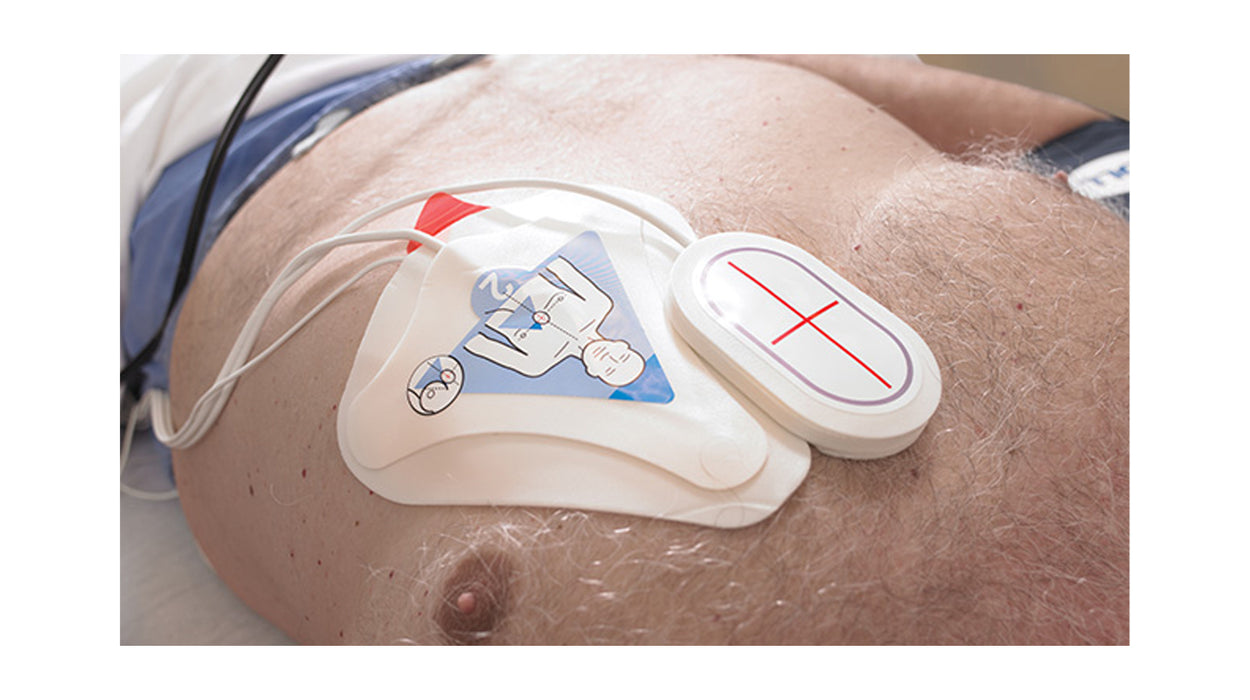

Zoll's innovative OneStep™ pacing technology provides half the current with twice the capture for heartbeat regulation with improved patient comfort. The external pacemaker may be temporarily stopped for observation of underlying ECG rhythm. Pacing relies on an external ECG signal and can often be cumbersome and confusing with extra ECG leads and electrodes. Zoll's OneStep™ Pacing electrodes combine ECG monitoring electrodes and pacing/defibrillation electrodes into one hands-free pad, eliminating tangles, confusion, and the need for multiple pads and wires.

When ordered with OneStep™ pacing, the R Series includes a OneStep™ pacing electrode, OneStep™ pacing cable, OneStep™ cable manager, and three built-in ECG leads.

Cardioversion

Synchronized cardioversion is shock delivery that is timed with the QRS complex. This synchronization avoids shock delivery during the relative refractory portion of the cardiac cycle, when a shock could produce ventricular fibrillation. The shock dose used for a synchronized shock is lower than that used for defibrillation.

Back to top

Made in the USA

Warning WARNING: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

  • Fast, reliable Code-Ready® hospital-grade ALS defibrillator with Cardioversion
  • Full-featured CPR assistance
  • For use in adult, pediatric, and neonatal patients
  • Rectilinear biphasic waveform technology
  • Optional customizable parameters: NIBP, SpO2, EtCO2, and OneStep™ pacing
  • 9 configurations available
  • High-quality ALS defibrillator with customizable parameters
  • CPR assistance with Real CPR Help® and See-Thru CPR for proper performance of CPR
  • Always code-ready; performs daily self-checks of leads, electrodes, and inner workings
  • Analyze mode for a "second opinion"
  • Pediatric analysis algorithm for use in children
  • Built-in Defib Mentor™ for on-the-spot refreshers and tutorials
  • Rectilinear biphasic technology provides superior performance with less energy use
  • Features built-in test port and compact flash card slot
  • Optional NIBP with SunTech Advantage R-Wave motion-tolerant technology, cuff and air hose
  • Optional Masimo SET pulse oximetry with reusable sensor and cable
  • Optional end-tidal CO2 (capnography) with CAPNOSTAT® 5 Mainstream CO2 Sensor
  • Optional OneStep™ pacing technology combines pacing/defibrillation and ECG electrodes in one pad
  • Nine configurations available
  • 5-year warranty

What’s in the Box

  • Zoll R Series ALS Defibrillator Main Unit
  • With optional NIBP:
    • Adult cuff
    • 3m air hose
  • With optional SpO2:
    • Masimo SET reusable adult sensor
    • 4-foot extension cable
  • With optional OneStep™ Pacing:
    • OneStep™ pacing electrode
    • OneStep™ pacing cable
    • OneStep™ cable manager
    • ECG leads
  • With optional EtCO2:
    • CAPNOSTAT® 5 Mainstream CO2 sensor
  • User's manual
  • Instructional CD
  • Warranty card

ITEMS WITH A LEAD TIME LONGER THAN 48 HOURS CANNOT BE RETURNED / CANCELLED. These are specially ordered, and we cannot accept returns or cancellations on such products for any reason. We take the responsibility to make sure your product arrives in brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

ITEMS WHICH SHIP OUT IN 24-48 HOURS. These are covered by our standard 30 day return policy from date of shipment. Return shipping charges are the responsibility of the customer. The product must be in new condition and in its original packaging.

For complete details of our return policy and process, please refer to our general return policy page.

ALLOCATED PRODUCTS BELOW ARE NON-CANCELLABLE, NON-RETURNABLE

  • PPE Apparel (Face Shields, Masks, Gloves, Gowns, Shoe Covers, Bouffant Caps, etc.) | COVID Tests | Alcohol / Alcohol prep pads | Batteries | Disinfecting solutions and wipes | Facial tissue | Hand sanitizers, soaps and dispensers | Hydrogen peroxide | | Spirometers | Thermometers | Saline / Solutions | Needles | Syringes
Environmental Specifications
Humidity
5% - 95% relative humidity
Operating Pressure
594 to 1060 millibars
Operating Temperature
0°C to 40°C
Storage Temperature
-20°C to 60°C
Parameters
Optional NIBP, SpO2, EtCO2, and OneStep Pacing
Physical Specifications
Battery Indicator?
Yes
Charge Time
Less than 7 seconds
Dimensions
8.2" x 10.5" x 12.5"
Paddle Type
External apex/sternum paddles; adult plates slide off to expose pediatric electrode surface (paddles sold separately)
Power Supply Type
AC and/or battery pack (sold separately)
Weight
13.6 lbs.
Protection
Electromagnetic Compatibility
CISPR 11 Class B Radiated and Conducted Emissions
Electromagnetic Immunity
AAMI DF80, EN 61000-4-3 to 10 V/m
Electrostatic Discharge
AAMI DF80, EN 61000-4-2
Particle/Water Ingress
IEC 529, IP22
Patient Safety Measures
All patient connections are electrically isolated
Shock
IEC 68-2-27, 50 g 6mS half-sine
Susceptibility
EN 61000-4-4, 61000- 4-5, 61000-4-6
Standards & Certifications
Meets or exceeds applicable requirements of UL 60601, AAMI DF80, IEC 60601-2-4, EN 60601-2-25, and 60601-2-27
Technical Specifications
CPR Assistance?
Yes; Real CPR Help and See-Thru CPR
Energy Selections
1 to 10, 15, 20, 30, 50, 75, 100, 120, 150 and 200 joules selected using controls on front of the defibrillator or sternum paddles
Patient Impedance Range
15-300 ohms
Self-Test Checks?
Yes, over 40 parameter automatically daily
Waveform
Rectilinear biphasic
Wireless Capability?
No
When using appropriate pediatric resuscitation electrodes, the 75 joule setting is replaced by 70 and 85 joule settings
Warranty
Warranty
5 years
