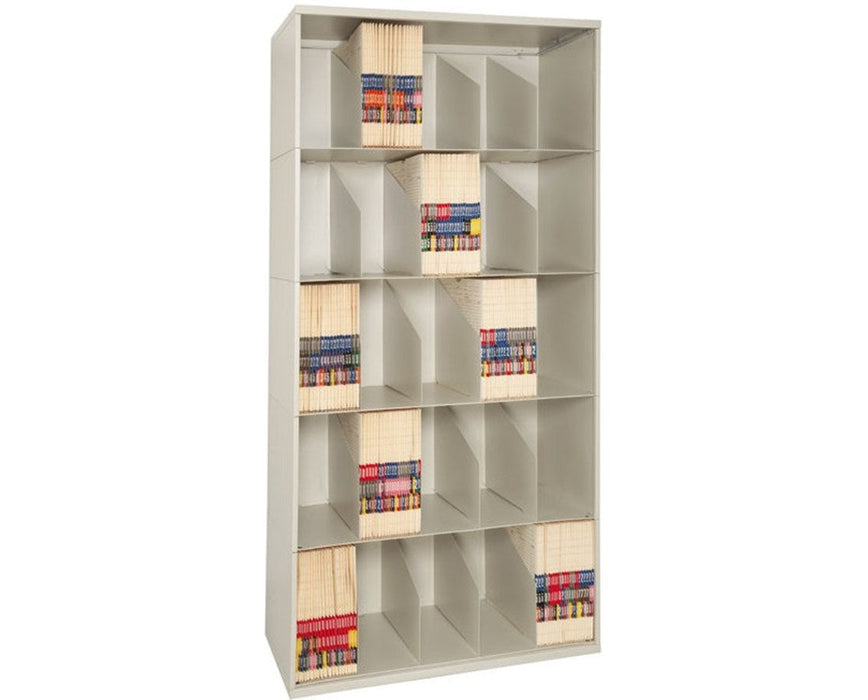

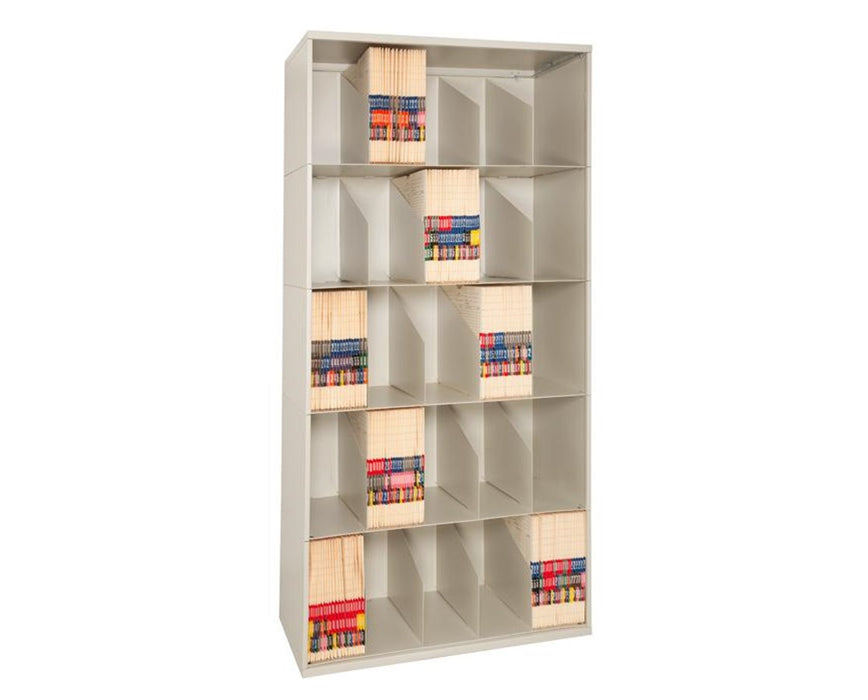

ThinStak Open Shelf Filing System - X-Ray File Depth

by Datum
MFR#: SO24XR5
TIGER#: TM12364
Original price List Price: $992.19
You Save: $312.61 -32%
Original price $992.19 - Original price $992.19
Original price List Price: $992.19
Current price $679.58
$679.58 - $679.58
Current price $679.58
Add to cart for Lower Price
ThinStak Open Shelf Filing System - X-Ray File Depth
ThinStak Open Shelf Filing System - X-Ray File Depth - $679.58
$679.58
*Must Purchase 1 for ThinStak Open Shelf Filing System - X-Ray File Depth

The cart will thereforce automatically set Qty to 1 when you order this product

PAINT COLOR

See all Shelving Options HERE

Ships Out Within: 20 - 30 Business Days Shipping Date By: 12/24/2024
  • Customizable and configurable to suit every space
  • Compatible with TrakSlider movable filing system
  • Sturdy and durable design with no sharp edges
  • Fixed dividers 15" high and 19-3/16" deep
  • Unit Width: 24", 30", 36", 42" & 48"
  • Tiers: 5 high (77") or 6 high (97")
  • Tier Design: Assembled or Unassembled .

The versatile ThinStak® X-Ray Open Shelf Filing System helps keep your medical documents organized and accessible while taking up a minimal amount of floor space.

Space Saver: When compared to lateral filing cabinets, this model stores more than 50% additional files while taking up 27% less floor space. It consists of individual stackable shelf tiers with fixed dividers on each tier, creating a complete shelving unit. Its configurable design allows you to add additional tiers for more storage space. It is incredibly durable and sturdy, manufactured from rust-free cold rolled steel without any sharp edges. The tiers are welded together using the latest manufacturing technologies for a true state-of-the-art, dependable shelving unit.

Specifications: Each tier on this model is 15" high with a 14 7/8" inside clear opening. The depth of the unit is 19 3/16" and the overall width is customizable. The overall height for the 5 tier is 77" and for the 6 tier 92". Each customizable model has a different amount of LFI (Explained below).

ThinStak Filing System - X-Ray File - Shelving Options Chart
Item # Width Tiers Height LFI* Tier Design
SO24XR5A 24" 5 77" 115" Fully Assembled
SO30XR5A 30" 145"
SO36XR5A 36" 175"
SO42XR5A 42" 205"
SO48XR5A 48" 235"
SO24XR5 24" 115" Unassembled
SO30XR5 30" 145"
SO36XR5 36" 175"
SO42XR5 42" 205"
SO48XR5 48" 235"
SO24XR6A 24" 6 92" 138" Fully Assembled
SO30XR6A 30" 174"
SO36XR6A 36" 210"
SO42XR6A 42" 246"
SO48XR6A 48" 282"
SO24XR6 24" 138" Unassembled
SO30XR6 30" 174"
SO36XR6 36" 210"
SO42XR6 42" 246"
SO48XR6 48" 282"

*LFI: Linear Filing Inches = The amount of actual filing inches your unit will have.

TrakSlider: The ThinStak can easily be upgraded to the TrakSlider™ System which is a movable file storage system that provides you with more storage space as you need it while eliminating aisles between shelves for increased efficiency.

Customize Your Shelving System

The ThinStak X-Ray Filing Unit comes with several customizable options in order to provide you with the perfect product that fits your specific needs. Select your preferences from the drop-down menus above.

Select Unit Width

You can choose from the following overall widths for your shelving unit.

  • 24" Wide
  • 30" Wide
  • 36" Wide
  • 42" Wide
  • 48" Wide

Select Shelves

Choose the amount of tiers you would like your unit to have.

  • 5 Tiers
  • 6 Tiers

Choose Tier Design

  • Unassembled
  • Fully Assembled

Click on "Available Colors" underneath the main product image to view color options.

(1) Prepunched Tops
Prepunched tops and bases ensure easy installation to Datum’s TrakSlider mobile system without drilling.

(2) Dividers
Fixed dividers provide ultimate organization.

(3) Posting Shelf
Optional posting shelf provides additional workspace and saves space by retracting when not in use.

(4) Compact Profile
Compact shelving profile increased storage space and efficiency.

Choose your customizable preferences from the drop-down menus above.



Warning WARNING: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

  • Customizable and configurable to suit every space
  • Compatible with TrakSlider movable filing system
  • Sturdy and durable design with no sharp edges
  • Fixed dividers 15" high and 19-3/16" deep
  • Available Options
  • Unit Width: 24", 30", 36", 42" & 48"
  • Tiers: 5 high (77") or 6 high (97")
  • Tier Design: Assembled or Unassembled

What’s in the Box

  • ThinStak™ X-Ray Filing System
  • Lifetime Warranty
  • 2 Year Labor Warranty
  • Lifetime Warranty
  • 2 Year Labor Warranty

Returns: Tiger Medical offers a 30-day return policy from date of shipment for this product on the following paint finishes Only: T15-Bone White, T47-Light Gray and T86-Gray Mist. Other colors are not returnable. Return is subject to a 20% restocking fee, in addition to the return shipping charges. The product must be in brand new condition and in its original packaging. We take the responsibility to make sure this product arrives in brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Cancellations: Items made to order, cannot be returned or canceled after production.

Capacity
File Size Compatibility
X-Ray
Filing Capacity (LFI)
115" - 282" LFI (See overview for details)
Number of Shelves
5 or 6
Construction & Features
Assembly Required?
Optional
Dividers Adjustable?
No
Dividers per Shelf
4 Fixed
Expandable?
Yes
Track System Compatible?
Yes
Country of Origin
Product made in:
USA
Dimensions & Weight
Depth
19-3/16"
Height
5 Tier: 77", 6 Tier: 92"
Product Weight
101 - 215 lbs.
Width
24", 30", 36", 42", or 48"
Material(s)
Color(s)
20 Colors Available
Divider Material
Steel
Finish
Powder-coat
Shelf Material
Steel
Uprights Material
Steel
Warranty
Lifetime
