Triple row of easily accessible shelving units
-
Expandable as your filing space requirements increase
-
Safe rolling filing system with overhead stabilizer and anti-tip mechanism
-
Sturdy and durable design with no sharp edges
-
Media: Letter, Legal, X-Ray
-
Unit Width: 36", 42", 48"
-
Shelves: 5, 6, 7, or 8 Tiers
-
Dividers: Fixed Dividers or Movable Plate Dividers .

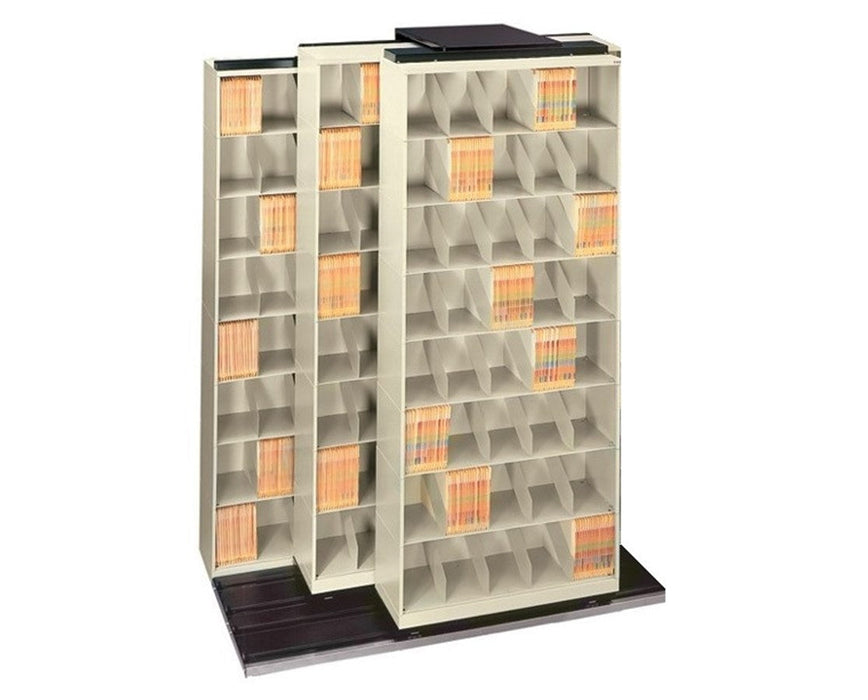

The versatile ThinStak TriSlider Open Shelf Filing System helps keep your medical documents organized and accessible while taking up a minimal amount of floor space. This configuration includes a triple row of shelves with two shelving units in the back, one in the middle, and one in the front. You can view many other customizable unit configurations in the Related Products Tab above.
ThinStak® Open Shelf Medical Filing Units
When compared to lateral filing cabinets, this model stores more than 50% additional files while taking up 27% less floor space. It consists of individual stackable shelf tiers with fixed or movable dividers on each tier, creating a complete shelving unit. Its configurable design allows you to add additional tiers and units for more storage space. It is incredibly durable and sturdy, manufactured from rust-free cold rolled steel without any sharp edges. The tiers are welded together using the latest manufacturing technologies for a true state-of-the-art, dependable shelving unit.
| ThinStak TriSlider Filing System 4 Units - 2/1/1 - Shelving Options Chart |
| Item # |
Media |
Depth |
Unit Width |
Overall Width |
LFI* |
Tiers |
Height |
Divider |
| T621LG7 |
Legal |
51-5/8" |
36" |
76" |
980" |
7 |
79-1/2" |
Fixed |
| TP621LG7 |
980" |
7 |
86-1/2" |
Movable |
| T621LG8 |
1,120" |
8 |
89-1/2" |
Fixed |
| TP621LG8 |
1,120" |
8 |
97-1/2" |
Movable |
| T221LG7 |
42" |
88" |
1,148" |
7 |
79-1/2" |
Fixed |
| TP221LG7 |
1,148" |
7 |
86-1/2" |
Movable |
| T221LG8 |
1,312" |
8 |
89-1/2" |
Fixed |
| TP221LG8 |
1,312" |
8 |
97-1/2" |
Movable |
| T821LG7 |
48" |
100" |
1,316" |
7 |
79-1/2" |
Fixed |
| TP821LG7 |
1,344" |
7 |
86-1/2" |
Movable |
| T821LG8 |
1,504" |
8 |
89-1/2" |
Fixed |
| TP821LG8 |
1,536" |
8 |
97-1/2" |
Movable |
| T621LT7 |
Letter |
42-5/8" |
36" |
76" |
980" |
7 |
79-1/2" |
Fixed |
| TP621LT7 |
980" |
7 |
86-1/2" |
Movable |
| T621LT8 |
1,120" |
8 |
89-1/2" |
Fixed |
| TP621LT8 |
1,120" |
8 |
97-1/2" |
Movable |
| T221LT7 |
42" |
88" |
1,148" |
7 |
79-1/2" |
Fixed |
| TP221LT7 |
1,148" |
7 |
86-1/2" |
Movable |
| T221LT8 |
1,312" |
8 |
89-1/2" |
Fixed |
| TP221LT8 |
1,312" |
8 |
97-1/2" |
Movable |
| T821LT7 |
48" |
100" |
1,316" |
7 |
79-1/2" |
Fixed |
| TP821LT7 |
1,344" |
7 |
86-1/2" |
Movable |
| T821LT8 |
1,504" |
8 |
89-1/2" |
Fixed |
| TP821LT8 |
1,536" |
8 |
97-1/2" |
Movable |
| T621XR5 |
X-Ray |
60-5/8" |
36" |
76" |
700" |
5 |
84-1/2" |
Fixed |
| T621XR6 |
840" |
6 |
99-1/2" |
Fixed |
| T221XR5 |
42" |
88" |
820" |
5 |
84-1/2" |
Fixed |
| T221XR6 |
984" |
6 |
99-1/2" |
Fixed |
| T821XR5 |
48" |
100" |
940" |
5 |
84-1/2" |
Fixed |
| T821XR6 |
1,128" |
6 |
99-1/2" |
Fixed |
*LFI: Linear Filing Inches = The amount of actual filing inches your unit will have.
TrakSlider™ Medical Filing System
The Tri-Slider triple depth file storage system consists of three rows of shelving units in which the front two rows slide from side to side on tracks, providing access to the back row of files. This method of storing your medical files greatly maximizes the use of floor space. The modular design of this system allows for easy expansion as your storage requirements increase. All Datum TrakSlider™ systems can be reconfigured and added onto at any time without the need to disassemble, relocate, or remove existing files.
All Datum TrakSlider™ track units consist of modular, all-welded steel frame and rail assemblies, flush decking, lateral rolling carriages, as well as overhead stabilizer and roller assemblies. The carriages include four wheels that ride on a double rail track for an added measure of stability and safety. The heavy-duty welded steel construction of this system includes an overhead anti-tip mechanism to ensure safe and easy movement of files. A reinforced steel leveling track means you can use the system safely, even on non-level floors!
Customize Your Shelving System
The ThinStak Tri-Slider Filing System comes with several customizable options in order to provide you with the perfect product that fits your specific needs. Select your preferences from the options shown above.
You can also view many other customizable unit configurations in the Related Products Tab above.
Select Media
There are three depth options to fit different types of medical files - Letter, Legal, or X-Ray.
- Letter - 13-3/16" Depth
- Legal - 16-3/16" Depth
- X-Ray - 19-3/16" Depth
Select Unit Width
You can choose from the following overall widths for your shelving units.
- 36" Wide
- 42" Wide
- 48" Wide
Select Shelves
Choose the amount of tiers you would like your unit to have.
- 5 Tiers
- 6 Tiers
- 7 Tiers
- 8 Tiers
Choose Divider
There are two types of shelf dividers to choose from - Movable Plate and Fixed. The Movable divider can be moved to the right or left as needed while the Fixed divider is a solid piece that stays in place.
- Fixed Divider
- Movable Plate Divider
Choose your customizable preferences from the options shown above.
|
|
|
(1) Prepunched Tops
Prepunched tops and bases ensure easy installation to Datum’s TrakSlider mobile system without drilling.
(2) Dividers
Fixed or adjustable dividers provide ultimate customization and organization.
(3) Posting Shelf
Optional posting shelf provides additional workspace and saves space by retracting when not in use.
(4) Compact Profile
Compact shelvingprofile increased storage space and efficiency.
|
