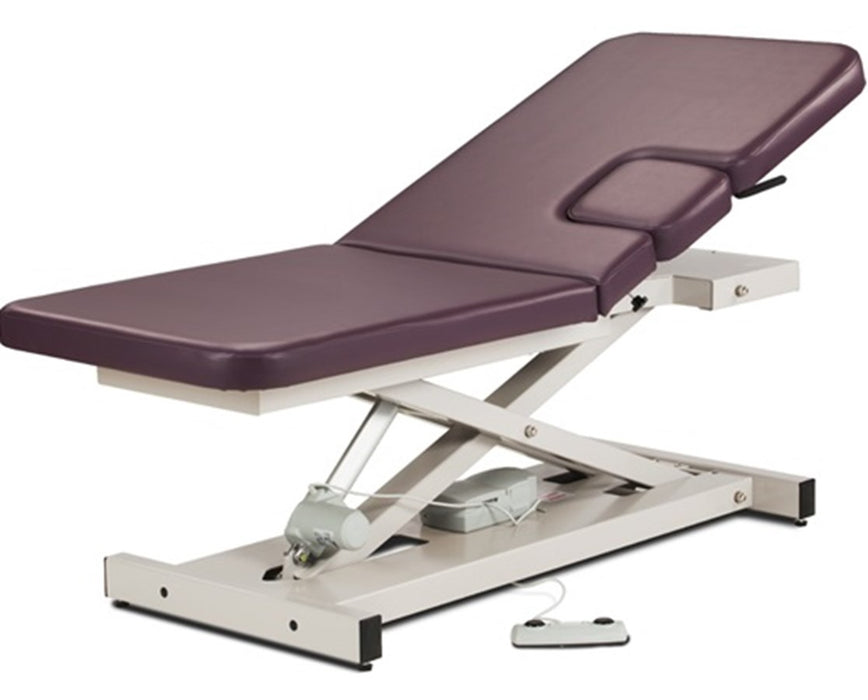

Power Hi-Lo Imaging Table. Open Base w/ Adjustable Back & Drop-Window

Clinton Industries
by Clinton Industries
MFR#: 85200
TIGER#: TM70396
List Price: $3,577.46
You Save: $982.46 -27%
$3,577.46 - $3,577.46
List Price: $3,577.46
$2,595.00
$2,595.00 - $2,595.00
$2,595.00
Add to cart for Lower Price
Power Hi-Lo Imaging Table. Open Base w/ Adjustable Back & Drop-Window
Power Hi-Lo Imaging Table. Open Base w/ Adjustable Back & Drop-Window - $2,595.00
$2,595.00
*Must Purchase 1 for Power Hi-Lo Imaging Table. Open Base w/ Adjustable Back & Drop-Window

The cart will thereforce automatically set Qty to 1 when you order this product

UPHOLSTERY COLOR
Ships Out Within: 20 - 30 Business Days
Documents
Brochure Available Colors Product Video
Essential Add-Ons:
White Exam Table Paper Roll (12/cs)
White Exam Table Paper Roll (12/cs)
Details
View product
Adjustable Exam Stool w/ Backrest
Adjustable Exam Stool w/ Backrest
Details
View product
Paper Dispenser/Cutter Combo
Paper Dispenser/Cutter Combo
Details
Height Control. Hand-Held
Height Control. Hand-Held
Details
This product ships in 24 - 48 hours!
Multi-Use Imaging Power Exam Table w/ Adjustable Back, Drop Section, Drop-Window, Casters & Antimicrobial Upholstery [Side Rails & Stirrups Option]
Viva Comfort
Multi-Use Imaging Power Exam Table w/ Adjustable Back, Drop Section, Drop-Window, Casters & Antimicrobial Upholstery [Side Rails & Stirrups Option]
Viva Comfort
High stock
View product

Recommended Add-Ons

Length Width Height Weight Capacity
72" 27" 18"-35" 500 lbs
  • Open Base table with a 10x10 hinged imaging window section
  • Pneumatic backrest is adjustable from either side
  • Powder-coated steel frame
  • Electric Power height adjustment
  • Hands free foot control
  • Heavy duty all welded lift mechanism
  • Height Range: 18" - 35" .

The Clinton Open Base Power Imaging Table with Window Drop offers ultra strong construction and a user-friendly mechanism.

Table Features: The Open Base Power Imaging Table with Window Drop and Adjustable Backrest is an open base table with a 10x10 hinged imaging window section. This table features a pneumatic backrest that is adjustable from either side and raises 80 degrees from a flat surface. The Imaging Window section is secured with a metal slide latch.

Comfortable: A comfortable upholstered top provides 2" of ultra-firm padding and rounded corners.

Table Mechanism: The Clinton Power Table offers a smooth 110 volt electric power height adjustment with foot control, a hands free low voltage foot control, and a heavy duty, all welded, lift mechanism. Self contained electrical components provide easy service. Self-lubricating pivot points are included. The power supply and motor meets the UL 60601-1 and CAN/CSA C22.2 601.1.

Table Frame: Clinton produces an ultra-strong, uni-frame base with top construction. The durable gray powder-coated steel frame is guaranteed to offer you years of service. This table's low height may help achieve an ADA tax credit. This is an easy-clean ABS plastic enclosed lift.

Dimensions and Capacity: The Open Base Power Imaging Table with Window Drop and Adjustable Backrest accommodates up to 500 lbs. Dimensions are:

Overall: Length: 72"L Width: 27"
Height Range: 18" - 35"

Options: This Power Table is available in 9 attractive colors with a variety of table options. Please review your choices below and select your preference by clicking on the Customize icon above.

  • Height Control - Hand-Held
  • Locking Casters
  • Paper Cutter
  • Paper Dispenser
  • Paper Dispenser/Cutter Combo

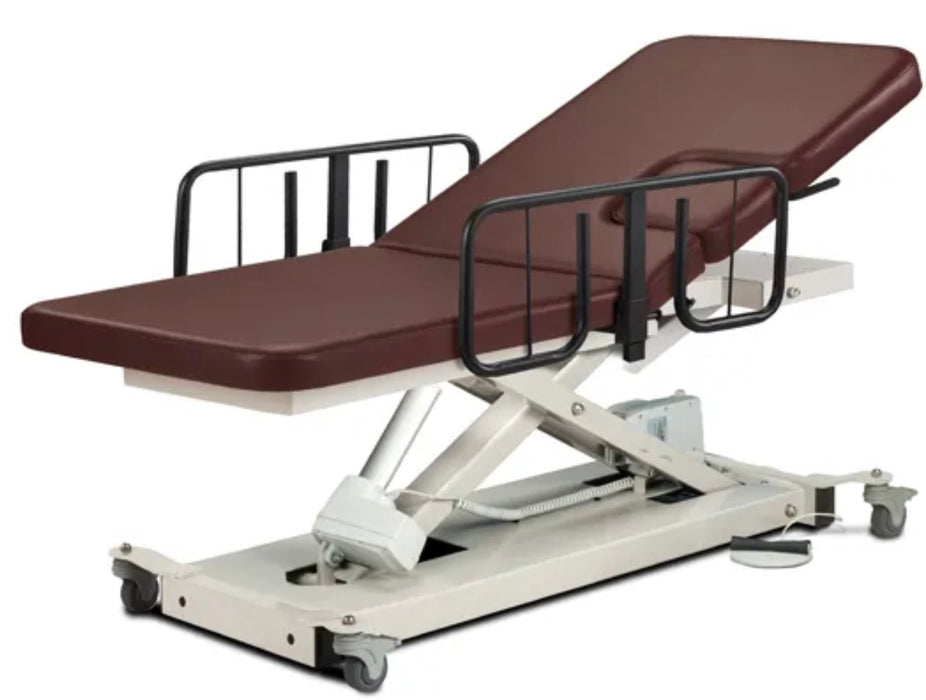

  • Safety Rails
  • Safety Straps

Order now by clicking "Add to Cart!" in the drop down box above

Made in the USA

Warning WARNING: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

LengthWidthHeightWeight Capacity
72"27"18"-35"500 lbs
  • Open Base table with a 10x10 hinged imaging window section
  • Pneumatic backrest is adjustable from either side
  • Powder-coated steel frame
  • Electric Power height adjustment
  • Hands free foot control
  • Heavy duty all welded lift mechanism
  • Height Range: 18" - 35"

What’s in the Box

  • Open Base Imaging Power Table with Window Drop and Adjustable Backrest
  • 3 Year Limited Warranty

Options:

  • Height Control - Hand-Held
  • Locking Casters
  • Paper Cutter
  • Paper Dispenser
  • Paper Dispenser/Cutter Combo
  • Safety Rails
  • Safety Straps

WARRANTY: 3 Years

RETURNS: Tiger Medical offers a 30 day return policy from date of shipment for this product, subject to a 20% restocking fee, in addition to the return shipping charges. The product must be in brand new condition and in its original packaging. Blood drawing products are non-returnable unless they are unused in unopened, original packaging. We take the responsibility to make sure this product arrives in brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you. For complete details of our return policy and process, please refer to our general return policy page.

Special order items are non-returnable, non-cancelable for any reason once production begins, this includes custom height, length, or large volume orders over $20,000

WEIGHT & DIMENSIONS
Weight Capacity
500 lbs.
Dimensions - Overall
72" L x 27" W x 18" - 35" H
Width
27"
Height
18" - 35"
Length
72"
Length. With Extended Footrest
-
Extended Footrest. Length
-
Extended Footrest. Width
-
Dimensions. Front Drawer
-
Dimensions. Side Drawer
-
Weight
345 lbs.
DESIGN
Drawers / Shelves
-
Sections
2-Section
Back Section Angle
0 to 80 degrees
Seat Section Angle
-
Pelvic Tilt Angle
-
Wheels
Optional
WARRANTY
Details
3 Years
ADD ONS
Stirrups
N/A
Drawer Warmer
N/A
Paper Dispenser [Capacity]
N/A
Assist Handles
Optional
Accessories
Optional: Paper Roll Dispenser, Armboard, IV Pole Bracket, Safety Strap
POWER
Height Speed
-
Backrest Speed
-
Voltage
110 volt
Motors
-
Motor Brand
-
Foot Switch
Yes
MATERIALS
Material. Seat
2" Ultra-Firm Padding
Material. Upholstery
Vinyl Upholstery
Material. Drawer
-
Material. Base
Gray, Powder-Coated Steel
Material. Board
-
Upholstery Colors
9 Available Colors
CERTIFICATIONS
Standards
UL 60601-1 and CAN/CSA C22.2 601.1; ADA Compliant
COUNTRY OF ORIGIN
Made In
USA
ASSEMBLY
Info
Shipped Assembled
